springboot 完整企业项目搭建实记

昨天搭建ssm框架时突然想到可以搭建springboot来完美解决配置复杂的问题，今天学习了一下springboot的搭建，在此记录一下搭建的过程和踩过的坑

这里给自己定一个该框架搭建完成的目标，如下
框架要求功能：
- 处理http/json 请求
- 日志记录
- 持久化
- 数据源，事务控制
- 定时任务
- 视图模版

搭建环境：
- 编译器：idea 2016.2.4
- Maven : maven3.0
- JDK: java7
- 系统: mac OS 10.10.4
- 数据库: mysql5.6

2017-03－29
搭建记录

1. 新建maven应用（不需要web应用）
2. 在pom中添加以下配置


    <parent>
        <groupId>org.springframework.bootgroupId>
        <artifactId>spring-boot-starter-parentartifactId>
        <version>1.4.0.RELEASEversion>
    parent>


    <dependencies>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>
    dependencies>

1. 新建controller

@Controller
@EnableAutoConfiguration
public class TestBootController {

    @RequestMapping("/")
    @ResponseBody
    String home() {
    return "hello world";
    }

    public static void main(String[] args) throws Exception {
    SpringApplication.run(TestBootController.class, args);
    }
}

此时的项目目录结构是这样的

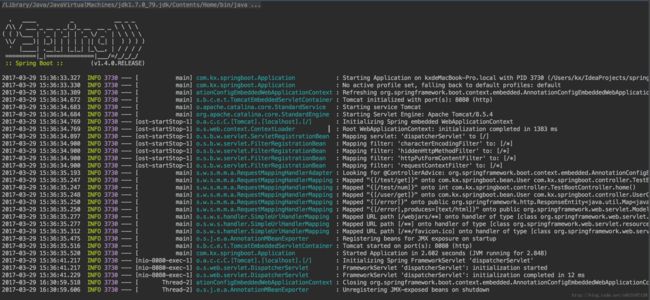

1. 启动main函数，可以看到控制台输出，非常简单明了

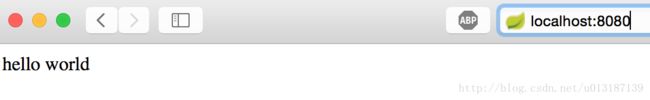

1. 端口默认是8080，启动log已经写了，访问后如图所示


2. 在搭建了基础应用的基础上，想增加service层抽离控制层和业务层代码

//业务层接口
public interface TestInterFace {

    public int testInterFace();

    public User testUser();
}

//业务层接口实现
@Service
public class TestInterFaceImpl implements TestInterFace {
    @Override public int testInterFace() {
    return 0;
    }

    @Override public User testUser() {
    return new User();
    }
}

修改controller层代码

@Controller
@EnableAutoConfiguration
public class TestBootController {
    @Autowired
    private TestInterFace testInterFace;

    @RequestMapping("/num")
    @ResponseBody
    int home() {
    int i = testInterFace.testInterFace();
    return i;
    }
    @RequestMapping("/get")
    @ResponseBody User getUser() {
    return testInterFace.testUser();
    }

    public static void main(String[] args) throws Exception {
    SpringApplication.run(TestBootController.class, args);
    }

}

启动后抛异常

org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name ‘testBootController’: Unsatisfied dependency expressed through field ‘testInterFace’: No qualifying bean of type [com.kx.springboot.service.TestInterFace] found for dependency [com.kx.springboot.service.TestInterFace]: expected at least 1 bean which qualifies as autowire candidate for this dependency. Dependency annotations: {@org.springframework.beans.factory.annotation.Autowired(required=true)}; nested exception is org.springframework.beans.factory.NoSuchBeanDefinitionException: No qualifying bean of type [com.kx.springboot.service.TestInterFace] found for dependency [com.kx.springboot.service.TestInterFace]: expected at least 1 bean which qualifies as autowire candidate for this dependency. Dependency annotations: {@org.springframework.beans.factory.annotation.Autowired(required=true)}

相信大家对这种异常非常常见，注入失败，这时候问题来了，按照传统的方式，对注入进行检查。service层已经加了@service的注解，怎么还是注入失败了呢，想查看配置文件，发现springboot没有配置文件，那么他是怎么扫描注解的呢?

百度了一下才知道，springboot默认按照包顺序注入，所以在创建controller时service还没有注入，springboot不需要传统的xml配置扫描包，只需要添加注解@ComponentScan(basePackages={“com.kx.springboot.service”}),代码如下

@Controller
@EnableAutoConfiguration
@ComponentScan(basePackages={"com.kx.springboot.service"})//添加的注解
public class TestBootController {
    @Autowired
    private TestInterFace testInterFace;

    @RequestMapping("/num")
    @ResponseBody
    int home() {
    int i = testInterFace.testInterFace();
    return i;
    }
    @RequestMapping("/get")
    @ResponseBody User getUser() {
    return testInterFace.testUser();
    }

    public static void main(String[] args) throws Exception {
    SpringApplication.run(TestBootController.class, args);
    }

}

再次启动，成功，访问http://localhost:8088/get

{“username”:”username寇鑫123”,”password”:”password寇鑫123”}

1. 这时候，又有一个问题，web应用都是多controller，这种启动方式一次只能启动一个controller，那么，怎么才能启动应用后访问多个controller，查阅springboot官方教程后，修改代码如下

增加 UserController

@Controller
@RequestMapping("user")
public class UserController {
    @Autowired
    private TestInterFace testInterFace;

    @RequestMapping("/get")
    @ResponseBody User getUser() {
    return testInterFace.testUser();
    }
}

修改原来 TestBootController

@Controller
@RequestMapping("test")
public class TestBootController {
    @Autowired
    private TestInterFace testInterFace;

    @RequestMapping("/num")
    @ResponseBody
    int home() {
    int i = testInterFace.testInterFace();
    return i;
    }

    @RequestMapping("/get")
    @ResponseBody User getUser() {
    return testInterFace.testUser();
    }
}

在包的最外层增加新的应用启动入口 —> Application

@EnableAutoConfiguration
@ComponentScan(basePackages={"com.kx.springboot"})
public class Application {
    public static void main(String[] args) throws Exception {
    SpringApplication.run(Application.class, args);
    }
}

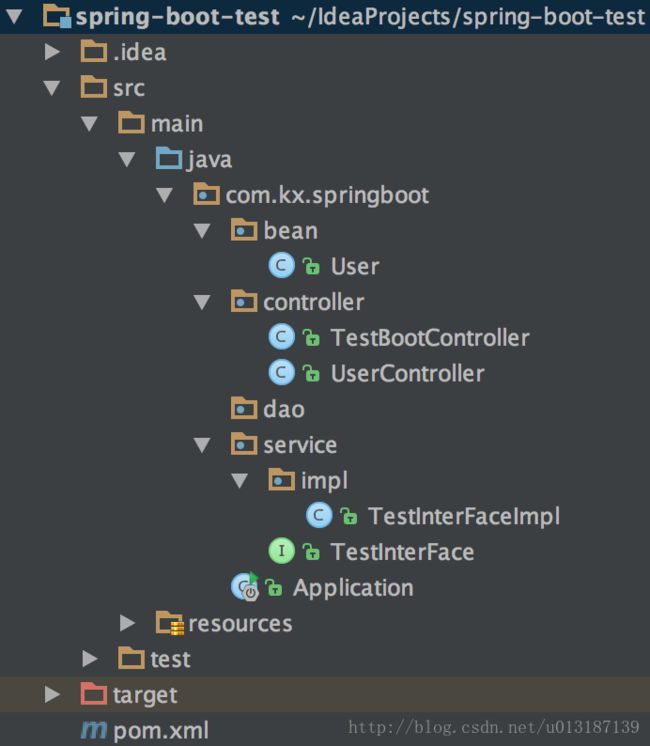

可以看到，应用启动入口配置了扫描所有包。此时整个项目的结构如图所示

1. 启动应用后访问

http://localhost:8080/test/get

{“username”:”username寇鑫123”,”password”:”password寇鑫123”}

http://localhost:8080/user/get

{“username”:”username寇鑫123”,”password”:”password寇鑫123”}

到此，符合处理http/json 的web框架已经搭建ok了

---

＝＝＝＝＝＝＝＝＝＝＝＝2017-3-30 ＝＝＝＝＝＝＝＝＝＝＝＝＝

第一步处理http/json已经完成了，现在给我们的框架里加上日志记录的功能

要求：
- 日志按天记录，自动生成当天的记录文件
- 日志分级存储（info,error）

Springboot自带日志，所以我们现在直接在SpringBoot中添加日志

修改 TestController

@Controller
@RequestMapping("test")
public class TestBootController {
//增加日志
    private final Logger log = LoggerFactory.getLogger(TestBootController.class);

    @Autowired
    private TestInterFace testInterFace;

    @RequestMapping("/num")
    @ResponseBody
    int home() {
    int i = testInterFace.testInterFace();
    return i;
    }
    @RequestMapping("/get")
    @ResponseBody User getUser() {
    //打印日志
    log.info("TestBootController getUser info");
    return testInterFace.testUser();
    }
}

只增加了两行代码，现在启动尝试打印日志

访问 http://localhost:8080/test/get

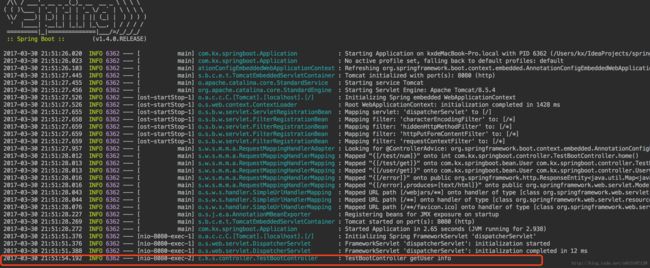

可以看到我们的日志已经打出来了，那么现在又有疑问了，这个日志只是打在控制台了，并没有生成文件，查询后发现默认日志如果要打印生成文件需要添加application.properties，而添加这个只可以打固定名称格式的日志，并不能灵活的配置，所以添加Springboot默认支持的logback作为标准日志输出

添加新的pom依赖

 <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-loggingartifactId>
dependency>

在resource下添加logback配置文件logback.xml

首先配置按天生成日志，尝试日志文件打印输出

<configuration debug="false">

    <property name="LOG_HOME" value="/Users/kx/Desktop" />

    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">

            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%npattern>
        encoder>
    appender>

    <appender name="FILE"  class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">

            <FileNamePattern>${LOG_HOME}/TestSpringBoot.log.%d{yyyy-MM-dd}.logFileNamePattern>

            <MaxHistory>30MaxHistory>
        rollingPolicy>
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">

            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%npattern>
        encoder>

        <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
            <MaxFileSize>10MBMaxFileSize>
        triggeringPolicy>
    appender>


    <root level="INFO">
        <appender-ref ref="STDOUT" />
        <appender-ref ref="FILE" />
    root>
configuration>

启动应用，尝试输出日志

访问 http://localhost:8080/test/get

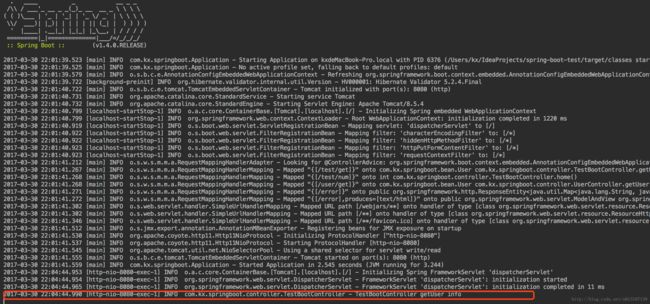

好吧，首先发现我们的日志不是彩色的了，哭～，不过还好日志打出来了，那么看看我们的文件有没有生成

//生成文件
-rw-r--r--  1 kx  staff   5117  3 30 22:19 TestSpringBoot.log.2017-03-30.log

//info 日志打印效果
2017-03-30 22:21:03.341 [http-nio-8080-exec-3] INFO  com.kx.springboot.controller.TestBootController - TestBootController getUser info

OK，文件也完美的按照我们指定的路径生成了，并且文件命名方式按照配置的日期命名，日志打印的内容也按照配置的内容正确的打印了，现在配置info日志和error日志，区分info和error打出来的日志文件

修改 logback.log 增加新的error appender 修改原来的appender 为 info

<configuration debug="false">

    <property name="LOG_HOME" value="/Users/kx/Desktop" />

    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">

            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%npattern>
        encoder>
    appender>



    <appender name="DAYINFO"  class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">

            <FileNamePattern>${LOG_HOME}/TestSpringBoot_info.log.%d{yyyy-MM-dd}.logFileNamePattern>

            <MaxHistory>30MaxHistory>
        rollingPolicy>

        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>errorlevel>
            <onMatch>ACCEPTonMatch>
            <onMismatch>DENYonMismatch>
        filter>
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">

            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%npattern>
        encoder>

        <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
            <MaxFileSize>10MBMaxFileSize>
        triggeringPolicy>
    appender>


    <appender name="DAYERROR"  class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">

            <FileNamePattern>${LOG_HOME}/TestSpringBoot_error.log.%d{yyyy-MM-dd}.logFileNamePattern>

            <MaxHistory>30MaxHistory>
        rollingPolicy>

        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>errorlevel>
            <onMatch>ACCEPTonMatch>
            <onMismatch>DENYonMismatch>
        filter>
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">

            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%npattern>
        encoder>

        <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
            <MaxFileSize>10MBMaxFileSize>
        triggeringPolicy>
    appender>


    <root level="INFO">
        <appender-ref ref="STDOUT" />
        <appender-ref ref="DAYINFO" />
        <appender-ref ref="DAYERROR" />
    root>
configuration>

启动应用后发现已经新增了两个日志文件，命名完全按照配置

-rw-r--r--  1 kx  staff      0  3 30 22:19 TestSpringBoot_error.log.2017-03-30.log
-rw-r--r--  1 kx  staff   5117  3 30 22:19 TestSpringBoot_info.log.2017-03-30.log

访问 http://localhost:8080/test/get

//info 日志打印效果
2017-03-30 22:21:03.341 [http-nio-8080-exec-3] INFO  com.kx.springboot.controller.TestBootController - TestBootController getUser info

//error 日志打印效果
2017-03-30 22:21:03.342 [http-nio-8080-exec-3] ERROR com.kx.springboot.controller.TestBootController - TestBootController getUser error

我们发现error日志和info日志已经按照我们的要求已经打印到对应的文件中了，那么现在我们想解决一下控制台彩色输出的模块,刚好百度到了这里的代码（珍藏）

    <conversionRule conversionWord="clr" converterClass="org.springframework.boot.logging.logback.ColorConverter" />
    <conversionRule conversionWord="wex" converterClass="org.springframework.boot.logging.logback.WhitespaceThrowableProxyConverter" />
    <conversionRule conversionWord="wEx" converterClass="org.springframework.boot.logging.logback.ExtendedWhitespaceThrowableProxyConverter" />

    <property name="CONSOLE_LOG_PATTERN" value="${CONSOLE_LOG_PATTERN:-%clr(%d{yyyy-MM-dd HH:mm:ss.SSS}){faint} %clr(${LOG_LEVEL_PATTERN:-%5p}) %clr(${PID:- }){magenta} %clr(---){faint} %clr([%15.15t]){faint} %clr(%-40.40logger{39}){cyan} %clr(:){faint} %m%n${LOG_EXCEPTION_CONVERSION_WORD:-%wEx}}" />

    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>${CONSOLE_LOG_PATTERN}pattern>
            <charset>utf8charset>
        encoder>
    appender>

看一下我们现在的logback日志总文件

<configuration>

    <property name="LOG_HOME" value="/Users/kx/Desktop" />




    <conversionRule conversionWord="clr" converterClass="org.springframework.boot.logging.logback.ColorConverter" />
    <conversionRule conversionWord="wex" converterClass="org.springframework.boot.logging.logback.WhitespaceThrowableProxyConverter" />
    <conversionRule conversionWord="wEx" converterClass="org.springframework.boot.logging.logback.ExtendedWhitespaceThrowableProxyConverter" />

    <property name="CONSOLE_LOG_PATTERN" value="${CONSOLE_LOG_PATTERN:-%clr(%d{yyyy-MM-dd HH:mm:ss.SSS}){faint} %clr(${LOG_LEVEL_PATTERN:-%5p}) %clr(${PID:- }){magenta} %clr(---){faint} %clr([%15.15t]){faint} %clr(%-40.40logger{39}){cyan} %clr(:){faint} %m%n${LOG_EXCEPTION_CONVERSION_WORD:-%wEx}}" />

    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>${CONSOLE_LOG_PATTERN}pattern>
            <charset>utf8charset>
        encoder>
    appender>









    <appender name="DAYINFO"  class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">

            <FileNamePattern>${LOG_HOME}/TestSpringBoot_info.log.%d{yyyy-MM-dd}.logFileNamePattern>

            <MaxHistory>30MaxHistory>
        rollingPolicy>
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>infolevel>
            <onMatch>ACCEPTonMatch>
            <onMismatch>DENYonMismatch>
        filter>
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">

            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%npattern>
        encoder>

        <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
            <MaxFileSize>10MBMaxFileSize>
        triggeringPolicy>
    appender>

    <appender name="DAYERROR"  class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">

            <FileNamePattern>${LOG_HOME}/TestSpringBoot_error.log.%d{yyyy-MM-dd}.logFileNamePattern>

            <MaxHistory>30MaxHistory>
        rollingPolicy>
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>errorlevel>
            <onMatch>ACCEPTonMatch>
            <onMismatch>DENYonMismatch>
        filter>
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">

            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%npattern>
        encoder>

        <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
            <MaxFileSize>10MBMaxFileSize>
        triggeringPolicy>
    appender>



    <root level="INFO">
        <appender-ref ref="STDOUT" />
        <appender-ref ref="DAYERROR" />
        <appender-ref ref="DAYINFO" />
    root>
configuration>

再次运行项目，访问 http://localhost:8080/test/get

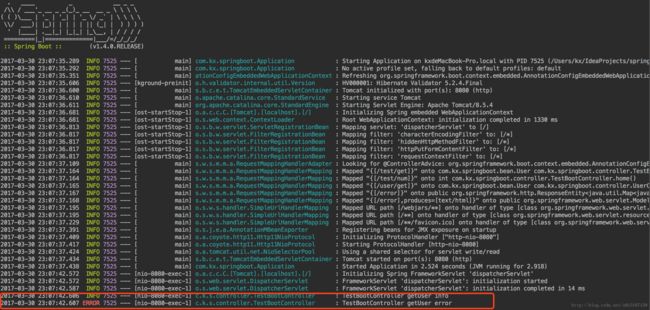

哈哈哈，我们的彩色日志又回来了，而且结构清晰，调试代码的时候简直神器啊

2017-04-01

＝＝＝＝＝＝＝＝＝＝＝=整合Mybatis＝＝＝＝＝＝＝＝＝＝＝＝

在众多orm框架中，我对mybatis最熟悉，所以我采用mybatis进行整合，对我们的orm框架，这里我们也提出几点要求

• 支持分页
• curd接口抽象处理
• 事务控制
• 多数据源

在查阅了一些资料后，找到目前为止最简单的一种整合mybatis方式，这里贴出原始博客地址

http://blog.didispace.com/springbootmybatis/

参照大神的整合，我们的整合异常的顺利，贴出我们增加的代码

在pom中添加以下依赖

<dependency>
    <groupId>org.mybatis.spring.bootgroupId>
    <artifactId>mybatis-spring-boot-starterartifactId>
    <version>1.1.1version>
dependency>
<dependency>
    <groupId>mysqlgroupId>
    <artifactId>mysql-connector-javaartifactId>
    <version>5.1.21version>
dependency>

在application.properties 中增加以下配置

spring.datasource.url=jdbc:mysql://localhost:3306/test
spring.datasource.username=root
spring.datasource.password=123456
spring.datasource.driver-class-name=com.mysql.jdbc.Driver

表结构

Create Table: CREATE TABLE `userinfo` (
  `id` int(20) NOT NULL AUTO_INCREMENT,
  `username` varchar(20) DEFAULT NULL,
  `password` varchar(20) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=8 DEFAULT CHARSET=utf8

编写dao层代码,新建UserDao 接口

@Mapper
public interface UserDao {
    @Select("SELECT * FROM USERINFO WHERE username = #{username}")
    UserInfo findByName(@Param("username") String username);

    @Insert("INSERT INTO USERINFO(username, password) VALUES(#{username}, #{password})")
    int insert(@Param("username") String name, @Param("password") String password);

}

在业务层增加对dao层接口的引用,修改TestInterFace,TestInterFaceImpl

public interface TestInterFace {

    public int testInterFace();

    public UserInfo testUser();

    public int insertUser(String username,String password);//新增的接口
}


@Service
public class TestInterFaceImpl implements TestInterFace {
    //引入dao层接口
    @Autowired UserDao userDao;
    @Override public int testInterFace() {
    return 0;
    }

    @Override public UserInfo testUser() {
    return new UserInfo();
    }

    //新增的接口实现
    @Override public int insertUser(String username,String password) {
    return userDao.insert(username,password);
    }
}

接下来修改我们的controller，提供对外的接口,修改UserController

@Controller
@RequestMapping("user")
public class UserController {
    @Autowired
    private TestInterFace testInterFace;

    @RequestMapping("/get")
    @ResponseBody UserInfo getUser() {
    return testInterFace.testUser();
    }

    //增加新的对外访问接口
    @RequestMapping("/add")
    @ResponseBody String add() {
        testInterFace.insertUser("username123寇鑫","password123寇鑫");
        return "插入成功";
    }
}

来测试一下我们的新接口，访问 http://localhost:8080/user/add

看到浏览器已经正常返回了，接下来去数据库看看数据有没有实际插入

+----+-------------------+-------------------+
| id | username          | password          |
+----+-------------------+-------------------+
|  1 | username123寇鑫   | password123寇鑫   |
+----+-------------------+-------------------+

可以看到，在我们的表中，已经插入了一条数据，并且中文显示正常。但现在每次新加一个接口，都要对应的写一条sql，这样很麻烦，而且不利于开发，业务方不能专注于业务的开发，所以我们要抽象出来通用的curd接口，并且支付分页。

2017-04-04

mybatis有很多成熟的分页插件以及通用接口插件，这里我们也采用目前较为成熟的方案，不必重复造轮子。
添加pom


<dependency>
    <groupId>com.github.pagehelpergroupId>
    <artifactId>pagehelperartifactId>
    <version>4.2.1version>
dependency>

<dependency>
    <groupId>tk.mybatisgroupId>
    <artifactId>mapperartifactId>
    <version>3.3.9version>
dependency>

因为springboot 不需要设置xml，所以这里都采用注解和代码的形式注入插件

新建配置类

package com.kx.springboot.dao.mybatis;

import com.github.pagehelper.PageHelper;
import org.apache.ibatis.plugin.Interceptor;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.springframework.context.annotation.Bean;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.core.io.support.ResourcePatternResolver;

import java.util.Properties;

/**
 * Created by kx on 17/4/2.
 */
public class MyBatisConfig {
    @Bean(name = "sqlSessionFactory")
    public SqlSessionFactory sqlSessionFactoryBean() {
    SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
//  bean.setDataSource(dataSource());

    bean.setTypeAliasesPackage("com.kx.springboot.bean");

    //分页插件设置
    PageHelper pageHelper = new PageHelper();
    Properties properties = new Properties();
    properties.setProperty("reasonable", "true");
    properties.setProperty("supportMethodsArguments", "true");
    properties.setProperty("returnPageInfo", "check");
    properties.setProperty("params", "count=countSql");
    pageHelper.setProperties(properties);

    //添加分页插件
    bean.setPlugins(new Interceptor[]{pageHelper});

    ResourcePatternResolver resolver = new PathMatchingResourcePatternResolver();
    try {
        //基于注解扫描Mapper，不需配置xml路径
        //bean.setMapperLocations(resolver.getResources("classpath:mapper/*.xml"));
        return bean.getObject();
    } catch (Exception e) {
        e.printStackTrace();
        throw new RuntimeException(e);
    }
    }
}

新建配置扫描类

package com.kx.springboot.dao.mybatis;

import org.springframework.boot.autoconfigure.AutoConfigureAfter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import tk.mybatis.spring.mapper.MapperScannerConfigurer;

import java.util.Properties;

/**
 * Created by kx on 17/4/2.
 */
@Configuration
//必须在MyBatisConfig注册后再加载MapperScannerConfigurer，否则会报错
@AutoConfigureAfter(MyBatisConfig.class)
public class MyBatisMapperScannerConfig {
    @Bean
    public MapperScannerConfigurer mapperScannerConfigurer() {
    MapperScannerConfigurer mapperScannerConfigurer = new MapperScannerConfigurer();
    mapperScannerConfigurer.setSqlSessionFactoryBeanName("sqlSessionFactory");
    mapperScannerConfigurer.setBasePackage("com.kx.springboot.dao.mybatis");

    //初始化扫描器的相关配置，这里我们要创建一个Mapper的父类
    Properties properties = new Properties();
    properties.setProperty("mappers", "com.kx.springboot.dao.baseDao.MyMapper");
    properties.setProperty("notEmpty", "false");
    properties.setProperty("IDENTITY", "MYSQL");

    mapperScannerConfigurer.setProperties(properties);

    return mapperScannerConfigurer;
    }
}

新建对外暴露接口

package com.kx.springboot.dao.baseDao;

import tk.mybatis.mapper.common.Mapper;
import tk.mybatis.mapper.common.MySqlMapper;

/**
 * Created by kx on 17/4/2.
 */
public interface MyMapper<T> extends Mapper<T>, MySqlMapper<T> {
    //TODO
    //FIXME 特别注意，该接口不能被扫描到，否则会出错
}

现在，修改我们的dao层实现类,继承我们的通用接口

@Mapper
public interface UserDao extends MyMapper<UserInfo> {

}

在业务层中增加想要调用的方法

public interface TestInterFace {

    public int testInterFace();

    public UserInfo testUser();

    public int insertUser(UserInfo userInfo);

//新增加的方法
    List selectALL();
}


@Service
public class TestInterFaceImpl implements TestInterFace {
    @Autowired UserDao userDao;
    @Override public int testInterFace() {
    return 0;
    }

    @Override public UserInfo testUser() {
    return new UserInfo();
    }

    @Override public int insertUser(UserInfo userInfo) {
    return userDao.insert(userInfo);
    }

    //新增加的实现
    @Override
    public List selectALL(){
    return userDao.selectAll();
    }
}

看到我们在调用userDao时已经有了通用的单表查询方法。将新接口暴露给http，修改controller

@Controller
@RequestMapping("user")
public class UserController {
    @Autowired
    private TestInterFace testInterFace;

    @RequestMapping("/get")
    @ResponseBody UserInfo getUser() {
    return testInterFace.testUser();
    }

    @RequestMapping("/add")
    @ResponseBody String add() {
        UserInfo user = new UserInfo();
        user.setUsername("username123寇鑫");
        user.setPassword("password123寇鑫");
        testInterFace.insertUser(user);
        return "插入成功";
    }

//新增的接口方法
    @RequestMapping("/getall")
    @ResponseBody List getall() {
        return testInterFace.selectALL();
    }
}

访问http://localhost:8080/user/getall

程序抛出异常

### Error querying database.  Cause: com.mysql.jdbc.exceptions.jdbc4.MySQLSyntaxErrorException: Table 'ssmtest.user_info' doesn't exist
### The error may exist in com/kx/springboot/dao/UserDao.java (best guess)
### The error may involve defaultParameterMap
### The error occurred while setting parameters
### SQL: SELECT username,password  FROM user_info
### Cause: com.mysql.jdbc.exceptions.jdbc4.MySQLSyntaxErrorException: Table 'ssmtest.user_info' doesn't exist
; bad SQL grammar []; nested exception is com.mysql.jdbc.exceptions.jdbc4.MySQLSyntaxErrorException: Table 'ssmtest.user_info' doesn't exist] with root cause

com.mysql.jdbc.exceptions.jdbc4.MySQLSyntaxErrorException: Table 'ssmtest.user_info' doesn't exist
    at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
    at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:57)
    at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
    at java.lang.reflect.Constructor.newInstance(Constructor.java:526)

从异常可以看出来，我们的表和我们查询数据库的字段没有映射起来，查询资料后发现原因是通用插件的问题，默认的字段中有下划线，我们需要手动指定映射

修改userinfo类

package com.kx.springboot.bean;

import javax.persistence.Column;
import javax.persistence.Table;

/**
 * Created by kx on 17/3/29.
 */
 //增加注解声明表名
@Table(name = "userinfo")
public class UserInfo {
    //增加注解声明字段名
    @Column(name = "username")
    private String username = "username寇鑫123";
    @Column(name = "password")
    private String password = "password寇鑫123";

    public String getUsername() {
    return username;
    }

    public void setUsername(String username) {
    this.username = username;
    }

    public String getPassword() {
    return password;
    }

    public void setPassword(String password) {
    this.password = password;
    }

    @Override public String toString() {
    return "User{" + "username='" + username + '\'' + ", password='" + password + '\'' + '}';
    }
}

再次启动访问 http://loclhost:8080/user/getall

[
    {
        "username":"user123寇鑫",
        "password":"password123寇鑫"
    },

    {
        "username":"username123寇鑫",
        "password":"password123寇鑫"
    }
]

得到如下结果，到此已经成功整合了通用mapper插件，现在加入定时任务测试
springboot 定时任务的启动和配置要简单很多,只需要增加一个注解即可

修改Application.java 启动类

@EnableAutoConfiguration
@ComponentScan(basePackages={"com.kx.springboot"})
@EnableScheduling//增加支持定时任务的注解
public class Application {
    public static void main(String[] args) throws Exception {
    SpringApplication.run(Application.class, args);
    }
}

新建定时任务类

@Component
public class SchedulingTest {
    private final Logger logger = LoggerFactory.getLogger(getClass());

    @Scheduled(cron = "0/5 * * * * ?") // 每5秒执行一次
    public void scheduler() {
    logger.info(">>>>>>>>>>>>> scheduled test... ");
    }
}

启动测试

2017-04-05 00:19:00.002  INFO 6512 --- [pool-1-thread-1] c.kx.springboot.schedul.SchedulingTest   : >>>>>>>>>>>>> scheduled test...
2017-04-05 00:19:05.000  INFO 6512 --- [pool-1-thread-1] c.kx.springboot.schedul.SchedulingTest   : >>>>>>>>>>>>> scheduled test...
2017-04-05 00:19:10.000  INFO 6512 --- [pool-1-thread-1] c.kx.springboot.schedul.SchedulingTest   : >>>>>>>>>>>>> scheduled test...
2017-04-05 00:19:15.000  INFO 6512 --- [pool-1-thread-1] c.kx.springboot.schedul.SchedulingTest   : >>>>>>>>>>>>> scheduled test...
2017-04-05 00:19:20.001  INFO 6512 --- [pool-1-thread-1] c.kx.springboot.schedul.SchedulingTest   : >>>>>>>>>>>>> scheduled test...
2017-04-05 00:19:25.002  INFO 6512 --- [pool-1-thread-1] c.kx.springboot.schedul.SchedulingTest   : >>>>>>>>>>>>> scheduled test...
2017-04-05 00:19:30.003  INFO 6512 --- [pool-1-thread-1] c.kx.springboot.schedul.SchedulingTest   : >>>>>>>>>>>>> scheduled test...
2017-04-05 00:19:35.003  INFO 6512 --- [pool-1-thread-1] c.kx.springboot.schedul.SchedulingTest   : >>>>>>>>>>>>> scheduled test...

可以看到我们的定时任务执行结果没有问题,接下来要在框架中增加多数据源以及事务控制。
