利用Android Studio将Protobuf文件生成Java文件

配置Gradle

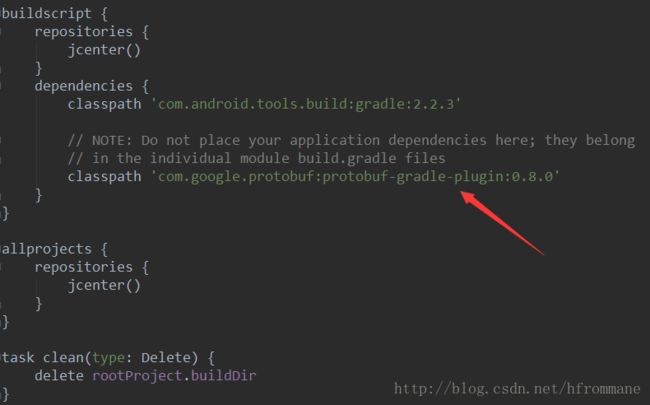

1、项目的build.gradle文件加入：

 classpath 'com.google.protobuf:protobuf-gradle-plugin:0.8.0'

2、模块的build.gradle

• 顶部添加protobuf插件

apply plugin: 'com.google.protobuf'

• android结点增加proto文件位置配置

    sourceSets {
        main {
            proto {
                srcDir 'src/main/proto'
                include '**/*.proto'
            }
            java {
                srcDir 'src/main/java'
            }
        }
    }

• 添加依赖

    compile 'com.google.protobuf:protobuf-java:3.1.0'
    compile 'com.google.protobuf:protoc:3.1.0'

• 增加protobuf结点

protobuf {
    protoc {
        artifact = 'com.google.protobuf:protoc:3.1.0'
    }

    generateProtoTasks {
        all().each { task ->
            task.builtins {
                remove java
            }
            task.builtins {
                java {}
                // Add cpp output without any option.
                // DO NOT omit the braces if you want this builtin to be added.
                cpp {}
            }
        }
    }

    generatedFilesBaseDir = "$projectDir/src/generated"
}

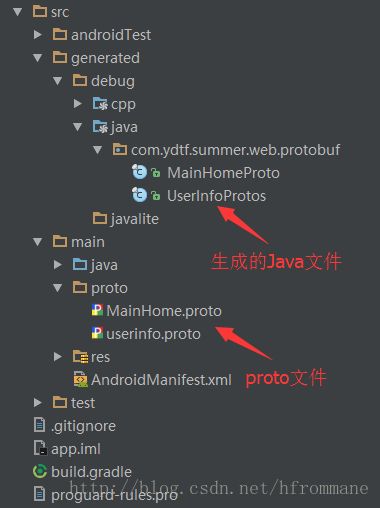

目录结构

附

完整的模块的build.gradle

apply plugin: 'com.android.application'
apply plugin: 'com.google.protobuf'

android {
    compileSdkVersion 25
    buildToolsVersion "25.0.0"
    defaultConfig {
        applicationId "com.ydtf.nbmobile.protobufdemo4"
        minSdkVersion 16
        targetSdkVersion 25
        versionCode 1
        versionName "1.0"
        testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"
    }

    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }

    sourceSets {
        main {
            proto {
                srcDir 'src/main/proto'
                include '**/*.proto'
            }
            java {
                srcDir 'src/main/java'
            }
        }
    }
}

dependencies {
    compile fileTree(dir: 'libs', include: ['*.jar'])
    androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {
        exclude group: 'com.android.support', module: 'support-annotations'
    })
    compile 'com.android.support:appcompat-v7:25.0.1'
    compile 'com.google.protobuf:protobuf-java:3.1.0'
    compile 'com.google.protobuf:protoc:3.1.0'
    testCompile 'junit:junit:4.12'
}

protobuf {
    protoc {
        artifact = 'com.google.protobuf:protoc:3.1.0'
    }

    generateProtoTasks {
        all().each { task ->
            task.builtins {
                remove java
            }
            task.builtins {
                java {}
                // Add cpp output without any option.
                // DO NOT omit the braces if you want this builtin to be added.
                cpp {}
            }
        }
    }

    generatedFilesBaseDir = "$projectDir/src/generated"
}

参考文章
https://github.com/google/protobuf-gradle-plugin
