源码解读--(1)hbase客户端源代码

源码解读--(1)hbase客户端源代码 http://aperise.iteye.com/blog/2372350
源码解读--(2)hbase-examples BufferedMutator Example http://aperise.iteye.com/blog/2372505
源码解读--(3)hbase-examples MultiThreadedClientExample http://aperise.iteye.com/blog/2372534

1.hbase客户端使用

    1.1 在maven工程中引入hbase客户端jar



			org.apache.hbase
			hbase-client
			1.2.1




    1.2 推荐的创建hbase客户端代码

    推荐的客户端使用方式一:

Configuration configuration = HBaseConfiguration.create();
configuration.set("hbase.zookeeper.property.clientPort", "2181");
configuration.set("hbase.client.write.buffer", "2097152");
configuration.set("hbase.zookeeper.quorum","192.168.199.31,192.168.199.32,192.168.199.33,192.168.199.34,192.168.199.35");
//默认connection实现是org.apache.hadoop.hbase.client.ConnectionManager.HConnectionImplementation
Connection connection = ConnectionFactory.createConnection(configuration);
//默认table实现是org.apache.hadoop.hbase.client.HTable
Table table = connection.getTable(TableName.valueOf("tableName"));

//3177不是我杜撰的,是2*hbase.client.write.buffer/put.heapSize()计算出来的
int bestBathPutSize = 3177;

try {
  // Use the table as needed, for a single operation and a single thread
  // construct List putLists
  List putLists = new ArrayList();
  for(int count=0;count<100000;count++){
    Put put = new Put(rowkey.getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName1".getBytes(), "columnValue1".getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName2".getBytes(), "columnValue2".getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName3".getBytes(), "columnValue3".getBytes());
    put.setDurability(Durability.SKIP_WAL);
    putLists.add(put);

    if(putLists.size()==bestBathPutSize){
      //达到最佳大小值了,马上提交一把
        table.put(putLists);
        putLists.clear();
    }
  }
  //剩下的未提交数据,最后做一次提交
  table.put(putLists)
} finally {
  table.close();
  connection.close();
}

    推荐的客户端使用方式二:

Configuration configuration = HBaseConfiguration.create();
configuration.set("hbase.zookeeper.property.clientPort", "2181");
configuration.set("hbase.client.write.buffer", "2097152");
configuration.set("hbase.zookeeper.quorum","192.168.199.31,192.168.199.32,192.168.199.33,192.168.199.34,192.168.199.35");

BufferedMutatorParams params = new BufferedMutatorParams(TableName.valueOf("tableName"));

//3177不是我杜撰的,是2*hbase.client.write.buffer/put.heapSize()计算出来的
int bestBathPutSize = 3177;

//这里利用jdk1.7里的新特性try(必须实现java.io.Closeable的对象){}catch (Exception e) {}
//相当于调用了finally功能,调用(必须实现java.io.Closeable的对象)的close()方法,也即会调用conn.close(),mutator.close()
try(
  //默认connection实现是org.apache.hadoop.hbase.client.ConnectionManager.HConnectionImplementation
  Connection conn = ConnectionFactory.createConnection(configuration);
  //默认mutator实现是org.apache.hadoop.hbase.client.BufferedMutatorImpl
  BufferedMutator mutator = conn.getBufferedMutator(params);
){
  List putLists = new ArrayList();
  for(int count=0;count<100000;count++){
    Put put = new Put(rowkey.getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName1".getBytes(), "columnValue1".getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName2".getBytes(), "columnValue2".getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName3".getBytes(), "columnValue3".getBytes());
    put.setDurability(Durability.SKIP_WAL);
    putLists.add(put);

    if(putLists.size()==bestBathPutSize){
      //达到最佳大小值了,马上提交一把
        mutator.mutate(putLists);
        mutator.flush();
        putLists.clear();
    }
  }
  //剩下的未提交数据,最后做一次提交
  mutator.mutate(putLists);
  mutator.flush();
}catch(IOException e) {
  LOG.info("exception while creating/destroying Connection or BufferedMutator", e);
}
    两种方式做一个对比如下:
Table.put(List) BufferedMutator.mutate(List)

Table.put(List)源代码本质是将BufferedMutator.mutate(List)进行了包装,多了个autoFlush标志,首先调用BufferedMutator.mutate(List)按照设定的hbase.client.write.buffer(默认2MB)不断提交,最后因为默认的autoFlush=true,所以每次都会提交

BufferedMutator.mutate(List)会计算所给集合所占内存,如果超过hbase.client.write.buffer(默认2MB)就提交一次,直到不超过就等待,一直等待到表要关闭前再次提交一次


    1.3 被遗弃的hbase客户端使用代码

     被遗弃创建方式一:直接通过HTable(Configuration conf, final String tableName)创建

Configuration configuration = HBaseConfiguration.create();
configuration.set("hbase.zookeeper.property.clientPort", "2181");
configuration.set("hbase.client.write.buffer", "2097152");
configuration.set("hbase.zookeeper.quorum","192.168.199.31,192.168.199.32,192.168.199.33,192.168.199.34,192.168.199.35");
Table table = new HTable(configuration, "tableName");

//3177不是我杜撰的,是2*hbase.client.write.buffer/put.heapSize()计算出来的
int bestBathPutSize = 3177;

try {
  // Use the table as needed, for a single operation and a single thread
  // construct List putLists
  List putLists = new ArrayList();
  for(int count=0;count<100000;count++){
    Put put = new Put(rowkey.getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName1".getBytes(), "columnValue1".getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName2".getBytes(), "columnValue2".getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName3".getBytes(), "columnValue3".getBytes());
    put.setDurability(Durability.SKIP_WAL);
    putLists.add(put);

    if(putLists.size()==(bestBathPutSize-1)){
      //达到最佳大小值了,马上提交一把
        table.put(putLists);
        putLists.clear();
    }
  }
  //剩下的未提交数据,最后做一次提交
  table.put(putLists)
} finally {
  table.close();
  connection.close();
}

        被遗弃的方式二:通过HConnectionManager.createConnection(Configuration conf)获取HTableInterface

Configuration configuration = HBaseConfiguration.create();
configuration.set("hbase.zookeeper.property.clientPort", "2181");
configuration.set("hbase.client.write.buffer", "2097152");
configuration.set("hbase.zookeeper.quorum","192.168.199.31,192.168.199.32,192.168.199.33,192.168.199.34,192.168.199.35");
HConnection connection = HConnectionManager.createConnection(configuration);
HTableInterface table = connection.getTable(TableName.valueOf("tableName"));

//3177不是我杜撰的,是2*hbase.client.write.buffer/put.heapSize()计算出来的
int bestBathPutSize = 3177;

try {
  // Use the table as needed, for a single operation and a single thread
  // construct List putLists
  List putLists = new ArrayList();
  for(int count=0;count<100000;count++){
    Put put = new Put(rowkey.getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName1".getBytes(), "columnValue1".getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName2".getBytes(), "columnValue2".getBytes());
    put.addImmutable("columnFamily1".getBytes(), "columnName3".getBytes(), "columnValue3".getBytes());
    put.setDurability(Durability.SKIP_WAL);
    putLists.add(put);

    if(putLists.size()==(bestBathPutSize-1)){
      //达到最佳大小值了,马上提交一把
        table.put(putLists);
        putLists.clear();
    }
  }
  //剩下的未提交数据,最后做一次提交
  table.put(putLists)
} finally {
  table.close();
  connection.close();
}



2.hbase客户端源码解读

    前面我们说过,推荐的使用hbase客户端的方式如下:

Connection connection = ConnectionFactory.createConnection(configuration);
Table table = connection.getTable(TableName.valueOf("tableName"));

    那源代码的查看就从这两行代码开始,先来看下ConnectionFactory.createConnection(configuration)



    2.1 ConnectionFactory.createConnection(Configuration conf)

    先看下createConnection(Configuration conf)的源代码,如下:

  public static Connection createConnection(Configuration conf) throws IOException {
    return createConnection(conf, null, null);
  }

    传入我们构造的Configuration对象,然后调用了ConnectionFactory.createConnection(Configuration conf, ExecutorService pool, User user),继续看ConnectionFactory.createConnection(Configuration conf, ExecutorService pool, User user)的源代码,如下:

  public static Connection createConnection(Configuration conf, ExecutorService pool, User user)
  throws IOException {
    //因为上面传入的user为null,这里代码不会执行
    if (user == null) {
      UserProvider provider = UserProvider.instantiate(conf);
      user = provider.getCurrent();
    }

    return createConnection(conf, false, pool, user);
  }

    这里继续调用了ConnectionFactory.createConnection(final Configuration conf, final boolean managed, final ExecutorService pool, final User user),那么我们继续看下相关代码,如下:

static Connection createConnection(final Configuration conf, final boolean managed, final ExecutorService pool, final User user)
  throws IOException {
    //默认HBASE_CLIENT_CONNECTION_IMPL = "hbase.client.connection.impl"
    //hbase.client.connection.impl供hbase使用者实现自己的hbase链接实现类并配置进来使用
    //默认hbase已经提供了实现,无需实现,那么这里就取默认实现ConnectionManager.HConnectionImplementation.class.getName()
    //默认hbase的connection实现类也即HConnectionImplementation类
    String className = conf.get(HConnection.HBASE_CLIENT_CONNECTION_IMPL,ConnectionManager.HConnectionImplementation.class.getName());
    Class clazz = null;
    try {
      clazz = Class.forName(className);
    } catch (ClassNotFoundException e) {
      throw new IOException(e);
    }
    try {
      // Default HCM#HCI is not accessible; make it so before invoking.
      //这里调用HConnectionImplementation类的构造方法HConnectionImplementation(Configuration conf, boolean managed, ExecutorService pool, User user)
      Constructor constructor = clazz.getDeclaredConstructor(Configuration.class, boolean.class, ExecutorService.class, User.class);
      constructor.setAccessible(true);
      return (Connection) constructor.newInstance(conf, managed, pool, user);
    } catch (Exception e) {
      throw new IOException(e);
    }
  }
}

    上面的代码默认调用ConnectionManager.HConnectionImplementation类返回Connection对象,继续跟踪HConnectionImplementation(Configuration conf, boolean managed, ExecutorService pool, User user)代码:

HConnectionImplementation(Configuration conf, boolean managed, ExecutorService pool, User user) throws IOException {
      //这里代码我们需要重点关注
      this(conf);
      //这里this.user=null
      this.user = user;
      //这里this.batchPool=null
      this.batchPool = pool;
      //这里this.managed=false
      this.managed = managed;
      //这里setupRegistry()默认从hbase.client.registry.impl获取客户端使用者实现的zookeeper注册类,没有配置就默认创建ZooKeeperRegistry类对象并设置,这个类非常重要,客户端与zookeeper的交互类就由此类负责
      this.registry = setupRegistry();
      //默认通过ZooKeeperRegistry对象从zookeeper获取hbase集群的clusterId
      retrieveClusterId();

       //如果Configuration没配置hbase.rpc.client.impl就默认创建RpcClientImpl并设置给this.rpcClient
      this.rpcClient = RpcClientFactory.createClient(this.conf, this.clusterId, this.metrics);
      this.rpcControllerFactory = RpcControllerFactory.instantiate(conf);

      // Do we publish the status?
      //如果Configuration没配置hbase.status.published就默认设置shouldListen=false
      boolean shouldListen = conf.getBoolean(HConstants.STATUS_PUBLISHED, HConstants.STATUS_PUBLISHED_DEFAULT);

      //如果Configuration没配置hbase.status.listener.class就默认创建MulticastListener对象并设置给listenerClass
      Class listenerClass = conf.getClass(ClusterStatusListener.STATUS_LISTENER_CLASS, ClusterStatusListener.DEFAULT_STATUS_LISTENER_CLASS, ClusterStatusListener.Listener.class);
      if (shouldListen) {
        if (listenerClass == null) {
          LOG.warn(HConstants.STATUS_PUBLISHED + " is true, but " + ClusterStatusListener.STATUS_LISTENER_CLASS + " is not set - not listening status");
        } else {
          //这里通过hbase事件监听器监视hbase服务端事件,当hbase服务端服务不可用时,调用rpcClient.cancelConnections关闭链接
          clusterStatusListener = new ClusterStatusListener(
              new ClusterStatusListener.DeadServerHandler() {
                @Override
                public void newDead(ServerName sn) {
                  clearCaches(sn);
                  rpcClient.cancelConnections(sn);
                }
              }, conf, listenerClass);
        }
      }
    }

    上面的代码我们主要关注this(conf);另外一个需要注意的就是方法setupRegistry(),setupRegistry()这里默认设置的是org.apache.hadoop.hbase.client.ZooKeeperRegistry,这一行并将在后面继续分析,其它的代码都比较简单,我在上面代码中已经做代码注释,继续看this(conf)代码:

protected HConnectionImplementation(Configuration conf) {
      //这里把客户端使用者传入的Configuration赋值给this.conf
      this.conf = conf;
      //这里HConnectionImplementation基于我们传入的Configuration构建了自己的Configuration类对象this.connectionConfig
      this.connectionConfig = new ConnectionConfiguration(conf);
      this.closed = false;
      //客户端使用者的Configuration没有配置hbase.client.pause,那么就设置默认值this.pause=100
      this.pause = conf.getLong(HConstants.HBASE_CLIENT_PAUSE, HConstants.DEFAULT_HBASE_CLIENT_PAUSE);
      //客户端使用者的Configuration没有配置hbase.meta.replicas.use,那么就设置默认值this.useMetaReplicas=false
      this.useMetaReplicas = conf.getBoolean(HConstants.USE_META_REPLICAS, HConstants.DEFAULT_USE_META_REPLICAS);
      //从this.connectionConfig里获取值设置,而客户端使用者的Configuration没有配置hbase.client.retries.number就默认设置this.numTries=31
      this.numTries = connectionConfig.getRetriesNumber();
      //客户端使用者的Configuration没有配置hbase.rpc.timeout,那么就设置默认值this.rpcTimeout=60000毫秒
      this.rpcTimeout = conf.getInt(HConstants.HBASE_RPC_TIMEOUT_KEY, HConstants.DEFAULT_HBASE_RPC_TIMEOUT);
      if (conf.getBoolean(CLIENT_NONCES_ENABLED_KEY, true)) {
        synchronized (nonceGeneratorCreateLock) {
          if (ConnectionManager.nonceGenerator == null) {
            ConnectionManager.nonceGenerator = new PerClientRandomNonceGenerator();
          }
          this.nonceGenerator = ConnectionManager.nonceGenerator;
        }
      } else {
        this.nonceGenerator = new NoNonceGenerator();
      }
      //跟踪region的统计信息
      stats = ServerStatisticTracker.create(conf);
      //hbase客户端异步操作类
      this.asyncProcess = createAsyncProcess(this.conf);
      this.interceptor = (new RetryingCallerInterceptorFactory(conf)).build();
      this.rpcCallerFactory = RpcRetryingCallerFactory.instantiate(conf, interceptor, this.stats);
      this.backoffPolicy = ClientBackoffPolicyFactory.create(conf);
      if (conf.getBoolean(CLIENT_SIDE_METRICS_ENABLED_KEY, false)) {
        this.metrics = new MetricsConnection(this);
      } else {
        this.metrics = null;
      }

      this.hostnamesCanChange = conf.getBoolean(RESOLVE_HOSTNAME_ON_FAIL_KEY, true);
      this.metaCache = new MetaCache(this.metrics);
    }

    上面代码比较重要的一点是,尽管客户端传入了Configuration,但是HConnectionImplementation不会直接使用客户端传入的Configuration,而是基于客户端传入的Configuration构建了自己的Configuration对象,原因是客户端传入的Configuration对象只给了部分值,很多其它值都未给出,那么HConnectionImplementation就有必要创建自己的Configuration,首先构建自己默认的Configuration,然后把客户端已经设置的Configuration的相关值覆盖那些默认值,客户端没设置的值就使用默认值,我们继续看下this.connectionConfig = new ConnectionConfiguration(conf)的源代码:

ConnectionConfiguration(Configuration conf) {
    //客户端的Configuration没有配置hbase.client.pause,那么就设置默认值this.writeBufferSize=2097152
    this.writeBufferSize = conf.getLong(WRITE_BUFFER_SIZE_KEY, WRITE_BUFFER_SIZE_DEFAULT);

    //客户端的Configuration没有配置hbase.client.write.buffer,那么就设置默认值this.metaOperationTimeout=1200000
    this.metaOperationTimeout = conf.getInt(HConstants.HBASE_CLIENT_META_OPERATION_TIMEOUT, HConstants.DEFAULT_HBASE_CLIENT_OPERATION_TIMEOUT);

    //客户端的Configuration没有配置hbase.client.meta.operation.timeout,那么就设置默认值this.operationTimeout=1200000
    this.operationTimeout = conf.getInt(HConstants.HBASE_CLIENT_OPERATION_TIMEOUT, HConstants.DEFAULT_HBASE_CLIENT_OPERATION_TIMEOUT);

    //客户端的Configuration没有配置hbase.client.operation.timeout,那么就设置默认值this.scannerCaching=Integer.MAX_VALUE
    this.scannerCaching = conf.getInt(HConstants.HBASE_CLIENT_SCANNER_CACHING, HConstants.DEFAULT_HBASE_CLIENT_SCANNER_CACHING);

    //客户端的Configuration没有配置hbase.client.scanner.max.result.size,那么就设置默认值this.scannerMaxResultSize=2 * 1024 * 1024
    this.scannerMaxResultSize = conf.getLong(HConstants.HBASE_CLIENT_SCANNER_MAX_RESULT_SIZE_KEY, HConstants.DEFAULT_HBASE_CLIENT_SCANNER_MAX_RESULT_SIZE);

    //客户端的Configuration没有配置hbase.client.primaryCallTimeout.get,那么就设置默认值this.primaryCallTimeoutMicroSecond=10000
    this.primaryCallTimeoutMicroSecond = conf.getInt("hbase.client.primaryCallTimeout.get", 10000); // 10000ms

    //客户端的Configuration没有配置hbase.client.replicaCallTimeout.scan,那么就设置默认值this.replicaCallTimeoutMicroSecondScan=1000000
    this.replicaCallTimeoutMicroSecondScan = conf.getInt("hbase.client.replicaCallTimeout.scan", 1000000); // 1000000ms

    //客户端的Configuration没有配置hbase.client.retries.number,那么就设置默认值this.retries=31
    this.retries = conf.getInt(HConstants.HBASE_CLIENT_RETRIES_NUMBER, HConstants.DEFAULT_HBASE_CLIENT_RETRIES_NUMBER);

    //客户端的Configuration没有配置hbase.client.keyvalue.maxsize,那么就设置默认值this.maxKeyValueSize=-1
    this.maxKeyValueSize = conf.getInt(MAX_KEYVALUE_SIZE_KEY, MAX_KEYVALUE_SIZE_DEFAULT);
  }

    上面的代码主要是初始化HConnectionImplementation自己的Configuration类型属性this.connectionConfig,默认客户端不设置属性值,这里创建的this.connectionConfig就使用默认值,这里将hbase客户端默认值抽取如下:

  • hbase.client.write.buffer               默认2097152Byte,也即2MB
  • hbase.client.meta.operation.timeout     默认1200000毫秒
  • hbase.client.operation.timeout          默认1200000毫秒
  • hbase.client.scanner.caching            默认Integer.MAX_VALUE
  • hbase.client.scanner.max.result.size    默认2MB
  • hbase.client.primaryCallTimeout.get     默认10000毫秒
  • hbase.client.replicaCallTimeout.scan    默认1000000毫秒
  • hbase.client.retries.number             默认31次
  • hbase.client.keyvalue.maxsize           默认-1,不限制
  • hbase.client.ipc.pool.type
  • hbase.client.ipc.pool.size
  • hbase.client.pause                      100
  • hbase.client.max.total.tasks            100
  • hbase.client.max.perserver.tasks        2
  • hbase.client.max.perregion.tasks        1
  • hbase.client.instance.id
  • hbase.client.scanner.timeout.period     60000
  • hbase.client.rpc.codec
  • hbase.regionserver.lease.period         被hbase.client.scanner.timeout.period代替,60000
  • hbase.client.fast.fail.mode.enabled     FALSE
  • hbase.client.fastfail.threshold         60000
  • hbase.client.fast.fail.cleanup.duration 600000
  • hbase.client.fast.fail.interceptor.impl
  • hbase.client.backpressure.enabled       false



    2.2 与zookeeper交互的ZooKeeperRegistry

    上面我们分析知道客户端使用者传入的Configuration只有设置的值才会在客户端上生效,而未设置的值则交由默认值设置,另外一个非常重要的就是刚才所提到的与zookeeper交互的类org.apache.hadoop.hbase.client.ZooKeeperRegistry

package org.apache.hadoop.hbase.client;

import java.io.IOException;
import java.io.InterruptedIOException;
import java.util.List;

import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.apache.hadoop.hbase.HRegionInfo;
import org.apache.hadoop.hbase.HRegionLocation;
import org.apache.hadoop.hbase.RegionLocations;
import org.apache.hadoop.hbase.ServerName;
import org.apache.hadoop.hbase.TableName;
import org.apache.hadoop.hbase.zookeeper.MetaTableLocator;
import org.apache.hadoop.hbase.zookeeper.ZKClusterId;
import org.apache.hadoop.hbase.zookeeper.ZKTableStateClientSideReader;
import org.apache.hadoop.hbase.zookeeper.ZKUtil;
import org.apache.zookeeper.KeeperException;

/**
 * A cluster registry that stores to zookeeper.
 */
class ZooKeeperRegistry implements Registry {
  private static final Log LOG = LogFactory.getLog(ZooKeeperRegistry.class);
  // hbase连接,在初始化函数中会进行设置
  ConnectionManager.HConnectionImplementation hci;

  @Override
  public void init(Connection connection) {
    if (!(connection instanceof ConnectionManager.HConnectionImplementation)) {
      throw new RuntimeException("This registry depends on HConnectionImplementation");
    }
    //设置hbase连接
    this.hci = (ConnectionManager.HConnectionImplementation)connection;
  }

  @Override
  public RegionLocations getMetaRegionLocation() throws IOException {
  	//通过hbase连接中的Configuration获取zookeeper地址后,通过hbase连接获取与zookeeper交互的ZooKeeperKeepAliveConnection
    ZooKeeperKeepAliveConnection zkw = hci.getKeepAliveZooKeeperWatcher();

    try {
      if (LOG.isTraceEnabled()) {
        LOG.trace("Looking up meta region location in ZK," + " connection=" + this);
      }
      //从zookeeper中获取所有的hbase region元数据信息
      List servers = new MetaTableLocator().blockUntilAvailable(zkw, hci.rpcTimeout, hci.getConfiguration());
      if (LOG.isTraceEnabled()) {
        if (servers == null) {
          LOG.trace("Looked up meta region location, connection=" + this + "; servers = null");
        } else {
          StringBuilder str = new StringBuilder();
          for (ServerName s : servers) {
            str.append(s.toString());
            str.append(" ");
          }
          LOG.trace("Looked up meta region location, connection=" + this + "; servers = " + str.toString());
        }
      }
      if (servers == null) return null;

      //组装hbase RegionLocations数组进行返回
      HRegionLocation[] locs = new HRegionLocation[servers.size()];
      int i = 0;
      for (ServerName server : servers) {
        HRegionInfo h = RegionReplicaUtil.getRegionInfoForReplica(HRegionInfo.FIRST_META_REGIONINFO, i);
        if (server == null) locs[i++] = null;
        else locs[i++] = new HRegionLocation(h, server, 0);
      }
      return new RegionLocations(locs);
    } catch (InterruptedException e) {
      Thread.currentThread().interrupt();
      return null;
    } finally {
      zkw.close();
    }
  }

  private String clusterId = null;

  @Override
  public String getClusterId() {
    if (this.clusterId != null) return this.clusterId;
    // No synchronized here, worse case we will retrieve it twice, that's
    //  not an issue.
    ZooKeeperKeepAliveConnection zkw = null;
    try {
      zkw = hci.getKeepAliveZooKeeperWatcher();
      this.clusterId = ZKClusterId.readClusterIdZNode(zkw);
      if (this.clusterId == null) {
        LOG.info("ClusterId read in ZooKeeper is null");
      }
    } catch (KeeperException e) {
      LOG.warn("Can't retrieve clusterId from Zookeeper", e);
    } catch (IOException e) {
      LOG.warn("Can't retrieve clusterId from Zookeeper", e);
    } finally {
      if (zkw != null) zkw.close();
    }
    return this.clusterId;
  }

  @Override
  public boolean isTableOnlineState(TableName tableName, boolean enabled)
  throws IOException {
    ZooKeeperKeepAliveConnection zkw = hci.getKeepAliveZooKeeperWatcher();
    try {
      if (enabled) {
        return ZKTableStateClientSideReader.isEnabledTable(zkw, tableName);
      }
      return ZKTableStateClientSideReader.isDisabledTable(zkw, tableName);
    } catch (KeeperException e) {
      throw new IOException("Enable/Disable failed", e);
    } catch (InterruptedException e) {
      throw new InterruptedIOException();
    } finally {
       zkw.close();
    }
  }

  @Override
  public int getCurrentNrHRS() throws IOException {
    ZooKeeperKeepAliveConnection zkw = hci.getKeepAliveZooKeeperWatcher();
    try {
      // We go to zk rather than to master to get count of regions to avoid
      // HTable having a Master dependency.  See HBase-2828
      return ZKUtil.getNumberOfChildren(zkw, zkw.rsZNode);
    } catch (KeeperException ke) {
      throw new IOException("Unexpected ZooKeeper exception", ke);
    } finally {
        zkw.close();
    }
  }
}

    这个类非常重要,因为所有的与zookeeper的交互都由它来完成。



    2.3 HConnectionImplementation.getTable(TableName tableName)

    前面我们说过,推荐的使用hbase客户端的方式如下:

Connection connection = ConnectionFactory.createConnection(configuration);
Table table = connection.getTable(TableName.valueOf("tableName"));

    上面2.1中已经知悉默认connection实现是HConnectionImplementation,那么这里我们继续跟踪HConnectionImplementation.getTable(TableName tableName)方法,代码如下:

    public HTableInterface getTable(TableName tableName) throws IOException {
      return getTable(tableName, getBatchPool());
    }

   继续看HConnectionImplementation.getTable(TableName tableName, ExecutorService pool)的代码:

    public HTableInterface getTable(TableName tableName, ExecutorService pool) throws IOException {
      //默认managed=false
      if (managed) {
        throw new NeedUnmanagedConnectionException();
      }
      return new HTable(tableName, this, connectionConfig, rpcCallerFactory, rpcControllerFactory, pool);
    }

    继续看HTable的构造方法HTable(TableName tableName, final ClusterConnection connection, final ConnectionConfiguration tableConfig, final RpcRetryingCallerFactory rpcCallerFactory, final RpcControllerFactory rpcControllerFactory, final ExecutorService pool),代码如下:

public HTable(TableName tableName, final ClusterConnection connection, final ConnectionConfiguration tableConfig, final RpcRetryingCallerFactory rpcCallerFactory, final RpcControllerFactory rpcControllerFactory, final ExecutorService pool) throws IOException {
    if (connection == null || connection.isClosed()) {
      throw new IllegalArgumentException("Connection is null or closed.");
    }
    //设置hbase数据表名
    this.tableName = tableName;
    //调用close方法时,默认不关闭连接,这一点非常重要,默认调用table.close()是不会关闭之前创建的connection的,这一点在后面的table.close()里会介绍
    this.cleanupConnectionOnClose = false;
    //设置this.connection值为HConnectionImplementation创建的connection实现类
    this.connection = connection;
    //从HConnectionImplementation获取客户端传入的configuration对象
    this.configuration = connection.getConfiguration();
    //从HConnectionImplementation获取HConnectionImplementation基于客户端传入的configuration创建的configuration对象
    this.connConfiguration = tableConfig;
    //从HConnectionImplementation获取pool,HConnectionImplementation的默认pool为this.batchPool = getThreadPool(conf.getInt("hbase.hconnection.threads.max", 256)
    this.pool = pool;
    if (pool == null) {
      this.pool = getDefaultExecutor(this.configuration);
      this.cleanupPoolOnClose = true;
    } else {
      //在HConnectionImplementation中已经初始化了this.batchPool = getThreadPool(conf.getInt("hbase.hconnection.threads.max", 256),所以这里会设置cleanupPoolOnClose,默认也不会关闭线程池
      this.cleanupPoolOnClose = false;
    }

    this.rpcCallerFactory = rpcCallerFactory;
    this.rpcControllerFactory = rpcControllerFactory;

    //这个方法我们后面重点关注,其根据客户端传入的Configuration初始化HTable的参数
    this.finishSetup();
  }

    上面的代码我已经加了注释,需要注意的是cleanupConnectionOnClose属性,该属性默认值为false,在调用table.close()方法时候,只是关闭了table而已但table后面的connection是没有关闭的,再者是属性cleanupPoolOnClose,虽然我们没有传入线程池,但是HConnectionImplementation会自己创建线程池this.batchPool = getThreadPool(conf.getInt("hbase.hconnection.threads.max", 256)传过来使用,所以这里会设置this.cleanupPoolOnClose = false,默认在table.close()调用时候,也不会关闭线程池,那么这里这里继续跟踪上面代码最后的this.finishSetup(),代码如下:

private void finishSetup() throws IOException {
    //HTable的属性connConfiguration若为空,就基于客户端传入的Configuration构建新的connConfiguration
    if (connConfiguration == null) {
      connConfiguration = new ConnectionConfiguration(configuration);
    }

    //HTable的属性设置
    this.operationTimeout = tableName.isSystemTable() ? connConfiguration.getMetaOperationTimeout() : connConfiguration.getOperationTimeout();
    this.scannerCaching = connConfiguration.getScannerCaching();
    this.scannerMaxResultSize = connConfiguration.getScannerMaxResultSize();
    if (this.rpcCallerFactory == null) {
      this.rpcCallerFactory = connection.getNewRpcRetryingCallerFactory(configuration);
    }
    if (this.rpcControllerFactory == null) {
      this.rpcControllerFactory = RpcControllerFactory.instantiate(configuration);
    }

    // puts need to track errors globally due to how the APIs currently work.
    //hbase的异步操作类
    multiAp = this.connection.getAsyncProcess();

    this.closed = false;
    //hbase的region操作工具类
    this.locator = new HRegionLocator(tableName, connection);
  }
    经过上面的分析,我们有必要看下table.close()的源代码:
public void close() throws IOException {
    //如果已经关闭了,直接返回
    if (this.closed) {
      return;
    }
    //关闭前做最后一次提交
    flushCommits();
    //默认在构造HTable时候,cleanupPoolOnClose=false,这里不会去关闭线程池
    if (cleanupPoolOnClose) {
      this.pool.shutdown();
      try {
        boolean terminated = false;
        do {
          // wait until the pool has terminated
          terminated = this.pool.awaitTermination(60, TimeUnit.SECONDS);
        } while (!terminated);
      } catch (InterruptedException e) {
        this.pool.shutdownNow();
        LOG.warn("waitForTermination interrupted");
      }
    }
    //默认在构造HTable时候,cleanupConnectionOnClose=false,这里不会去关闭table持有的connection
    if (cleanupConnectionOnClose) {
      if (this.connection != null) {
        this.connection.close();
      }
    }
    this.closed = true;
  }



    2.4 HTable.put(final List puts)

    我们已经通过如下代码:

Connection connection = ConnectionFactory.createConnection(configuration);
Table table = connection.getTable(TableName.valueOf("tableName"));

    创建了connection,其默认实现类为org.apache.hadoop.hbase.client.ConnectionManager.HConnectionImplementation,然后创建了table,其默认实现类为org.apache.hadoop.hbase.client.HTable,那么接下来就是分析客户端的批量提交方法:HTable.put(final List puts),代码如下:

  public void put(final List puts) throws IOException {
    //根据设置的缓存大小,达到缓存相关值就进行批量提交
    getBufferedMutator().mutate(puts);
    //不管有无数据未提交,默认autoFlush=true,那么就最后提交一次
    if (autoFlush) {
      flushCommits();
    }
  }

    这里先看下HTable.getBufferedMutator()源代码:

  BufferedMutator getBufferedMutator() throws IOException {
    if (mutator == null) {
      //从HConnectionImplementation获取pool,HConnectionImplementation的默认pool为this.batchPool = getThreadPool(conf.getInt("hbase.hconnection.threads.max", 256)
      //根据hbase.client.write.buffer设置的值,默认2MB,构造缓冲区
      this.mutator = (BufferedMutatorImpl) connection.getBufferedMutator(
          new BufferedMutatorParams(tableName)
              .pool(pool)
              .writeBufferSize(connConfiguration.getWriteBufferSize())
              .maxKeyValueSize(connConfiguration.getMaxKeyValueSize())
      );
    }
    return mutator;
  }

    上面的代码默认构造了一个BufferedMutatorImpl类并返回,继续跟踪BufferedMutatorImpl的方法mutate(List ms)

public void mutate(List ms) throws InterruptedIOException, RetriesExhaustedWithDetailsException {
    //如果BufferedMutatorImpl已经关闭,直接退出返回
    if (closed) {
      throw new IllegalStateException("Cannot put when the BufferedMutator is closed.");
    }

    //这里先不断循环累计提交的List记录所占的空间,放置到toAddSize
    long toAddSize = 0;
    for (Mutation m : ms) {
      if (m instanceof Put) {
        validatePut((Put) m);
      }
      toAddSize += m.heapSize();
    }

    // This behavior is highly non-intuitive... it does not protect us against
    // 94-incompatible behavior, which is a timing issue because hasError, the below code
    // and setter of hasError are not synchronized. Perhaps it should be removed.
    if (ap.hasError()) {
      //设置BufferedMutatorImpl当前记录的提交记录所占空间值为toAddSize
      currentWriteBufferSize.addAndGet(toAddSize);
      //把提交的记录List放置到缓存对象writeAsyncBuffer,在为提交完成前先不进行清理
      writeAsyncBuffer.addAll(ms);
      //这里当捕获到异常时候,再进行异常前的一次数据提交
      backgroundFlushCommits(true);
    } else {
      //设置BufferedMutatorImpl当前记录的提交记录所占空间值为toAddSize
      currentWriteBufferSize.addAndGet(toAddSize);
      //把提交的记录List放置到缓存对象writeAsyncBuffer,在为提交完成前先不进行清理
      writeAsyncBuffer.addAll(ms);
    }

    // Now try and queue what needs to be queued.
    // 如果当前提交的List记录所占空间大于hbase.client.write.buffer设置的值,默认2MB,那么就马上调用backgroundFlushCommits方法
    // 如果小于hbase.client.write.buffer设置的值,那么就直接退出,啥也不做
    while (currentWriteBufferSize.get() > writeBufferSize) {
      backgroundFlushCommits(false);
    }
  }

    上面的代码不断循环累计提交的List记录所占的空间,如果所占空间大于hbase.client.write.buffer设置的值,那么就马上调用backgroundFlushCommits(false)方法,否则啥也不做,如果出错就马上调用一次backgroundFlushCommits(true),所以我们很有必要继续跟踪BufferedMutatorImpl.backgroundFlushCommits(boolean synchronous)代码:

private void backgroundFlushCommits(boolean synchronous) throws InterruptedIOException, RetriesExhaustedWithDetailsException {
    LinkedList buffer = new LinkedList<>();
    // Keep track of the size so that this thread doesn't spin forever
    long dequeuedSize = 0;

    try {
      //分析所有提交的List,Put是Mutation的实现
      Mutation m;
      //如果(hbase.client.write.buffer <= 0 || 0 < (whbase.client.write.buffer * 2) || synchronous)&& writeAsyncBuffer里仍然有Mutation对象
      //那么就不断计算所占空间大小dequeuedSize
      //currentWriteBufferSize的大小则递减
      while ((writeBufferSize <= 0 || dequeuedSize < (writeBufferSize * 2) || synchronous) && (m = writeAsyncBuffer.poll()) != null) {
        buffer.add(m);
        long size = m.heapSize();
        dequeuedSize += size;
        currentWriteBufferSize.addAndGet(-size);
      }

      //backgroundFlushCommits(false)时候,当List,这里不会进入
      if (!synchronous && dequeuedSize == 0) {
        return;
      }

      //backgroundFlushCommits(false)时候,这里会进入,并且不会等待结果返回
      if (!synchronous) {
        //不会等待结果返回
        ap.submit(tableName, buffer, true, null, false);
        if (ap.hasError()) {
          LOG.debug(tableName + ": One or more of the operations have failed -"
              + " waiting for all operation in progress to finish (successfully or not)");
        }
      }
      //backgroundFlushCommits(true)时候,这里会进入,并且会等待结果返回
      if (synchronous || ap.hasError()) {
        while (!buffer.isEmpty()) {
          ap.submit(tableName, buffer, true, null, false);
        }
        //会等待结果返回
        RetriesExhaustedWithDetailsException error = ap.waitForAllPreviousOpsAndReset(null);
        if (error != null) {
          if (listener == null) {
            throw error;
          } else {
            this.listener.onException(error, this);
          }
        }
      }
    } finally {
      //如果还有数据,那么给到外面最后提交
      for (Mutation mut : buffer) {
        long size = mut.heapSize();
        currentWriteBufferSize.addAndGet(size);
        dequeuedSize -= size;
        writeAsyncBuffer.add(mut);
      }
    }
  }

    这里会调用ap.submit(tableName, buffer, true, null, false)直接提交,并且不会等待返回结果,而ap.submit(tableName, buffer, true, null, false)会调用AsyncProcess.submit(ExecutorService pool, TableName tableName,List rows, boolean atLeastOne, Batch.Callback callback,boolean needResults),这里源代码如下:

  public  AsyncRequestFuture submit(TableName tableName, List rows,
      boolean atLeastOne, Batch.Callback callback, boolean needResults)
      throws InterruptedIOException {
    return submit(null, tableName, rows, atLeastOne, callback, needResults);
  }
public  AsyncRequestFuture submit(ExecutorService pool, TableName tableName, List rows, boolean atLeastOne, Batch.Callback callback, boolean needResults) throws InterruptedIOException {
    //如果提交的记录数为0,就直接返回NO_REQS_RESULT
    if (rows.isEmpty()) {
      return NO_REQS_RESULT;
    }

    Map> actionsByServer = new HashMap>();
    //依据提交的List的记录数构建retainedActions
    List> retainedActions = new ArrayList>(rows.size());

    NonceGenerator ng = this.connection.getNonceGenerator();
    long nonceGroup = ng.getNonceGroup(); // Currently, nonce group is per entire client.

    // Location errors that happen before we decide what requests to take.
    List locationErrors = null;
    List locationErrorRows = null;
    //只要retainedActions不为空,那么就一直执行
    do {
      // Wait until there is at least one slot for a new task.
      // 默认maxTotalConcurrentTasks=100,即最多100个异步线程用于处理元数据获取任务,如果超过100,就等待
      waitForMaximumCurrentTasks(maxTotalConcurrentTasks - 1);

      // Remember the previous decisions about regions or region servers we put in the
      //  final multi.
      // 记录本次提交的List对应的region和regionserver
      Map regionIncluded = new HashMap();
      Map serverIncluded = new HashMap();

      int posInList = -1;
      Iterator it = rows.iterator();
      while (it.hasNext()) {
        //这里默认传入一个Put对象,因为Put是Row的继承类
        Row r = it.next();
        //建立变量loc用来存储Put对象对应的region对应的元数据信息
        HRegionLocation loc;
        try {
          if (r == null) {
            throw new IllegalArgumentException("#" + id + ", row cannot be null");
          }
          // Make sure we get 0-s replica.
          //取得Put对象对应的region元数据信息的所有备份信息,第一次调用时候会缓存中是没有元数据信息的,那么就会去链接zookeeper上查找,找到后就加入到缓存,下一次直接从缓存中获取
          RegionLocations locs = connection.locateRegion(
              tableName, r.getRow(), true, true, RegionReplicaUtil.DEFAULT_REPLICA_ID);
          if (locs == null || locs.isEmpty() || locs.getDefaultRegionLocation() == null) {
            throw new IOException("#" + id + ", no location found, aborting submit for"
                + " tableName=" + tableName + " rowkey=" + Bytes.toStringBinary(r.getRow()));
          }
          //取得Put对象对应的region元数据信息的所有备份信息数组中的第一个
          loc = locs.getDefaultRegionLocation();
        } catch (IOException ex) {
          locationErrors = new ArrayList();
          locationErrorRows = new ArrayList();
          LOG.error("Failed to get region location ", ex);
          // This action failed before creating ars. Retain it, but do not add to submit list.
          // We will then add it to ars in an already-failed state.
          retainedActions.add(new Action(r, ++posInList));
          locationErrors.add(ex);
          locationErrorRows.add(posInList);
          it.remove();
          break; // Backward compat: we stop considering actions on location error.
        }

        //这里判断是否可以操作,因为最多也就100个异步线程获取元数据信息,如果都忙就等待
        if (canTakeOperation(loc, regionIncluded, serverIncluded)) {
          Action action = new Action(r, ++posInList);
          setNonce(ng, r, action);//
          retainedActions.add(action);
          // TODO: replica-get is not supported on this path
          byte[] regionName = loc.getRegionInfo().getRegionName();
          //把同一个区的提交任务进行收集,这里先只获知元数据信息,用于知道数据需要提交到哪个region和regionserver,最后循环外再做提交
          addAction(loc.getServerName(), regionName, action, actionsByServer, nonceGroup);
          it.remove();
        }
      }
    } while (retainedActions.isEmpty() && atLeastOne && (locationErrors == null));

    if (retainedActions.isEmpty()) return NO_REQS_RESULT;

    // 这里已经知道数据该提交到哪个region和regionserver,就进行批量提交
    return submitMultiActions(tableName, retainedActions, nonceGroup, callback, null, needResults, locationErrors, locationErrorRows, actionsByServer, pool);
  }

    上面代码会去寻找提交的List的每个Put对象对应的region是哪个,对应的regionserver是哪个,然后进行批量提交,这里要提到另外一个值hbase.client.max.total.tasks(默认值100,意思为客户端最大处理线程数),如果去请求Put对象对应的region是哪个和对应的regionserver是哪个的操作大于100,那么就要等待,我们回到最初的客户端批量提交代码:

  public void put(final List puts) throws IOException {
    //根据设置的缓存大小,达到缓存相关值就进行批量提交
    getBufferedMutator().mutate(puts);
    //不管有无数据未提交,默认autoFlush=true,那么就最后提交一次
    if (autoFlush) {
      flushCommits();
    }
  }

    上面的分析可知,如果客户端提交的List所占空间满足不同条件会进行不同处理,总结如下:

  • List所占空间
  • hbase.client.write.buffer所占空间<2*hbase.client.write.buffer:getBufferedMutator().mutate(puts)里面会执行backgroundFlushCommits(false),处理完后执行flushCommits()
  • 2*hbase.client.write.buffer所占空间:getBufferedMutator().mutate(puts)里面会执行backgroundFlushCommits(false),多余的未提交数据会保留,然后执行flushCommits()

    紧接着,如果HTable的属性autoFlush(默认为true),那么不管剩下的数据多少,也会进行最后一次提交数据到hbase服务端,这时候flushCommits()里调用的是getBufferedMutator().flush(),而getBufferedMutator().flush()调用的是BufferedMutatorImpl.backgroundFlushCommits(true),最后调用上面的ap.submit(tableName, buffer, true, null, false)并且会调用ap.waitForAllPreviousOpsAndReset(null)等待返回结果,至此hbase客户端批量提交的源代码分析完毕。



    2.5.HConnectionImplementation.locateRegionInMeta

    上面的代码HTable.put(final List puts)分析中我们需要关注另一个重要的信息,就是org.apache.hadoop.hbase.client.AsyncProcess的方法public AsyncRequestFuture submit(TableName tableName, List rows, boolean atLeastOne, Batch.Callback callback, boolean needResults),在这个方法里有这么一段代码:

          // 获取我们的数据表的region信息
          RegionLocations locs = connection.locateRegion(tableName,r.getRow(), true, true, RegionReplicaUtil.DEFAULT_REPLICA_ID);

    实质是调用了org.apache.hadoop.hbase.client.ConnectionManager.HConnectionImplementation的方法public RegionLocations locateRegion(final TableName tableName, final byte [] row, boolean useCache, boolean retry, int replicaId)这个方法加载了我们的hbase数据表的region信息,代码解释如下:

public RegionLocations locateRegion(final TableName tableName, final byte [] row, boolean useCache, boolean retry, int replicaId) throws IOException {
      //如果当前连接已经关闭,抛出异常
      if (this.closed) throw new IOException(toString() + " closed");
      //如果客户端传入hbase数据表为空,抛出异常
      if (tableName== null || tableName.getName().length == 0) {
        throw new IllegalArgumentException("table name cannot be null or zero length");
      }
      //TableName.META_TABLE_NAME=hbase:meta(冒号前hbase为包名,meta为表名)
      //我们传入的是我们自己的hbase数据表名,而不是hbase:meta,所以这里不会进入
      if (tableName.equals(TableName.META_TABLE_NAME)) {
        return locateMeta(tableName, useCache, replicaId);
      } else {
        // 这里的代码会进入
        // 这里会去hbase的元数据信息表hbase:meta里去按照我们所给的数据表名和rowkey寻找我们的hbase数据表的region信息
        return locateRegionInMeta(tableName, row, useCache, retry, replicaId);
      }
    }

    我们继续关locateRegionInMeta(tableName, row, useCache, retry, replicaId),代码注释如下:

    /*
      * 这里会去hbase的元数据信息表hbase:meta里去按照我们所给的数据表名和rowkey寻找我们的hbase数据表的region信息
      */
    private RegionLocations locateRegionInMeta(TableName tableName, byte[] row, boolean useCache, boolean retry, int replicaId) throws IOException {
      // 这里传入的useCache=true,所以会进入
      if (useCache) {
      //虽然进入了,但是第一次从缓存中找不到我们的数据表的相关信息
        RegionLocations locations = getCachedLocation(tableName, row);
        if (locations != null && locations.getRegionLocation(replicaId) != null) {
          return locations;
        }
      }

      //这里去元数据表hbase:meta中找数据,所以需要构造rowkey
      // rowkey=tableName+我们传入的rowkey+"99999999999999"+前面字符的md5HashBytes
      byte[] metaKey = HRegionInfo.createRegionName(tableName, row, HConstants.NINES, false);

      //这里构造元数据表hbase:meta的查询scan
      Scan s = new Scan();
      s.setReversed(true);
      s.setStartRow(metaKey);
      s.setSmall(true);
      s.setCaching(1);
      if (this.useMetaReplicas) {
        s.setConsistency(Consistency.TIMELINE);
      }

      //默认numTries=31次,无法从元数据表hbase:meta获取信息,那么就一直尝试31次
      int localNumRetries = (retry ? numTries : 1);

      for (int tries = 0; true; tries++) {
        if (tries >= localNumRetries) {
          throw new NoServerForRegionException("Unable to find region for " + Bytes.toStringBinary(row) + " in " + tableName + " after " + localNumRetries + " tries.");
        }
        if (useCache) {//这里虽然进入了,因为useCache=true,但是我们第一次还是无法从缓存拿到数据
          RegionLocations locations = getCachedLocation(tableName, row);
          if (locations != null && locations.getRegionLocation(replicaId) != null) {
            return locations;
          }
        } else {
          // If we are not supposed to be using the cache, delete any existing cached location
          // so it won't interfere.
          metaCache.clearCache(tableName, row);
        }


        // 因为缓存拿不到,那么就从元数据表hbase:meta获取region信息
        try {
          Result regionInfoRow = null;
          ReversedClientScanner rcs = null;
          try {
            //这里很重要,告诉刚才构造的scan用于表TableName.META_TABLE_NAME,而TableName.META_TABLE_NAME=hbase:meta
            rcs = new ClientSmallReversedScanner(conf, s, TableName.META_TABLE_NAME, this, rpcCallerFactory, rpcControllerFactory, getMetaLookupPool(), 0);
            //好了,这里拿到了我们的数据表的regionInfoRow信息,regionInfoRow是元数据表hbase:meta中的一行数据
            regionInfoRow = rcs.next();
          } finally {
            if (rcs != null) {
              rcs.close();
            }
          }

          if (regionInfoRow == null) {
            throw new TableNotFoundException(tableName);
          }

          // 转换数据表的regionInfoRow信息为我们需要的HRegionLocation
          RegionLocations locations = MetaTableAccessor.getRegionLocations(regionInfoRow);
          if (locations == null || locations.getRegionLocation(replicaId) == null) {
            throw new IOException("HRegionInfo was null in " + tableName + ", row=" + regionInfoRow);
          }

          //我们拿到了我们的hbase数据表的HRegionLocation,但是此时再做个检查,避免此时hbase宕机了或者已经split了或者拿错了
          HRegionInfo regionInfo = locations.getRegionLocation(replicaId).getRegionInfo();
          if (regionInfo == null) {
            throw new IOException("HRegionInfo was null or empty in " + TableName.META_TABLE_NAME + ", row=" + regionInfoRow);
          }
          if (!regionInfo.getTable().equals(tableName)) {
            throw new TableNotFoundException( "Table '" + tableName + "' was not found, got: " + regionInfo.getTable() + ".");
          }
          if (regionInfo.isSplit()) {
            throw new RegionOfflineException("the only available region for" + " the required row is a split parent," + " the daughters should be online soon: " + regionInfo.getRegionNameAsString());
          }
          if (regionInfo.isOffline()) {
            throw new RegionOfflineException("the region is offline, could" + " be caused by a disable table call: " + regionInfo.getRegionNameAsString());
          }
          ServerName serverName = locations.getRegionLocation(replicaId).getServerName();
          if (serverName == null) {
            throw new NoServerForRegionException("No server address listed " + "in " + TableName.META_TABLE_NAME + " for region " + regionInfo.getRegionNameAsString() + " containing row " + Bytes.toStringBinary(row));
          }
          if (isDeadServer(serverName)){
            throw new RegionServerStoppedException("hbase:meta says the region "+ regionInfo.getRegionNameAsString()+" is managed by the server " + serverName + ", but it is dead.");
          }

          // 好了检查无误了,那么为了让下一次不要这么麻烦,先缓存起来,这样拿的也快
          cacheLocation(tableName, locations);
          // 好了,该返回region信息了
          return locations;
        } catch (TableNotFoundException e) {
          // if we got this error, probably means the table just plain doesn't
          // exist. rethrow the error immediately. this should always be coming
          // from the HTable constructor.
          throw e;
        } catch (IOException e) {
          ExceptionUtil.rethrowIfInterrupt(e);

          if (e instanceof RemoteException) {
            e = ((RemoteException)e).unwrapRemoteException();
          }
          if (tries < localNumRetries - 1) {
            if (LOG.isDebugEnabled()) {
              LOG.debug("locateRegionInMeta parentTable=" + TableName.META_TABLE_NAME + ", metaLocation=" + ", attempt=" + tries + " of " + localNumRetries + " failed; retrying after sleep of " + ConnectionUtils.getPauseTime(this.pause, tries) + " because: " + e.getMessage());
            }
          } else {
            throw e;
          }
          // Only relocate the parent region if necessary
          if(!(e instanceof RegionOfflineException || e instanceof NoServerForRegionException)) {
            relocateRegion(TableName.META_TABLE_NAME, metaKey, replicaId);
          }
        }
        //没找到,那么沉睡一段时间然后重试次数未到31次,那么继续循环找吧,直到找到,如果次数大于31,那么只有抛出异常
        try{
          Thread.sleep(ConnectionUtils.getPauseTime(this.pause, tries));
        } catch (InterruptedException e) {
          throw new InterruptedIOException("Giving up trying to location region in " + "meta: thread is interrupted.");
        }
      }
    }

    上述代码我们可以得知在首次org.apache.hadoop.hbase.client.ConnectionManager.HConnectionImplementation是如何加载我们需要的hbase数据表的信息的,我们看到hbase有个元数据表hbase:meta,这里hbase是namespace而meta是表名,我们自己创建的数据表的元数据信息都存储在这个元数据表hbase:meta中,第一次的时候会去元数据表hbase:meta中查找,找到后就加入缓存,第二次的时候直接从缓存获取我们的数据表的region信息



3.从分析源码中学到的对于hbase客户端的优化知识

  • hbase客户端里传入hbase.client.write.buffer(默认2MB),加到客户端提交的缓存大小;
  • hbase客户端提交采用批量提交,批量提交的List的size计算公式=hbase.client.write.buffer*2/Put大小,Put大小可通过put.heapSize()获取,以hbase.client.write.buffer=2097152,put.heapSize()=1320举例,最佳的批量提交记录大小=2*2097152/1320=3177;
  • hbase客户端尽量采用多线程并发写
  • hbase客户端所在机器性能要好,不然速度上不去
  • 能接受关闭WAL的话尽量关闭,速度也会相应提升

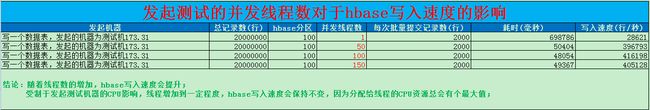

4.hbase性能调研写入速度测试记录

源码解读--(1)hbase客户端源代码_第1张图片
源码解读--(1)hbase客户端源代码_第2张图片





你可能感兴趣的:(源代码)
