apollo2.5源码解析之注册器模式

• apollo2.5中感知模块注册器模式分析

一. SharedData分析

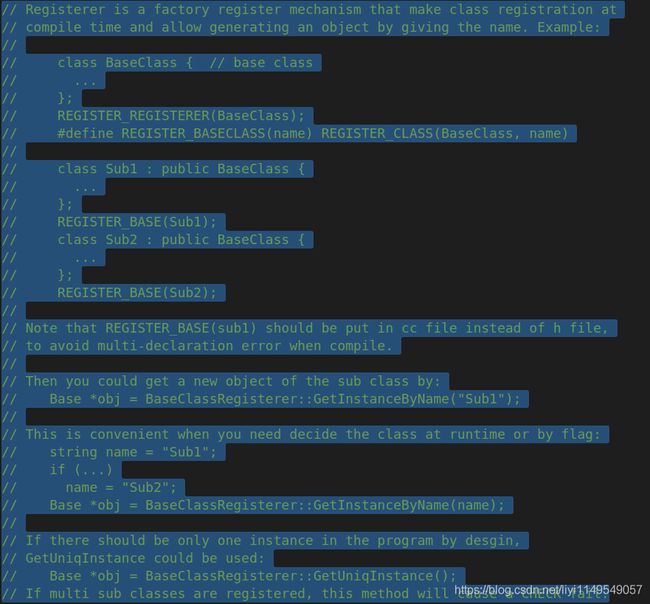

先来看一个例子，方便我们更直观地理解注册器模式，摘自apollo2.5的modules/perception/lib/base/registerer.h文件：

下面以SharedData类为例来具体分析一下，SharedData类的定义如下：

class SharedData {
 public:
  SharedData() {}
  virtual ~SharedData() {}

  virtual bool Init() = 0;

  // this api should clear all the memory used,
  // and would be called by SharedDataManager when reset DAGStreaming.
  virtual void Reset() { CHECK(false) << "reset() not implemented."; }

  virtual void RemoveStaleData() {
    CHECK(false) << "remove_stale_data() not implemented.";
  }

  virtual std::string name() const = 0;

 private:
  DISALLOW_COPY_AND_ASSIGN(SharedData);
};

REGISTER_REGISTERER(SharedData);

#define REGISTER_SHAREDDATA(name) REGISTER_CLASS(SharedData, name)

SharedData类是一个抽象基类，定义了SharedData类对外的通用接口。可以看到，在完成SharedData类的定义之后使用宏REGISTER_REGISTERER完成SharedDataRegisterer类的定义，也就是SharedData类的注册：

  REGISTER_REGISTERER(SharedData);

  class SharedDataRegisterer {
    typedef perception::Any Any;
    typedef perception::FactoryMap FactoryMap;

   public:
    static SharedData *GetInstanceByName(const ::std::string &name) {
      FactoryMap &map = perception::GlobalFactoryMap()["SharedData"];
      FactoryMap::iterator iter = map.find(name);
      if (iter == map.end()) {
        for (auto c : map) {
          AERROR << "Instance:" << c.first;
        }
        AERROR << "Get instance " << name << " failed.";
        return nullptr;
      }
      Any object = iter->second->NewInstance();
      return *(object.AnyCast());
    }
    static std::vector GetAllInstances() {
      std::vector instances;
      FactoryMap &map = perception::GlobalFactoryMap()["SharedData"];
      instances.reserve(map.size());
      for (auto item : map) {
        Any object = item.second->NewInstance();
        instances.push_back(*(object.AnyCast()));
      }
      return instances;
    }
    static const ::std::string GetUniqInstanceName() {
      FactoryMap &map = perception::GlobalFactoryMap()["SharedData"];
      CHECK_EQ(map.size(), 1) << map.size();
      return map.begin()->first;
    }
    static SharedData *GetUniqInstance() {
      FactoryMap &map = perception::GlobalFactoryMap()["SharedData"];
      CHECK_EQ(map.size(), 1) << map.size();
      Any object = map.begin()->second->NewInstance();
      return *(object.AnyCast());
    }
    static bool IsValid(const ::std::string &name) {
      FactoryMap &map = perception::GlobalFactoryMap()["SharedData"];
      return map.find(name) != map.end();
    }
  };

SharedDataRegisterer类有5个静态公有成员函数，分别完成如下功能：

GetInstanceByName函数用来根据输入名称创建对应的子类的对象，返回类型为SharedData *

GetAllInstances函数用来创建在SharedDataRegisterer类中注册的所有子类的对象，返回类型为std::vector

GetUniqInstanceName函数获取在SharedDataRegisterer类中注册的唯一子类的名称，如果在SharedDataRegisterer类中注册了多个子类，则此方法将导致CHECK失败

GetUniqInstance函数用来创建在SharedDataRegisterer类中注册的唯一子类的对象，如果在SharedDataRegisterer类中注册了多个子类，则此方法将导致CHECK失败

IsValid函数用来判断输入名称对应的子类是否在SharedDataRegisterer类中注册，返回类型为bool

这里要说明一下FactoryMap和BaseClassMap，一个FactoryMap对象存储的是派生类名称与一个指向该派生类对象的指针的关联，而一个BaseClassMap对象存储的是基类名称与一个FactoryMap对象的关联：

typedef std::unordered_map FactoryMap;
typedef std::unordered_map BaseClassMap;

接下来看看CommonSharedData类，继承自SharedData类，并且这是一个模板类，类型参数为M，具有如下成员变量：

  typedef std::unordered_map> SharedDataMap;
  typedef std::pair> SharedDataPair;
  typedef std::unordered_map
      DataAddedTimeMap;  // precision in second
  typedef std::pair DataKeyTimestampPair;

  SharedDataMap data_map_;
  Mutex mutex_;
  CommonSharedDataStat stat_;
  DataAddedTimeMap data_added_time_map_;
  double latest_timestamp_ = std::numeric_limits::min();

data_map_存储的是shared data的key和shared data本身，data_added_time_map_存储的是shared data的key和shared data添加到data_map_中的时间，stat_存储的是一个具体类型的SharedData对象的状态，主要包括对该对象执行的Add、Get和Remove操作的次数。

关于CommonSharedData类的成员函数，主要说下Reset()和RemoveStaleData()：

  void Reset() override;
  void RemoveStaleData() override;

Reset()用来重置一个具体类型的SharedData对象，包括清空data_map_和data_added_time_map_，复位latest_timestamp_

RemoveStaleData()用来从一个具体类型的SharedData对象中移除添加到data_map_中的时间在系统当前时间之前超过shared_data_stale_time阈值的shared data

CameraSharedData、FusionSharedData、LaneSharedData、TLPreprocessingData类以及通过宏OBJECT_SHARED_DATA定义的ObjectData类都继承自CommonSharedData类的模板实例。下面以CameraSharedData类为例解释一下：

struct CameraItem {
  cv::Mat image_src_mat;
  SeqId seq_num = 0u;
  double timestamp = 0.0;
};

class CameraSharedData : public CommonSharedData {
 public:
  CameraSharedData() = default;
  virtual ~CameraSharedData() = default;

  std::string name() const override {
    return "CameraSharedData";
  }

 private:
  DISALLOW_COPY_AND_ASSIGN(CameraSharedData);
};

REGISTER_SHAREDDATA(CameraSharedData);

可以看到，在完成CameraSharedData类的定义之后使用宏REGISTER_SHAREDDATA完成ObjectFactoryCameraSharedData类和RegisterFactoryCameraSharedData()函数的定义，ObjectFactoryCameraSharedData类继承自ObjectFactory类，ObjectFactoryCameraSharedData类和RegisterFactoryCameraSharedData()函数一起完成CameraSharedData类在SharedData类对应的FactoryMap对象中的注册：

  REGISTER_SHAREDDATA(CameraSharedData);

  REGISTER_CLASS(SharedData, CameraSharedData);

  class ObjectFactoryCameraSharedData : public apollo::perception::ObjectFactory {
   public:
    virtual ~ObjectFactoryCameraSharedData() {}
    virtual perception::Any NewInstance() {
      return perception::Any(new CameraSharedData());
    }
  };
  inline void RegisterFactoryCameraSharedData() {
    perception::FactoryMap &map = perception::GlobalFactoryMap()["SharedData"];
    if (map.find("CameraSharedData") == map.end()) map["CameraSharedData"] = new ObjectFactoryCameraSharedData();
  }

通过宏OBJECT_SHARED_DATA完成LidarObjectData、RadarObjectData、CameraObjectData和CIPVObjectData类的定义，并且通过宏REGISTER_SHAREDDATA完成类在SharedData注册器中的注册，这里与CameraSharedData类是一样的：

#define OBJECT_SHARED_DATA(data_name)                        \
  class data_name : public CommonSharedData { \
   public:                                                   \
    data_name() : CommonSharedData() {}       \
    virtual ~data_name() {}                                  \
    std::string name() const override {                      \
      return #data_name;                                     \
    }                                                        \
                                                             \
   private:                                                  \
    DISALLOW_COPY_AND_ASSIGN(data_name);                     \
  }

OBJECT_SHARED_DATA(LidarObjectData);
OBJECT_SHARED_DATA(RadarObjectData);
OBJECT_SHARED_DATA(CameraObjectData);
OBJECT_SHARED_DATA(CIPVObjectData);

REGISTER_SHAREDDATA(LidarObjectData);
REGISTER_SHAREDDATA(RadarObjectData);
REGISTER_SHAREDDATA(CameraObjectData);
REGISTER_SHAREDDATA(CIPVObjectData);

以LidarObjectData类为例，宏OBJECT_SHARED_DATA展开后的代码如下：

  OBJECT_SHARED_DATA(LidarObjectData);

  class LidarObjectData : public CommonSharedData {
   public:
    LidarObjectData() : CommonSharedData() {}
    virtual ~LidarObjectData() {}
    std::string name() const override {
      return "LidarObjectData";
    }

   private:
    DISALLOW_COPY_AND_ASSIGN(LidarObjectData);
  }

总结一下：REGISTER_REGISTERER宏的功能是完成基类注册器的定义，亦即基类的注册，REGISTER_SHAREDDATA宏的功能是完成派生类在基类注册器中的注册，亦即派生类与基类的关联。

最后再来分析一下SharedDataManager类，该类是整个SharedData这一层与外层交互的接口，具体定义如下：

class SharedDataManager {
 public:
  SharedDataManager() = default;
  ~SharedDataManager() = default;

  bool Init(const DAGConfig::SharedDataConfig &data_config);

  // thread-safe.
  SharedData *GetSharedData(const std::string &name) const;

  void Reset();

  void RemoveStaleData();

 private:
  std::unordered_map> shared_data_map_;
  bool inited_ = false;
  DISALLOW_COPY_AND_ASSIGN(SharedDataManager);
};

成员变量shared_data_map_存储的是具体类型的SharedData类的名称如CameraSharedData、LidarObjectData等，和指向某个该类型SharedData对象的指针。成员函数都是通过调用相应的基类接口（在SharedData类中定义）来实现所需的功能，例如初始化是通过Init函数读取DAGConfig消息的data_config域（在onboard/proto/dag_config.proto文件中定义），并在内部调用对应类型的SharedData的Init()函数来实现的，一个DAGConfig消息实例（参见conf/dag_streaming.config文件）的data_config片段如下：

data_config {
    datas {
        id: 1
        name: "LidarObjectData"
    }
    datas {
        id: 2
        name: "RadarObjectData"
    }
    datas {
        id: 3
        name: "TLPreprocessingData"
    }
}

二. EventManager分析

在分析Subnode类之前，我们先来看看EventManager类，该类用来管理event，这里的event是指shared data从一个subnode流向另一个subnode，亦即DAG中的edge。需要注意的成员变量主要有event_queue_map_和event_meta_map_，分别用来存储EventID与EventQueue的关联以及EventID与EventMeta的关联：

  using EventQueue = FixedSizeConQueue;
  using EventQueueMap = std::unordered_map>;
  using EventMetaMap = std::unordered_map;

  EventQueueMap event_queue_map_;
  EventMetaMap event_meta_map_;
  bool inited_ = false;

先来看看Init函数，通过读取DAGConfig消息的edge_config域（在onboard/proto/dag_config.proto文件中定义），根据edge_config域的参数初始化成员变量event_queue_map_和event_meta_map_：

bool EventManager::Init(const DAGConfig::EdgeConfig &edge_config) {
  if (inited_) {
    AWARN << "EventManager Init twice.";
    return true;
  }

  for (const DAGConfig::Edge &edge : edge_config.edges()) {
    for (const DAGConfig::Event event_pb : edge.events()) {
      if (event_queue_map_.find(event_pb.id()) != event_queue_map_.end()) {
        AERROR << "duplicate event id in config. id: " << event_pb.id();
        return false;
      }

      event_queue_map_[event_pb.id()].reset(
          new EventQueue(FLAGS_max_event_queue_size));

      EventMeta event_meta;
      event_meta.event_id = event_pb.id();
      event_meta.name = event_pb.name();
      event_meta.from_node = edge.from_node();
      event_meta.to_node = edge.to_node();
      event_meta_map_.emplace(event_pb.id(), event_meta);
      AINFO << "load EventMeta: " << event_meta.to_string();
    }
  }
  AINFO << "load " << event_queue_map_.size() << " events in DAGSreaming.";
  inited_ = true;
  return true;
}

一个DAGConfig消息实例（参见conf/dag_streaming.config文件）的edge_config片段如下：

# Define all edges linked nodes.
edge_config {
    # 64-Lidar LidarProcessSubnode -> FusionSubnode
    edges {
        id: 101
        from_node: 1
        to_node: 31
        events {
            id: 1001
            name: "lidar_fusion"
        }
    }

    # Radar RadarProcessSubnode -> FusionSubnode
    edges {
        id: 102
        from_node: 2
        to_node: 31
        events {
            id: 1002
            name: "radar_fusion"
        }
    }
   # TLPreprocessorSubnode -> TLProcSubnode
    edges {
        id: 201
        from_node: 41
        to_node: 42
        events {
            id: 1003
            name: "traffic_light"
        }
    }
}

再来看看Publish函数，作用是将输入的Event添加到event_queue_map_里与该Event的EventID关联的EventQueue中去：

bool EventManager::Publish(const Event &event) {
  EventQueue *queue = GetEventQueue(event.event_id);
  if (queue == nullptr) {
    AERROR << "Fail to get event with id: " << event.event_id;
    return false;
  }

  if (!queue->try_push(event)) {
    // Critical errors: queue is full.
    AERROR << "EventQueue is FULL. id: " << event.event_id;
    // Clear all blocked data.
    AERROR << "clear EventQueue. id: " << event.event_id
           << " size: " << queue->size();
    queue->clear();

    // try second time.
    queue->try_push(event);
  }
  return true;
}

最后来看看Subscribe函数，作用是将event_id属性与输入的EventID相同的Event从event_queue_map_里对应的EventQueue中删除，同时会将该Event赋值给输入的Event指针指向的内容：

bool EventManager::Subscribe(EventID event_id, Event *event, bool nonblocking) {
  EventQueue *queue = GetEventQueue(event_id);
  if (queue == nullptr) {
    AERROR << "Fail to get event with id: " << event_id;
    return false;
  }

  if (nonblocking) {
    return queue->try_pop(event);
  }

  ADEBUG << "EVENT_ID: " << event_id << "QUEUE LENGTH:" << queue->size();
  queue->pop(event);
  return true;
}

bool EventManager::Subscribe(EventID event_id, Event *event) {
  return Subscribe(event_id, event, false);
}

顺便说一下，GetEventQueue函数的作用是从event_queue_map_中取出与输入的EventID关联的EventQueue，GetEventMeta函数的作用是从event_meta_map_中取出与输入的EventID关联的EventMeta。

总结一下：from_node发布event，to_node订阅event，每一条edge都包含一个from_node、一个to_node和一个event。

三. Subnode分析

Subnode和SharedData的设计模式是完全一样的，在设计层次上，Subnode对应SharedData，CommonSubnode对应CommonSharedData。唯一不同的是，各个具体类型的Subnode类如LidarProcessSubnode、CIPVSubnode等都直接继承自Subnode类，而各个具体类型的SharedData类如CameraSharedData、CIPVObjectData等都继承自CommonSharedData类的模板实例。下面先来看一下Subnode类的成员变量：

 protected:
  // following variable can be accessed by Derived Class.
  SubnodeID id_ = 0;
  std::string name_;
  std::string reserve_;
  DAGConfig::SubnodeType type_ = DAGConfig::SUBNODE_NORMAL;
  EventManager *event_manager_ = nullptr;
  SharedDataManager *shared_data_manager_ = nullptr;

  std::vector sub_meta_events_;
  std::vector pub_meta_events_;

 private:
  volatile bool stop_ = false;
  bool inited_ = false;
  int total_count_ = 0;
  int failed_count_ = 0;

先来看看Init函数，通过读取DAGConfig消息的subnode_config域（在onboard/proto/dag_config.proto文件中定义），根据subnode_config域的参数以及输入的参数初始化成员变量：

bool Subnode::Init(const DAGConfig::Subnode &subnode_config,
                   const vector &sub_events,
                   const vector &pub_events,
                   EventManager *event_manager,
                   SharedDataManager *shared_data_manager) {
  name_ = subnode_config.name();
  id_ = subnode_config.id();
  reserve_ = subnode_config.reserve();
  if (subnode_config.has_type()) {
    type_ = subnode_config.type();
  }

  CHECK(event_manager != nullptr) << "event_manager == nullptr";
  event_manager_ = event_manager;
  CHECK(shared_data_manager != nullptr) << "shared_data_manager == nullptr";
  shared_data_manager_ = shared_data_manager;

  // fill sub and pub meta events.
  if (!event_manager_->GetEventMeta(sub_events, &sub_meta_events_)) {
    AERROR << "failed to get Sub EventMeta. node: <" << name_ << ", " << id_
           << ">";
    return false;
  }

  if (!event_manager_->GetEventMeta(pub_events, &pub_meta_events_)) {
    AERROR << "failed to get Pub EventMeta. node: <" << id_ << ", " << name_
           << ">";
    return false;
  }

  if (!InitInternal()) {
    AERROR << "failed to Init inner members.";
    return false;
  }

  inited_ = true;
  return true;
}

成员变量sub_meta_events_和pub_meta_events_是通过调用event_manager_的GetEventMeta函数实现的初始化，也就是将event_manager_的成员变量event_meta_map_中对应EventID的EventMeta分别添加到sub_meta_events_和pub_meta_events_中。

一个DAGConfig消息实例（参见conf/dag_streaming.config文件）的subnode_config片段如下：

# Define all nodes in DAG streaming.
subnode_config {
    # 64-Lidar Input nodes.
    subnodes {
        id: 1
        name: "LidarProcessSubnode"
        reserve: "device_id:velodyne64;"
        type: SUBNODE_IN
    }

    # Front radar Input nodes.
    subnodes {
        id: 2
        name: "RadarProcessSubnode"
        reserve: "device_id:radar;"
        type: SUBNODE_IN
    }

    # Fusion node.
    subnodes {
        id: 31
        name: "FusionSubnode"
        reserve: "pub_driven_event_id:1001;lidar_event_id:1001;radar_event_id:1002;"
        type: SUBNODE_OUT
    }

    # TrafficLight Preprocess node.
    subnodes {
        id: 41
        name: "TLPreprocessorSubnode"
        type: SUBNODE_IN
    }
    # TrafficLight process node.
    subnodes {
        id: 42
        name: "TLProcSubnode"
        type: SUBNODE_OUT
    }
}

接着来看看ProcEvents()函数，该函数是Subnode处理event的通用接口，必须被派生类重写：

  // @brief Subnode process interface, should be implemented in derived class.
  // @return Status.
  virtual apollo::common::Status ProcEvents() = 0;

再来看看Run()函数，对于类型不是SUBNODE_IN的子节点，会在while循环中一直调用ProcEvents()函数：

void Subnode::Run() {
  if (!inited_) {
    AERROR << "Subnode not inited, run failed. node: <" << id_ << ", " << name_
           << ">";
    return;
  }

  if (type_ == DAGConfig::SUBNODE_IN) {
    AINFO << "Subnode == SUBNODE_IN, EXIT THREAD. subnode:" << DebugString();
    return;
  }

  while (!stop_) {
    Status status = ProcEvents();
    ++total_count_;
    if (status.code() == ErrorCode::PERCEPTION_ERROR) {
      ++failed_count_;
      AWARN << "Subnode: " << name_ << " proc event failed. "
            << " total_count: " << total_count_
            << " failed_count: " << failed_count_;
      continue;
    }

    // FATAL error, so exit thread.
    if (status.code() == ErrorCode::PERCEPTION_FATAL) {
      AERROR << "Subnode: " << name_ << " proc event FATAL error, EXIT. "
             << " total_count: " << total_count_
             << " failed_count: " << failed_count_;
      break;
    }
  }
}

注意，类型是SUBNODE_IN的子节点包括CameraProcessSubnode、LidarProcessSubnode、RadarProcessSubnode、MotionService和TLPreprocessorSubnode，这些类中的ProcEvents()函数的实现非常简单：

  apollo::common::Status ProcEvents() override {
    return apollo::common::Status::OK();
  }

• DAGStreaming

首先来看看DAGStreaming类，主要的成员变量如下：

  EventManager event_manager_;
  SharedDataManager shared_data_manager_;
  bool inited_ = false;
  std::unique_ptr monitor_;
  // NOTE(Yangguang Li): Guarantee Sunode should be firstly called destructor.
  // Subnode depends the EventManager and SharedDataManager.
  static SubnodeMap subnode_map_;
  // subnode has order, IDs define the initilization order
  static std::map subnode_name_map_;

Init函数读取conf/dag_streaming.config文件，根据文件中的内容来初始化相关的成员变量，在Init函数内部会调用InitSharedData和InitSubnodes函数：

bool DAGStreaming::Init(const string& dag_config_path) {
  if (inited_) {
    AWARN << "DAGStreaming Init twice.";
    return true;
  }

  DAGConfig dag_config;
  string content;
  if (!apollo::common::util::GetContent(dag_config_path, &content)) {
    AERROR << "failed to laod DAGConfig file: " << dag_config_path;
    return false;
  }

  if (!TextFormat::ParseFromString(content, &dag_config)) {
    AERROR << "failed to Parse DAGConfig proto: " << dag_config_path;
    return false;
  }

  if (!event_manager_.Init(dag_config.edge_config())) {
    AERROR << "failed to Init EventManager. file: " << dag_config_path;
    return false;
  }

  if (!InitSharedData(dag_config.data_config()) || !InitSubnodes(dag_config)) {
    return false;
  }

  inited_ = true;
  AINFO << "DAGStreaming Init success.";
  return true;
}

Run()函数内部调用的是Schedule()函数，Schedule()函数的内部实现调用了Thread类的接口，具体代码如下：

void DAGStreaming::Run() { Schedule(); }

void DAGStreaming::Schedule() {
  monitor_->Start();
  // start all subnodes.
  for (auto& pair : subnode_map_) {
    pair.second->Start();
  }

  AINFO << "DAGStreaming start to schedule...";

  for (auto& pair : subnode_map_) {
    pair.second->Join();
  }

  monitor_->Join();
  AINFO << "DAGStreaming schedule exit.";
}

Stop()函数的内部实现使用的都是Thread类的接口，具体代码如下：

void DAGStreaming::Stop() {
  monitor_->Stop();
  // stop all subnodes.
  for (auto& pair : subnode_map_) {
    pair.second->Stop();
  }

  // sleep 100 ms
  usleep(100000);
  // kill thread which is blocked
  for (auto& pair : subnode_map_) {
    if (pair.second->IsAlive()) {
      AINFO << "pthread_cancel to thread " << pair.second->Tid();
      pthread_cancel(pair.second->Tid());
    }
  }

  AINFO << "DAGStreaming is stoped.";
}

最后来看下GetSubnodeByName函数，这是一个静态函数，用来获取指定名称Subnode的对象的指针：

Subnode* DAGStreaming::GetSubnodeByName(std::string name) {
  std::map::iterator iter =
      subnode_name_map_.find(name);
  if (iter != subnode_name_map_.end()) {
    return subnode_map_[iter->second].get();
  }
  return nullptr;
}

• 使用示例

感知模块在Init()函数中会调用RegistAllOnboardClass()函数，注册一系列类以完成模块启动后的各项工作，相关代码如下：

void Perception::RegistAllOnboardClass() {
  /// regist sharedata
  RegisterFactoryLidarObjectData();
  RegisterFactoryRadarObjectData();
  RegisterFactoryCameraObjectData();
  RegisterFactoryCameraSharedData();
  RegisterFactoryCIPVObjectData();
  RegisterFactoryLaneSharedData();
  RegisterFactoryFusionSharedData();
  traffic_light::RegisterFactoryTLPreprocessingData();

  /// regist subnode
  RegisterFactoryLidarProcessSubnode();
  RegisterFactoryRadarProcessSubnode();
  RegisterFactoryCameraProcessSubnode();
  RegisterFactoryCIPVSubnode();
  RegisterFactoryLanePostProcessingSubnode();
  RegisterFactoryAsyncFusionSubnode();
  RegisterFactoryFusionSubnode();
  RegisterFactoryMotionService();
  lowcostvisualizer::RegisterFactoryVisualizationSubnode();
  traffic_light::RegisterFactoryTLPreprocessorSubnode();
  traffic_light::RegisterFactoryTLProcSubnode();
}

我们可以以此为入口了解各个子模块的工作逻辑，下面以RegisterFactoryLidarProcessSubnode为例进行说明。代码中其实并不存在RegisterFactoryLidarProcessSubnode()这个函数，该函数的定义其实是由宏完成的，相关代码如下：

/// modules/perception/onboard/subnode.h
#define REGISTER_SUBNODE(name) REGISTER_CLASS(Subnode, name)

/// modules/perception/lib/base/registerer.h
#define REGISTER_CLASS(clazz, name)                                           \
  class ObjectFactory##name : public apollo::perception::ObjectFactory {      \
   public:                                                                    \
    virtual ~ObjectFactory##name() {}                                         \
    virtual perception::Any NewInstance() {                                   \
      return perception::Any(new name());                                     \
    }                                                                         \
  };                                                                          \
  inline void RegisterFactory##name() {                                       \
    perception::FactoryMap &map = perception::GlobalFactoryMap()[#clazz];     \
    if (map.find(#name) == map.end()) map[#name] = new ObjectFactory##name(); \
  }

而在obstacle/onboard/lidar_process_subnode.h文件中使用了上面这个宏：

REGISTER_SUBNODE(LidarProcessSubnode);

于是就会生成一个名称为ObjectFactoryLidarProcessSubnode的类，该类继承自apollo::perception::ObjectFactory，并且还生成了RegisterFactoryLidarProcessSubnode()函数，宏展开之后的代码如下：

//REGISTER_SUBNODE(LidarProcessSubnode);
//REGISTER_CLASS(Subnode, LidarProcessSubnode);

class ObjectFactoryLidarProcessSubnode : public apollo::perception::ObjectFactory {
  public:
    virtual ~ObjectFactoryLidarProcessSubnode() {}
    virtual perception::Any NewInstance() {
      return perception::Any(new LidarProcessSubnode());
    }
  };
  inline void RegisterFactoryLidarProcessSubnode() {
    perception::FactoryMap &map = perception::GlobalFactoryMap()["Subnode"];
    if (map.find("LidarProcessSubnode") == map.end()) map["LidarProcessSubnode"] = new ObjectFactoryname();
  }

ObjectFactoryLidarProcessSubnode类和RegisterFactoryLidarProcessSubnode()函数一起就可以完成LidarProcessSubnode类在

Subnode类对应的FactoryMap对象中的注册。

最后再来复习一下，一个FactoryMap对象存储的是派生类名称与一个指向该派生类对象的指针的关联，而一个BaseClassMap对象存储的是基类名称与一个FactoryMap对象的关联：

typedef std::unordered_map FactoryMap;
typedef std::unordered_map BaseClassMap;
BaseClassMap &GlobalFactoryMap();
