arcgis ElementLayer图层之足帧动画

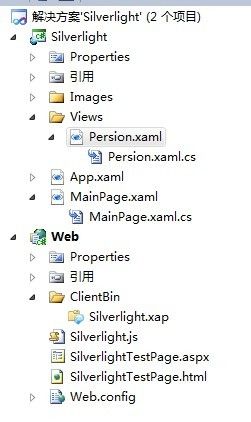

在本次GIS项目开发中，需要实现轨迹回放功能；就是从地图上了一个点，经过N个点，一路慢慢的移动，而实现这效果的最好方式就是Siverlight足帧动画了。好了废话不说，先介绍下Demo结构，看图：





persion.xaml用户控件里面显示一张图片。当然有了这个userControl，那基本上什么多可以放了。看Persion.xaml代码:

Persion.xaml

 1 <UserControl x:Class="Silverlight.Views.Persion"
 2     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
 3     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
 4     xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
 5     xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
 6     mc:Ignorable="d"
 7     d:DesignHeight="300" d:DesignWidth="400">
 8
 9     <Canvas>
10         <Canvas.Background>
11             <ImageBrush  ImageSource="/Silverlight;component/Images/persion.png"></ImageBrush>
12         </Canvas.Background>
13     </Canvas>
14 </UserControl>

cs文件里面就定义了X和Y两个属性,定义这两个属性的目的是能为Storyboard.SetTargetProperty服务；

Persion.xaml.cs

 1 using System;
 2 using System.Collections.Generic;
 3 using System.Linq;
 4 using System.Net;
 5 using System.Windows;
 6 using System.Windows.Controls;
 7 using System.Windows.Documents;
 8 using System.Windows.Input;
 9 using System.Windows.Media;
10 using System.Windows.Media.Animation;
11 using System.Windows.Shapes;
12
13 namespace Silverlight.Views
14 {
15     public partial class Persion : UserControl
16     {
17         public Persion()
18         {
19             InitializeComponent();
20         }
21
22
23         #region 属性
24          //获取或设置X坐标
25         public  double X
26         {
27             get { return (double)GetValue(XProperty); }
28             set
29             {
30                 SetValue(XProperty, value);
31                 SetElementEnvelope();
32             }
33         }
34         public static DependencyProperty XProperty = DependencyProperty.Register("X", typeof(double), typeof(Persion), new PropertyMetadata(OnXChange));
35         static void OnXChange(DependencyObject sender, DependencyPropertyChangedEventArgs e)
36         {
37             (sender as Persion).X = (double)e.NewValue;
38         }
39
40         //获取或设置Y坐标
41         public double Y
42         {
43             get { return (double)GetValue(YProperty); }
44             set
45             {
46                 SetValue(YProperty, value);
47                 SetElementEnvelope();
48             }
49         }
50
51         public static DependencyProperty YProperty = DependencyProperty.Register("Y", typeof(double), typeof(Persion), new PropertyMetadata(OnYChange));
52         static void OnYChange(DependencyObject sender, DependencyPropertyChangedEventArgs e)
53         {
54             (sender as Persion).Y = (double)e.NewValue;
55         }
56         //设置Envelope属性
57         private void SetElementEnvelope()
58         {
59             SetValue(ESRI.ArcGIS.Client.ElementLayer.EnvelopeProperty, new ESRI.ArcGIS.Client.Geometry.Envelope(X, Y, X, Y));
60         }
61         #endregion
62     }
63 }

搞定了persion后到地图上面来实现。

MainPage.xaml

 1 <UserControl xmlns:esri="http://schemas.esri.com/arcgis/client/2009"  x:Class="Silverlight.MainPage"
 2     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
 3     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
 4     xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
 5     xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
 6     mc:Ignorable="d"
 7     d:DesignHeight="300" d:DesignWidth="400">
 8
 9     <Grid x:Name="LayoutRoot" Background="White">
10         <esri:Map x:Name="map1">
11             <esri:ArcGISTiledMapServiceLayer Url="http://192.168.8.188/ArcGIS/rest/services/kjtxnetMain/MapServer"></esri:ArcGISTiledMapServiceLayer>
12         </esri:Map>
13     </Grid>
14 </UserControl>

mainpage.xaml.cs

 1 using System;
 2 using System.Collections.Generic;
 3 using System.Linq;
 4 using System.Net;
 5 using System.Windows;
 6 using System.Windows.Controls;
 7 using System.Windows.Documents;
 8 using System.Windows.Input;
 9 using System.Windows.Media;
10 using System.Windows.Media.Animation;
11 using System.Windows.Shapes;
12 using Silverlight.Views;
13
14 namespace Silverlight
15 {
16     public partial class MainPage : UserControl
17     {
18         private ESRI.ArcGIS.Client.ElementLayer _elementLayer = new ESRI.ArcGIS.Client.ElementLayer()
19         {
20             ID = "elementLayer"
21         };
22         //起始坐标
23         private ESRI.ArcGIS.Client.Geometry.MapPoint starPoint = new ESRI.ArcGIS.Client.Geometry.MapPoint(108.477998481483, 31.2812729500709);
24         //结束坐标
25         private ESRI.ArcGIS.Client.Geometry.MapPoint endPoint = new ESRI.ArcGIS.Client.Geometry.MapPoint(108.144513331365, 30.8702332329334);
26         private Storyboard storyboard = new Storyboard();
27         private Persion persion = null;
28         public MainPage()
29         {
30             InitializeComponent();
31             map1.Layers.Add(_elementLayer);
32
33             /*
34              把persion添加到ESRI.ArcGIS.Client.ElementLayer，
35              * ESRI.ArcGIS.Client.ElementLayer在添加Child之前必须设置Envelope，
36              */
37             persion = new Persion()
38             {
39                 X= starPoint.X,
40                 Y=starPoint.Y,
41                 Width=50,
42                 Height=50
43             };
44             _elementLayer.Children.Add(persion);
45
46             Start();
47         }
48
49         private void Start()
50         {
51             storyboard.Pause();
52             storyboard.Completed -= new EventHandler(storyboard_Completed);
53             storyboard = new Storyboard();
54
55             DoubleAnimationUsingKeyFrames framX = new DoubleAnimationUsingKeyFrames();
56             DoubleAnimationUsingKeyFrames framy = new DoubleAnimationUsingKeyFrames();
57
58             LinearDoubleKeyFrame keyX = new LinearDoubleKeyFrame()
59             {
60                 Value=endPoint.X,
61                 KeyTime =KeyTime.FromTimeSpan(TimeSpan.FromSeconds(5))
62             };
63             LinearDoubleKeyFrame keyY = new LinearDoubleKeyFrame()
64             {
65                 Value = endPoint.Y,
66                 KeyTime = KeyTime.FromTimeSpan(TimeSpan.FromSeconds(5))
67             };
68             framX.KeyFrames.Add(keyX);
69             framy.KeyFrames.Add(keyY);
70
71             Storyboard.SetTarget(framX,persion);
72             Storyboard.SetTargetProperty(framX,new PropertyPath(Persion.XProperty));
73             Storyboard.SetTarget(framy, persion);
74             Storyboard.SetTargetProperty(framy, new PropertyPath(Persion.YProperty));
75
76             storyboard.Children.Add(framX);
77             storyboard.Children.Add(framy);
78
79             storyboard.Completed += new EventHandler(storyboard_Completed);
80             storyboard.Begin();
81         }
82
83         void storyboard_Completed(object sender, EventArgs e)
84         {
85
86         }
87
88
89     }
90 }

到这已经可以看到Persion从starPoint流畅的移动到endPoint。如有更好的实现方法还请指教。
