利用Python进行数据分析-----绘图和可视化

利用Python进行数据分析-----绘图和可视化

import numpy as np
import pandas as pd
PREVIOUS_MAX_ROWS = pd.options.display.max_rows
pd.options.display.max_rows = 20
np.random.seed(12345)
import matplotlib.pyplot as plt
import matplotlib
plt.rc('figure', figsize=(10, 6))
np.set_printoptions(precision=4, suppress=True)

matplotlib API 入门

plt.plot(np.random.randn(50).cumsum(), 'k--')

_ = ax1.hist(np.random.randn(100), bins=20, color='k', alpha=0.3)
ax2.scatter(np.arange(30), np.arange(30) + 3 * np.random.randn(30))

fig, axes = plt.subplots(2, 2, sharex=True, sharey=True)
for i in range(2):
    for j in range(2):
        axes[i, j].hist(np.random.randn(500), bins=50, color='k', alpha=0.5)
plt.subplots_adjust(wspace=0, hspace=0)

data = np.random.randn(30).cumsum()
plt.plot(data, 'k--', label='Default')
plt.plot(data, 'k-', drawstyle='steps-post', label='steps-post')
plt.legend(loc='best')

from numpy.random import randn
fig = plt.figure(); ax = fig.add_subplot(1, 1, 1)
ax.plot(randn(1000).cumsum(), 'k', label='one')
ax.plot(randn(1000).cumsum(), 'k--', label='two')
ax.plot(randn(1000).cumsum(), 'k.', label='three')

from datetime import datetime

fig = plt.figure()
ax = fig.add_subplot(1, 1, 1)

data = pd.read_csv('examples/spx.csv', index_col=0, parse_dates=True)
spx = data['SPX']

spx.plot(ax=ax, style='k-')

crisis_data = [
    (datetime(2007, 10, 11), 'Peak of bull market'),
    (datetime(2008, 3, 12), 'Bear Stearns Fails'),
    (datetime(2008, 9, 15), 'Lehman Bankruptcy')
]

for date, label in crisis_data:
    ax.annotate(label, xy=(date, spx.asof(date) + 75),
                xytext=(date, spx.asof(date) + 225),
                arrowprops=dict(facecolor='black', headwidth=4, width=2,
                                headlength=4),
                horizontalalignment='left', verticalalignment='top')

# Zoom in on 2007-2010
ax.set_xlim(['1/1/2007', '1/1/2011'])
ax.set_ylim([600, 1800])

ax.set_title('Important dates in the 2008-2009 financial crisis')

fig = plt.figure(figsize=(12, 6)); ax = fig.add_subplot(1, 1, 1)
rect = plt.Rectangle((0.2, 0.75), 0.4, 0.15, color='k', alpha=0.3)
circ = plt.Circle((0.7, 0.2), 0.15, color='b', alpha=0.3)
pgon = plt.Polygon([[0.15, 0.15], [0.35, 0.4], [0.2, 0.6]],
                   color='g', alpha=0.5)
ax.add_patch(rect)
ax.add_patch(circ)
ax.add_patch(pgon)

使用pandas和seaborn绘图

s = pd.Series(np.random.randn(10).cumsum(), index=np.arange(0, 100, 10))
s.plot()

df = pd.DataFrame(np.random.randn(10, 4).cumsum(0),
                  columns=['A', 'B', 'C', 'D'],
                  index=np.arange(0, 100, 10))
df.plot()

fig, axes = plt.subplots(2, 1)
data = pd.Series(np.random.rand(16), index=list('abcdefghijklmnop'))
data.plot.bar(ax=axes[0], color='k', alpha=0.7)
data.plot.barh(ax=axes[1], color='k', alpha=0.7)

np.random.seed(12348)

df = pd.DataFrame(np.random.rand(6, 4),
                  index=['one', 'two', 'three', 'four', 'five', 'six'],
                  columns=pd.Index(['A', 'B', 'C', 'D'], name='Genus'))
df
df.plot.bar()

plt.close('all')

tips = pd.read_csv('examples/tips.csv')
party_counts = pd.crosstab(tips['day'], tips['size'])
party_counts
# Not many 1- and 6-person parties
party_counts = party_counts.loc[:, 2:5]

# Normalize to sum to 1
party_pcts = party_counts.div(party_counts.sum(1), axis=0)
party_pcts
party_pcts.plot.bar()

plt.close('all')

import seaborn as sns
tips['tip_pct'] = tips['tip'] / (tips['total_bill'] - tips['tip'])
tips.head()
sns.barplot(x='tip_pct', y='day', data=tips, orient='h')

plt.close('all')

sns.barplot(x='tip_pct', y='day', hue='time', data=tips, orient='h')

comp1 = np.random.normal(0, 1, size=200)
comp2 = np.random.normal(10, 2, size=200)
values = pd.Series(np.concatenate([comp1, comp2]))
sns.distplot(values, bins=100, color='k')

macro = pd.read_csv('examples/macrodata.csv')
data = macro[['cpi', 'm1', 'tbilrate', 'unemp']]
trans_data = np.log(data).diff().dropna()
trans_data[-5:]

plt.figure()

sns.regplot('m1', 'unemp', data=trans_data)
plt.title('Changes in log %s versus log %s' % ('m1', 'unemp'))

sns.pairplot(trans_data, diag_kind='kde', plot_kws={
     'alpha': 0.2})

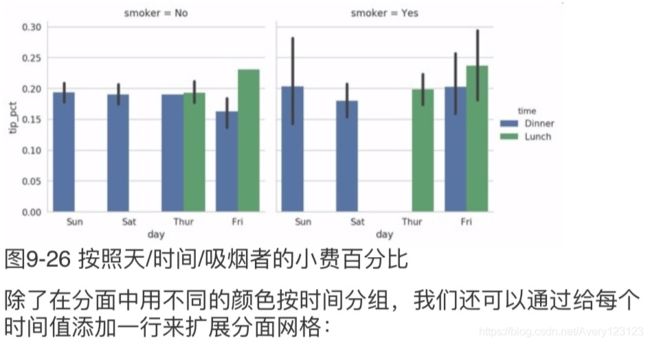

sns.factorplot(x='day', y='tip_pct', hue='time', col='smoker',
               kind='bar', data=tips[tips.tip_pct < 1])

sns.factorplot(x='day', y='tip_pct', row='time',
               col='smoker',
               kind='bar', data=tips[tips.tip_pct < 1])

sns.factorplot(x='tip_pct', y='day', kind='box',
               data=tips[tips.tip_pct < 0.5])

其它的Python可视化工具
