GdiPlus[34]: IGPGraphicsPath (一)

路径是一组图形命令, 它能容纳所有基本图形和文本、子路径:

IGPGraphicsPath.AddLine();

IGPGraphicsPath.AddLines();

IGPGraphicsPath.AddArc();

IGPGraphicsPath.AddBezier();

IGPGraphicsPath.AddBeziers();

IGPGraphicsPath.AddCurve();

IGPGraphicsPath.AddClosedCurve();

IGPGraphicsPath.AddRectangle();

IGPGraphicsPath.AddRectangles();

IGPGraphicsPath.AddEllipse();

IGPGraphicsPath.AddPie();

IGPGraphicsPath.AddPolygon();

IGPGraphicsPath.AddPath();

IGPGraphicsPath.AddString();



{ 本页示例相关命令 }

IGPGraphics.DrawPath            // 绘制路径

IGPGraphics.FillPath            // 填充路径

IGPGraphicsPath.FillMode        // 路径填充模式



IGPGraphicsPath.StartFigure     // 开始一个新的图形, 并不关闭之前的图形

IGPGraphicsPath.CloseFigure     // 关闭当前图形, 并开始新图形

IGPGraphicsPath.CloseAllFigures // 关闭之前所有开放图形, 并开始新图形

IGPGraphicsPath.Reset           // 重置路径

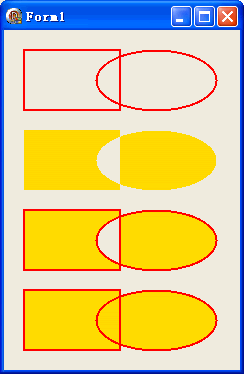

FillPath、DrawPath 测试图:

---

FillPath、DrawPath 测试代码:

---

uses GdiPlus;



procedure TForm1.FormPaint(Sender: TObject);

var

  Graphics: IGPGraphics;

  Path: IGPGraphicsPath;

  Pen: IGPPen;

  Brush: IGPBrush;

begin

  Path := TGPGraphicsPath.Create;

  Path.AddRectangle(TGPRect.Create(20, 20, 96, 60));

  Path.AddEllipse(TGPRect.Create(92, 20, 120, 60));



  Graphics := TGPGraphics.Create(Handle);

  Pen := TGPPen.Create($FFFF0000, 2);

  Brush := TGPSolidBrush.Create($FFFFD700);



  Graphics.DrawPath(Pen, Path);

  Graphics.TranslateTransform(0, 80);



  Graphics.FillPath(Brush, Path);

  Graphics.TranslateTransform(0, 80);



  Graphics.FillPath(Brush, Path);

  Graphics.DrawPath(Pen, Path);

  Graphics.TranslateTransform(0, 80);



  //填充模式有两种, 默认的是 FillModeAlternate; 可以在建立路径时指定填充模式

  Path.FillMode := FillModeWinding;

  Graphics.FillPath(Brush, Path);

  Graphics.DrawPath(Pen, Path);

  Graphics.TranslateTransform(0, 80);

end;





StartFigure、CloseFigure、CloseAllFigures、Reset 测试图:

---

StartFigure、CloseFigure、CloseAllFigures、Reset 测试代码:

---

uses GdiPlus;



procedure TForm1.FormPaint(Sender: TObject);

const

  Pts1: array[0..2] of TGPPoint = ((X:0;   Y:30), (X:30;  Y:0), (X:60;  Y:30));

  Pts2: array[0..2] of TGPPoint = ((X:80;  Y:30), (X:110; Y:0), (X:140; Y:30));

  Pts3: array[0..2] of TGPPoint = ((X:160; Y:30), (X:190; Y:0), (X:220; Y:30));

var

  Graphics: IGPGraphics;

  Path: IGPGraphicsPath;

  Pen: IGPPen;

  Brush: IGPBrush;

begin

  Graphics := TGPGraphics.Create(Handle);

  Pen := TGPPen.Create($FFFF0000, 2);

  Brush := TGPSolidBrush.Create($FFD0D0D0);

  Path := TGPGraphicsPath.Create;



  //

  Path.AddLines(Pts1);

  Path.AddLines(Pts2);

  Path.AddLines(Pts3);

  Graphics.FillPath(Brush, Path);

  Graphics.DrawPath(Pen, Path);

  Graphics.TranslateTransform(0, 50);



  //

  Path.Reset;

  Path.StartFigure;

    Path.AddLines(Pts1);

  Path.StartFigure;

    Path.AddLines(Pts2);

  Path.StartFigure;

    Path.AddLines(Pts3);



  Graphics.FillPath(Brush, Path);

  Graphics.DrawPath(Pen, Path);

  Graphics.TranslateTransform(0, 50);



  //

  Path.Reset;

  Path.StartFigure;

    Path.AddLines(Pts1);

  Path.StartFigure;

    Path.AddLines(Pts2);

  Path.StartFigure;

    Path.AddLines(Pts3);

  Path.CloseFigure;

  Graphics.FillPath(Brush, Path);

  Graphics.DrawPath(Pen, Path);

  Graphics.TranslateTransform(0, 50);



  //

  Path.Reset;

  Path.StartFigure;

    Path.AddLines(Pts1);

  Path.StartFigure;

    Path.AddLines(Pts2);

  Path.StartFigure;

    Path.AddLines(Pts3);

  Path.CloseAllFigures;

  Graphics.FillPath(Brush, Path);

  Graphics.DrawPath(Pen, Path);

  Graphics.TranslateTransform(0, 50);



  //

  Path.Reset;

  Path.StartFigure;

    Path.AddLines(Pts1);

    Path.AddLines(Pts2);

    Path.AddLines(Pts3);

  Path.CloseFigure;

  Graphics.FillPath(Brush, Path);

  Graphics.DrawPath(Pen, Path);

end;
