Spring Cloud 封装了 Netflix 公司开发的 Eureka 模块来实现服务治理。
在传统的rpc远程调用框架中,管理每个服务与服务之间依赖关系比较复杂,管理比较复杂,所以需要使用服务治理,管理服务于服务之间依赖关系,可以实现服务调用、负载均衡、容错等,实现服务发现与注册。
Eureka采用了CS的设计架构,Eureka Server 作为服务注册功能的服务器,它是服务注册中心。而系统中的其他微服务,使用 Eureka的客户端连接到 Eureka Server并维持心跳连接。这样系统的维护人员就可以通过 Eureka Server 来监控系统中各个微服务是否正常运行。
在服务注册与发现中,有一个注册中心。当服务器启动的时候,会把当前自己服务器的信息 比如 服务地址通讯地址等以别名方式注册到注册中心上。另一方(消费者|服务提供者),以该别名的方式去注册中心上获取到实际的服务通讯地址,然后再实现本地RPC调用RPC远程调用框架核心设计思想:在于注册中心,因为使用注册中心管理每个服务与服务之间的一个依赖关系(服务治理概念)。在任何rpc远程框架中,都会有一个注册中心(存放服务地址相关信息(接口地址))
Eureka Server提供服务注册服务:
各个微服务节点通过配置启动后,会在EurekaServer中进行注册,这样EurekaServer中的服务注册表中将会存储所有可用服务节点的信息,服务节点的信息可以在界面中直观看到。
EurekaClient通过注册中心进行访问:
是一个Java客户端,用于简化Eureka Server的交互,客户端同时也具备一个内置的、使用轮询(round-robin)负载算法的负载均衡器。在应用启动后,将会向Eureka Server发送心跳(默认周期为30秒)。如果Eureka Server在多个心跳周期内没有接收到某个节点的心跳,EurekaServer将会从服务注册表中把这个服务节点移除(默认90秒)
//表示自己是注册中心
<!--eureka-server-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>
server:
port: 7001
eureka:
instance:
hostname: localhost #eureka服务端的实例名称
client:
#false表示不向注册中心注册自己。
register-with-eureka: false
#false表示自己端就是注册中心,我的职责就是维护服务实例,并不需要去检索服务
fetch-registry: false
service-url:
#设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个地址。
defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/
@SpringBootApplication
//开启eureka服务注册服务
@EnableEurekaServer
public class EurekaMain7001 {
public static void main(String[] args) {
SpringApplication.run(EurekaMain7001.class, args);
}
}
运行服务访问http://localhost:7001/
No application available 说明没有服务被发现
因为没有注册服务进来当然不可能有服务被发现
//将自己注册到注册中心进行访问
<!--eureka-client-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
server:
port: 8001
spring:
application:
name: cloud-payment-service
datasource:
type: com.alibaba.druid.pool.DruidDataSource # 当前数据源操作类型
driver-class-name: org.gjt.mm.mysql.Driver # mysql驱动包
url: jdbc:mysql://localhost:3306/db2019?useUnicode=true&characterEncoding=utf-8&useSSL=false
username: root
password: 123456
eureka:
client:
#表示是否将自己注册进EurekaServer默认为true。
register-with-eureka: true
#是否从EurekaServer抓取已有的注册信息,默认为true。单节点无所谓,集群必须设置为true才能配合ribbon使用负载均衡
fetchRegistry: true
service-url:
defaultZone: http://localhost:7001/eureka
mybatis:
mapperLocations: classpath:mapper/*.xml
type-aliases-package: com.atguigu.springcloud.entities # 所有Entity别名类所在包
@SpringBootApplication
@EnableEurekaClient //客户端,通过eureka注册中心进行访问
public class PaymentMain8001 {
public static void main(String[] args) {
SpringApplication.run(PaymentMain8001.class, args);
}
}
先启动Eureka Server再启动Eureka Client
访问http://localhost:7001/
RENEWALS ARE LESSER THAN THE THRESHOLD. THE SELF PRESERVATION MODE IS TURNED OFF. THIS MAY NOT PROTECT INSTANCE EXPIRY IN CASE OF NETWORK/OTHER PROBLEMS.
自我保护机制
<!--Eureka Client-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
server:
port: 8002
spring:
application:
name: cloud-order-service
eureka:
client:
#表示是否将自己注册进EurekaServer默认为true。
register-with-eureka: true
#是否从EurekaServer抓取已有的注册信息,默认为true。单节点无所谓,集群必须设置为true才能配合ribbon使用负载均衡
fetchRegistry: true
service-url:
defaultZone: http://eureka7001.com:7001/eureka
@SpringBootApplication
@EnableEurekaClient
public class OrderMain8002 {
public static void main(String[] args) {
SpringApplication.run(OrderMain8002.class, args);
}
}
先要启动EurekaServer,7001服务,再启动服务提供者8001和服务消费者8002

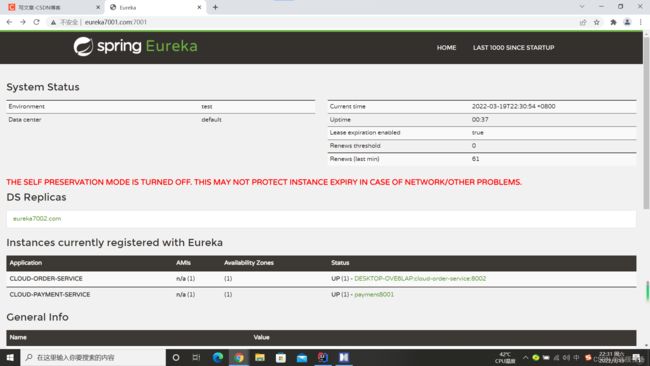

访问http://localhost:7001/
问题: 微服务RPC远程服务调用最核心的是什么
高可用,试想你的注册中心只有一个only one, 它出故障了那就呵呵( ̄▽ ̄)"了,会导致整个为服务环境不可用
所以解决办法: 搭建Eureka注册中心集群 ,实现负载均衡+故障容错
每个Eureka服务必须互相注册其他所有的Eureka服务
参考cloud-eureka-server7001新建cloud-eureka-server7002
找到C:\Windows\System32\drivers\etc路径下的hosts文件,修改映射配置
修改映射配置添加进hosts文件,如下图所示:
server:
port: 7001
eureka:
instance:
hostname: eureka7001.com #eureka服务端的实例名称
client:
#false表示不向注册中心注册自己。
register-with-eureka: false
#false表示自己端就是注册中心,我的职责就是维护服务实例,并不需要去检索服务
fetch-registry: false
service-url:
#设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个地址。
defaultZone: http://eureka7002.com:7002/eureka/ #eureka服务集群
# defaultZone: http://eureka7001.com:7001/eureka/ #单机服务
server:
#关闭自我保护机制,保证不可用服务被及时踢除
enable-self-preservation: false
eviction-interval-timer-in-ms: 2000
server:
port: 7002
eureka:
instance:
hostname: eureka7002.com #eureka服务端的实例名称
client:
#false表示不向注册中心注册自己。
register-with-eureka: false
#false表示自己端就是注册中心,我的职责就是维护服务实例,并不需要去检索服务
fetch-registry: false
service-url:
#设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个地址。
defaultZone: http://eureka7001.com:7001/eureka/
将支付服务8001微服务发布到上面2台Eureka集群配置中
#服务端口号
server:
port: 8001
#服务名称
spring:
application:
name: cloud-payment-service
#mysql数据库连接
datasource:
type: com.alibaba.druid.pool.DruidDataSource # 当前数据源操作类型
driver-class-name: com.mysql.cj.jdbc.Driver # mysql驱动包
url: jdbc:mysql://localhost:3306/cloud?characterEncoding=utf8&useSSL=false&serverTimezone=UTC&rewriteBatchedStatements=true
username: zyang
password: zyzs123
mybatis:
mapperLocations: classpath:mapper/*.xml # mapper映射文件
type-aliases-package: com.atguigu.springcloud.entities # 所有Entity别名类所在包
eureka:
client:
#表示是否将自己注册进EurekaServer默认为true。
register-with-eureka: true
#是否从EurekaServer抓取已有的注册信息,默认为true。单节点无所谓,集群必须设置为true才能配合ribbon使用负载均衡
fetchRegistry: true
service-url:
defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka #集群
instance:
instance-id: payment8001 #修改主机名称:服务名称
prefer-ip-address: true #访问路径可以显示IP地址
#心跳检测与续约时间
#开发时设置小些,保证服务关闭后注册中心能及时剔除服务
#Eureka客户端向服务端发送心跳的时间间隔,单位为秒(默认是30秒)
lease-renewal-interval-in-seconds: 1
#Eureka服务端在收到最后一次心跳后等待时间上限,单位为秒(默认是90秒),超时将剔除服务
lease-expiration-duration-in-seconds: 2
将订单服务8002微服务发布到上面2台Eureka集群配置中
server:
port: 8002
spring:
application:
name: cloud-order-service
eureka:
client:
#表示是否将自己注册进EurekaServer默认为true。
register-with-eureka: true
#是否从EurekaServer抓取已有的注册信息,默认为true。单节点无所谓,集群必须设置为true才能配合ribbon使用负载均衡
fetchRegistry: true
service-url:
defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka #集群
支付服务提供者8001集群环境构建
参考cloud-provider-payment8001新建cloud-provider-payment8003
#服务端口号
server:
port: 8003
#服务名称
spring:
application:
name: cloud-payment-service
#mysql数据库连接
datasource:
type: com.alibaba.druid.pool.DruidDataSource # 当前数据源操作类型
driver-class-name: com.mysql.cj.jdbc.Driver # mysql驱动包
url: jdbc:mysql://localhost:3306/cloud?characterEncoding=utf8&useSSL=false&serverTimezone=UTC&rewriteBatchedStatements=true
username: zyang
password: zyzs123
mybatis:
mapperLocations: classpath:mapper/*.xml # mapper映射文件
type-aliases-package: com.atguigu.springcloud.entities # 所有Entity别名类所在包
eureka:
client:
#表示是否将自己注册进EurekaServer默认为true。
register-with-eureka: true
#是否从EurekaServer抓取已有的注册信息,默认为true。单节点无所谓,集群必须设置为true才能配合ribbon使用负载均衡
fetchRegistry: true
service-url:
defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka #集群
instance:
instance-id: payment8003 #修改主机名称:服务名称
prefer-ip-address: true #访问路径可以显示IP地址
对于注册进eureka里面的微服务,可以通过服务发现来获得该服务的信息
package com.atguigu.springcloud.controller;
import com.atguigu.springcloud.entities.CommentResult;
import com.atguigu.springcloud.entities.Payment;
import com.atguigu.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.web.bind.annotation.*;
import javax.annotation.Resource;
import java.util.List;
/**
* @author yangzhang
* @date 2022/1/20/18:54
*/
@RestController
@Slf4j
public class PaymentController {
@Resource
private PaymentService paymentService;
@Value("${server.port}")
private String serverPort;
//服务发现
@Resource
private DiscoveryClient discoveryClient;
@PostMapping("/payment/create")
public CommentResult create(@RequestBody Payment payment) {
int result = paymentService.create(payment);
if (result > 0) {
return new CommentResult(200, "插入数据成功,serverPort:" + serverPort, result);
} else {
return new CommentResult(444, "插入数据失败", null);
}
}
@GetMapping("/payment/get/{id}")
public CommentResult getPaymentById(@PathVariable("id") Long id) {
Payment payment = paymentService.getPaymentById(id);
log.info("******查询结果:{}", payment);
if (payment != null) {
return new CommentResult(200, "查询成功,serverPort:" + serverPort, payment);
}else {
return new CommentResult(444, "没有对应记录,查询ID" + id, null);
}
}
/**
* 对于注册进eureka里面的微服务,可以通过服务发现来获得该服务的信息
* @return
*/

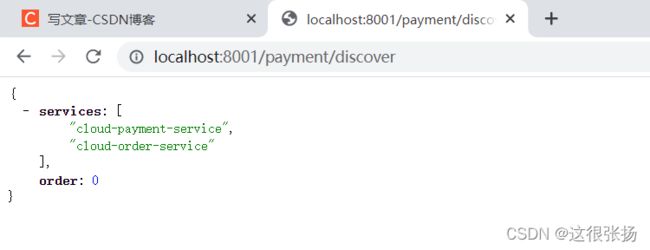

@GetMapping("/payment/discover")
public Object discover() {
//获取微服务列表
List<String> services = discoveryClient.getServices();
for (String service : services) {
log.info("*****service:" + service);
}
//根据微服务名称获取具体的微服务信息
List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-PAYMENT-SERVICE");
for (ServiceInstance instance : instances) {
log.info(instance.getServiceId() + "\t" + instance.getHost() + "\t"
+ instance.getPort() + "\t" + instance.getUri());
}
return this.discoveryClient;
}
}
package com.atguigu.springcloud;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
/**
* 主启动类 服务提供者
* @author yangzhang
* @date 2022/1/19/20:39
*/
@SpringBootApplication
@EnableEurekaClient //客户端,通过eureka注册中心进行访问
@EnableDiscoveryClient //开启服务发现注解
public class PaymentMain8001 {
public static void main(String[] args) {
SpringApplication.run(PaymentMain8001.class, args);
}
}
概述
保护模式主要用于一组客户端和Eureka Server之间存在网络分区场景下的保护。一旦进入保护模式,
Eureka Server将会尝试保护其服务注册表中的信息,不再删除服务注册表中的数据,也就是不会注销任何微服务。
如果在Eureka Server的首页看到以下这段提示,则说明Eureka进入了保护模式:
EMERGENCY! EUREKA MAY BE INCORRECTLY CLAIMING INSTANCES ARE UP WHEN THEY’RE NOT.
RENEWALS ARE LESSER THAN THRESHOLD AND HENCE THE INSTANCES ARE NOT BEING EXPIRED JUST TO BE SAFE
为什么会产生Eureka自我保护机制?
为了防止EurekaClient可以正常运行,但是 与 EurekaServer网络不通情况下,EurekaServer不会立刻将EurekaClient服务剔除
什么是自我保护模式?
默认情况下,如果EurekaServer在一定时间内没有接收到某个微服务实例的心跳,EurekaServer将会注销该实例(默认90秒)。但是当网络分区故障发生(延时、卡顿、拥挤)时,微服务与EurekaServer之间无法正常通信,以上行为可能变得非常危险了——因为微服务本身其实是健康的,此时本不应该注销这个微服务。Eureka通过“自我保护模式”来解决这个问题——当EurekaServer节点在短时间内丢失过多客户端时(可能发生了网络分区故障),那么这个节点就会进入自我保护模式。
在自我保护模式中,Eureka Server会保护服务注册表中的信息,不再注销任何服务实例。
它的设计哲学就是宁可保留错误的服务注册信息,也不盲目注销任何可能健康的服务实例。一句话讲解:好死不如赖活着
综上,自我保护模式是一种应对网络异常的安全保护措施。它的架构哲学是宁可同时保留所有微服务(健康的微服务和不健康的微服务都会保留)也不盲目注销任何健康的微服务。使用自我保护模式,可以让Eureka集群更加的健壮、稳定。
注册中心eureakeServer端7001
出厂默认,自我保护机制是开启的
eureka.server.enable-self-preservation=true
server:
port: 7001
eureka:
instance:
hostname: eureka7001.com #eureka服务端的实例名称
client:
#false表示不向注册中心注册自己。
register-with-eureka: false
#false表示自己端就是注册中心,我的职责就是维护服务实例,并不需要去检索服务
fetch-registry: false
service-url:
#设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个地址。
defaultZone: http://eureka7002.com:7002/eureka/ #eureka服务集群
# defaultZone: http://eureka7001.com:7001/eureka/ #单机服务
server:
#关闭自我保护机制,保证不可用服务被及时踢除
enable-self-preservation: false
eviction-interval-timer-in-ms: 2000
单位为秒(默认是30秒)
eureka.instance.lease-renewal-interval-in-seconds=30
单位为秒(默认是90秒)
eureka.instance.lease-expiration-duration-in-seconds=90
#服务端口号
server:
port: 8001
#服务名称
spring:
application:
name: cloud-payment-service
#mysql数据库连接
datasource:
type: com.alibaba.druid.pool.DruidDataSource # 当前数据源操作类型
driver-class-name: com.mysql.cj.jdbc.Driver # mysql驱动包
url: jdbc:mysql://localhost:3306/cloud?characterEncoding=utf8&useSSL=false&serverTimezone=UTC&rewriteBatchedStatements=true
username: zyang
password: zyzs123
mybatis:
mapperLocations: classpath:mapper/*.xml # mapper映射文件
type-aliases-package: com.atguigu.springcloud.entities # 所有Entity别名类所在包
eureka:
client:
#表示是否将自己注册进EurekaServer默认为true。
register-with-eureka: true
#是否从EurekaServer抓取已有的注册信息,默认为true。单节点无所谓,集群必须设置为true才能配合ribbon使用负载均衡
fetchRegistry: true
service-url:
defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka #集群
instance:
instance-id: payment8001 #修改主机名称:服务名称
prefer-ip-address: true #访问路径可以显示IP地址
#心跳检测与续约时间
#开发时设置小些,保证服务关闭后注册中心能及时剔除服务
#Eureka客户端向服务端发送心跳的时间间隔,单位为秒(默认是30秒)
lease-renewal-interval-in-seconds: 1
#Eureka服务端在收到最后一次心跳后等待时间上限,单位为秒(默认是90秒),超时将剔除服务
lease-expiration-duration-in-seconds: 2
7001和8001都配置完成
先启动7001再启动8001
先关闭8001
马上被删除了
