SpringCloud(一)Eureka服务注册中心、Zookeeper服务注册中心、Consul服务注册中心案例详解

一、简介

技术	版本
Spring Cloud版本	Hoxton.SR1
Spring Boot版本	2.2.2RELEASE
Cloud Alibaba版本	2.1.0.RELEASE

官方地址

git地址: https://github.com/spring-projects/spring-boot/releases/

Spring Boot官网: https://spring.io/projects/spring-boot

git地址: https://github.com/spring-projects/spring-cloud

Spring Boot官网: https://spring.io/projects/spring-cloud

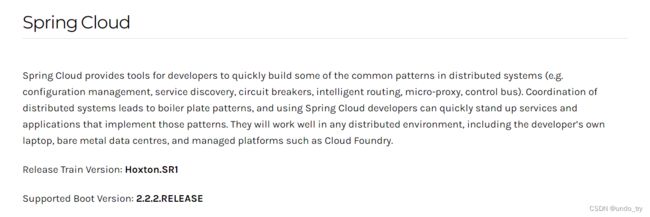

SpringCloud的版本

Spring Cloud 采用了英国伦敦地铁站的名称来命名，并由地铁站名称字母A-Z依次类推的形式来发布迭代版本SpringCloud是一个由许多子项目组成的综合项目，各子项目有不同的发布节奏。为了管理SpringCloud与各子项目的版本依赖关系，发布了一个清单，其中包括了某个SpringCloud版本对应的子项目版本。为了避免SpringCloud版本号与子项目版本号混淆，SpringCloud版本采用了名称而非版本号的命名，这些版本的名字采用了伦敦地铁站的名字，根据字母表的顺序来对应版本时间顺序。例如Angel是第一个版本, Brixton是第二个版本。当SpringCloud的发布内容积累到临界点或者一个重大BUG被解决后，会发布一个"service releases"版本，简称SRX版本，比如Greenwich.SR2就是SpringCloud发布的Greenwich版本的第2个SRX版本。

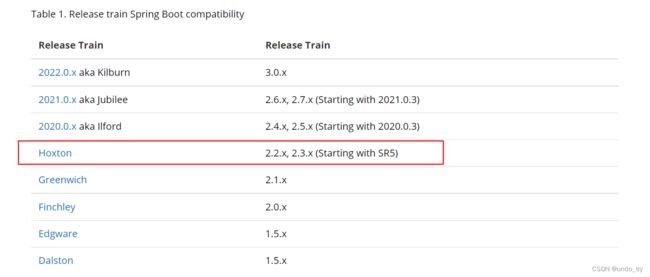

1、SpringBoot和SpringCloud的关系

网站: https://spring.io/projects/spring-cloud#overview

更详细版本的查看地址: https://start.spring.io/actuator/info

{
    "git":{
        "branch":"64b2829d7b37506fa4e7e5361462ac3ca91c1692",
        "commit":{
            "id":"64b2829",
            "time":"2023-02-13T11:11:29Z"
        }
    },
    "build":{
        "version":"0.0.1-SNAPSHOT",
        "artifact":"start-site",
        "versions":{
            "spring-boot":"3.0.2",
            "initializr":"0.20.0-SNAPSHOT"
        },
        "name":"start.spring.io website",
        "time":"2023-02-13T11:12:37.946Z",
        "group":"io.spring.start"
    },
    "bom-ranges":{
        "codecentric-spring-boot-admin":{
            "2.4.3":"Spring Boot >=2.3.0.M1 and <2.5.0-M1",
            "2.5.6":"Spring Boot >=2.5.0.M1 and <2.6.0-M1",
            "2.6.8":"Spring Boot >=2.6.0.M1 and <2.7.0-M1",
            "2.7.4":"Spring Boot >=2.7.0.M1 and <3.0.0-M1",
            "3.0.0-M4":"Spring Boot >=3.0.0-M1 and <3.1.0-M1"
        },
        "solace-spring-boot":{
            "1.1.0":"Spring Boot >=2.3.0.M1 and <2.6.0-M1",
            "1.2.2":"Spring Boot >=2.6.0.M1 and <3.0.0-M1"
        },
        "solace-spring-cloud":{
            "1.1.1":"Spring Boot >=2.3.0.M1 and <2.4.0-M1",
            "2.1.0":"Spring Boot >=2.4.0.M1 and <2.6.0-M1",
            "2.3.2":"Spring Boot >=2.6.0.M1 and <3.0.0-M1"
        },
        "spring-cloud":{
            "Hoxton.SR12":"Spring Boot >=2.2.0.RELEASE and <2.4.0.M1",
            "2020.0.6":"Spring Boot >=2.4.0.M1 and <2.6.0-M1",
            "2021.0.0-M1":"Spring Boot >=2.6.0-M1 and <2.6.0-M3",
            "2021.0.0-M3":"Spring Boot >=2.6.0-M3 and <2.6.0-RC1",
            "2021.0.0-RC1":"Spring Boot >=2.6.0-RC1 and <2.6.1",
            "2021.0.5":"Spring Boot >=2.6.1 and <3.0.0-M1",
            "2022.0.0-M1":"Spring Boot >=3.0.0-M1 and <3.0.0-M2",
            "2022.0.0-M2":"Spring Boot >=3.0.0-M2 and <3.0.0-M3",
            "2022.0.0-M3":"Spring Boot >=3.0.0-M3 and <3.0.0-M4",
            "2022.0.0-M4":"Spring Boot >=3.0.0-M4 and <3.0.0-M5",
            "2022.0.0-M5":"Spring Boot >=3.0.0-M5 and <3.0.0-RC1",
            "2022.0.0-RC1":"Spring Boot >=3.0.0-RC1 and <3.0.0-RC2",
            "2022.0.0-RC2":"Spring Boot >=3.0.0-RC2 and <3.0.0",
            "2022.0.1":"Spring Boot >=3.0.0 and <3.1.0-M1"
        },
        "spring-cloud-azure":{
            "4.6.0":"Spring Boot >=2.5.0.M1 and <3.0.0-M1",
            "5.0.0":"Spring Boot >=3.0.0-M1 and <3.1.0-M1"
        },
        "spring-cloud-gcp":{
            "2.0.11":"Spring Boot >=2.4.0-M1 and <2.6.0-M1",
            "3.4.3":"Spring Boot >=2.6.0-M1 and <3.0.0-M1",
            "4.0.0":"Spring Boot >=3.0.0-M1 and <3.1.0-M1"
        },
        "spring-cloud-services":{
            "2.3.0.RELEASE":"Spring Boot >=2.3.0.RELEASE and <2.4.0-M1",
            "2.4.1":"Spring Boot >=2.4.0-M1 and <2.5.0-M1",
            "3.3.0":"Spring Boot >=2.5.0-M1 and <2.6.0-M1",
            "3.4.0":"Spring Boot >=2.6.0-M1 and <2.7.0-M1",
            "3.5.0":"Spring Boot >=2.7.0-M1 and <3.0.0-M1",
            "4.0.0":"Spring Boot >=3.0.0 and <3.1.0-M1"
        },
        "spring-shell":{
            "2.1.6":"Spring Boot >=2.7.0 and <3.0.0-M1",
            "3.0.0":"Spring Boot >=3.0.0 and <3.1.0-M1"
        },
        "vaadin":{
            "14.9.6":"Spring Boot >=2.1.0.RELEASE and <2.6.0-M1",
            "23.2.15":"Spring Boot >=2.6.0-M1 and <2.7.0-M1",
            "23.3.5":"Spring Boot >=2.7.0-M1 and <2.8.0-M1"
        },
        "wavefront":{
            "2.0.2":"Spring Boot >=2.1.0.RELEASE and <2.4.0-M1",
            "2.1.1":"Spring Boot >=2.4.0-M1 and <2.5.0-M1",
            "2.2.2":"Spring Boot >=2.5.0-M1 and <2.7.0-M1",
            "2.3.4":"Spring Boot >=2.7.0-M1 and <3.0.0-M1",
            "3.0.1":"Spring Boot >=3.0.0-M1 and <3.1.0-M1"
        }
    },
    "dependency-ranges":{
        "okta":{
            "1.4.0":"Spring Boot >=2.2.0.RELEASE and <2.4.0-M1",
            "1.5.1":"Spring Boot >=2.4.0-M1 and <2.4.1",
            "2.0.1":"Spring Boot >=2.4.1 and <2.5.0-M1",
            "2.1.6":"Spring Boot >=2.5.0-M1 and <3.0.0-M1",
            "3.0.2":"Spring Boot >=3.0.0-M1 and <3.1.0-M1",
            "managed":"Spring Boot >=3.1.0-M1"
        },
        "mybatis":{
            "2.1.4":"Spring Boot >=2.1.0.RELEASE and <2.5.0-M1",
            "2.2.2":"Spring Boot >=2.5.0-M1 and <2.7.0-M1",
            "2.3.0":"Spring Boot >=2.7.0-M1 and <3.0.0-M1",
            "3.0.0":"Spring Boot >=3.0.0-M1"
        },
        "camel":{
            "3.5.0":"Spring Boot >=2.3.0.M1 and <2.4.0-M1",
            "3.10.0":"Spring Boot >=2.4.0.M1 and <2.5.0-M1",
            "3.13.0":"Spring Boot >=2.5.0.M1 and <2.6.0-M1",
            "3.17.0":"Spring Boot >=2.6.0.M1 and <2.7.0-M1",
            "3.20.2":"Spring Boot >=2.7.0.M1 and <3.0.0-M1",
            "4.0.0-M1":"Spring Boot >=3.0.0-M1 and <3.1.0-M1"
        },
        "picocli":{
            "4.7.0":"Spring Boot >=2.5.0.RELEASE and <3.1.0-M1"
        },
        "open-service-broker":{
            "3.2.0":"Spring Boot >=2.3.0.M1 and <2.4.0-M1",
            "3.3.1":"Spring Boot >=2.4.0-M1 and <2.5.0-M1",
            "3.4.1":"Spring Boot >=2.5.0-M1 and <2.6.0-M1",
            "3.5.0":"Spring Boot >=2.6.0-M1 and <2.7.0-M1"
        }
    }
}

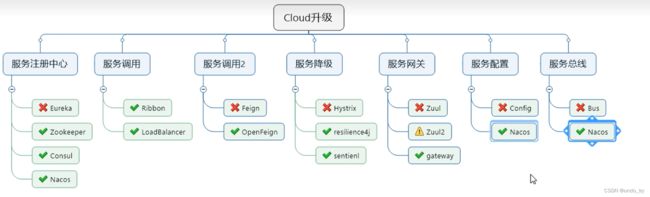

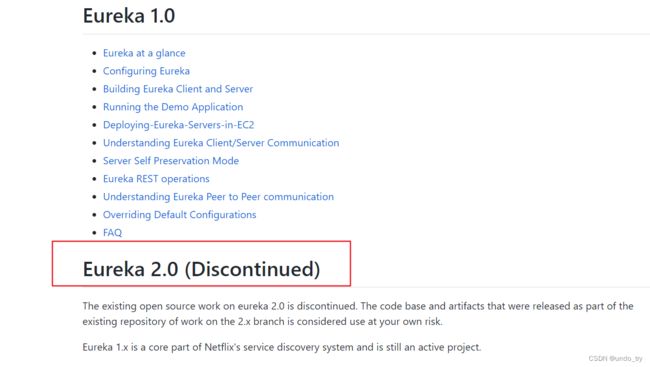

2、关于Cloud各种组件的停更/升级/替换

官网：https://cloud.spring.io/spring-cloud-static/Hoxton.SR1/reference/htmlsingle/

官网：https://docs.spring.io/spring-boot/docs/2.2.2.RELEASE/reference/htmlsingle/

Spring Cloud中文文档: https://www.bookstack.cn/read/spring-cloud-docs/docs-index.md

升级后:

3、微服务架构编码构建(cloud-provider-payment8001)

3.1 pom文件

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloudartifactId>
        <groupId>com.yydsgroupId>
        <version>1.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>cloud-provider-payment8001artifactId>



    <dependencies>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>


        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-actuatorartifactId>
        dependency>


        <dependency>
            <groupId>org.mybatis.spring.bootgroupId>
            <artifactId>mybatis-spring-boot-starterartifactId>
        dependency>


        <dependency>
            <groupId>com.alibabagroupId>
            <artifactId>druid-spring-boot-starterartifactId>
            <version>1.1.22version>
        dependency>


        <dependency>
            <groupId>mysqlgroupId>
            <artifactId>mysql-connector-javaartifactId>
        dependency>


        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-jdbcartifactId>
        dependency>


        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-devtoolsartifactId>
            <scope>runtimescope>
            <optional>trueoptional>
        dependency>


        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
        dependency>

    dependencies>


project>

3.2 改yml文件

server:
  port: 8001


spring:
  application:
    name: cloud-payment-service



  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/springcloud?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: root



mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.yyds.springcloud.entities

3.3 主启动

package com.yyds.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;


@SpringBootApplication
public class PaymentMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class, args);
        System.out.println("*******************PaymentMain8001启动成功********************");
    }
}

3.4 业务类

3.4.1 dao及mapper.xml

package com.yyds.springcloud.dao;

import com.yyds.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

@Mapper
public interface PaymentDao {

    int create(Payment  payment);


    Payment getPaymentById(@Param("id") Long id);

}

DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.yyds.springcloud.dao.PaymentDao">

    <resultMap id="BaseResultMap" type="payment">
        <result column="id" property="id"/>
        <result column="serial" property="serial"/>
    resultMap>

    <insert id="create" parameterType="Payment" useGeneratedKeys="true" keyProperty="id">
        insert into payment (serial) value (#{serial});
    insert>


   <select id="getPaymentById" parameterType="Long" resultMap="BaseResultMap">
       select * from payment where id = #{id}
   select>

mapper>

3.4.2 service

package com.yyds.springcloud.service;

import com.yyds.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Param;

public interface PaymentService {
     int create(Payment payment);
     Payment getPaymentById(@Param("id") Long id);
}

package com.yyds.springcloud.service.impl;

import com.yyds.springcloud.dao.PaymentDao;
import com.yyds.springcloud.entities.Payment;
import com.yyds.springcloud.service.PaymentService;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service
public class PaymentServiceImpl implements PaymentService {

    @Resource
    private PaymentDao paymentDao;

    @Override
    public int create(Payment payment) {
        return paymentDao.create(payment);
    }

    @Override
    public Payment getPaymentById(Long id) {
        return paymentDao.getPaymentById(id);
    }
}

3.4.3 controller

package com.yyds.springcloud.controller;

import com.yyds.springcloud.entities.CommonResult;
import com.yyds.springcloud.entities.Payment;
import com.yyds.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource;

@RestController
@RequestMapping("/payment")
@Slf4j
public class PaymentController {
    @Resource
    private PaymentService paymentService;

    @PostMapping("/create")
    public CommonResult<Payment> create(@RequestBody  Payment payment){
        int result = paymentService.create(payment);
        if(result > 0){
            return new CommonResult(200,"插入数据库成功",result);
        }else {
            return new CommonResult(444,"插入数据库失败",null);
        }
    }

    @GetMapping("/get/{id}")
    public CommonResult<Payment> getPaymentById(@PathVariable("id") Long id){
        Payment payment = paymentService.getPaymentById(id);
        log.info("*****查询结果:{}",payment);
        if (payment != null) {
            return new CommonResult(200,"查询成功",payment);
        }else {
            return new CommonResult(200,"没有对应id",null);
        }
    }
}

3.4.4 实体类

package com.yyds.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;


@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T>{

    private Integer code;

    private String message;

    private T data;


    public CommonResult(Integer code, String message) {
        this(code,message,null);
    }
}

package com.yyds.springcloud.entities;


import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {
    private Long id;
    private String serial;
}

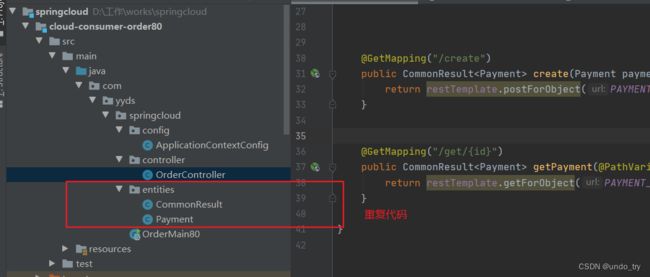

4、cloud-consumer-order80

RestTemplate提供了多种便捷访问远程Http服务的方法， 是一种简单便捷的访问restful服务模板类，是Spring提供的用于访问Rest服务的客户端模板工具集。

• 官网地址

https://docs.spring.io/spring-framework/docs/5.2.2.RELEASE/javadoc-api/org/springframework/web/client/RestTemplate.html

• 使用

使用restTemplate访问restful接口非常的简单粗暴无脑。(url, requestMap, ResponseBean.class)这三个参数分别代表
REST请求地址、请求参数、HTTP响应转换被转换成的对象类型。

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloudartifactId>
        <groupId>com.yydsgroupId>
        <version>1.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>cloud-consumer-order80artifactId>


    <dependencies>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-actuatorartifactId>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-devtoolsartifactId>
            <scope>runtimescope>
            <optional>trueoptional>
        dependency>
        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
            <optional>trueoptional>
        dependency>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-testartifactId>
            <scope>testscope>
        dependency>
    dependencies>


project>

• config配置类

package com.yyds.springcloud.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;


@Configuration
public class ApplicationContextConfig {

    @Bean
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }
}

package com.yyds.springcloud.controller;


import com.yyds.springcloud.entities.CommonResult;
import com.yyds.springcloud.entities.Payment;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;

@RestController
@RequestMapping("/consumer/payment")
@Slf4j
public class OrderController {

    public static final String PAYMENT_URL = "http://localhost:8001";

    @Resource
    private RestTemplate restTemplate;

    @GetMapping("/create")
    public CommonResult<Payment> create(Payment payment) {
        return restTemplate.postForObject(PAYMENT_URL +"/payment/create",payment,CommonResult.class);
    }

    @GetMapping("/get/{id}")
    public CommonResult<Payment> getPayment(@PathVariable("id") Long id) {
        return restTemplate.getForObject(PAYMENT_URL+"/payment/get/"+id,CommonResult.class);
    }

}

测试

# 服务之间的调用

http://localhost/consumer/payment/get/10
{"code":200,"message":"查询成功","data":{"id":10,"serial":"11111"}}

http://localhost/consumer/payment/create?serial=6666
{"code":200,"message":"插入数据库成功","data":1}

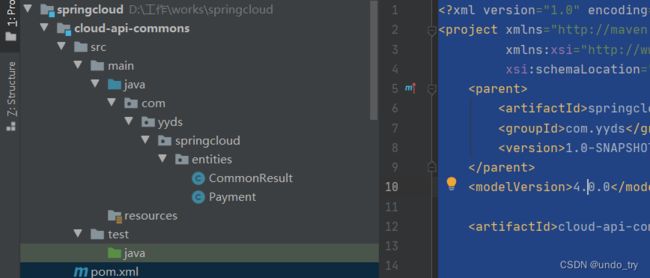

工程重构

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloudartifactId>
        <groupId>com.yydsgroupId>
        <version>1.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>cloud-api-commonsartifactId>


    <dependencies>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-devtoolsartifactId>
            <scope>runtimescope>
            <optional>trueoptional>
        dependency>
        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
            <optional>trueoptional>
        dependency>
        <dependency>
            <groupId>cn.hutoolgroupId>
            <artifactId>hutool-allartifactId>
            <version>5.1.0version>
        dependency>
    dependencies>

project>

# 安装cloud-api-commons到本地
mvn clean

mvn install

在两个微服务模块删除实体类包，然后在两个模块的pom文件中，添加下面配置


        <dependency>
            <groupId>com.yydsgroupId>
            <artifactId>cloud-api-commonsartifactId>
            <version>1.0-SNAPSHOTversion>
        dependency>

二、Eureka服务注册与发现

2.1 简介

2.1.1 什么是服务治理

​ Spring Cloud 封装了 Netflix 公司开发的 Eureka 模块来实现服务治理

​ 在传统的rpc远程调用框架中，管理每个服务与服务之间依赖关系比较复杂，管理比较复杂，所以需要使用服务治理，管理服务于服务之间依赖关系，可以实现服务调用、负载均衡、容错等，实现服务发现与注册。

2.2.2 什么是服务注册与发现

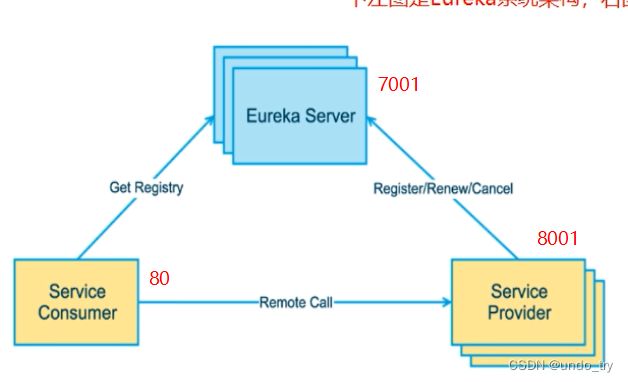

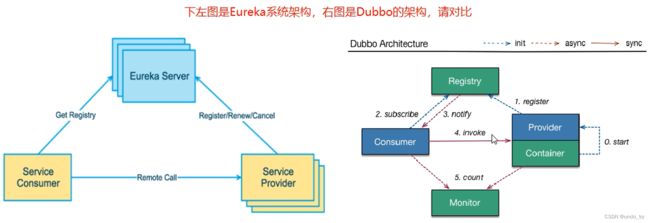

​ Eureka采用了CS的设计架构，Eureka Server 作为服务注册功能的服务器，它是服务注册中心。而系统中的其他微服务，使用 Eureka的客户端连接到 Eureka Server并维持心跳连接。这样系统的维护人员就可以通过 Eureka Server 来监控系统中各个微服务是否正常运行。

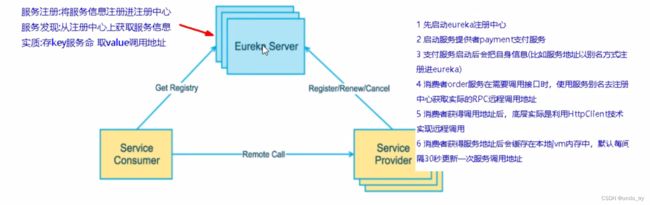

​ 在服务注册与发现中，有一个注册中心。当服务器启动的时候，会把当前自己服务器的信息 比如 服务地址通讯地址等以别名方式注册到注册中心上。另一方（消费者|服务提供者），以该别名的方式去注册中心上获取到实际的服务通讯地址，然后再实现本地RPC调用RPC远程调用框架核心设计思想：在于注册中心，因为使用注册中心管理每个服务与服务之间的一个依赖关系(服务治理概念)。在任何rpc远程框架中，都会有一个注册中心(存放服务地址相关信息(接口地址))

2.2.3 Eureka两个组件

Eureka Server提供服务注册服务
各个微服务节点通过配置启动后，会在EurekaServer中进行注册，这样EurekaServer中的服务注册表中将会存储所有可用服务节点的信息，服务节点的信息可以在界面中直观看到。

EurekaClient通过注册中心进行访问
是一个Java客户端，用于简化Eureka Server的交互，客户端同时也具备一个内置的、使用轮询(round-robin)负载算法的负载均衡器。在应用启动后，将会向Eureka Server发送心跳(默认周期为30秒)。如果Eureka Server在多个心跳周期内没有接收到某个节点的心跳，EurekaServer将会从服务注册表中把这个服务节点移除（默认90秒）

2.2 单机Eureka的构建

模块名: cloud-eureka-server7001

2.2.1 pom文件如下

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloudartifactId>
        <groupId>com.yydsgroupId>
        <version>1.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>cloud-eureka-server7001artifactId>


    <dependencies>

        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-netflix-eureka-serverartifactId>
        dependency>

        <dependency>
            <groupId>com.yydsgroupId>
            <artifactId>cloud-api-commonsartifactId>
            <version>1.0-SNAPSHOTversion>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-actuatorartifactId>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-devtoolsartifactId>
            <scope>runtimescope>
            <optional>trueoptional>
        dependency>
        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
        dependency>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-testartifactId>
            <scope>testscope>
        dependency>
        <dependency>
            <groupId>junitgroupId>
            <artifactId>junitartifactId>
        dependency>
    dependencies>


project>

2.2.2 yml文件

server:
  port: 7001


eureka:
  instance:
    hostname: localhost #eureka服务端的实例名称
  client:
    register-with-eureka: false     #false表示不向注册中心注册自己。
    fetch-registry: false     #false表示自己端就是注册中心，我的职责就是维护服务实例，并不需要去检索服务
    service-url:
      defaultZone: http://localhost:7001/eureka

2.2.3 主启动类

package com.yyds.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@SpringBootApplication
// 添加此注解
@EnableEurekaServer
public class EurekaMain7001 {
    public static void main(String[] args) {
        SpringApplication.run(EurekaMain7001.class, args);
        System.out.println("************EurekaMain7001启动成功******************");
    }
}

启动eureka测试

http://localhost:7001/

2.2.4 支付微服务cloud-provider-payment8001注册Eureka

EurekaClient端cloud-provider-payment8001将注册进EurekaServer成为服务提供者provider。

2.2.4.1 改pom文件


        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-netflix-eureka-clientartifactId>
        dependency>

2.2.4.2 写yml文件

# 添加下面配置信息
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka/
    register-with-eureka: true
    fetch-registry: true

2.2.4.3 修改主启动类

package com.yyds.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;


@SpringBootApplication
// 添加此注解
@EnableEurekaClient
public class PaymentMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class, args);
        System.out.println("*******************PaymentMain8001启动成功********************");
    }
}

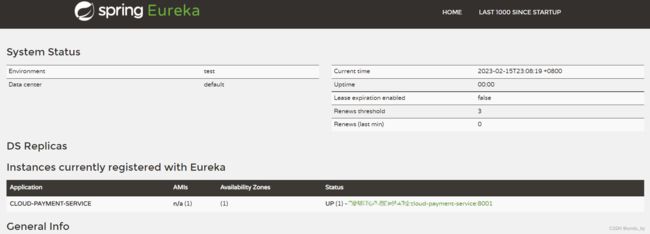

重新启动，刷新Eureka页面

2.2.5 订单微服务cloud-consumer-order80注册Eureka

EurekaClient端cloud-consumer-order80将注册进EurekaServer成为服务消费者consumer。

2.2.5.1 改pom文件


        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-netflix-eureka-clientartifactId>
        dependency>

2.2.5.2 写yml文件

server:
  port: 80


spring:
  application:
    name: cloud-order-service


# 添加下面配置信息
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka/
    register-with-eureka: true
    fetch-registry: true

2.2.5.3 修改主启动类

package com.yyds.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

@SpringBootApplication
@EnableEurekaClient
public class OrderMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderMain80.class, args);
        System.out.println("***************OrderMain80启动成功********************");
    }
}

重新启动，刷新Eureka页面

2.3 集群Eureka的构建

如果你的注册中心只有一个only one， 它出故障了会导致整个为服务环境不可用，所以需要搭建Eureka注册中心集群 ，实现负载均衡+故障容错。

2.3.1 新建模块cloud-eureka-server7002

参考cloud-eureka-server7001新建模块cloud-eureka-server7002

2.3.2 修改hosts

在C:\Windows\System32\drivers\etc路径下的hosts文件中添加

127.0.0.1	eureka7001.com
127.0.0.1	eureka7002.com

2.3.3 修改yml文件

server:
  port: 7001


eureka:
  instance:
    hostname: eureka7001.com #eureka服务端的实例名称
  client:
    register-with-eureka: false     #false表示不向注册中心注册自己。
    fetch-registry: false     #false表示自己端就是注册中心，我的职责就是维护服务实例，并不需要去检索服务
    service-url:
    #集群指向其它eureka
      defaultZone: http://eureka7002.com:7002/eureka/

server:
  port: 7002


eureka:
  instance:
    hostname: eureka7002.com #eureka服务端的实例名称
  client:
    register-with-eureka: false     #false表示不向注册中心注册自己。
    fetch-registry: false     #false表示自己端就是注册中心，我的职责就是维护服务实例，并不需要去检索服务
    service-url:
    #集群指向其它eureka
      defaultZone: http://eureka7001.com:7001/eureka/

2.3.4 修改支付模块和订单模块的yml文件

server:
  port: 8001

spring:
  application:
    name: cloud-payment-service

  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/springcloud?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: root

mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.yyds.springcloud.entities

eureka:
  client:
    service-url:
      #defaultZone: http://localhost:7001/eureka
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka  # 集群版本
    register-with-eureka: true
    fetch-registry: true

server:
  port: 80

spring:
  application:
    name: cloud-order-service

# 添加下面配置信息
eureka:
  client:
    service-url:
      #defaultZone: http://localhost:7001/eureka
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka  # 集群版本
    register-with-eureka: true # 是否从EurekaServer抓取已有的注册信息，默认为true。单节点无所谓，集群必须设置为true才能配合ribbon使用负载均衡
    fetch-registry: true

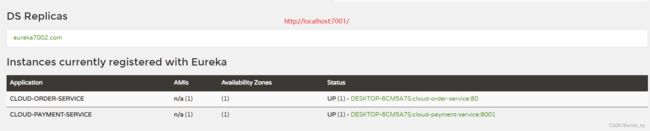

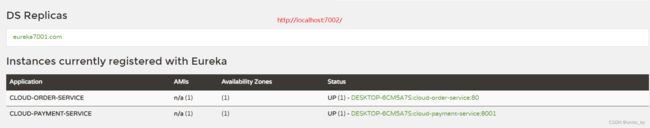

2.3.5 测试

• 先要启动EurekaServer，7001/7002服务

• 再要启动服务提供者provider，8001

• 再要启动消费者，80

• 测试端口号: http://localhost/consumer/payment/get/1

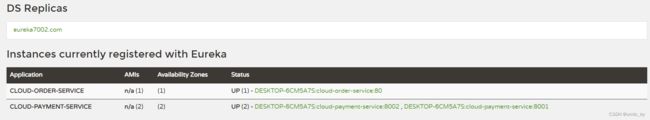

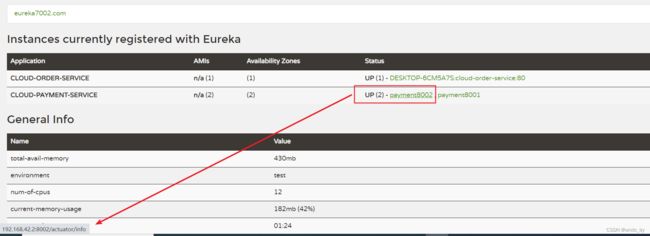

2.3.6 支付模块服务提供者集群配置

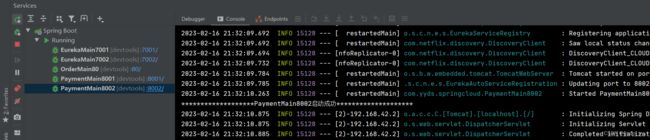

参考cloud-provider-payment8001新建cloud-provider-payment8002模块

并且在两个模块的controller中均添加server.port属性，方便进行测试

package com.yyds.springcloud.controller;

import com.yyds.springcloud.entities.CommonResult;
import com.yyds.springcloud.entities.Payment;
import com.yyds.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource;

@RestController
@RequestMapping("/payment")
@Slf4j
public class PaymentController {
    @Resource
    private PaymentService paymentService;

    @Value("${server.port}")
    private String serverPort;

    @PostMapping("/create")
    public CommonResult<Payment> create(@RequestBody  Payment payment){
        int result = paymentService.create(payment);
        if(result > 0){
            return new CommonResult(200,"插入数据库成功,serverPort+" + serverPort ,result);
        }else {
            return new CommonResult(444,"插入数据库失败",null);
        }
    }

    @GetMapping("/get/{id}")
    public CommonResult<Payment> getPaymentById(@PathVariable("id") Long id){

        Payment payment = paymentService.getPaymentById(id);
        log.info("*****查询结果:{}",payment);
        if (payment != null) {
            return new CommonResult(200,"查询成功,serverPort+" + serverPort,payment);
        }else {
            return new CommonResult(200,"没有对应id",null);
        }
    }
}

可以从Eureka中看到下面页面

访问http://localhost/consumer/payment/get/1

此时发现，都在访问8001服务

{"code":200,"message":"查询成功,serverPort+8001","data":{"id":1,"serial":"00001a"}}

修改订单微服务接口

package com.yyds.springcloud.controller;


import com.yyds.springcloud.entities.CommonResult;
import com.yyds.springcloud.entities.Payment;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;

@RestController
@RequestMapping("/consumer/payment")
@Slf4j
public class OrderController {
//    public static final String PAYMENT_URL = "http://localhost:8001";
    public static final String PAYMENT_URL = "http://CLOUD-PAYMENT-SERVICE";

    @Resource
    private RestTemplate restTemplate;

    @GetMapping("/create")
    public CommonResult<Payment> create(Payment payment) {
        return restTemplate.postForObject(PAYMENT_URL +"/payment/create",payment,CommonResult.class);
    }

    @GetMapping("/get/{id}")
    public CommonResult<Payment> getPayment(@PathVariable("id") Long id) {
        return restTemplate.getForObject(PAYMENT_URL+"/payment/get/"+id,CommonResult.class);
    }
}

此时访问http://localhost/consumer/payment/get/1，会报如下异常java.net.UnknownHostException: CLOUD-PAYMENT-SERVICE。

需要修改配置类

package com.yyds.springcloud.config;

import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;


@Configuration
public class ApplicationContextConfig {

    @Bean
    @LoadBalanced  // 添加此注解
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }

}

此时，会进行负载均衡

{"code":200,"message":"查询成功,serverPort+8002","data":{"id":1,"serial":"00001a"}}
{"code":200,"message":"查询成功,serverPort+8001","data":{"id":1,"serial":"00001a"}}

2.4 更多用法

2.4.1 actuator微服务信息完善

主机名称:服务名称修改

eureka:
  client:
    service-url:
      #defaultZone: http://localhost:7001/eureka
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka  # 集群版本
    register-with-eureka: true
    fetch-registry: true
  # 添加此配置
  instance:
    instance-id: payment8001


eureka:
  client:
    service-url:
      #defaultZone: http://localhost:7001/eureka
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka  # 集群版本
    register-with-eureka: true
    fetch-registry: true
  # 添加此配置
  instance:
    instance-id: payment8002

访问信息有IP信息提示

eureka:
  client:
    service-url:
      #defaultZone: http://localhost:7001/eureka
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka  # 集群版本
    register-with-eureka: true
    fetch-registry: true
  instance:
    instance-id: payment8001
    prefer-ip-address: true  # 显示ip

eureka:
  client:
    service-url:
      #defaultZone: http://localhost:7001/eureka
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka  # 集群版本
    register-with-eureka: true
    fetch-registry: true
  instance:
    instance-id: payment8002
    prefer-ip-address: true  # 显示ip

2.4.2 服务发现Discovery

对于注册进eureka里面的微服务，可以通过服务发现来获得该服务的信息。

package com.yyds.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;


@SpringBootApplication
// 添加此注解
@EnableEurekaClient
// 添加此注解
@EnableDiscoveryClient
public class PaymentMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class, args);
        System.out.println("*******************PaymentMain8001启动成功********************");
    }
}

	@Resource
    private DiscoveryClient discoveryClient;

    @GetMapping("/discovery")
    public Object discovery(){
        // 服务清单列表
        List<String> services = discoveryClient.getServices();
        for (String service : services) {
            log.info("******************service:"+service);
        }

        List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-PAYMENT-SERVICE");
        for (ServiceInstance instance : instances) {
            String host = instance.getHost();
            String serviceId = instance.getServiceId();
            URI uri = instance.getUri();
            int port = instance.getPort();

            log.info(serviceId + "\t" + host + "\t"+ port+ "\t" + uri );
        }
        return this.discoveryClient;
    }

测试http://localhost:8001/payment/discovery

{"services":["cloud-payment-service","cloud-order-service"],"order":0}

******************service:cloud-payment-service
******************service:cloud-order-service
CLOUD-PAYMENT-SERVICE	192.168.42.2	8002	http://192.168.42.2:8002
CLOUD-PAYMENT-SERVICE	192.168.42.2	8001	http://192.168.42.2:8001

2.4.3 Eureka自我保护

• 什么是自我保护模式？

​ 默认情况下，如果EurekaServer在一定时间内没有接收到某个微服务实例的心跳，EurekaServer将会注销该实例（默认90秒）。但是当网络分区故障发生(延时、卡顿、拥挤)时，微服务与EurekaServer之间无法正常通信，以上行为可能变得非常危险了——因为微服务本身其实是健康的，此时本不应该注销这个微服务。Eureka通过“自我保护模式”来解决这个问题——当EurekaServer节点在短时间内丢失过多客户端时（可能发生了网络分区故障），那么这个节点就会进入自我保护模式。

• 为什么会产生Eureka自我保护机制？
  为了防止EurekaClient可以正常运行，但是 与 EurekaServer网络不通情况下，EurekaServer不会立刻将EurekaClient服务剔除

在自我保护模式中，Eureka Server会保护服务注册表中的信息，不再注销任何服务实例。它的设计哲学就是宁可保留错误的服务注册信息，也不盲目注销任何可能健康的服务实例。

• 禁止自我保护

eureka:
  instance:
    hostname: eureka7001.com #eureka服务端的实例名称
  client:
    register-with-eureka: false     #false表示不向注册中心注册自己。
    fetch-registry: false     #false表示自己端就是注册中心，我的职责就是维护服务实例，并不需要去检索服务
    service-url:
    #集群指向其它eureka
      defaultZone: http://eureka7002.com:7002/eureka/
    #单机就是7001自己
#      defaultZone: http://localhost:7001/eureka
  server:
   #关闭自我保护机制，保证不可用服务被及时踢除
    enable-self-preservation: false
    eviction-interval-timer-in-ms: 2000

server:
  port: 8001

###服务名称(服务注册到eureka名称)
spring:
    application:
        name: cloud-provider-payment

eureka:
  client: #服务提供者provider注册进eureka服务列表内
    service-url:
      register-with-eureka: true
      fetch-registry: true
      # cluster version
      #defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka
      # singleton version
      defaultZone: http://eureka7001.com:7001/eureka
#心跳检测与续约时间
#开发时设置小些，保证服务关闭后注册中心能即使剔除服务
  instance:
  #Eureka客户端向服务端发送心跳的时间间隔，单位为秒(默认是30秒)
    lease-renewal-interval-in-seconds: 1
  #Eureka服务端在收到最后一次心跳后等待时间上限，单位为秒(默认是90秒)，超时将剔除服务
    lease-expiration-duration-in-seconds: 2

关闭8001后，Eureka就会把其剔除。

2.4.4 Eureka停更

https://github.com/Netflix/eureka/wiki

三、Zookeeper服务注册与发现

• zookeeper是一个分布式协调工具，可以实现注册中心功能

• zookeeper服务器取代Eureka服务器，zk作为服务注册中心

3.1 服务提供者 cloud-provider-payment8004

3.1.1 pom文件

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloudartifactId>
        <groupId>com.yydsgroupId>
        <version>1.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>cloud-provider-payment8004artifactId>

    <dependencies>



        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-zookeeper-discoveryartifactId>

            <exclusions>
                <exclusion>
                    <groupId>org.apache.zookeepergroupId>
                    <artifactId>zookeeperartifactId>
                exclusion>
            exclusions>
        dependency>


        <dependency>
            <groupId>org.apache.zookeepergroupId>
            <artifactId>zookeeperartifactId>
            <version>3.4.6version>

            <exclusions>
                <exclusion>
                    <groupId>org.slf4jgroupId>
                    <artifactId>slf4j-apiartifactId>
                exclusion>
                <exclusion>
                    <groupId>org.slf4jgroupId>
                    <artifactId>slf4j-log4j12artifactId>
                exclusion>
                <exclusion>
                    <groupId>log4jgroupId>
                    <artifactId>log4jartifactId>
                exclusion>
            exclusions>
        dependency>


        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>


        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-actuatorartifactId>
        dependency>


        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-devtoolsartifactId>
            <scope>runtimescope>
            <optional>trueoptional>
        dependency>


        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
        dependency>
    dependencies>


project>

3.1.2 yml文件

server:
  port: 8004


spring:
  application:
    name: cloud-payment-service
  cloud:
    zookeeper:
      connect-string: 192.168.42.101:2181,192.168.42.102:2181,192.168.42.103:2181

3.1.3 主启动类

package com.yyds.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;



@SpringBootApplication
//该注解用于向使用consul或者zookeeper作为注册中心时注册服务
@EnableDiscoveryClient
public class PaymentMain8004 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8004.class, args);
        System.out.println("*******************PaymentMain8004启动成功********************");
    }
}

3.1.4 业务类

package com.yyds.springcloud.controller;

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/payment")
@Slf4j
public class PaymentController {


    @Value("${server.port}")
    private String serverPort;

    @GetMapping("/zk")
    public String paymentZk(){
        return "spring cloud with zk:" + serverPort + "\t" + System.currentTimeMillis();
    }

}

3.1.5 测试

http://localhost:8004/payment/zk

spring cloud with zk:8004 1676560104626


# 在zk中进行查看，发现已经注册上了
[zk: localhost:2181(CONNECTED) 3] ls /services
[cloud-payment-service]


[zk: localhost:2181(CONNECTED) 6] get /services/cloud-payment-service/25db342b-6426-47f5-9bc6-6c084a245723
{
    "name":"cloud-payment-service",
    "id":"25db342b-6426-47f5-9bc6-6c084a245723",
    "address":"DESKTOP-6CM5A7S",
    "port":8004,
    "sslPort":null,
    "payload":{
        "@class":"org.springframework.cloud.zookeeper.discovery.ZookeeperInstance",
        "id":"application-1",
        "name":"cloud-payment-service",
        "metadata":{

        }
    },
    "registrationTimeUTC":1676560096304,
    "serviceType":"DYNAMIC",
    "uriSpec":{
        "parts":[
            {
                "value":"scheme",
                "variable":true
            },
            {
                "value":"://",
                "variable":false
            },
            {
                "value":"address",
                "variable":true
            },
            {
                "value":":",
                "variable":false
            },
            {
                "value":"port",
                "variable":true
            }
        ]
    }
}

注意：当杀掉注册进去的服务，zk会把此服务信息删除。

3.2 服务消费者cloud-consumerzk-order80

3.2.1 pom文件

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloudartifactId>
        <groupId>com.yydsgroupId>
        <version>1.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>cloud-consumerzk-order80artifactId>

    <dependencies>


        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-zookeeper-discoveryartifactId>

            <exclusions>
                <exclusion>
                    <groupId>org.apache.zookeepergroupId>
                    <artifactId>zookeeperartifactId>
                exclusion>
            exclusions>
        dependency>


        <dependency>
            <groupId>org.apache.zookeepergroupId>
            <artifactId>zookeeperartifactId>
            <version>3.4.6version>

            <exclusions>
                <exclusion>
                    <groupId>org.slf4jgroupId>
                    <artifactId>slf4j-apiartifactId>
                exclusion>
                <exclusion>
                    <groupId>org.slf4jgroupId>
                    <artifactId>slf4j-log4j12artifactId>
                exclusion>
                <exclusion>
                    <groupId>log4jgroupId>
                    <artifactId>log4jartifactId>
                exclusion>
            exclusions>
        dependency>



        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-actuatorartifactId>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-devtoolsartifactId>
            <scope>runtimescope>
            <optional>trueoptional>
        dependency>
        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
            <optional>trueoptional>
        dependency>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-testartifactId>
            <scope>testscope>
        dependency>
    dependencies>


project>

3.2.2 yml文件

server:
  port: 80


spring:
  application:
    name: cloud-consumer-order
  cloud:
    zookeeper:
      connect-string: 192.168.42.101:2181,192.168.42.102:2181,192.168.42.103:2181

3.2.3 主启动

package com.yyds.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class ZkOrderMain80 {
    public static void main(String[] args) {
        SpringApplication.run(ZkOrderMain80.class, args);
        System.out.println("***************ZkOrderMain80启动成功********************");
    }
}

3.2.4 业务类

package com.yyds.springcloud.controller;


import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;

@RestController
@RequestMapping("/consumer/zk")
@Slf4j
public class OrderController {

    public static final String PAYMENT_URL = "http://cloud-payment-service";

    @Resource
    private RestTemplate restTemplate;

    @GetMapping()
    public String paymentInfo() {
        return restTemplate.getForObject(PAYMENT_URL +"/payment/zk",String.class);
    }

}

package com.yyds.springcloud.config;


import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;


@Configuration
public class ApplicationContextConfig {

    @Bean
    @LoadBalanced
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }

}

3.2.5 测试

http://localhost/consumer/zk

spring cloud with zk:8004 1676562116384


[zk: localhost:2181(CONNECTED) 28] ls /services
[cloud-payment-service, cloud-consumer-order]


[zk: localhost:2181(CONNECTED) 30] get /services/cloud-consumer-order/8d13f36d-0697-4e98-a7f5-8d16169b4588

{
    "name":"cloud-consumer-order",
    "id":"8d13f36d-0697-4e98-a7f5-8d16169b4588",
    "address":"DESKTOP-6CM5A7S",
    "port":80,
    "sslPort":null,
    "payload":{
        "@class":"org.springframework.cloud.zookeeper.discovery.ZookeeperInstance",
        "id":"application-1",
        "name":"cloud-consumer-order",
        "metadata":{

        }
    },
    "registrationTimeUTC":1676561841585,
    "serviceType":"DYNAMIC",
    "uriSpec":{
        "parts":[
            {
                "value":"scheme",
                "variable":true
            },
            {
                "value":"://",
                "variable":false
            },
            {
                "value":"address",
                "variable":true
            },
            {
                "value":":",
                "variable":false
            },
            {
                "value":"port",
                "variable":true
            }
        ]
    }
}

四、Consul服务注册与发现

Consul 是一套开源的分布式服务发现和配置管理系统，由 HashiCorp 公司用 Go 语言开发。

提供了微服务系统中的服务治理、配置中心、控制总线等功能。这些功能中的每一个都可以根据需要单独使用，也可以一起使用以构建全方位的服务网格，总之Consul提供了一种完整的服务网格解决方案。

官网地址：https://www.consul.io/intro/index.html

下载地址: https://www.consul.io/downloads.html

中文文档：https://www.springcloud.cc/spring-cloud-consul.html

4.1 Consul安装

安装比较简单，直接解压，只有一个exe文件

consul --version

# 启动
consul agent -dev

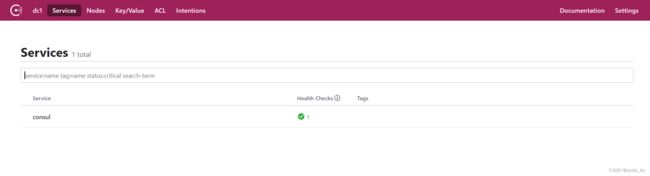

通过以下地址可以访问Consul的首页：http://localhost:8500

4.2 支付服务cloud-providerconsul-payment8006

4.2.1 pom文件

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloudartifactId>
        <groupId>com.yydsgroupId>
        <version>1.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>cloud-providerconsul-payment8006artifactId>

    <dependencies>

        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-consul-discoveryartifactId>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-actuatorartifactId>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-devtoolsartifactId>
            <scope>runtimescope>
            <optional>trueoptional>
        dependency>

        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
        dependency>
    dependencies>
project>

4.2.2 yml文件

server:
  port: 8006

spring:
  application:
    name: cloud-provider-payment
  cloud:
    consul:
      host: localhost
      port: 8500
      discovery:
        service-name: ${spring.application.name}
        heartbeat:
          enabled: true

4.2.3 主启动类

package com.yyds.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
//该注解用于向使用consul或者zookeeper作为注册中心时注册服务
@EnableDiscoveryClient
public class ConsulPaymentMain8006 {
    public static void main(String[] args) {
        SpringApplication.run(ConsulPaymentMain8006.class, args);
        System.out.println("*******************ConsulPaymentMain8006启动成功********************");
    }
}

4.2.4 业务类

package com.yyds.springcloud.controller;


import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;


@RestController
@RequestMapping("/payment")
@Slf4j
public class PaymentController {

    @Value("${server.port}")
    private String serverPort;

    @GetMapping("/consul")
    public String paymentZk(){
        return "spring cloud with consul:" + serverPort + "\t" + System.currentTimeMillis();
    }

}

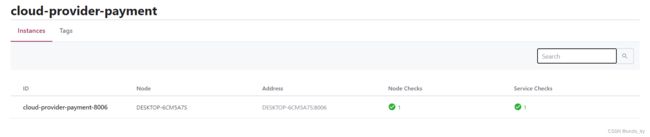

4.2.5 测试

http://localhost:8006/payment/consul

spring cloud with consul:8006 1676563822227

4.3 服务消费者cloud-consumerconsul-order80

4.3.1 pom

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloudartifactId>
        <groupId>com.yydsgroupId>
        <version>1.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>cloud-consumerconsul-order80artifactId>

    <dependencies>


        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-consul-discoveryartifactId>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-actuatorartifactId>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-devtoolsartifactId>
            <scope>runtimescope>
            <optional>trueoptional>
        dependency>
        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
            <optional>trueoptional>
        dependency>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-testartifactId>
            <scope>testscope>
        dependency>
    dependencies>
project>

4.3.2 yml

server:
  port: 80

spring:
  application:
    name: cloud-consumer-order
  cloud:
    consul:
      host: localhost
      port: 8500
      discovery:
        service-name: ${spring.application.name}
        heartbeat:
          enabled: true

4.3.3 主启动

package com.yyds.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class ConsulOrderMain80 {
    public static void main(String[] args) {
        SpringApplication.run(ConsulOrderMain80.class, args);
        System.out.println("***************ConsulOrderMain80启动成功********************");
    }
}

4.3.4 业务类

package com.yyds.springcloud.controller;

import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;

@RestController
@RequestMapping("/consumer/consul")
@Slf4j
public class OrderConsulController {

    public static final String PAYMENT_URL = "http://cloud-provider-payment";

    @Resource
    private RestTemplate restTemplate;

    @GetMapping()
    public String paymentInfo() {
        return restTemplate.getForObject(PAYMENT_URL +"/payment/consul",String.class);
    }
}

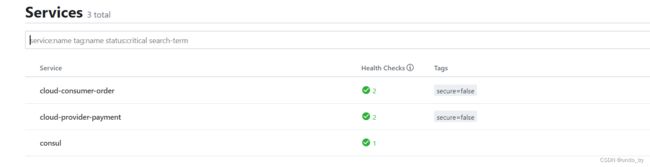

4.3.5 测试

http://localhost/consumer/consul

spring cloud with consul:8006 1676564785406
