SpringCloud-2.0-周阳（24. 分布式事务 - Seata）

上一篇 ：23. 熔断降级 - Sentinel

下一篇 ：25. 简述 Seata 的原理

• 声明：原文作者：csdn：yuan_404

1 . 分布式事务的问题

• 在分布式之前

是一台电脑上包含所有的东西 —— 所有的数据、程序所有的内容 ……

• 慢慢向分布式演变

从 1 对 1 （一个程序对应一个数据库）
到 1 对 N （分库，一个程序对应多个数据库）
再 N 对 N （分布式微服务，多个微服务对应多个数据库）

• 分布式之后

举例：

• 单体应用被拆分成微服务应用，原来的三个模块被拆分成三个独立的应用，分别使用三个独立的数据源，业务操作需要调用三个服务来完成。
• 此时每个服务内部的数据一致性由本地事务来保证，但是全局的数据一致性问题没法保证。

• 一次业务操作需要跨多个数据源或需要跨多个系统进行远程调用，就会产生分布式事务问题

2 . Seata 简介

• 官网地址 ：http://seata.io/zh-cn/

• Seata 是一款开源的分布式事务解决方案，致力于在微服务架构下提供高性能和简单易用的分布式事务服务

• 一个 ID + 三个组件

• Transaction ID XID ：全局唯一的事务ID
• Transaction Coordinator(TC) ：事务协调器，维护全局事务的运行状态，负责协调并驱动全局事务的提交或回滚;
• Transaction Manager™ ：控制全局事务的边界，负责开启一个全局事务，并最终发起全局提交或全局回滚的决议;
• Resource Manager(RM) ：控制分支事务，负责分支注册，状态汇报，并接收事务协调器的指令，驱动分支（本地）事务的提交和回滚；

• 分布式事务处理过程

1. TM向TC申请开启一个全局事务，全局事务创建成功并生成一个全局唯一的XID
2. XID在微服务调用链路的上下文中传播
3. RM向TC注册分支事务，将其纳入XID对应全局事务的管辖
4. TM向TC发起针对XID的全局提交或回滚决议;
5. TC调度XID下管辖的全部分支事务完成提交或回滚请求。

3 . Seata-Server 安装

1. 下载地址 ：https://github.com/seata/seata/releases


2. 将 seata-server 解压到指定目录

3. 修改 conf 目录下的 file.conf 文件

   先对配置文件进行备份



4. 在 Mysql 中新建一个数据库 ：seata




5. 初始化数据库

   运行 conf 目录下的 db_store.sql 文件

   如果没有，请看，SQL 脚本文件地址（选择自己的数据库） ：https://github.com/seata/seata/tree/develop/script/server/db
   复制下来去 MySQL 执行



6. 修改 conf 目录下的 registry.conf 文件


7. 启动 Nacos

8. 启动 seata-server

   双击 seata\bin\seata-server.bat

4 . 数据库环境搭建

• 下面就按照该框架图进行设计

这里我们会创建三个服务 —— 一个订单服务，一个库存服务，一个账户服务。

• 当用户下单时，会在订单服务中创建一个订单，然后通过远程调用库存服务来扣减下单商品的库存，
• 再通过远程调用账户服务来扣减用户账户里面的余额，
• 最后在订单服务中修改订单状态为已完成。

该操作跨越三个数据库，有两次远程调用，很明显会有分布式事务问题。

1. 启动 Nacos 、Seata

2. 创建业务数据库

   seata_order: 存储订单的数据库
   seata_storage:存储库存的数据库
   seata_account: 存储账户信息的数据库

   建表SQL ：

   CREATE DATABASE seata_order;
   CREATE DATABASE seata_storage;
   CREATE DATABASE seata_account;





3. seata_order 库下建 t_order 表

   CREATE TABLE t_order(
       `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
       `user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
       `product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
       `count` INT(11) DEFAULT NULL COMMENT '数量',
       `money` DECIMAL(11,0) DEFAULT NULL COMMENT '金额',
       `status` INT(1) DEFAULT NULL COMMENT '订单状态：0：创建中; 1：已完结'
   ) ENGINE=INNODB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;

   SELECT * FROM t_order;



4. seata_storage 库下建 t_storage 表

   CREATE TABLE t_storage(
       `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
       `product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
       `total` INT(11) DEFAULT NULL COMMENT '总库存',
       `used` INT(11) DEFAULT NULL COMMENT '已用库存',
       `residue` INT(11) DEFAULT NULL COMMENT '剩余库存'
   ) ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

   INSERT INTO seata_storage.t_storage(`id`,`product_id`,`total`,`used`,`residue`)
   VALUES('1','1','100','0','100');

   SELECT * FROM t_storage;



5. seata_account 库下建 t_account 表

   CREATE TABLE t_account(
       `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY COMMENT 'id',
       `user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
       `total` DECIMAL(10,0) DEFAULT NULL COMMENT '总额度',
       `used` DECIMAL(10,0) DEFAULT NULL COMMENT '已用余额',
       `residue` DECIMAL(10,0) DEFAULT '0' COMMENT '剩余可用额度'
   ) ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

   INSERT INTO seata_account.t_account(`id`,`user_id`,`total`,`used`,`residue`) VALUES('1','1','1000','0','1000')

   SELECT * FROM t_account;





6. 建立回滚日志表

   找到 Seat 中回滚日志建表 SQL 脚本 ：\seata\conf\db_undo_log.sql

   三个数据库都需要执行该脚本

   CREATE TABLE `undo_log` (
     `id` bigint(20) NOT NULL AUTO_INCREMENT,
     `branch_id` bigint(20) NOT NULL,
     `xid` varchar(100) NOT NULL,
     `context` varchar(128) NOT NULL,
     `rollback_info` longblob NOT NULL,
     `log_status` int(11) NOT NULL,
     `log_created` datetime NOT NULL,
     `log_modified` datetime NOT NULL,
     `ext` varchar(100) DEFAULT NULL,
     PRIMARY KEY (`id`),
     UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
   ) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;





5 . 代码环境搭建

5.1 订单模块

• 项目目录：

1. 新建模块 ：seata-order-service-2001

2. 修改 POM

   <dependencies>

       <dependency>
           <groupId>com.alibaba.cloudgroupId>
           <artifactId>spring-cloud-starter-alibaba-nacos-discoveryartifactId>
       dependency>

       <dependency>
           <groupId>com.alibaba.cloudgroupId>
           <artifactId>spring-cloud-starter-alibaba-seataartifactId>
           <exclusions>
               <exclusion>
                   <artifactId>seata-allartifactId>
                   <groupId>io.seatagroupId>
               exclusion>
           exclusions>
       dependency>
       <dependency>
           <groupId>io.seatagroupId>
           <artifactId>seata-allartifactId>
           <version>0.9.0version>
       dependency>

       <dependency>
           <groupId>org.springframework.cloudgroupId>
           <artifactId>spring-cloud-starter-openfeignartifactId>
       dependency>

       <dependency>
           <groupId>org.springframework.bootgroupId>
           <artifactId>spring-boot-starter-webartifactId>
       dependency>
       <dependency>
           <groupId>org.springframework.bootgroupId>
           <artifactId>spring-boot-starter-actuatorartifactId>
       dependency>

       <dependency>
           <groupId>mysqlgroupId>
           <artifactId>mysql-connector-javaartifactId>
           <version>5.1.37version>
       dependency>
       <dependency>
           <groupId>com.alibabagroupId>
           <artifactId>druid-spring-boot-starterartifactId>
           <version>1.1.10version>
       dependency>
       <dependency>
           <groupId>org.mybatis.spring.bootgroupId>
           <artifactId>mybatis-spring-boot-starterartifactId>
           <version>2.0.0version>
       dependency>
       <dependency>
           <groupId>org.springframework.bootgroupId>
           <artifactId>spring-boot-starter-testartifactId>
           <scope>testscope>
       dependency>
       <dependency>
           <groupId>org.projectlombokgroupId>
           <artifactId>lombokartifactId>
           <optional>trueoptional>
       dependency>
   dependencies>


3. 编写 YML

   server:
     port: 2001

   spring:
     application:
       name: seata-order-service
     cloud:
       alibaba:
         seata:
           #自定义事务组名称需要与seata-server中的对应
           tx-service-group: fsp_tx_group
       nacos:
         discovery:
           server-addr: localhost:8848
     datasource:
       driver-class-name: com.mysql.jdbc.Driver
       url: jdbc:mysql://localhost:3306/seata_order?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8
       username: root
       password: 123456

   feign:
     hystrix:
       enabled: false

   logging:
     level:
       io:
         seata: info

   mybatis:
     mapper-locations: classpath:mapper/*.xml
     type-aliases-package: com.demo.springcloud.pojo


4. 编写 file.conf 文件

   transport {
     # tcp udt unix-domain-socket
     type = "TCP"
     #NIO NATIVE
     server = "NIO"
     #enable heartbeat
     heartbeat = true
     #thread factory for netty
     thread-factory {
       boss-thread-prefix = "NettyBoss"
       worker-thread-prefix = "NettyServerNIOWorker"
       server-executor-thread-prefix = "NettyServerBizHandler"
       share-boss-worker = false
       client-selector-thread-prefix = "NettyClientSelector"
       client-selector-thread-size = 1
       client-worker-thread-prefix = "NettyClientWorkerThread"
       # netty boss thread size,will not be used for UDT
       boss-thread-size = 1
       #auto default pin or 8
       worker-thread-size = 8
     }
     shutdown {
       # when destroy server, wait seconds
       wait = 3
     }
     serialization = "seata"
     compressor = "none"
   }

   service {

     vgroup_mapping.fsp_tx_group = "default"

     default.grouplist = "127.0.0.1:8091"
     enableDegrade = false
     disable = false
     max.commit.retry.timeout = "-1"
     max.rollback.retry.timeout = "-1"
     disableGlobalTransaction = false
   }

   client {
     async.commit.buffer.limit = 10000
     lock {
       retry.internal = 10
       retry.times = 30
     }
     report.retry.count = 5
     tm.commit.retry.count = 1
     tm.rollback.retry.count = 1
   }

   ## transaction log store
   store {
     ## store mode: file、db
     mode = "db"

     ## file store
     file {
       dir = "sessionStore"

       # branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
       max-branch-session-size = 16384
       # globe session size , if exceeded throws exceptions
       max-global-session-size = 512
       # file buffer size , if exceeded allocate new buffer
       file-write-buffer-cache-size = 16384
       # when recover batch read size
       session.reload.read_size = 100
       # async, sync
       flush-disk-mode = async
     }

     ## database store
     db {
       ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
       datasource = "dbcp"
       ## mysql/oracle/h2/oceanbase etc.
       db-type = "mysql"
       driver-class-name = "com.mysql.jdbc.Driver"
       url = "jdbc:mysql://127.0.0.1:3306/seata"
       user = "root"
       password = "123456"
       min-conn = 1
       max-conn = 3
       global.table = "global_table"
       branch.table = "branch_table"
       lock-table = "lock_table"
       query-limit = 100
     }
   }
   lock {
     ## the lock store mode: local、remote
     mode = "remote"

     local {
       ## store locks in user's database
     }

     remote {
       ## store locks in the seata's server
     }
   }
   recovery {
     #schedule committing retry period in milliseconds
     committing-retry-period = 1000
     #schedule asyn committing retry period in milliseconds
     asyn-committing-retry-period = 1000
     #schedule rollbacking retry period in milliseconds
     rollbacking-retry-period = 1000
     #schedule timeout retry period in milliseconds
     timeout-retry-period = 1000
   }

   transaction {
     undo.data.validation = true
     undo.log.serialization = "jackson"
     undo.log.save.days = 7
     #schedule delete expired undo_log in milliseconds
     undo.log.delete.period = 86400000
     undo.log.table = "undo_log"
   }

   ## metrics settings
   metrics {
     enabled = false
     registry-type = "compact"
     # multi exporters use comma divided
     exporter-list = "prometheus"
     exporter-prometheus-port = 9898
   }

   support {
     ## spring
     spring {
       # auto proxy the DataSource bean
       datasource.autoproxy = false
     }
   }


5. 编写 registry.conf

   registry {
     # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
     type = "nacos"

     nacos {
       serverAddr = "localhost:8848"
       namespace = ""
       cluster = "default"
     }
     eureka {
       serviceUrl = "http://localhost:8761/eureka"
       application = "default"
       weight = "1"
     }
     redis {
       serverAddr = "localhost:6379"
       db = "0"
     }
     zk {
       cluster = "default"
       serverAddr = "127.0.0.1:2181"
       session.timeout = 6000
       connect.timeout = 2000
     }
     consul {
       cluster = "default"
       serverAddr = "127.0.0.1:8500"
     }
     etcd3 {
       cluster = "default"
       serverAddr = "http://localhost:2379"
     }
     sofa {
       serverAddr = "127.0.0.1:9603"
       application = "default"
       region = "DEFAULT_ZONE"
       datacenter = "DefaultDataCenter"
       cluster = "default"
       group = "SEATA_GROUP"
       addressWaitTime = "3000"
     }
     file {
       name = "file.conf"
     }
   }

   config {
     # file、nacos 、apollo、zk、consul、etcd3
     type = "file"

     nacos {
       serverAddr = "localhost"
       namespace = ""
     }
     consul {
       serverAddr = "127.0.0.1:8500"
     }
     apollo {
       app.id = "seata-server"
       apollo.meta = "http://192.168.1.204:8801"
     }
     zk {
       serverAddr = "127.0.0.1:2181"
       session.timeout = 6000
       connect.timeout = 2000
     }
     etcd3 {
       serverAddr = "http://localhost:2379"
     }
     file {
       name = "file.conf"
     }
   }


6. 实体类

• CommonResult

  @Data
  @AllArgsConstructor
  @NoArgsConstructor
  public class CommonResult<T> {
  	private Integer code;
  	private String  message;
  	private T       data;

  	public CommonResult(Integer code, String message)
  	{
  		this(code,message,null);
  	}
  }



• Order

  @Data
  @AllArgsConstructor
  @NoArgsConstructor
  public class Order {
  	private Long id;

  	/*用户id*/
  	private Long userId;

  	/*产品id*/
  	private Long productId;

  	/*数量*/
  	private Integer count;

  	/*金额*/
  	private BigDecimal money;

  	/*订单状态：0：创建中; 1：已完结*/
  	private Integer status;
  }


7. Mapper / Dao 层实现

• TOrderMapper

  @Mapper
  public interface TOrderMapper {
  	/**
       * 查询所有记录
       *
       * @return 返回集合，没有返回空List
       */
  	List<Order> listAll();

  	/**
       * 新增，插入所有字段
       *
       * @param order 新增的记录
       * @return 返回影响行数
       */
  	int insert(Order order);

  	/**
       * 修改
       */
  	int update(@Param("id") Long id, @Param("status") Integer status);
  }


• TOrderMapper.xml


  DOCTYPE mapper
          PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
          "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

  <mapper namespace="com.demo.springcloud.mapper.TOrderMapper">

      <resultMap id="BaseResultMap" type="Order">
          <result column="id" property="id" jdbcType="BIGINT"/>
          <result column="user_id" property="userId" jdbcType="BIGINT"/>
          <result column="product_id" property="productId" jdbcType="BIGINT"/>
          <result column="count" property="count" jdbcType="INTEGER"/>
          <result column="money" property="money" jdbcType="DECIMAL"/>
          <result column="status" property="status" jdbcType="INTEGER"/>
      resultMap>


      <sql id="baseColumns">
           t.id
          , t.user_id
          , t.product_id
          , t.count
          , t.money
          , t.status
          sql>


      <select id="listAll" resultMap="BaseResultMap">
          SELECT
          <include refid="baseColumns"/>
          FROM t_order t
      select>


      <insert id="insert" parameterType="Order"
              keyProperty="id" keyColumn="id" useGeneratedKeys="true"
      >
          INSERT INTO t_order
          <trim prefix="(" suffix=")" suffixOverrides=",">
              <if test="id != null">
                  id,
              if>
              <if test="userId != null">
                  user_id,
              if>
              <if test="productId != null">
                  product_id,
              if>
              <if test="count != null">
                  count,
              if>
              <if test="money != null">
                  money,
              if>
                  status
          trim>
          <trim prefix="VALUES (" suffix=")" suffixOverrides=",">
              <if test="id != null">
                  #{id},
              if>
              <if test="userId != null">
                  #{userId},
              if>
              <if test="productId != null">
                  #{productId},
              if>
              <if test="count != null">
                  #{count},
              if>
              <if test="money != null">
                  #{money},
              if>
                  0
          trim>
      insert>


      <update id="update" >
          UPDATE t_order
          <set>
              <if test="status != null">
                  status=#{status},
              if>
          set>
          WHERE id = #{id}
      update>
  mapper>


8. Service 接口及实现类

• TOrderService

  @Service
  public interface TOrderService {

      /**
       * 查询所有记录
       *
       * @return 返回集合，没有返回空List
       */
      public List<Order> listAll();

  	public int insertTest(Order order);
      /**
       * 新增，插入所有字段
       *
       * @param order 新增的记录
       * @return 返回影响行数
       */
      public int insert(Order order);

      /**
       * 修改
       */
      int update(Long id,Integer status);
  }


• TStorageService

  // 配置需要调用的微服务
  @FeignClient(value = "seata-storage-service")
  public interface TStorageService {
      @GetMapping(value = "/storage/decrease")
      CommonResult decrease(@RequestParam("productId")Long productId, @RequestParam("count")Integer count);
  }



• TAccountService

  // 配置需要调用的微服务
  @FeignClient(value = "seata-account-service")
  public interface TAccountService {
      @GetMapping(value = "/account/decrease")
      CommonResult decrease(@RequestParam("userId")Long userId, @RequestParam("money") BigDecimal money);
  }



• TOrderServiceImpl

  @Service
  @Slf4j
  public class TOrderServiceImpl implements TOrderService {

      @Autowired
      private TOrderMapper tOrderMapper;
      @Autowired
      private TAccountService accountService;
      @Autowired
      private TStorageService storageService;

      /**
       * 查询所有记录
       *
       * @return 返回集合，没有返回空List
       */
      @Override
      public List<Order> listAll() {
      	return tOrderMapper.listAll();
      }

      /**
       * 用于测试本模块的是否搭建成功
       *
       * @param order
       * @return
       */
      @Override
      public int insertTest(Order order) {
          return tOrderMapper.insert(order);
      }

      /**
       * 新增，插入所有字段
       *
       * @param order 新增的记录
       * @return 返回影响行数
       */
      @Override
      public int insert(Order order) {
          System.out.println(order.toString());
          log.info("--->>>> 开始新建订单 <<<< ");
          int ordering = tOrderMapper.insert(order);

          log.info("--->>>> 订单微服务开始调用 库存，做扣减 <<<< ");
          CommonResult storageResult = storageService.decrease(order.getProductId(), order.getCount());
          Integer storage = (Integer) storageResult.getData();
          log.info("---<<<< 库存 扣减完成 >>>> ");

          log.info("--->>>> 订单微服务开始调用 账户，做扣减 <<<< ");
          CommonResult accountResult = accountService.decrease(order.getUserId(), order.getMoney());
          Integer account = (Integer) accountResult.getData();
          log.info("---<<<< 账户 扣减完成 >>>> ");

          log.info("--->>>> 修改订单状态 <<<< ");
          int update = tOrderMapper.update(order.getId(), 1);
          log.info("---<<<< 状态 修改完成 >>>> ");

          if (ordering > 0 && storage > 0 && account > 0 && update > 0){
              log.info("---<<<< 订单生成成功 (*^_^*) >>>> ");
              return 1;
          }
          return 0;
      }

      /**
       * 修改
       */
      @Override
      public int update(Long id, Integer status) {
          return tOrderMapper.update(id, status);
      }
  }


9. Controller：TOrderController

   @RestController
   public class TOrderController {

       @Autowired
       private TOrderService tOrderService;

       /**
        * 查询所有记录
        *
        * @return 返回集合，没有返回空List
        */
       @GetMapping("/list")
       public CommonResult getAll(){
           return new CommonResult(200, tOrderService.listAll().toString());
       }

       /**
        * 用于测试本模块的是否搭建成功
        *
        * @param order
        * @return
        */
       @GetMapping("/test")
       public CommonResult insertTest(Order order) {
           tOrderService.insertTest(order);
           return new CommonResult(200, tOrderService.listAll().toString());
       }

       @GetMapping("/order")
       public CommonResult order(Order order) {
           int insert = tOrderService.insert(order);
           if (insert > 0){
               return new CommonResult(200, "订单创建完成");
           }
           return new CommonResult(444, "订单创建失败");
       }

   }


10. 配置数据源，替换掉 SpringBoot 默认的，换上 Seata 的

• MyBatisConfig

  @Configuration
  @MapperScan({"com.demo.springcloud.mapper"})
  public class MyBatisConfig {}



• DataSourceProxyConfig

  @Configuration
  public class DataSourceProxyConfig {
      @Autowired
      private Environment env;

      @Value("${mybatis.mapper-locations}")
      private String mapperLocations;

      static final String DEFAULT_RESOURCE_PATTERN = "**/*.class";

      @Bean
      @ConfigurationProperties(prefix = "spring.datasource")
      public DataSource druidDataSource() {
          return new DruidDataSource();
      }

      @Bean
      public DataSourceProxy dataSourceProxy(DataSource dataSource) {
          return new DataSourceProxy(dataSource);
      }

      /**
       * 用于配置 Mybatis 的别名
       * @param typeAliasesPackage
       * @return
       */
      public static String setTypeAliasesPackage(String typeAliasesPackage)
      {
          ResourcePatternResolver resolver = (ResourcePatternResolver) new PathMatchingResourcePatternResolver();
          MetadataReaderFactory metadataReaderFactory = new CachingMetadataReaderFactory(resolver);
          List<String> allResult = new ArrayList<String>();
          try
          {
              for (String aliasesPackage : typeAliasesPackage.split(","))
              {
                  List<String> result = new ArrayList<String>();
                  aliasesPackage = ResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX
                          + ClassUtils.convertClassNameToResourcePath(aliasesPackage.trim()) + "/" + DEFAULT_RESOURCE_PATTERN;
                  Resource[] resources = resolver.getResources(aliasesPackage);
                  if (resources != null && resources.length > 0)
                  {
                      MetadataReader metadataReader = null;
                      for (Resource resource : resources)
                      {
                          if (resource.isReadable())
                          {
                              metadataReader = metadataReaderFactory.getMetadataReader(resource);
                              try
                              {
                                  result.add(Class.forName(metadataReader.getClassMetadata().getClassName()).getPackage().getName());
                              }
                              catch (ClassNotFoundException e)
                              {
                                  e.printStackTrace();
                              }
                          }
                      }
                  }
                  if (result.size() > 0)
                  {
                      HashSet<String> hashResult = new HashSet<String>(result);
                      allResult.addAll(hashResult);
                  }
              }
              if (allResult.size() > 0)
              {
                  typeAliasesPackage = String.join(",", (String[]) allResult.toArray(new String[0]));
              }
              else
              {
                  throw new RuntimeException("mybatis typeAliasesPackage 路径扫描错误,参数typeAliasesPackage:" + typeAliasesPackage + "未找到任何包");
              }
          }
          catch (IOException e)
          {
              e.printStackTrace();
          }
          return typeAliasesPackage;
      }

      @Bean
      public SqlSessionFactory sqlSessionFactoryBean(DataSourceProxy dataSourceProxy) throws Exception {
          String typeAliasesPackage = env.getProperty("mybatis.type-aliases-package");
          typeAliasesPackage = setTypeAliasesPackage(typeAliasesPackage);

          SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
          sqlSessionFactoryBean.setDataSource(dataSourceProxy);
          sqlSessionFactoryBean.setTypeAliasesPackage(typeAliasesPackage);
          sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(mapperLocations));
          sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
          return sqlSessionFactoryBean.getObject();
      }
  }


11. 主启动类

```java
@EnableDiscoveryClient
@EnableFeignClients
@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)//取消数据源自动创建的配置
public class SeataOrderMainApp2001{
    public static void main(String[] args) {
        SpringApplication.run(SeataOrderMainApp2001.class, args);
    }
}

```

12. 启动测试

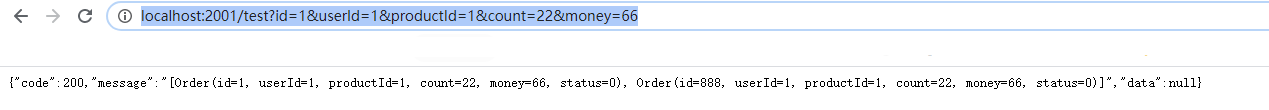

访问 ：[http://localhost:2001/test?id=1&userId=1&productId=1&count=22&money=66](http://localhost:2001/test?id=1&userId=1&productId=1&count=22&money=66)

![](https://img-blog.csdnimg.cn/20201224144926209.png)

5.2 库存模块

1. 新建模块 ：seata-order-service-2002

2. 修改 POM

   和 2001 的 POM 依赖一样

   除了 —— 将 spring-boot-starter-actuator 去掉

3. 编写 YML

   和 2001 模块一样，除了端口号和服务名

4. 配置 file.conf 、registry.conf

   和 2001 模块的一样

5. 实体类

• CommonResult
  和 2001 模块的一样

• Storage

  @Data
  public class Storage {
      private Long id;
      // 产品id
      private Long productId;
      //总库存
      private Integer total;
      //已用库存
      private Integer used;
      //剩余库存
      private Integer residue;
  }



6. Mapper / Dao

• StorageMapper

  @Mapper
  public interface StorageMapper {
      //扣减库存信息
      int decrease(@Param("productId") Long productId, @Param("count") Integer count);
  }



• StorageMapper.xml


  DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
  <mapper namespace="com.demo.springcloud.mapper.StorageMapper">
      <resultMap id="BaseResultMap" type="Storage">
          <id column="id" property="id" jdbcType="BIGINT"/>
          <result column="product_id" property="productId" jdbcType="BIGINT"/>
          <result column="total" property="total" jdbcType="INTEGER"/>
          <result column="used" property="used" jdbcType="INTEGER"/>
          <result column="residue" property="residue" jdbcType="INTEGER"/>
      resultMap>

      <update id="decrease">
          UPDATE
              t_storage
          SET
              used = used + #{count},residue = residue - #{count}
          WHERE
              product_id = #{productId}
      update>
  mapper>


7. Service 接口及实现类

• StorageService

  @Service
  public interface StorageService {
      // 扣减库存
      int decrease(Long productId, Integer count);
  }



• StorageServiceImpl

  @Service
  @Slf4j
  public class StorageServiceImpl implements StorageService {
      @Resource
      private StorageMapper storageMapper;
      // 扣减库存
      @Override
      public int decrease(Long productId, Integer count) {
          log.info("--->>>> storage-service中扣减库存开始 <<<< ");
          int decrease = storageMapper.decrease(productId, count);
          log.info("---<<<< storage-service中扣减库存结束 >>>> ");
          return decrease;
      }
  }



8. Controller

• StorageController

  @RestController
  @Slf4j
  public class StorageController {

      @Autowired
      private StorageService storageService;

      //扣减库存
      @RequestMapping("/storage/decrease")
      public CommonResult decrease(Long productId, Integer count) {
          int decrease = storageService.decrease(productId, count);
          log.info("------ storage-decrease-影响行数 ："+ decrease);
          return new CommonResult(200,"扣减库存成功！", decrease);
      }
  }



9. 数据源配置，改用 Seata 的

   和 2001 模块一样

10. 主启动类

• SeataStorageServiceApplication2002

  @SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
  @EnableDiscoveryClient
  @EnableFeignClients
  public class SeataStorageServiceApplication2002 {
      public static void main(String[] args) {
          SpringApplication.run(SeataStorageServiceApplication2002.class, args);
      }
  }



11. 启动项目测试

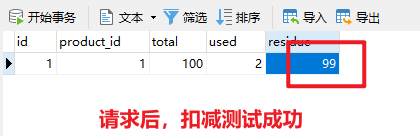

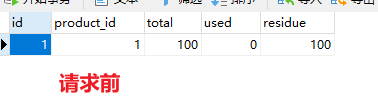

访问 ：[http://localhost:2002/storage/decrease?productId=1&count=1](http://localhost:2002/storage/decrease?productId=1&count=1)

![](https://img-blog.csdnimg.cn/20201224151753614.png)

![](https://img-blog.csdnimg.cn/20201224152031918.png)

![](https://img-blog.csdnimg.cn/20201224152110564.png)

5.3 账户模块

1. 新建模块 ：seata-order-service-2003

2. 修改 POM

   和 2002 模块一样

3. 编写 YML

   和 2002 模块一样，除了端口号和服务名

4. 配置 file.conf 、registry.conf

   和 2002 模块一样

5. 实体类

• CommonResult，和 2002 模块一样

• Account

  @Data
  @AllArgsConstructor
  @NoArgsConstructor
  public class Account {
      private Long id;

      /** 用户id */
      private Long userId;

      /** 总额度 */
      private BigDecimal total;

      /** 已用额度 */
      private BigDecimal used;

      /**  剩余额度 */
      private BigDecimal residue;
  }





6. Mapper : AccountMapper

   @Mapper
   public interface AccountMapper {
       /** 扣减账户余额 */
       int decrease(@Param("userId") Long userId, @Param("money") BigDecimal money);
   }



• AccountMapper.xml


  DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >

  <mapper namespace="com.demo.springcloud.mapper.AccountMapper">

      <resultMap id="BaseResultMap" type="Account">
          <id column="id" property="id" jdbcType="BIGINT"/>
          <result column="user_id" property="userId" jdbcType="BIGINT"/>
          <result column="total" property="total" jdbcType="DECIMAL"/>
          <result column="used" property="used" jdbcType="DECIMAL"/>
          <result column="residue" property="residue" jdbcType="DECIMAL"/>
      resultMap>

      <update id="decrease">
          UPDATE t_account
          SET
            residue = residue - #{money},used = used + #{money}
          WHERE
            user_id = #{userId};
      update>

  mapper>


7. Service 接口及实现类

• AccountService

  @Service
  public interface AccountService {
      /** 扣减账户余额  */
      int decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money);
  }



• AccountServiceImpl

  @Service
  @Slf4j
  public class AccountServiceImpl implements AccountService {
      @Resource
      private AccountMapper accountMapper;

      /** 扣减账户余额 */
      @Override
      public int decrease(Long userId, BigDecimal money) {
          log.info("--->>>> account-service中扣减账户余额开始 <<<< ");
          int decrease = accountMapper.decrease(userId, money);
          log.info("---<<<< account-service中扣减账户余额结束 >>>> ");
          return decrease;
      }
  }



8. Controller ：AccountController

   @RestController
   @Slf4j
   public class AccountController {
       @Resource
       AccountService accountService;

       /** 扣减账户余额 */
       @RequestMapping("/account/decrease")
       public CommonResult decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money){
           int decrease = accountService.decrease(userId, money);
           log.info("------ account-decrease-影响行数 ："+ decrease);
           return new CommonResult(200,"扣减账户余额成功！", decrease);
       }
   }



9. 数据源配置，改用 Seata 的

   和 2002 模块一样

10. 主启动类 ：SeataAccountMainApp2003

```java
@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
@EnableDiscoveryClient
@EnableFeignClients
public class SeataAccountMainApp2003 {
    public static void main(String[] args) {
        SpringApplication.run(SeataAccountMainApp2003.class, args);
    }
}

```

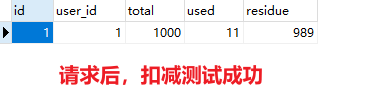

11. 启动测试

访问 ：[http://localhost:2003/account/decrease?userId=1&money=11](http://localhost:2003/account/decrease?userId=1&money=11)
![](https://img-blog.csdnimg.cn/20201224154435637.png)

![](https://img-blog.csdnimg.cn/20201224154451206.png)

![](https://img-blog.csdnimg.cn/20201224154517452.png)

6 . 整合 Seata 测试

• 上面已经把环境都搭建完成了，下面就是整合 Seata 进行测试使用了
• 下面的测试斗志针对 2001 模块的
• 测试之前，最好先把数据恢复，这样等等的效果比较直观

1. 成功执行的测试

   访问 ：http://localhost:2001/order?id=1&userId=1&productId=1&count=22&money=66














2. 模拟异常

• 在 AccountServiceImpl 中加上如下代码

  // 暂停几秒，模拟超时异常
  try { TimeUnit.SECONDS.sleep(20); } catch (InterruptedException e) { e.printStackTrace(); }





• 重启 2003 项目

• 访问 ：http://localhost:2001/order?id=2&userId=1&productId=1&count=22&money=66









• 错误情况：

1. 当库存和账户余额扣减后，订单状态并没有设置为已经完成，没有从零改为1
2. 而且由于 feign 的重试机制，账户余额还有可能被多次扣减，（Account 就出现了重复扣减的情况）

3. 在 2001 中需要进行事务的方法上添加 @GlobalTransactional

   @GlobalTransactional(name = "fps-create-order", rollbackFor = Exception.class)


• 重启 2001 项目再测试

• 访问 ：http://localhost:2001/order?id=3&userId=1&productId=1&count=22&money=66

• 发生了和刚才一样的异常，查看数据库
