WPF仿网易云搭建笔记(0):项目搭建

文章目录

  • 前言
  • 项目地址
  • 项目Nuget包搭建
    • 项目初始化
    • 项目架构
    • App.xaml引入MateralDesign资源包
  • 项目初步分析
    • 将标题栏去掉
    • DockPanel初步布局
  • 资源字典
    • 举例
  • 结尾

前言

最近在找工作,发现没有任何的WPF可以拿的出手的工作经验,打算仿照网易云搭建一个WPF版本的。

项目地址

WPF仿网易云 Gitee仓库

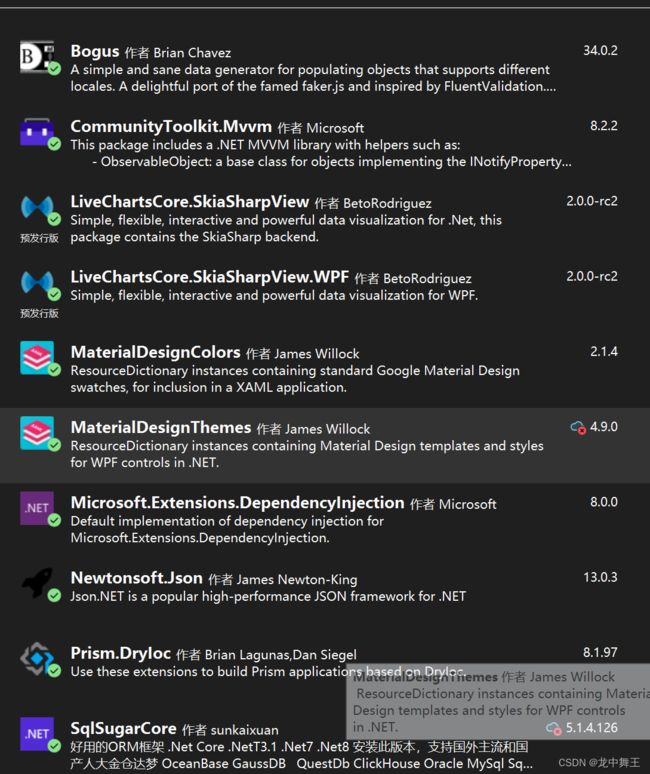

项目Nuget包搭建

不管有没有用,先把Nuget装好

WPF仿网易云搭建笔记(0):项目搭建_第1张图片

项目初始化

我项目初始化用过,我们先简单的项目初始化一下,知识点有点多。我使用的是Prism的BlankApp项目

在这里插入图片描述

WPF 零基础入门笔记(1):WPF静态页面,布局+样式+触发器

WPF 零基础入门笔记(2):控件模板+数据模版

WPF 零基础入门笔记(3):数据绑定详解

WPF Material Design UI框架:部分常用控件简单使用

WPF Live Charts2 自学笔记

.NET SqlSuger 简单介绍,超快开发数据库

WPF Prims框架详解

WPF CommunityToolkit.Mvvm

.NET Core 依赖注入 Microsoft.Extensions.DependencyInjection

项目架构

  • Models:实体类
  • Services:服务类
  • Utils:工具类
  • View:视图
  • ViewModels:视图数据
  • ViewStyles:视图样式
  • App.xaml:项目入口

WPF仿网易云搭建笔记(0):项目搭建_第2张图片

App.xaml引入MateralDesign资源包

<prism:PrismApplication x:Class="BlankApp1.App"
                        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                        xmlns:local="clr-namespace:BlankApp1"
                        xmlns:materialDesign="http://materialdesigninxaml.net/winfx/xaml/themes"
                        xmlns:prism="http://prismlibrary.com/">
    <Application.Resources>
        <ResourceDictionary>

            <ResourceDictionary.MergedDictionaries>
                <materialDesign:BundledTheme BaseTheme="Light"
                                             PrimaryColor="Pink"

                                             SecondaryColor="Lime" />
                <ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Defaults.xaml" />
            ResourceDictionary.MergedDictionaries>
        ResourceDictionary>
    Application.Resources>
prism:PrismApplication>


项目初步分析

这个适合使用DogPanel。

将标题栏去掉

WPF-隐藏窗体标题栏和边框


DockPanel初步布局

<Window x:Class="BlankApp1.Views.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:MD="http://materialdesigninxaml.net/winfx/xaml/themes"
        xmlns:prism="http://prismlibrary.com/"
        prism:ViewModelLocator.AutoWireViewModel="True"
        xmlns:Views="clr-namespace:BlankApp1.Views"
        WindowStyle="None"
        AllowsTransparency="True"
        Title="{Binding Title}"
        Height="600"
        Width="800">
    <Window.Resources>
        <Style x:Key="ContentBorder"
               TargetType="Border">
            "BorderBrush"
                    Value="Black" />
            "BorderThickness"
                    Value="3" />
        Style>
    Window.Resources>
    <DockPanel LastChildFill="True">
        <Border DockPanel.Dock="Bottom"
                Height="70"
                Style="{StaticResource ContentBorder}" />
        <Border DockPanel.Dock="Left"
                Width="100"
                Style="{StaticResource ContentBorder}" />
        <Border DockPanel.Dock="Top"
                Height="60"
                Style="{StaticResource ContentBorder}" />

        <Border Style="{StaticResource ContentBorder}"
                Background="Pink"
                Height="auto" />


    DockPanel>
Window>

WPF仿网易云搭建笔记(0):项目搭建_第3张图片

资源字典

我们写样式的时候,有时候样式写的特别多,这样就需要字典引入。这里不得不吐槽,资源字典是没有代码提示的,必须纯手打


<UserControl.Resources>
    <ResourceDictionary>
        <ResourceDictionary.MergedDictionaries>
            <ResourceDictionary Source="/项目名;component/文件完整路径"/>
        ResourceDictionary.MergedDictionaries>
    ResourceDictionary>
UserControl.Resources>

举例

比如我这个资源文件

WPF仿网易云搭建笔记(0):项目搭建_第4张图片
引入代码

    <UserControl.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary Source="/BlankApp1;component/ViewStyles/TitleStyle.xaml"/>
            ResourceDictionary.MergedDictionaries>
        ResourceDictionary>
    UserControl.Resources>

记得引入了之后要重新生成一下解决方案,WPF需要重新编译才能识别。

结尾

今天不早了,写完这篇博客已经23:30了,明天有空再接着更新。
