文章放置于：https://github.com/zgkaii/CS-Notes-Kz，欢迎批评指正！
一、ElasticSearch相关概念
1. ElasticSearch和MySQL中的概念比较
| ElasticSearch | MySQL |
|---|---|
| Index | Database |
| Type | Table |
| Document | Row |
| Field | Column |
| Mapping | Schema |
| Everything is indexed | Index |
| GET http://… | select * from … |
| POST http://… | update table set … |
2. 倒排索引
Elasticsearch 使用一种称为 倒排索引 的结构，它适用于快速的全文搜索。一个倒排索引由文档中所有不重复词的列表构成，对于其中每个词，有一个包含它的文档列表。
倒排索引原理
二、安装elasticsearch
docker中安装elastic search
（1）下载elastic search和kibana
docker pull elasticsearch:7.6.2
docker pull kibana:7.6.2
（2）配置
mkdir -p /mydata/elasticsearch/config
mkdir -p /mydata/elasticsearch/data
echo "http.host: 0.0.0.0" >/mydata/elasticsearch/config/elasticsearch.yml
chmod -R 777 /mydata/elasticsearch/
（3）启动Elastic search
docker run --name elasticsearch -p 9200:9200 -p 9300:9300 \
-e "discovery.type=single-node" \
-e ES_JAVA_OPTS="-Xms64m -Xmx512m" \
-v /mydata/elasticsearch/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml \
-v /mydata/elasticsearch/data:/usr/share/elasticsearch/data \
-v /mydata/elasticsearch/plugins:/usr/share/elasticsearch/plugins \
-d elasticsearch:7.6.2
设置开机启动elasticsearch
docker update elasticsearch --restart=always
（4）启动kibana：
docker run --name kibana -e ELASTICSEARCH_HOSTS=http://192.168.56.10:9200 -p 5601:5601 -d kibana:7.6.2
设置开机启动kibana
docker update kibana --restart=always
（5）测试
查看elasticsearch版本信息： http://192.168.56.10:9200/
{
"name": "d30f21ec35fc",
"cluster_name": "elasticsearch",
"cluster_uuid": "OidCLBVNSP2su8UiNJl9oA",
"version": {
"number": "7.6.2",
"build_flavor": "default",
"build_type": "docker",
"build_hash": "ef48eb35cf30adf4db14086e8aabd07ef6fb113f",
"build_date": "2020-03-26T06:34:37.794943Z",
"build_snapshot": false,
"lucene_version": "8.4.0",
"minimum_wire_compatibility_version": "6.8.0",
"minimum_index_compatibility_version": "6.0.0-beta1"
},
"tagline": "You Know, for Search"
}
显示elasticsearch 节点信息http://192.168.56.10:9200/_cat/nodes
127.0.0.1 16 86 8 0.00 0.12 0.24 dilm * d30f21ec35fc
访问Kibana： http://192.168.56.10:5601/app/kibana
三、初步检索
1. _CAT
（1） GET/cat/nodes：查看所有节点
如：http://192.168.56.10:9200/_cat/nodes
127.0.0.1 15 88 0 0.06 0.03 0.11 dilm * d30f21ec35fc
注：*表示集群中的主节点
（2）GET/cat/health：查看es健康状况
如： http://192.168.56.10:9200/_cat/health
1599568858 12:40:58 elasticsearch green 1 1 3 3 0 0 0 0 - 100.0%
注：green表示健康值正常
（3）GET /cat/master：查看主节点
如： http://192.168.56.10:9200/_cat/master
QeMO9rMQSj2UjNvuxaNQqg 127.0.0.1 127.0.0.1 d30f21ec35fc
（4）GET/_cat/indices：查看所有索引 ，等价于mysql数据库的show databases;
如： http://192.168.56.10:9200/_cat/indices
green open .kibana_task_manager_1 wldcIEtbT3uQfH_copflYw 1 0 2 1 26.8kb 26.8kb
green open .apm-agent-configuration g5iOaK05QrSSmenBQtqupg 1 0 0 0 283b 283b
green open .kibana_1 2kGHFyKBSCmS8lU1loIqVg 1 0 6 0 22.6kb 22.6kb
2. 索引一个文档
保存一个数据，保存在哪个索引的哪个类型下，指定用那个唯一标识
PUT customer/external/1 在customer索引下的external类型下保存1号数据为
{
"name":"John Doe"
}
PUT和POST都可以
POST新增。如果不指定id，会自动生成id。指定id就会修改这个数据，并新增版本号；
PUT可以新增也可以修改。PUT必须指定id；由于PUT需要指定id，我们一般用来做修改操作，不指定id会报错。
下面是在postman中的测试数据：
创建数据成功后，显示201 created表示插入记录成功。
{
"_index": "customer",
"_type": "external",
"_id": "1",
"_version": 1,
"result": "created",
"_shards": {
"total": 2,
"successful": 1,
"failed": 0
},
"_seq_no": 0,
"_primary_term": 1
}
这些返回的JSON串的含义；这些带有下划线开头的，称为元数据，反映了当前的基本信息。
“_index”: “customer” 表明该数据在哪个数据库下；
“_type”: “external” 表明该数据在哪个类型下；
“_id”: “1” 表明被保存数据的id；
“_version”: 1, 被保存数据的版本
“result”: “created” 这里是创建了一条数据，如果重新put一条数据，则该状态会变为updated，并且版本号也会发生变化。
下面选用POST方式：
添加数据的时候，不指定ID，会自动的生成id，并且类型是新增：
再次使用POST插入数据，仍然是新增的：
添加数据的时候，指定ID，会使用该id，并且类型是新增：
再次使用POST插入数据，类型为updated
3. 查看文档
GET /customer/external/2
http://192.168.56.10:9200/customer/external/1
{
"_index": "customer", //在哪个索引
"_type": "external",//在哪个类型
"_id": "2",//记录id
"_version": 2,//版本号
"_seq_no": 4,//并发控制字段，每次更新都会+1，用来做乐观锁
"_primary_term": 1, //同上，主分片重新分配，如重启，就会变化
"found": true,
"_source": { // 真正内容
"name": "John Doe"
}
}
通过“if_seq_no=1&if_primary_term=1 ”，当序列号匹配的时候，才进行修改，否则不修改。
实例：将id=2的数据更新为name=1，然后再次更新为name=2，起始_seq_no=4，_primary_term=1
（1）将name更新为1
http://192.168.56.10:9200/customer/external/2?if_seq_no=6&if_primary_term=1
（2）将name更新为2，更新过程中使用seq_no=6
http://192.168.56.10:9200/customer/external/2?if_seq_no=6&if_primary_term=1
出现更新错误。
（3）将name更新为2，更新过程中使用seq_no=5
http://192.168.56.10:9200/customer/external/2?if_seq_no=5&if_primary_term=1
更新成功。
4. 更新文档
（1）POST更新文档，带有_update
http://192.168.56.10:9200/customer/external/2/_update
如果再次执行更新，则不执行任何操作，序列号也不发生变化
{
"_index": "customer",
"_type": "external",
"_id": "2",
"_version": 5,
"result": "noop",
"_shards": {
"total": 0,
"successful": 0,
"failed": 0
},
"_seq_no": 8,
"_primary_term": 1
}
POST更新方式，会对比原来的数据，和原来的相同，则不执行任何操作（version和_seq_no）都不变。
（2）POST更新文档，不带_update
{
"_index": "customer",
"_type": "external",
"_id": "2",
"_version": 6,
"result": "updated",
"_shards": {
"total": 2,
"successful": 1,
"failed": 0
},
"_seq_no": 9,
"_primary_term": 1
}
在更新过程中，重复执行更新操作，数据也能够更新成功，不会和原来的数据进行对比。
5. 删除文档或索引
DELETE customer/external/1
DELETE customer
注：elasticsearch并没有提供删除类型的操作，只提供了删除索引和文档的操作。
实例：删除id=1的数据，删除后继续查询
实例：customer
删除前，所有的索引
green open .kibana_task_manager_1 wldcIEtbT3uQfH_copflYw 1 0 2 1 26.8kb 26.8kb
green open .apm-agent-configuration g5iOaK05QrSSmenBQtqupg 1 0 0 0 283b 283b
green open .kibana_1 2kGHFyKBSCmS8lU1loIqVg 1 0 6 0 22.6kb 22.6kb
yellow open customer KjaEuF2-TpaqKWeidOgJUA 1 1 4 1 17.6kb 17.6kb
删除“ customer ”索引
{
"acknowledged": true
}
删除后，所有的索引
green open .kibana_task_manager_1 wldcIEtbT3uQfH_copflYw 1 0 2 1 26.8kb 26.8kb
green open .apm-agent-configuration g5iOaK05QrSSmenBQtqupg 1 0 0 0 283b 283b
green open .kibana_1 2kGHFyKBSCmS8lU1loIqVg 1 0 6 0 22.6kb 22.6kb
6. elasticsearch的批量操作——bulk
语法格式：
{action:{metadata}}\n
{request body }\n
{action:{metadata}}\n
{request body }\n
这里的批量操作，当发生某一条执行发生失败时，其他的数据仍然能够接着执行，也就是说彼此之间是独立的。
bulk api以此按顺序执行所有的action（动作）。如果一个单个的动作因任何原因失败，它将继续处理它后面剩余的动作。当bulk api返回时，它将提供每个动作的状态（与发送的顺序相同），所以您可以检查是否一个指定的动作是否失败了。
实例1: 执行多条数据
POST customer/external/_bulk
{"index":{"_id":"1"}}
{"name":"John Doe"}
{"index":{"_id":"2"}}
{"name":"John Doe"}
执行结果
实例2：对于整个索引执行批量操作
POST /_bulk
{"delete":{"_index":"website","_type":"blog","_id":"123"}}
{"create":{"_index":"website","_type":"blog","_id":"123"}}
{"title":"my first blog post"}
{"index":{"_index":"website","_type":"blog"}}
{"title":"my second blog post"}
{"update":{"_index":"website","_type":"blog","_id":"123"}}
{"doc":{"title":"my updated blog post"}}
运行结果：
{
"took" : 289,
"errors" : false,
"items" : [
{
"delete" : {
"_index" : "website",
"_type" : "blog",
"_id" : "123",
"_version" : 1,
"result" : "not_found",
"_shards" : {
"total" : 2,
"successful" : 1,
"failed" : 0
},
"_seq_no" : 0,
"_primary_term" : 1,
"status" : 404
}
},
{
"create" : {
"_index" : "website",
"_type" : "blog",
"_id" : "123",
"_version" : 2,
"result" : "created",
"_shards" : {
"total" : 2,
"successful" : 1,
"failed" : 0
},
"_seq_no" : 1,
"_primary_term" : 1,
"status" : 201
}
},
{
"index" : {
"_index" : "website",
"_type" : "blog",
"_id" : "thn6bXQBrGHPZfvxjEyh",
"_version" : 1,
"result" : "created",
"_shards" : {
"total" : 2,
"successful" : 1,
"failed" : 0
},
"_seq_no" : 2,
"_primary_term" : 1,
"status" : 201
}
},
{
"update" : {
"_index" : "website",
"_type" : "blog",
"_id" : "123",
"_version" : 3,
"result" : "updated",
"_shards" : {
"total" : 2,
"successful" : 1,
"failed" : 0
},
"_seq_no" : 3,
"_primary_term" : 1,
"status" : 200
}
}
]
}
7. 样本测试数据
准备了一份顾客银行账户信息的虚构的JSON文档样本。每个文档都有下列的schema（模式）。
{
"account_number": 1,
"balance": 39225,
"firstname": "Amber",
"lastname": "Duke",
"age": 32,
"gender": "M",
"address": "880 Holmes Lane",
"employer": "Pyrami",
"email": "[email protected]",
"city": "Brogan",
"state": "IL"
}
https://github.com/elastic/elasticsearch/blob/master/docs/src/test/resources/accounts.json ，导入官方测试数据，
POST bank/account/_bulk
四、进阶检索

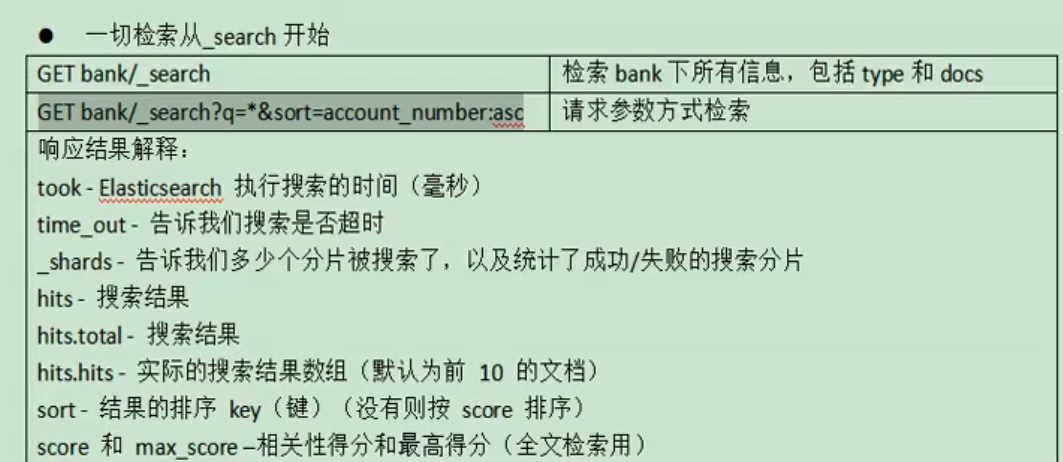

1. search Api
ES支持两种基本方式检索；
- 通过REST request uri 发送搜索参数 （uri +检索参数）；
- 通过REST request body 来发送它们（uri+请求体）；
信息检索

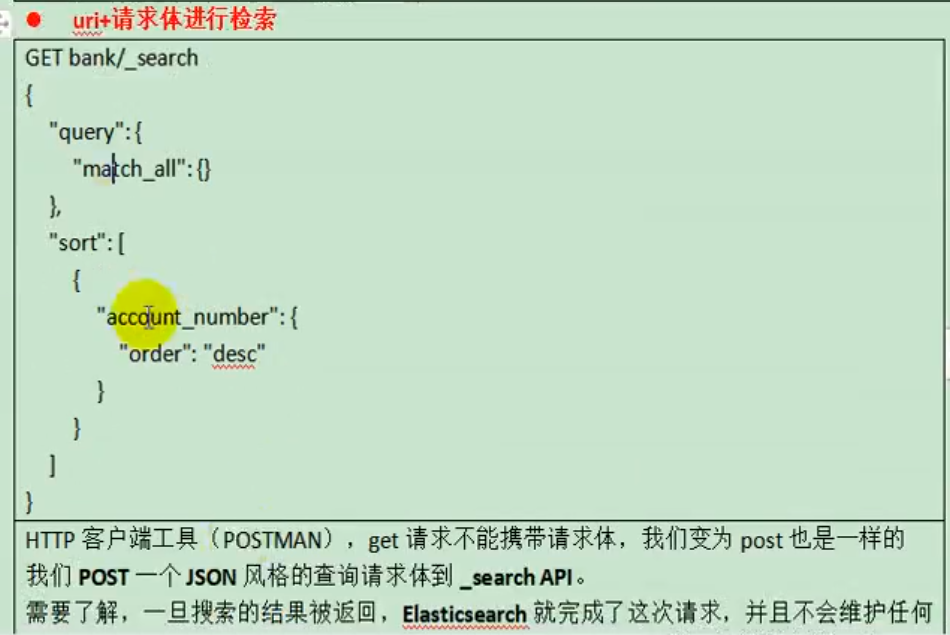

uri+请求体进行检索
GET /bank/_search
{
"query": { "match_all": {} },
"sort": [
{ "account_number": "asc" },
{"balance":"desc"}
]
}

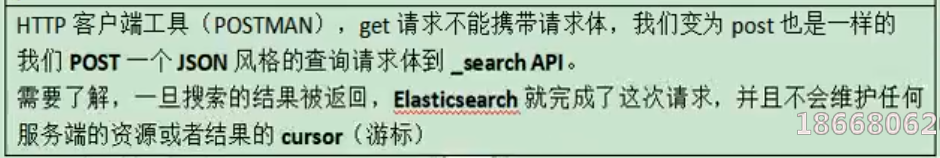

HTTP客户端工具（），get请求不能够携带请求体，
GET bank/_search?q=*&sort=account_number:asc
返回结果：
{
"took" : 46,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1000,
"relation" : "eq"
},
"max_score" : null,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "0",
"_score" : null,
"_source" : {
"account_number" : 0,
"balance" : 16623,
"firstname" : "Bradshaw",
"lastname" : "Mckenzie",
"age" : 29,
"gender" : "F",
"address" : "244 Columbus Place",
"employer" : "Euron",
"email" : "[email protected]",
"city" : "Hobucken",
"state" : "CO"
},
"sort" : [
0
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "1",
"_score" : null,
"_source" : {
"account_number" : 1,
"balance" : 39225,
"firstname" : "Amber",
"lastname" : "Duke",
"age" : 32,
"gender" : "M",
"address" : "880 Holmes Lane",
"employer" : "Pyrami",
"email" : "[email protected]",
"city" : "Brogan",
"state" : "IL"
},
"sort" : [
1
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "2",
"_score" : null,
"_source" : {
"account_number" : 2,
"balance" : 28838,
"firstname" : "Roberta",
"lastname" : "Bender",
"age" : 22,
"gender" : "F",
"address" : "560 Kingsway Place",
"employer" : "Chillium",
"email" : "[email protected]",
"city" : "Bennett",
"state" : "LA"
},
"sort" : [
2
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "3",
"_score" : null,
"_source" : {
"account_number" : 3,
"balance" : 44947,
"firstname" : "Levine",
"lastname" : "Burks",
"age" : 26,
"gender" : "F",
"address" : "328 Wilson Avenue",
"employer" : "Amtap",
"email" : "[email protected]",
"city" : "Cochranville",
"state" : "HI"
},
"sort" : [
3
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "4",
"_score" : null,
"_source" : {
"account_number" : 4,
"balance" : 27658,
"firstname" : "Rodriquez",
"lastname" : "Flores",
"age" : 31,
"gender" : "F",
"address" : "986 Wyckoff Avenue",
"employer" : "Tourmania",
"email" : "[email protected]",
"city" : "Eastvale",
"state" : "HI"
},
"sort" : [
4
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "5",
"_score" : null,
"_source" : {
"account_number" : 5,
"balance" : 29342,
"firstname" : "Leola",
"lastname" : "Stewart",
"age" : 30,
"gender" : "F",
"address" : "311 Elm Place",
"employer" : "Diginetic",
"email" : "[email protected]",
"city" : "Fairview",
"state" : "NJ"
},
"sort" : [
5
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "6",
"_score" : null,
"_source" : {
"account_number" : 6,
"balance" : 5686,
"firstname" : "Hattie",
"lastname" : "Bond",
"age" : 36,
"gender" : "M",
"address" : "671 Bristol Street",
"employer" : "Netagy",
"email" : "[email protected]",
"city" : "Dante",
"state" : "TN"
},
"sort" : [
6
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "7",
"_score" : null,
"_source" : {
"account_number" : 7,
"balance" : 39121,
"firstname" : "Levy",
"lastname" : "Richard",
"age" : 22,
"gender" : "M",
"address" : "820 Logan Street",
"employer" : "Teraprene",
"email" : "[email protected]",
"city" : "Shrewsbury",
"state" : "MO"
},
"sort" : [
7
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "8",
"_score" : null,
"_source" : {
"account_number" : 8,
"balance" : 48868,
"firstname" : "Jan",
"lastname" : "Burns",
"age" : 35,
"gender" : "M",
"address" : "699 Visitation Place",
"employer" : "Glasstep",
"email" : "[email protected]",
"city" : "Wakulla",
"state" : "AZ"
},
"sort" : [
8
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "9",
"_score" : null,
"_source" : {
"account_number" : 9,
"balance" : 24776,
"firstname" : "Opal",
"lastname" : "Meadows",
"age" : 39,
"gender" : "M",
"address" : "963 Neptune Avenue",
"employer" : "Cedward",
"email" : "[email protected]",
"city" : "Olney",
"state" : "OH"
},
"sort" : [
9
]
}
]
}
}
（1）只有6条数据，这是因为存在分页查询；
（2）详细的字段信息，参照： https://www.elastic.co/guide/en/elasticsearch/reference/current/getting-started-search.html
The response also provides the following information about the search request:
took– how long it took Elasticsearch to run the query, in millisecondstimed_out– whether or not the search request timed out_shards– how many shards were searched and a breakdown of how many shards succeeded, failed, or were skipped.max_score– the score of the most relevant document foundhits.total.value- how many matching documents were foundhits.sort- the document’s sort position (when not sorting by relevance score)hits._score- the document’s relevance score (not applicable when usingmatch_all)
2. Query DSL
（1）基本语法格式
Elasticsearch提供了一个可以执行查询的Json风格的DSL。这个被称为Query DSL，该查询语言非常全面。
一个查询语句的典型结构
QUERY_NAME:{
ARGUMENT:VALUE,
ARGUMENT:VALUE,...
}
如果针对于某个字段，那么它的结构如下：
{
QUERY_NAME:{
FIELD_NAME:{
ARGUMENT:VALUE,
ARGUMENT:VALUE,...
}
}
}
GET bank/_search
{
"query": {
"match_all": {}
},
"from": 0,
"size": 5,
"sort": [
{
"account_number": {
"order": "desc"
}
}
]
}
query定义如何查询；
- match_all查询类型【代表查询所有的所有】，es中可以在query中组合非常多的查询类型完成复杂查询；
- 除了query参数之外，我们可也传递其他的参数以改变查询结果，如sort，size；
- from+size限定，完成分页功能；
- sort排序，多字段排序，会在前序字段相等时后续字段内部排序，否则以前序为准；
（2）返回部分字段
GET bank/_search
{
"query": {
"match_all": {}
},
"from": 0,
"size": 5,
"sort": [
{
"account_number": {
"order": "desc"
}
}
],
"_source": ["balance","firstname"]
}
查询结果：
{
"took" : 1,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1000,
"relation" : "eq"
},
"max_score" : null,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "999",
"_score" : null,
"_source" : {
"account_number" : 999,
"balance" : 6087,
"firstname" : "Dorothy",
"lastname" : "Barron",
"age" : 22,
"gender" : "F",
"address" : "499 Laurel Avenue",
"employer" : "Xurban",
"email" : "[email protected]",
"city" : "Belvoir",
"state" : "CA"
},
"sort" : [
999
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "998",
"_score" : null,
"_source" : {
"account_number" : 998,
"balance" : 16869,
"firstname" : "Letha",
"lastname" : "Baker",
"age" : 40,
"gender" : "F",
"address" : "206 Llama Court",
"employer" : "Dognosis",
"email" : "[email protected]",
"city" : "Dunlo",
"state" : "WV"
},
"sort" : [
998
]
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "997",
"_score" : null,
"_source" : {
"account_number" : 997,
"balance" : 25311,
"firstname" : "Combs",
"lastname" : "Frederick",
"age" : 20,
"gender" : "M",
"address" : "586 Lloyd Court",
"employer" : "Pathways",
"email" : "[email protected]",
"city" : "Williamson",
"state" : "CA"
},
"sort" : [
997
]
}
]
}
}
（3）match匹配查询
- 基本类型（非字符串），精确控制
GET bank/_search
{
"query": {
"match": {
"account_number": "20"
}
}
}
match返回account_number=20的数据。
查询结果：
{
"took" : 1,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1,
"relation" : "eq"
},
"max_score" : 1.0,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "20",
"_score" : 1.0,
"_source" : {
"account_number" : 20,
"balance" : 16418,
"firstname" : "Elinor",
"lastname" : "Ratliff",
"age" : 36,
"gender" : "M",
"address" : "282 Kings Place",
"employer" : "Scentric",
"email" : "[email protected]",
"city" : "Ribera",
"state" : "WA"
}
}
]
}
}
- 字符串，全文检索
GET bank/_search
{
"query": {
"match": {
"address": "kings"
}
}
}
全文检索，最终会按照评分进行排序，会对检索条件进行分词匹配。
查询结果：
{
"took" : 10,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 2,
"relation" : "eq"
},
"max_score" : 5.990829,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "20",
"_score" : 5.990829,
"_source" : {
"account_number" : 20,
"balance" : 16418,
"firstname" : "Elinor",
"lastname" : "Ratliff",
"age" : 36,
"gender" : "M",
"address" : "282 Kings Place",
"employer" : "Scentric",
"email" : "[email protected]",
"city" : "Ribera",
"state" : "WA"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "722",
"_score" : 5.990829,
"_source" : {
"account_number" : 722,
"balance" : 27256,
"firstname" : "Roberts",
"lastname" : "Beasley",
"age" : 34,
"gender" : "F",
"address" : "305 Kings Hwy",
"employer" : "Quintity",
"email" : "[email protected]",
"city" : "Hayden",
"state" : "PA"
}
}
]
}
}
（4）match_phrase [短句匹配]
将需要匹配的值当成一整个单词（不分词）进行检索
GET bank/_search
{
"query": {
"match_phrase": {
"address": "mill road"
}
}
}
查处address中包含mill_road的所有记录，并给出相关性得分
查看结果：
{
"took" : 1,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1,
"relation" : "eq"
},
"max_score" : 8.926605,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "970",
"_score" : 8.926605,
"_source" : {
"account_number" : 970,
"balance" : 19648,
"firstname" : "Forbes",
"lastname" : "Wallace",
"age" : 28,
"gender" : "M",
"address" : "990 Mill Road",
"employer" : "Pheast",
"email" : "[email protected]",
"city" : "Lopezo",
"state" : "AK"
}
}
]
}
}
match_phrase和Match的区别，观察如下实例：
GET bank/_search
{
"query": {
"match_phrase": {
"address": "990 Mill"
}
}
}
查询结果：
{
"took" : 0,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1,
"relation" : "eq"
},
"max_score" : 10.806405,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "970",
"_score" : 10.806405,
"_source" : {
"account_number" : 970,
"balance" : 19648,
"firstname" : "Forbes",
"lastname" : "Wallace",
"age" : 28,
"gender" : "M",
"address" : "990 Mill Road",
"employer" : "Pheast",
"email" : "[email protected]",
"city" : "Lopezo",
"state" : "AK"
}
}
]
}
}
使用match的keyword
GET bank/_search
{
"query": {
"match": {
"address.keyword": "990 Mill"
}
}
}
查询结果，一条也未匹配到
{
"took" : 0,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 0,
"relation" : "eq"
},
"max_score" : null,
"hits" : [ ]
}
}
修改匹配条件为“990 Mill Road”
GET bank/_search
{
"query": {
"match": {
"address.keyword": "990 Mill Road"
}
}
}
查询出一条数据
{
"took" : 1,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1,
"relation" : "eq"
},
"max_score" : 6.5032897,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "970",
"_score" : 6.5032897,
"_source" : {
"account_number" : 970,
"balance" : 19648,
"firstname" : "Forbes",
"lastname" : "Wallace",
"age" : 28,
"gender" : "M",
"address" : "990 Mill Road",
"employer" : "Pheast",
"email" : "[email protected]",
"city" : "Lopezo",
"state" : "AK"
}
}
]
}
}
文本字段的匹配，使用keyword，匹配的条件就是要显示字段的全部值，要进行精确匹配的。
match_phrase是做短语匹配，只要文本中包含匹配条件，就能匹配到。
（5）multi_math【多字段匹配】
GET bank/_search
{
"query": {
"multi_match": {
"query": "mill",
"fields": [
"state",
"address"
]
}
}
}
state或者address中包含mill，并且在查询过程中，会对于查询条件进行分词。
查询结果：
{
"took" : 1,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 4,
"relation" : "eq"
},
"max_score" : 5.4032025,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "970",
"_score" : 5.4032025,
"_source" : {
"account_number" : 970,
"balance" : 19648,
"firstname" : "Forbes",
"lastname" : "Wallace",
"age" : 28,
"gender" : "M",
"address" : "990 Mill Road",
"employer" : "Pheast",
"email" : "[email protected]",
"city" : "Lopezo",
"state" : "AK"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "136",
"_score" : 5.4032025,
"_source" : {
"account_number" : 136,
"balance" : 45801,
"firstname" : "Winnie",
"lastname" : "Holland",
"age" : 38,
"gender" : "M",
"address" : "198 Mill Lane",
"employer" : "Neteria",
"email" : "[email protected]",
"city" : "Urie",
"state" : "IL"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "345",
"_score" : 5.4032025,
"_source" : {
"account_number" : 345,
"balance" : 9812,
"firstname" : "Parker",
"lastname" : "Hines",
"age" : 38,
"gender" : "M",
"address" : "715 Mill Avenue",
"employer" : "Baluba",
"email" : "[email protected]",
"city" : "Blackgum",
"state" : "KY"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "472",
"_score" : 5.4032025,
"_source" : {
"account_number" : 472,
"balance" : 25571,
"firstname" : "Lee",
"lastname" : "Long",
"age" : 32,
"gender" : "F",
"address" : "288 Mill Street",
"employer" : "Comverges",
"email" : "[email protected]",
"city" : "Movico",
"state" : "MT"
}
}
]
}
}
（6）bool用来做复合查询
复合语句可以合并，任何其他查询语句，包括符合语句。这也就意味着，复合语句之间,
可以互相嵌套，可以表达非常复杂的逻辑。
must：必须达到must所列举的所有条件
GET bank/_search
{
"query":{
"bool":{
"must":[
{"match":{"address":"mill"}},
{"match":{"gender":"M"}}
]
}
}
}
must_not，必须不匹配must_not所列举的所有条件。
should，应该满足should所列举的条件。
实例：查询gender=m，并且address=mill的数据
GET bank/_search
{
"query": {
"bool": {
"must": [
{
"match": {
"gender": "M"
}
},
{
"match": {
"address": "mill"
}
}
]
}
}
}
查询结果：
{
"took" : 1,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 3,
"relation" : "eq"
},
"max_score" : 6.0824604,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "970",
"_score" : 6.0824604,
"_source" : {
"account_number" : 970,
"balance" : 19648,
"firstname" : "Forbes",
"lastname" : "Wallace",
"age" : 28,
"gender" : "M",
"address" : "990 Mill Road",
"employer" : "Pheast",
"email" : "[email protected]",
"city" : "Lopezo",
"state" : "AK"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "136",
"_score" : 6.0824604,
"_source" : {
"account_number" : 136,
"balance" : 45801,
"firstname" : "Winnie",
"lastname" : "Holland",
"age" : 38,
"gender" : "M",
"address" : "198 Mill Lane",
"employer" : "Neteria",
"email" : "[email protected]",
"city" : "Urie",
"state" : "IL"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "345",
"_score" : 6.0824604,
"_source" : {
"account_number" : 345,
"balance" : 9812,
"firstname" : "Parker",
"lastname" : "Hines",
"age" : 38,
"gender" : "M",
"address" : "715 Mill Avenue",
"employer" : "Baluba",
"email" : "[email protected]",
"city" : "Blackgum",
"state" : "KY"
}
}
]
}
}
must_not：必须不是指定的情况
实例：查询gender=m，并且address=mill的数据，但是age不等于38的
GET bank/_search
{
"query": {
"bool": {
"must": [
{
"match": {
"gender": "M"
}
},
{
"match": {
"address": "mill"
}
}
],
"must_not": [
{
"match": {
"age": "38"
}
}
]
}
}
查询结果：
{
"took" : 2,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1,
"relation" : "eq"
},
"max_score" : 6.0824604,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "970",
"_score" : 6.0824604,
"_source" : {
"account_number" : 970,
"balance" : 19648,
"firstname" : "Forbes",
"lastname" : "Wallace",
"age" : 28,
"gender" : "M",
"address" : "990 Mill Road",
"employer" : "Pheast",
"email" : "[email protected]",
"city" : "Lopezo",
"state" : "AK"
}
}
]
}
}
should：应该达到should列举的条件，如果到达会增加相关文档的评分，并不会改变查询的结果。如果query中只有should且只有一种匹配规则，那么should的条件就会被作为默认匹配条件二区改变查询结果。
实例：匹配lastName应该等于Wallace的数据
GET bank/_search
{
"query": {
"bool": {
"must": [
{
"match": {
"gender": "M"
}
},
{
"match": {
"address": "mill"
}
}
],
"must_not": [
{
"match": {
"age": "18"
}
}
],
"should": [
{
"match": {
"lastname": "Wallace"
}
}
]
}
}
}
查询结果：
{
"took" : 3,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 3,
"relation" : "eq"
},
"max_score" : 12.585751,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "970",
"_score" : 12.585751,
"_source" : {
"account_number" : 970,
"balance" : 19648,
"firstname" : "Forbes",
"lastname" : "Wallace",
"age" : 28,
"gender" : "M",
"address" : "990 Mill Road",
"employer" : "Pheast",
"email" : "[email protected]",
"city" : "Lopezo",
"state" : "AK"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "136",
"_score" : 6.0824604,
"_source" : {
"account_number" : 136,
"balance" : 45801,
"firstname" : "Winnie",
"lastname" : "Holland",
"age" : 38,
"gender" : "M",
"address" : "198 Mill Lane",
"employer" : "Neteria",
"email" : "[email protected]",
"city" : "Urie",
"state" : "IL"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "345",
"_score" : 6.0824604,
"_source" : {
"account_number" : 345,
"balance" : 9812,
"firstname" : "Parker",
"lastname" : "Hines",
"age" : 38,
"gender" : "M",
"address" : "715 Mill Avenue",
"employer" : "Baluba",
"email" : "[email protected]",
"city" : "Blackgum",
"state" : "KY"
}
}
]
}
}
能够看到相关度越高，得分也越高。
（7）Filter【结果过滤】
并不是所有的查询都需要产生分数，特别是哪些仅用于filtering过滤的文档。为了不计算分数，elasticsearch会自动检查场景并且优化查询的执行。
GET bank/_search
{
"query": {
"bool": {
"must": [
{
"match": {
"address": "mill"
}
}
],
"filter": {
"range": {
"balance": {
"gte": "10000",
"lte": "20000"
}
}
}
}
}
}
这里先是查询所有匹配address=mill的文档，然后再根据10000<=balance<=20000进行过滤查询结果
查询结果：
{
"took" : 0,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1,
"relation" : "eq"
},
"max_score" : 5.4032025,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "970",
"_score" : 5.4032025,
"_source" : {
"account_number" : 970,
"balance" : 19648,
"firstname" : "Forbes",
"lastname" : "Wallace",
"age" : 28,
"gender" : "M",
"address" : "990 Mill Road",
"employer" : "Pheast",
"email" : "[email protected]",
"city" : "Lopezo",
"state" : "AK"
}
}
]
}
}
在boolean查询中，must, should 和must_not 元素都被称为查询子句 。 文档是否符合每个“must”或“should”子句中的标准，决定了文档的“相关性得分”。 得分越高，文档越符合您的搜索条件。 默认情况下，Elasticsearch返回根据这些相关性得分排序的文档。
“must_not”子句中的条件被视为“过滤器”。 它影响文档是否包含在结果中，但不影响文档的评分方式。 还可以显式地指定任意过滤器来包含或排除基于结构化数据的文档。
filter在使用过程中，并不会计算相关性得分：
GET bank/_search
{
"query": {
"bool": {
"must": [
{
"match": {
"address": "mill"
}
}
],
"filter": {
"range": {
"balance": {
"gte": "10000",
"lte": "20000"
}
}
}
}
}
}
查询结果：
{
"took" : 1,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 213,
"relation" : "eq"
},
"max_score" : 0.0,
"hits" : [
{
"_index" : "bank",
"_type" : "account",
"_id" : "20",
"_score" : 0.0,
"_source" : {
"account_number" : 20,
"balance" : 16418,
"firstname" : "Elinor",
"lastname" : "Ratliff",
"age" : 36,
"gender" : "M",
"address" : "282 Kings Place",
"employer" : "Scentric",
"email" : "[email protected]",
"city" : "Ribera",
"state" : "WA"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "37",
"_score" : 0.0,
"_source" : {
"account_number" : 37,
"balance" : 18612,
"firstname" : "Mcgee",
"lastname" : "Mooney",
"age" : 39,
"gender" : "M",
"address" : "826 Fillmore Place",
"employer" : "Reversus",
"email" : "[email protected]",
"city" : "Tooleville",
"state" : "OK"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "51",
"_score" : 0.0,
"_source" : {
"account_number" : 51,
"balance" : 14097,
"firstname" : "Burton",
"lastname" : "Meyers",
"age" : 31,
"gender" : "F",
"address" : "334 River Street",
"employer" : "Bezal",
"email" : "[email protected]",
"city" : "Jacksonburg",
"state" : "MO"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "56",
"_score" : 0.0,
"_source" : {
"account_number" : 56,
"balance" : 14992,
"firstname" : "Josie",
"lastname" : "Nelson",
"age" : 32,
"gender" : "M",
"address" : "857 Tabor Court",
"employer" : "Emtrac",
"email" : "[email protected]",
"city" : "Sunnyside",
"state" : "UT"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "121",
"_score" : 0.0,
"_source" : {
"account_number" : 121,
"balance" : 19594,
"firstname" : "Acevedo",
"lastname" : "Dorsey",
"age" : 32,
"gender" : "M",
"address" : "479 Nova Court",
"employer" : "Netropic",
"email" : "[email protected]",
"city" : "Islandia",
"state" : "CT"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "176",
"_score" : 0.0,
"_source" : {
"account_number" : 176,
"balance" : 18607,
"firstname" : "Kemp",
"lastname" : "Walters",
"age" : 28,
"gender" : "F",
"address" : "906 Howard Avenue",
"employer" : "Eyewax",
"email" : "[email protected]",
"city" : "Why",
"state" : "KY"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "183",
"_score" : 0.0,
"_source" : {
"account_number" : 183,
"balance" : 14223,
"firstname" : "Hudson",
"lastname" : "English",
"age" : 26,
"gender" : "F",
"address" : "823 Herkimer Place",
"employer" : "Xinware",
"email" : "[email protected]",
"city" : "Robbins",
"state" : "ND"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "222",
"_score" : 0.0,
"_source" : {
"account_number" : 222,
"balance" : 14764,
"firstname" : "Rachelle",
"lastname" : "Rice",
"age" : 36,
"gender" : "M",
"address" : "333 Narrows Avenue",
"employer" : "Enaut",
"email" : "[email protected]",
"city" : "Wright",
"state" : "AZ"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "227",
"_score" : 0.0,
"_source" : {
"account_number" : 227,
"balance" : 19780,
"firstname" : "Coleman",
"lastname" : "Berg",
"age" : 22,
"gender" : "M",
"address" : "776 Little Street",
"employer" : "Exoteric",
"email" : "[email protected]",
"city" : "Eagleville",
"state" : "WV"
}
},
{
"_index" : "bank",
"_type" : "account",
"_id" : "272",
"_score" : 0.0,
"_source" : {
"account_number" : 272,
"balance" : 19253,
"firstname" : "Lilly",
"lastname" : "Morgan",
"age" : 25,
"gender" : "F",
"address" : "689 Fleet Street",
"employer" : "Biolive",
"email" : "[email protected]",
"city" : "Sunbury",
"state" : "OH"
}
}
]
}
}
能看到所有文档的 “_score” : 0.0。
（8）term
和match一样。匹配某个属性的值。全文检索字段用match，其他非text字段匹配用term。
避免对文本字段使用“term”查询
默认情况下，Elasticsearch作为analysis的一部分更改’ text '字段的值。这使得为“text”字段值寻找精确匹配变得困难。
要搜索“text”字段值，请使用匹配。
https://www.elastic.co/guide/en/elasticsearch/reference/7.6/query-dsl-term-query.html
使用term匹配查询
GET bank/_search
{
"query": {
"term": {
"address": "mill Road"
}
}
}
查询结果：
{
"took" : 0,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 0,
"relation" : "eq"
},
"max_score" : null,
"hits" : [ ]
}
}
一条也没有匹配到

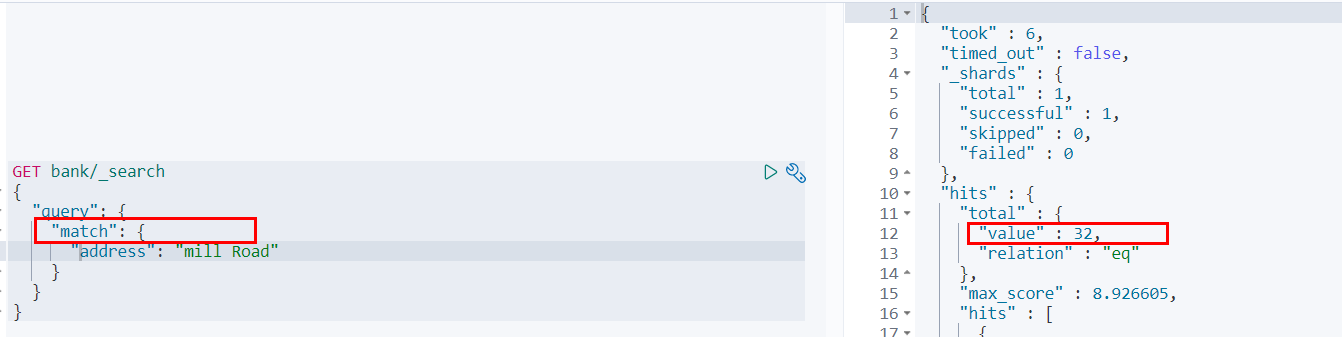

而更换为match匹配时，能够匹配到32个文档
也就是说，全文检索字段用match，其他非text字段匹配用term。
（9）Aggregation（执行聚合）
聚合提供了从数据中分组和提取数据的能力。最简单的聚合方法大致等于SQL Group by和SQL聚合函数。在elasticsearch中，执行搜索返回this（命中结果），并且同时返回聚合结果，把以响应中的所有hits（命中结果）分隔开的能力。这是非常强大且有效的，你可以执行查询和多个聚合，并且在一次使用中得到各自的（任何一个的）返回结果，使用一次简洁和简化的API啦避免网络往返。
“size”:0
size:0不显示搜索数据
aggs：执行聚合。聚合语法如下：
"aggs":{
"aggs_name这次聚合的名字，方便展示在结果集中":{
"AGG_TYPE聚合的类型(avg,term,terms)":{}
}
}，
搜索address中包含mill的所有人的年龄分布以及平均年龄，但不显示这些人的详情
GET bank/_search
{
"query": {
"match": {
"address": "Mill"
}
},
"aggs": {
"ageAgg": {
"terms": {
"field": "age",
"size": 10
}
},
"ageAvg": {
"avg": {
"field": "age"
}
},
"balanceAvg": {
"avg": {
"field": "balance"
}
}
},
"size": 0
}
查询结果：
{
"took" : 2,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 4,
"relation" : "eq"
},
"max_score" : null,
"hits" : [ ]
},
"aggregations" : {
"ageAgg" : {
"doc_count_error_upper_bound" : 0,
"sum_other_doc_count" : 0,
"buckets" : [
{
"key" : 38,
"doc_count" : 2
},
{
"key" : 28,
"doc_count" : 1
},
{
"key" : 32,
"doc_count" : 1
}
]
},
"ageAvg" : {
"value" : 34.0
},
"balanceAvg" : {
"value" : 25208.0
}
}
}
复杂：
按照年龄聚合，并且求这些年龄段的这些人的平均薪资
GET bank/_search
{
"query": {
"match_all": {}
},
"aggs": {
"ageAgg": {
"terms": {
"field": "age",
"size": 100
},
"aggs": {
"ageAvg": {
"avg": {
"field": "balance"
}
}
}
}
},
"size": 0
}
输出结果：
{
"took" : 49,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1000,
"relation" : "eq"
},
"max_score" : null,
"hits" : [ ]
},
"aggregations" : {
"ageAgg" : {
"doc_count_error_upper_bound" : 0,
"sum_other_doc_count" : 0,
"buckets" : [
{
"key" : 31,
"doc_count" : 61,
"ageAvg" : {
"value" : 28312.918032786885
}
},
{
"key" : 39,
"doc_count" : 60,
"ageAvg" : {
"value" : 25269.583333333332
}
},
{
"key" : 26,
"doc_count" : 59,
"ageAvg" : {
"value" : 23194.813559322032
}
},
{
"key" : 32,
"doc_count" : 52,
"ageAvg" : {
"value" : 23951.346153846152
}
},
{
"key" : 35,
"doc_count" : 52,
"ageAvg" : {
"value" : 22136.69230769231
}
},
{
"key" : 36,
"doc_count" : 52,
"ageAvg" : {
"value" : 22174.71153846154
}
},
{
"key" : 22,
"doc_count" : 51,
"ageAvg" : {
"value" : 24731.07843137255
}
},
{
"key" : 28,
"doc_count" : 51,
"ageAvg" : {
"value" : 28273.882352941175
}
},
{
"key" : 33,
"doc_count" : 50,
"ageAvg" : {
"value" : 25093.94
}
},
{
"key" : 34,
"doc_count" : 49,
"ageAvg" : {
"value" : 26809.95918367347
}
},
{
"key" : 30,
"doc_count" : 47,
"ageAvg" : {
"value" : 22841.106382978724
}
},
{
"key" : 21,
"doc_count" : 46,
"ageAvg" : {
"value" : 26981.434782608696
}
},
{
"key" : 40,
"doc_count" : 45,
"ageAvg" : {
"value" : 27183.17777777778
}
},
{
"key" : 20,
"doc_count" : 44,
"ageAvg" : {
"value" : 27741.227272727272
}
},
{
"key" : 23,
"doc_count" : 42,
"ageAvg" : {
"value" : 27314.214285714286
}
},
{
"key" : 24,
"doc_count" : 42,
"ageAvg" : {
"value" : 28519.04761904762
}
},
{
"key" : 25,
"doc_count" : 42,
"ageAvg" : {
"value" : 27445.214285714286
}
},
{
"key" : 37,
"doc_count" : 42,
"ageAvg" : {
"value" : 27022.261904761905
}
},
{
"key" : 27,
"doc_count" : 39,
"ageAvg" : {
"value" : 21471.871794871793
}
},
{
"key" : 38,
"doc_count" : 39,
"ageAvg" : {
"value" : 26187.17948717949
}
},
{
"key" : 29,
"doc_count" : 35,
"ageAvg" : {
"value" : 29483.14285714286
}
}
]
}
}
}
查出所有年龄分布，并且这些年龄段中M的平均薪资和F的平均薪资以及这个年龄段的总体平均薪资
GET bank/_search
{
"query": {
"match_all": {}
},
"aggs": {
"ageAgg": {
"terms": {
"field": "age",
"size": 100
},
"aggs": {
"genderAgg": {
"terms": {
"field": "gender.keyword"
},
"aggs": {
"balanceAvg": {
"avg": {
"field": "balance"
}
}
}
},
"ageBalanceAvg": {
"avg": {
"field": "balance"
}
}
}
}
},
"size": 0
}
输出结果：
{
"took" : 2,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1000,
"relation" : "eq"
},
"max_score" : null,
"hits" : [ ]
},
"aggregations" : {
"ageAgg" : {
"doc_count_error_upper_bound" : 0,
"sum_other_doc_count" : 0,
"buckets" : [
{
"key" : 31,
"doc_count" : 61,
"genderAgg" : {
"doc_count_error_upper_bound" : 0,
"sum_other_doc_count" : 0,
"buckets" : [
{
"key" : "M",
"doc_count" : 35,
"balanceAvg" : {
"value" : 29565.628571428573
}
},
{
"key" : "F",
"doc_count" : 26,
"balanceAvg" : {
"value" : 26626.576923076922
}
}
]
},
"ageBalanceAvg" : {
"value" : 28312.918032786885
}
}
]
.......//省略其他
}
}
}
3.Mapping映射

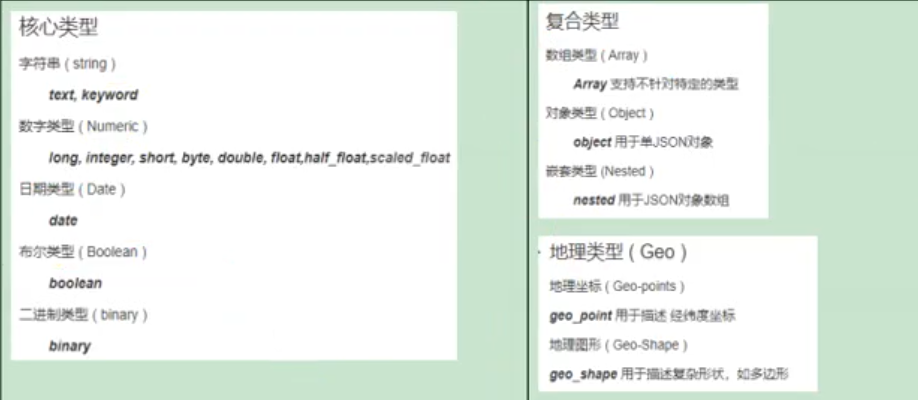

（1）字段类型

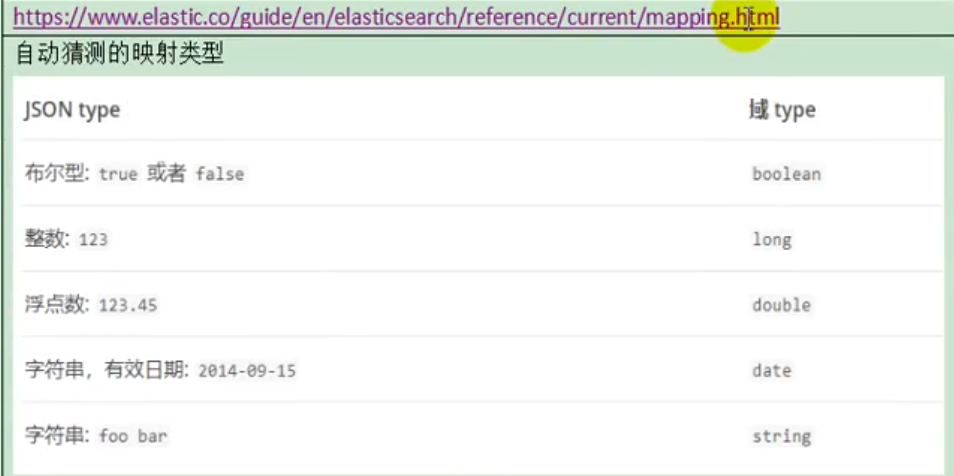

（2）映射
Mapping(映射)
Mapping是用来定义一个文档（document），以及它所包含的属性（field）是如何存储和索引的。比如：使用maping来定义：
- 哪些字符串属性应该被看做全文本属性（full text fields）；
- 哪些属性包含数字，日期或地理位置；
- 文档中的所有属性是否都嫩被索引（all 配置）；
- 日期的格式；
- 自定义映射规则来执行动态添加属性；
- 查看mapping信息
GET bank/_mapping
{
"bank" : {
"mappings" : {
"properties" : {
"account_number" : {
"type" : "long"
},
"address" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"age" : {
"type" : "long"
},
"balance" : {
"type" : "long"
},
"city" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"email" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"employer" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"firstname" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"gender" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"lastname" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"state" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
}
}
}
- 修改mapping信息
（3）新版本改变
ElasticSearch7-去掉type概念
- 关系型数据库中两个数据表示是独立的，即使他们里面有相同名称的列也不影响使用，但ES中不是这样的。elasticsearch是基于Lucene开发的搜索引擎，而ES中不同type下名称相同的filed最终在Lucene中的处理方式是一样的。
- 两个不同type下的两个user_name，在ES同一个索引下其实被认为是同一个filed，你必须在两个不同的type中定义相同的filed映射。否则，不同type中的相同字段名称就会在处理中出现冲突的情况，导致Lucene处理效率下降。
- 去掉type就是为了提高ES处理数据的效率。
- Elasticsearch 7.x URL中的type参数为可选。比如，索引一个文档不再要求提供文档类型。
- Elasticsearch 8.x 不再支持URL中的type参数。
- 解决：
将索引从多类型迁移到单类型，每种类型文档一个独立索引
将已存在的索引下的类型数据，全部迁移到指定位置即可。详见数据迁移
Elasticsearch 7.x
- Specifying types in requests is deprecated. For instance, indexing a document no longer requires a document
type. The new index APIs arePUT {index}/_doc/{id}in case of explicit ids andPOST {index}/_docfor auto-generated ids. Note that in 7.0,_docis a permanent part of the path, and represents the endpoint name rather than the document type.- The
include_type_nameparameter in the index creation, index template, and mapping APIs will default tofalse. Setting the parameter at all will result in a deprecation warning.- The
_default_mapping type is removed.
Elasticsearch 8.x
- Specifying types in requests is no longer supported.
- The
include_type_nameparameter is removed.
（4）创建映射
创建索引并指定映射
PUT /my_index
{
"mappings": {
"properties": {
"age": {
"type": "integer"
},
"email": {
"type": "keyword"
},
"name": {
"type": "text"
}
}
}
}
输出：
{
"acknowledged" : true,
"shards_acknowledged" : true,
"index" : "my_index"
}
（5）查看映射
GET /my_index
输出结果：
{
"my_index" : {
"aliases" : { },
"mappings" : {
"properties" : {
"age" : {
"type" : "integer"
},
"email" : {
"type" : "keyword"
},
"employee-id" : {
"type" : "keyword",
"index" : false
},
"name" : {
"type" : "text"
}
}
},
"settings" : {
"index" : {
"creation_date" : "1588410780774",
"number_of_shards" : "1",
"number_of_replicas" : "1",
"uuid" : "ua0lXhtkQCOmn7Kh3iUu0w",
"version" : {
"created" : "7060299"
},
"provided_name" : "my_index"
}
}
}
}
（6）添加新的字段映射
PUT /my_index/_mapping
{
"properties": {
"employee-id": {
"type": "keyword",
"index": false
}
}
}
这里的 “index”: false，表明新增的字段不能被检索，只是一个冗余字段。
（7）更新映射
对于已经存在的字段映射，我们不能更新。更新必须创建新的索引，进行数据迁移。
数据迁移
先创建new_twitter的正确映射。然后使用如下方式进行数据迁移。
POST reindex [固定写法]
{
"source":{
"index":"twitter"
},
"dest":{
"index":"new_twitters"
}
}
将旧索引的type下的数据进行迁移
POST reindex [固定写法]
{
"source":{
"index":"twitter",
"twitter":"twitter"
},
"dest":{
"index":"new_twitters"
}
}
更多详情见： https://www.elastic.co/guide/en/elasticsearch/reference/7.6/docs-reindex.html
GET /bank/_search
{
"took" : 0,
"timed_out" : false,
"_shards" : {
"total" : 1,
"successful" : 1,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : {
"value" : 1000,
"relation" : "eq"
},
"max_score" : 1.0,
"hits" : [
{
"_index" : "bank",
"_type" : "account",//类型为account
"_id" : "1",
"_score" : 1.0,
"_source" : {
"account_number" : 1,
"balance" : 39225,
"firstname" : "Amber",
"lastname" : "Duke",
"age" : 32,
"gender" : "M",
"address" : "880 Holmes Lane",
"employer" : "Pyrami",
"email" : "[email protected]",
"city" : "Brogan",
"state" : "IL"
}
},
...

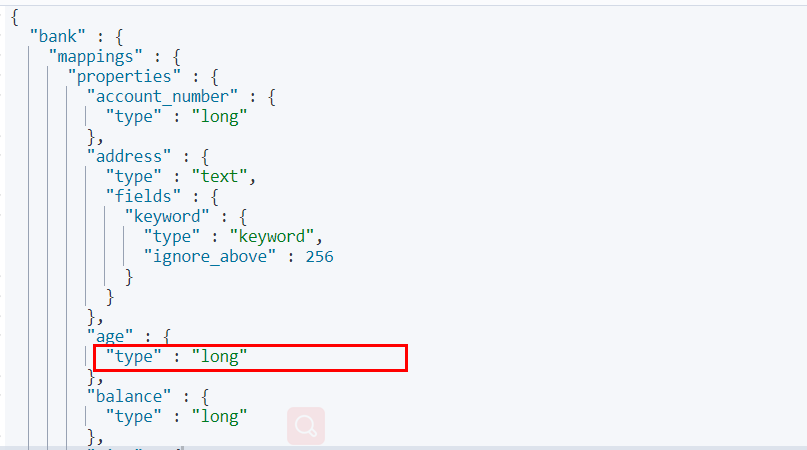

GET /bank/_search
想要将年龄修改为integer
PUT /newbank
{
"mappings": {
"properties": {
"account_number": {
"type": "long"
},
"address": {
"type": "text"
},
"age": {
"type": "integer"
},
"balance": {
"type": "long"
},
"city": {
"type": "keyword"
},
"email": {
"type": "keyword"
},
"employer": {
"type": "keyword"
},
"firstname": {
"type": "text"
},
"gender": {
"type": "keyword"
},
"lastname": {
"type": "text",
"fields": {
"keyword": {
"type": "keyword",
"ignore_above": 256
}
}
},
"state": {
"type": "keyword"
}
}
}
}

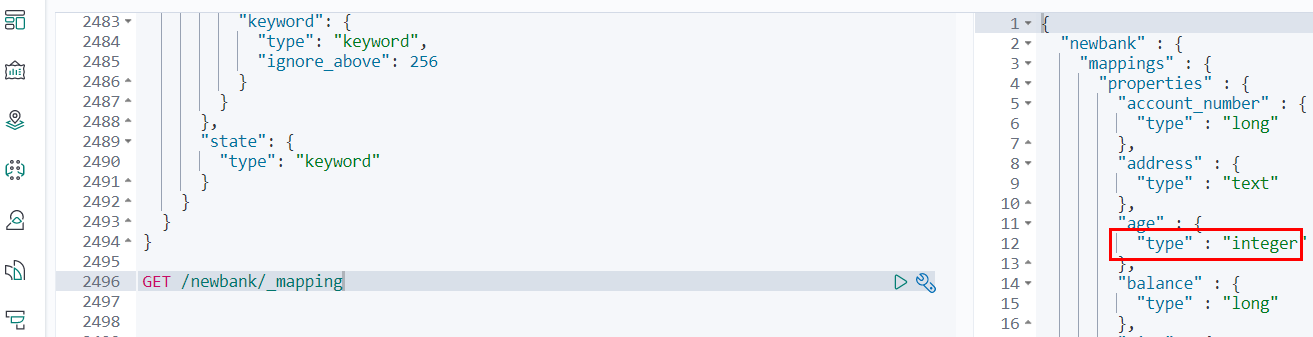

查看“newbank”的映射：
GET /newbank/_mapping
能够看到age的映射类型被修改为了integer.
将bank中的数据迁移到newbank中
POST _reindex
{
"source": {
"index": "bank",
"type": "account"
},
"dest": {
"index": "newbank"
}
}
运行输出：
#! Deprecation: [types removal] Specifying types in reindex requests is deprecated.
{
"took" : 279,
"timed_out" : false,
"total" : 1000,
"updated" : 0,
"created" : 1000,
"deleted" : 0,
"batches" : 1,
"version_conflicts" : 0,
"noops" : 0,
"retries" : {
"bulk" : 0,
"search" : 0
},
"throttled_millis" : 0,
"requests_per_second" : -1.0,
"throttled_until_millis" : 0,
"failures" : [ ]
}

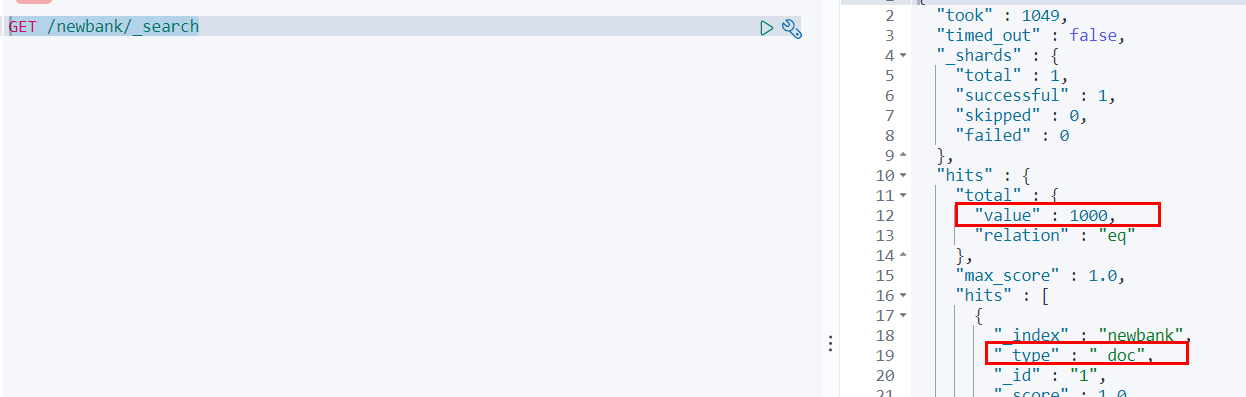

查看newbank中的数据
4. 分词
一个tokenizer（分词器）接收一个字符流，将之分割为独立的tokens（词元，通常是独立的单词），然后输出tokens流。
例如：whitespace tokenizer遇到空白字符时分割文本。它会将文本“Quick brown fox!”分割为[Quick,brown,fox!]。
该tokenizer（分词器）还负责记录各个terms(词条)的顺序或position位置（用于phrase短语和word proximity词近邻查询），以及term（词条）所代表的原始word（单词）的start（起始）和end（结束）的character offsets（字符串偏移量）（用于高亮显示搜索的内容）。
elasticsearch提供了很多内置的分词器，可以用来构建custom analyzers（自定义分词器）。

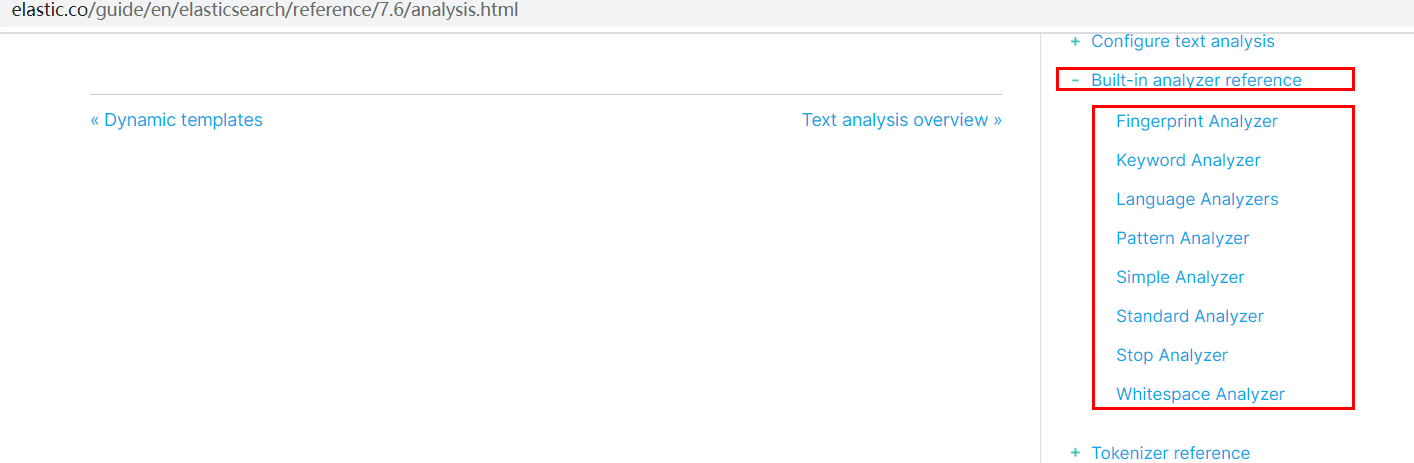

关于分词器： https://www.elastic.co/guide/en/elasticsearch/reference/7.6/analysis.html
POST _analyze
{
"analyzer": "standard",
"text": "The 2 QUICK Brown-Foxes jumped over the lazy dog's bone."
}
执行结果：
{
"tokens" : [
{
"token" : "the",
"start_offset" : 0,
"end_offset" : 3,
"type" : "" ,
"position" : 0
},
{
"token" : "2",
"start_offset" : 4,
"end_offset" : 5,
"type" : "" ,
"position" : 1
},
{
"token" : "quick",
"start_offset" : 6,
"end_offset" : 11,
"type" : "" ,
"position" : 2
},
{
"token" : "brown",
"start_offset" : 12,
"end_offset" : 17,
"type" : "" ,
"position" : 3
},
{
"token" : "foxes",
"start_offset" : 18,
"end_offset" : 23,
"type" : "" ,
"position" : 4
},
{
"token" : "jumped",
"start_offset" : 24,
"end_offset" : 30,
"type" : "" ,
"position" : 5
},
{
"token" : "over",
"start_offset" : 31,
"end_offset" : 35,
"type" : "" ,
"position" : 6
},
{
"token" : "the",
"start_offset" : 36,
"end_offset" : 39,
"type" : "" ,
"position" : 7
},
{
"token" : "lazy",
"start_offset" : 40,
"end_offset" : 44,
"type" : "" ,
"position" : 8
},
{
"token" : "dog's",
"start_offset" : 45,
"end_offset" : 50,
"type" : "" ,
"position" : 9
},
{
"token" : "bone",
"start_offset" : 51,
"end_offset" : 55,
"type" : "" ,
"position" : 10
}
]
}
（1）安装ik分词器
所有的语言分词，默认使用的都是“Standard Analyzer”，但是这些分词器针对于中文的分词，并不友好。为此需要安装中文的分词器。
注意：不能用默认elasticsearch-plugin install xxx.zip 进行自动安装
https://github.com/medcl/elasticsearch-analysis-ik/releases/download 对应es版本安装
在前面安装的elasticsearch时，我们已经将elasticsearch容器的“/usr/share/elasticsearch/plugins”目录，映射到宿主机的“ /mydata/elasticsearch/plugins”目录下，所以比较方便的做法就是下载“/elasticsearch-analysis-ik-7.6.2.zip”文件，然后解压到该文件夹下即可。安装完毕后，需要重启elasticsearch容器。
如果不嫌麻烦，还可以采用如下的方式。
（2）查看elasticsearch版本号
{
"name": "d30f21ec35fc",
"cluster_name": "elasticsearch",
"cluster_uuid": "OidCLBVNSP2su8UiNJl9oA",
"version": {
"number": "7.6.2",
"build_flavor": "default",
"build_type": "docker",
"build_hash": "ef48eb35cf30adf4db14086e8aabd07ef6fb113f",
"build_date": "2020-03-26T06:34:37.794943Z",
"build_snapshot": false,
"lucene_version": "8.4.0",
"minimum_wire_compatibility_version": "6.8.0",
"minimum_index_compatibility_version": "6.0.0-beta1"
},
"tagline": "You Know, for Search"
}
（3）进入es容器内部plugin目录
- docker exec -it 容器id /bin/bash
[root@10 elasticsearch]# docker exec -it d30f /bin/bash
[root@d30f21ec35fc elasticsearch]#
- wget https://github.com/medcl/elasticsearch-analysis-ik/releases/download/v7.6.2/elasticsearch-analysis-ik-7.6.2.zip
[root@d30f21ec35fc elasticsearch]# pwd
/usr/share/elasticsearch
#下载ik7.6.2
[root@d30f21ec35fc elasticsearch]# wget https://github.com/medcl/elasticsearch-analysis-ik/releases/download/v7.6.2/elasticsearch-analysis-ik-7.6.2.zip
- unzip 下载的文件
[root@d30f21ec35fc elasticsearch]# unzip elasticsearch-analysis-ik-7.6.2.zip -d ink
Archive: elasticsearch-analysis-ik-7.6.2.zip
creating: ik/config/
inflating: ik/config/main.dic
inflating: ik/config/quantifier.dic
inflating: ik/config/extra_single_word_full.dic
inflating: ik/config/IKAnalyzer.cfg.xml
inflating: ik/config/surname.dic
inflating: ik/config/suffix.dic
inflating: ik/config/stopword.dic
inflating: ik/config/extra_main.dic
inflating: ik/config/extra_stopword.dic
inflating: ik/config/preposition.dic
inflating: ik/config/extra_single_word_low_freq.dic
inflating: ik/config/extra_single_word.dic
inflating: ik/elasticsearch-analysis-ik-7.6.2.jar
inflating: ik/httpclient-4.5.2.jar
inflating: ik/httpcore-4.4.4.jar
inflating: ik/commons-logging-1.2.jar
inflating: ik/commons-codec-1.9.jar
inflating: ik/plugin-descriptor.properties
inflating: ik/plugin-security.policy
[root@d30f21ec35fc elasticsearch]#
#移动到plugins目录下
[root@d30f21ec35fc elasticsearch]# mv ik plugins/
- rm -rf *.zip
[root@0adeb7852e00 elasticsearch]# rm -rf elasticsearch-analysis-ik-7.6.2.zip
确认是否安装好了分词器
（4）测试分词器
使用默认
GET my_index/_analyze
{
"text":"我是中国人"
}
请观察执行结果：
{
"tokens" : [
{
"token" : "我",
"start_offset" : 0,
"end_offset" : 1,
"type" : "" ,
"position" : 0
},
{
"token" : "是",
"start_offset" : 1,
"end_offset" : 2,
"type" : "" ,
"position" : 1
},
{
"token" : "中",
"start_offset" : 2,
"end_offset" : 3,
"type" : "" ,
"position" : 2
},
{
"token" : "国",
"start_offset" : 3,
"end_offset" : 4,
"type" : "" ,
"position" : 3
},
{
"token" : "人",
"start_offset" : 4,
"end_offset" : 5,
"type" : "" ,
"position" : 4
}
]
}
GET my_index/_analyze
{
"analyzer": "ik_smart",
"text":"我是中国人"
}
输出结果：
{
"tokens" : [
{
"token" : "我",
"start_offset" : 0,
"end_offset" : 1,
"type" : "CN_CHAR",
"position" : 0
},
{
"token" : "是",
"start_offset" : 1,
"end_offset" : 2,
"type" : "CN_CHAR",
"position" : 1
},
{
"token" : "中国人",
"start_offset" : 2,
"end_offset" : 5,
"type" : "CN_WORD",
"position" : 2
}
]
}
GET my_index/_analyze
{
"analyzer": "ik_max_word",
"text":"我是中国人"
}
输出结果：
{
"tokens" : [
{
"token" : "我",
"start_offset" : 0,
"end_offset" : 1,
"type" : "CN_CHAR",
"position" : 0
},
{
"token" : "是",
"start_offset" : 1,
"end_offset" : 2,
"type" : "CN_CHAR",
"position" : 1
},
{
"token" : "中国人",
"start_offset" : 2,
"end_offset" : 5,
"type" : "CN_WORD",
"position" : 2
},
{
"token" : "中国",
"start_offset" : 2,
"end_offset" : 4,
"type" : "CN_WORD",
"position" : 3
},
{
"token" : "国人",
"start_offset" : 3,
"end_offset" : 5,
"type" : "CN_WORD",
"position" : 4
}
]
}
（5）自定义词库
- 重新创建elasticsearch容器
[root@10 ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
aecf083b3713 kibana:7.6.2 "/usr/local/bin/dumb…" 8 days ago Up 33 seconds 0.0.0.0:5601->5601/tcp kibana
d30f21ec35fc elasticsearch:7.6.2 "/usr/local/bin/dock…" 8 days ago Up 33 seconds 0.0.0.0:9200->9200/tcp, 0.0.0.0:9300->9300/tcp elasticsearch
1a7618bfcd63 redis "docker-entrypoint.s…" 5 weeks ago Up 33 seconds 0.0.0.0:6379->6379/tcp redis
7320c7eda7e7 mysql:5.7 "docker-entrypoint.s…" 5 weeks ago Up 33 seconds 0.0.0.0:3306->3306/tcp, 33060/tcp mysql
[root@10 ~]# free -m
total used free shared buff/cache available
Mem: 2845 966 1244 8 634 1718
Swap: 2047 0 2047
[root@10 ~]# docker stop d30
d30
[root@10 ~]# docker rm d30
d30
[root@10 ~]# cd /mydata/
[root@10 mydata]# ls
elasticsearch mysql redis
[root@10 mydata]# cd elasticsearch/
[root@10 elasticsearch]# ls
config data plugins
[root@10 elasticsearch]# cd data
[root@10 data]# ls
nodes
[root@10 data]# docker run --name elasticsearch -p 9200:9200 -p 9300:9300 \
> -e "discovery.type=single-node" \
> -e ES_JAVA_OPTS="-Xms64m -Xmx512m" \
> -v /mydata/elasticsearch/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml \
> -v /mydata/elasticsearch/data:/usr/share/elasticsearch/data \
> -v /mydata/elasticsearch/plugins:/usr/share/elasticsearch/plugins \
> -d elasticsearch:7.6.2
d4f2e53d0c3895e75e1411235d7524cd0de97e5b0e2d38235e6951f2d811d05f
-
安装nginx(见附录)
-
修改/usr/share/elasticsearch/plugins/ik/config中的IKAnalyzer.cfg.xml
/usr/share/elasticsearch/plugins/ik/config
<properties>
<comment>IK Analyzer 扩展配置comment>
<entry key="ext_dict">entry>
<entry key="ext_stopwords">entry>
<entry key="remote_ext_dict">http://192.168.56.10/es/fenci.txtentry>
properties>
原来的xml
<properties>
<comment>IK Analyzer 扩展配置comment>
<entry key="ext_dict">entry>
<entry key="ext_stopwords">entry>
properties>
修改完成后，需要重启elasticsearch容器，否则修改不生效。
更新完成后，es只会对于新增的数据用更新分词。历史数据是不会重新分词的。如果想要历史数据重新分词，需要执行：
POST my_index/_update_by_query?conflicts=proceed
http://192.168.56.10/es/fenci.txt，这个是nginx上资源的访问路径
在运行下面实例之前，需要安装nginx（安装方法见安装nginx），然后创建“fenci.txt”文件，内容如下：
刘亦菲
测试效果：
GET my_index/_analyze
{
"analyzer": "ik_max_word",
"text":"刘亦菲爱我"
}
输出结果：
{
"tokens" : [
{
"token" : "刘亦菲",
"start_offset" : 0,
"end_offset" : 3,
"type" : "CN_WORD",
"position" : 0
},
{
"token" : "爱我",
"start_offset" : 3,
"end_offset" : 5,
"type" : "CN_WORD",
"position" : 1
}
]
}
五、elasticsearch-Rest-Client
1. 9300: TCP
- spring-data-elasticsearch:transport-api.jar;
- springboot版本不同，ransport-api.jar不同，不能适配es版本
- 7.x已经不建议使用，8以后就要废弃
2. 9200: HTTP
- jestClient: 非官方，更新慢；
- RestTemplate：模拟HTTP请求，ES很多操作需要自己封装，麻烦；
- HttpClient：同上；
- Elasticsearch-Rest-Client：官方RestClient，封装了ES操作，API层次分明，上手简单；
最终选择Elasticsearch-Rest-Client（elasticsearch-rest-high-level-client）；
https://www.elastic.co/guide/en/elasticsearch/client/java-rest/current/java-rest-high.html
六、附录：安装Nginx
- 随便启动一个nginx实例
docker run -p80:80 --name nginx -d nginx:1.10
只是为了复制出配置
docker run -p80:80 --name nginx -d nginx:1.10
- 将容器内的配置文件拷贝到/mydata/nginx/conf/ 下
mkdir -p /mydata/nginx/html
mkdir -p /mydata/nginx/logs
mkdir -p /mydata/nginx/conf
docker container cp nginx:/etc/nginx/* /mydata/nginx/conf/
#由于拷贝完成后会在config中存在一个nginx文件夹，所以需要将它的内容移动到conf中
mv /mydata/nginx/conf/nginx/* /mydata/nginx/conf/
rm -rf /mydata/nginx/conf/nginx
- 终止原容器：
docker stop nginx
- 执行命令删除原容器：
docker rm nginx
- 创建新的Nginx，执行以下命令
docker run -p 80:80 --name nginx \
-v /mydata/nginx/html:/usr/share/nginx/html \
-v /mydata/nginx/logs:/var/log/nginx \
-v /mydata/nginx/conf/:/etc/nginx \
-d nginx:1.10
- 设置开机启动nginx
docker update nginx --restart=always
- 创建“/mydata/nginx/html/index.html”文件，测试是否能够正常访问
echo 'hello nginx!
' >index.html
扩展字典 -->
http://192.168.56.10/es/fenci.txt
原来的xml
```xml
IK Analyzer 扩展配置
修改完成后，需要重启elasticsearch容器，否则修改不生效。
更新完成后，es只会对于新增的数据用更新分词。历史数据是不会重新分词的。如果想要历史数据重新分词，需要执行：
POST my_index/_update_by_query?conflicts=proceed
http://192.168.56.10/es/fenci.txt，这个是nginx上资源的访问路径
在运行下面实例之前，需要安装nginx（安装方法见安装nginx），然后创建“fenci.txt”文件，内容如下：
刘亦菲
测试效果：
GET my_index/_analyze
{
"analyzer": "ik_max_word",
"text":"刘亦菲爱我"
}
输出结果：
{
"tokens" : [
{
"token" : "刘亦菲",
"start_offset" : 0,
"end_offset" : 3,
"type" : "CN_WORD",
"position" : 0
},
{
"token" : "爱我",
"start_offset" : 3,
"end_offset" : 5,
"type" : "CN_WORD",
"position" : 1
}
]
}
