SpringBoot配置加载顺序和SpringBoot分离打包:将jar包与lib依赖、配置文件分开

文章目录

  • 一、SpringBoot配置加载顺序
    • 1.SpringBoot配置优先级
      • (1)命令行参数
      • (2)配置文件
  • 二、SpringBoot分离打包:将jar包与lib依赖、配置文件分开
    • 1.pom文件配置
    • 2.打包后的目录结构


一、SpringBoot配置加载顺序

  • 官方文档
  • SpringBoot 允许在代码之外,提供应用程序运行的数据,以便在不同的环境中使用相同的应用程序代码。避免硬编码,提供系统的灵活性。可使用各种外部配置源,包括 配置文件环境变量命令行参数

1.SpringBoot配置优先级

  • 以下是常用的Spring Boot 配置形式及其加载顺序(优先级由高到低):
    • ① 命令行参数
    • ② 来自 java.comp/envJNDI 属性
    • ③ Java 系统属性(System.getProperties()
    • ④ 操作系统环境变量
    • RandomValuePropertySource 配置的 random.* 属性值
    • ⑥ 配置文件(YAML文件、Properties 文件)
    • @Configuration 注解类上的 @PropertySource 指定的配置文件
    • ⑧ 通过SpringApplication.setDefaultProperties 指定的默认属性
  • 以上所有形式的配置都会被加载,当存在相同配置内容时,高优先级的配置会覆盖低优先级的配置;存在不同的配置内容时,高优先级和低优先级的配置内容取并集,共同生效,形成互补配置。

(1)命令行参数

  • Spring Boot 中的所有配置,都可以通过命令行参数进行指定,其配置形式如下。
java -jar {Jar文件名} --{参数1}={参数值1} --{参数2}={参数值2}
例如:java -jar olive-0.1.jar --server.port=8800 --server.servlet.context-path=/olive

(2)配置文件

  • Spring Boot 启动时,会自动加载 JAR 包内部及 JAR 包所在目录指定位置的配置文件(Properties 文件、YAML 文件),下图中展示了 Spring Boot 自动加载的配置文件的位置及其加载顺序,同一位置下,Properties 文件优先级高于 YAML 文件。
  • springboot 启动会扫描以下位置的application.properties或者application.yml文件作为Spring boot的默认配置文件
    • ① Jar包外同级目录的config目录
    • ② Jar包外同级目录
    • ③ jar包内classPath(即resources目录)的config目录
    • ④ jar包内的classpath目录
  • 配置文件的优先级顺序,遵循以下规则:
    • ① 先加载 JAR 包外的配置文件,再加载 JAR 包内的配置文件;
    • ② 先加载 config 目录内的配置文件,再加载 config 目录外的配置文件;
    • ③ 先加载 config 子目录下的配置文件,再加载 config 目录下的配置文件
    • ④ 先加载 appliction-{profile}.properties/yml,再加载application.properties/yml;
    • ⑤ 先加载 .properties 文件,再加载 .yml 文件。

二、SpringBoot分离打包:将jar包与lib依赖、配置文件分开

  • 之前一直使用SpringBoot初始化建立项目默认的spring-boot-maven-plugin插件,进行项目打包,这个插件会将项目所有的依赖打入BOOT-INF/lib下,这就导致了jar包的体积非常臃肿,尤其涉及到几十个子项目时,整个项目的体积可想而知。但是,各项目之间有非常多的公共依赖,因此,分离打包还是比较有意义的。

1.pom文件配置

  • properties标签中定义依赖的输出目录、jar包的输出目录、resources中配置文件的输出目录。
    <properties>

        <output.dependence.file.path>lib/output.dependence.file.path>

        <output.jar.file.path>bin/output.jar.file.path>

        <output.resource.file.path>/output.resource.file.path>

        <env.LEARN_HOME>oliveenv.LEARN_HOME>
    properties>

  • build标签:plugins标签中一共包含三个插件:maven-jar-plugin、maven-dependency-plugin和maven-resources-plugin。
    <build>
    	<plugins>

            <plugin>
                <groupId>org.apache.maven.pluginsgroupId>
                <artifactId>maven-jar-pluginartifactId>
                <configuration>

                    <outputDirectory>${env.LEARN_HOME}/${output.jar.file.path}outputDirectory>

                    <excludes>
                        <exclude>**/*.propertiesexclude>
                        <exclude>**/*.ymlexclude>
                        <exclude>**/*.xmlexclude>
                        <exclude>**/*.txtexclude>
                    excludes>
                    <archive>

                        <addMavenDescriptor>trueaddMavenDescriptor>

                        <manifest>

                            <useUniqueVersions>falseuseUniqueVersions>

                            <addClasspath>trueaddClasspath>



                            <classpathPrefix>../${output.dependence.file.path}classpathPrefix>

                            <mainClass>com.gdb.main.MainApplicationmainClass>
                        manifest>
                        <manifestEntries>



                            <Class-Path>../${output.resource.file.path}Class-Path>
                        manifestEntries>
                    archive>
                configuration>
            plugin>


            <plugin>
                <groupId>org.apache.maven.pluginsgroupId>
                <artifactId>maven-dependency-pluginartifactId>
                <executions>
                    <execution>
                        <id>copy-dependenciesid>
                        <phase>packagephase>
                        <goals>
                            <goal>copy-dependenciesgoal>
                        goals>
                        <configuration>

                            <outputDirectory>${env.LEARN_HOME}/${output.dependence.file.path}outputDirectory>

                            <excludeTransitive>falseexcludeTransitive>

                            <stripVersion>falsestripVersion>
                        configuration>
                    execution>
                executions>
            plugin>

            <plugin>
                <groupId>org.apache.maven.pluginsgroupId>
                <artifactId>maven-resources-pluginartifactId>
                <executions>

                    <execution>
                        <id>copy-resourcesid>
                        <phase>packagephase>
                        <goals>
                            <goal>copy-resourcesgoal>
                        goals>
                        <configuration>
                            <resources>
                                <resource>
                                    <directory>src/main/resourcesdirectory>
                                    <includes>


                                        <exclude>**/*.*exclude>
                                    includes>
                                resource>
                            resources>

                            <outputDirectory>${env.LEARN_HOME}/${output.resource.file.path}outputDirectory>
                        configuration>
                    execution>
                executions>
            plugin>
        plugins>
    build>

  • 在上面的配置中会看到有…/这种相对路径的配置,这是为了让程序能够找到它依赖的lib和配置文件。即一切从最终的jar包出发,考虑如何让它能够找到它所依赖的lib和配置文件即可。
  • 注意:maven-jar-plugin插件中启动类的位置需要根据自己的项目设置。

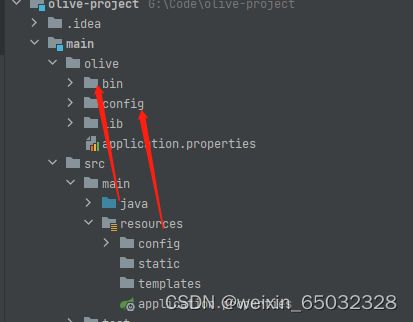

2.打包后的目录结构

SpringBoot配置加载顺序和SpringBoot分离打包:将jar包与lib依赖、配置文件分开_第1张图片
