qt + opengl 给立方体增加阴影+纹理
在上一篇中，我们说了如何给立方体增加阴影和光照，那么我这篇在说下如何给在阴影上增加纹理。
这里我们需要在顶点和片段着色器里面增加纹理属性。
修改顶点着色器
#version 330 core
layout (location = 0) in vec3 aPos;
layout (location = 1) in vec3 aNormal;
layout (location = 2) in vec2 aTexCoord;
uniform mat4 model;
uniform mat4 view;
uniform mat4 projection;
out vec3 Normal;
out vec3 FragPos;
out vec2 texc;
void main()
{
gl_Position = projection * view * model * vec4(aPos, 1.0);
FragPos = vec3(model*vec4(aPos,1.0));
Normal = mat3(transpose(inverse(model))) * aNormal;
texc = aTexCoord;
}
修改片段着色器
#version 330 core
out vec4 FragColor;
in vec3 Normal;
in vec3 FragPos;
in vec2 texc;
uniform vec3 viewPos;
uniform vec3 lightPos;
uniform vec3 lightColor;
uniform vec3 objectColor;
uniform sampler2D texture;
void main()
{
float ambientStrength = 0.1;
vec3 ambient = ambientStrength * lightColor;
// diffuse
vec3 norm = normalize(Normal);
vec3 lightDir = normalize(lightPos - FragPos);
float diff = max(dot(norm, lightDir), 0.0);
vec3 diffuse = diff * lightColor;
// specular
float specularStrength = 0.5;
vec3 viewDir = normalize(viewPos - FragPos);
vec3 reflectDir = reflect(-lightDir, norm);
float spec = pow(max(dot(viewDir, reflectDir), 0.0), 32);
vec3 specular = specularStrength * spec * lightColor;
vec3 result = (ambient + diffuse + specular) * objectColor;
gl_FragColor = texture2D(texture, texc)*vec4(result,1.0f);
}
下面上代码
#include "testwidget.h"
#include
#include
#include
#include
#include
static const char *vertexShaderSource =
"#version 330\n"
"layout (location = 0) in vec4 vertex;\n"
"layout (location = 1) in vec4 texCoord;\n"
"out vec4 texc;\n"
"uniform mat4 matrix;\n"
"uniform mat4 model;\n"
"uniform mat4 view;\n"
"uniform mat4 projection;\n"
"void main(void)\n"
"{\n"
" gl_Position = projection*view* matrix * vertex;\n"
" texc = texCoord;\n"
"}\n";
static const char *fragmentShaderSource =
"#version 330\n"
"uniform sampler2D texture;\n"
"in vec4 texc;\n"
"void main(void)\n"
"{\n"
" gl_FragColor = texture2D(texture, texc.st);\n"
"}\n";
testwidget::testwidget():QOpenGLWidget()
,m_xRos(0)
,m_yRos(0)
{
cam = QVector3D(m_xRos, m_yRos, m_zRos);
cameraPos = QVector3D(0, 0, 3);
timer = new QTimer;
timer->setInterval(20);
connect(timer,&QTimer::timeout,this,[=]{
qDebug()<<"timeout"<start();
}
testwidget::~testwidget()
{
makeCurrent();
vbo.destroy();
for (int i = 0; i < 6; ++i)
delete textures[i];
delete program;
doneCurrent();
}
QSize testwidget::minimumSizeHint() const
{
return QSize(400, 400);
}
QSize testwidget::sizeHint() const
{
return QSize(400, 400);
}
void testwidget::rotateBy(int xAngle, int yAngle, int zAngle)
{
float cameraSpeed = 0.2;
//cameraPos -= cameraSpeed * QVector3D(0, 0, -1);//由远到近
//cameraPos += cameraSpeed * QVector3D(0, 0, -1);//由近到远
xRot += xAngle;
yRot += yAngle;
zRot += zAngle;
update();
}
void testwidget::setClearColor(const QColor &color)
{
clearColor = color;
update();
}
void testwidget::initializeGL()
{
vertices = {
// ---- 位置---- - 纹理坐标 - ---- 颜色 ----
0.5f, -0.5f, -0.5f, 0.0f, 0.0f, -1.0f, 1.0f, 1.0f,
-0.5f, -0.5f, -0.5f, 0.0f, 0.0f, -1.0f, 0.0f, 1.0f,
-0.5f, 0.5f, -0.5f, 0.0f, 0.0f, -1.0f, 0.0f, 0.0f,
0.5f, 0.5f, -0.5f, 0.0f, 0.0f, -1.0f, 1.0f, 0.0f,//1
0.5f, 0.5f, -0.5f, 0.0f, 1.0f, 0.0f, 1.0f, 1.0f,
-0.5f, 0.5f, -0.5f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f,
-0.5f, 0.5f, 0.5f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f,
0.5f, 0.5f, 0.5f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f,//2
0.5f, -0.5f, 0.5f, 1.0f, 0.0f, 0.0f, 1.0f, 1.0f,
0.5f, -0.5f, -0.5f, 1.0f, 0.0f, 0.0f, 0.0f, 1.0f,
0.5f, 0.5f, -0.5f, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f,
0.5f, 0.5f, 0.5f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f,//3
-0.5f, -0.5f, -0.5f, -1.0f, 0.0f, 0.0f, 1.0f, 1.0f,
-0.5f, -0.5f, 0.5f, -1.0f, 0.0f, 0.0f, 0.0f, 1.0f,
-0.5f, 0.5f, 0.5f, -1.0f, 0.0f, 0.0f, 0.0f, 0.0f,
-0.5f, 0.5f, -0.5f, -1.0f, 0.0f, 0.0f, 1.0f, 0.0f,//4
0.5f, -0.5f, 0.5f, 0.0f, 0.0f, 1.0f, 1.0f, 1.0f,
-0.5f, -0.5f, 0.5f, 0.0f, 0.0f, 1.0f, 0.0f, 1.0f,
-0.5f, -0.5f, -0.5f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f,
0.5f, -0.5f, -0.5f, 0.0f, 0.0f, 1.0f, 1.0f, 0.0f,//5
-0.5f, -0.5f, 0.5f, 0.0f, -1.0f, 0.0f, 1.0f, 1.0f,
0.5f, -0.5f, 0.5f, 0.0f, -1.0f, 0.0f, 0.0f, 1.0f,
0.5f, 0.5f, 0.5f, 0.0f, -1.0f, 0.0f, 0.0f, 0.0f,
-0.5f, 0.5f, 0.5f, 0.0f, -1.0f, 0.0f, 1.0f, 0.0f,
};
initializeOpenGLFunctions();
// makeObject();
glEnable(GL_DEPTH_TEST);
glEnable(GL_CULL_FACE);
//#define PROGRAM_VERTEX_ATTRIBUTE 0
//#define PROGRAM_TEXCOORD_ATTRIBUTE 1
// program = new QOpenGLShaderProgram;
// program->addShaderFromSourceCode(QOpenGLShader::Vertex,vertexShaderSource);
// program->addShaderFromSourceCode(QOpenGLShader::Fragment,fragmentShaderSource);
// program->link();
// program->bind();//激活Program对象
program = new QOpenGLShaderProgram;
program->addShaderFromSourceFile(QOpenGLShader::Vertex, ":/light_cube.vert");
program->addShaderFromSourceFile(QOpenGLShader::Fragment,":/light_cube.frag");
program->link();
program->bind();//激活Program对象
vbo.create();
vbo.bind(); //绑定到当前的OpenGL上下文,
vbo.allocate(vertices.constData(), vertices.count() * sizeof(GLfloat));
//初始化VAO,设置顶点数据状态(顶点，法线，纹理坐标等)
vao.create();
vao.bind();
for (int j = 0; j < 6; ++j)
{
textures[j] = new QOpenGLTexture(QImage(QString(":/cube%1.png").arg(j + 1)).mirrored());
textures[j]->setMinMagFilters(QOpenGLTexture::LinearMipMapLinear,QOpenGLTexture::Linear);
textures[j]->setWrapMode(QOpenGLTexture::DirectionS, QOpenGLTexture::ClampToEdge);
textures[j]->setWrapMode(QOpenGLTexture::DirectionT, QOpenGLTexture::ClampToEdge);
}
program->setAttributeBuffer(0, GL_FLOAT, 0, 3, 8 * sizeof(float)); //设置aPos顶点属性
program->setAttributeBuffer(1, GL_FLOAT, 3 * sizeof(float), 3, 8 * sizeof(float)); //设置aColor顶点颜色
program->setAttributeBuffer(2, GL_FLOAT, 6 * sizeof(float), 2, 8 * sizeof(float)); //设置aColor顶点颜色
program->enableAttributeArray(0); //使能aPos顶点属性
program->enableAttributeArray(1); //使能aColor顶点颜色
program->enableAttributeArray(2); //使能aColor顶点颜色
program->setUniformValue("texture", 0);
QMatrix4x4 projection;
projection.perspective(60,(float)width()/height(),0.1,100);//构建透视矩阵,这个可以是固定写法
program->setUniformValue("projection", projection);
// vao.release();
// vbo.release();
}
void testwidget::paintGL()
{
//glClearColor(clearColor.redF(), clearColor.greenF(), clearColor.blueF(), clearColor.alphaF());
glEnable(GL_DEPTH_TEST);
glClearColor(0.1f,0.5f,0.7f,1.0f); //设置清屏颜色
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
QMatrix4x4 m;
//m.ortho(-0.5f, +0.5f, +0.5f, -0.5f, 4.0f, 15.0f);
m.translate(0.0f, 0.0f, 0.0f);
m.rotate(xRot / 16.0f, 1.0f, 0.0f, 0.0f);
m.rotate(yRot / 16.0f, 0.0f, 1.0f, 0.0f);
m.rotate(zRot / 16.0f, 0.0f, 0.0f, 1.0f);
m.scale(0.5);
program->setUniformValue("model", m);
// QMatrix4x4 view;
// view.translate(0.0f,0.0f,-3.0f);
// program->setUniformValue("view", view);
QMatrix4x4 view;
view.lookAt(cameraPos, cameraPos+QVector3D(0,0,-1), QVector3D(0,1,0));
program->setUniformValue("view", view);
program->setUniformValue("objectColor", QVector3D(1.0f, 0.5f, 0.3f));//物体颜色
program->setUniformValue("lightColor", QVector3D( 1.0f, 1.0f, 1.0f));
program->setUniformValue("lightPos", QVector3D(1.2f, 1.0f, 2.0f));//光位置
for (int i = 0; i < 6; ++i) {
textures[i]->bind();
glDrawArrays(GL_TRIANGLE_FAN, i * 4, 4);
}
}
void testwidget::resizeGL(int width, int height)
{
this->glViewport(0,0,width,height); //定义视口区域
}
void testwidget::mousePressEvent(QMouseEvent *event)
{
lastPos = event->pos();
timer->start();
}
void testwidget::mouseMoveEvent(QMouseEvent *event)
{
int dx = event->x() - lastPos.x();
int dy = event->y() - lastPos.y();
if (event->buttons() & Qt::LeftButton) {
rotateBy(8 * dy, 8 * dx, 0);
} else if (event->buttons() & Qt::RightButton) {
rotateBy(8 * dy, 0, 8 * dx);
}
lastPos = event->pos();
}
void testwidget::mouseReleaseEvent(QMouseEvent * /* event */)
{
emit clicked();
}
#ifndef TESTWIDGET_H
#define TESTWIDGET_H
#include
#include "camera.h"
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
class testwidget : public QOpenGLWidget,public QOpenGLExtraFunctions
{
Q_OBJECT
public:
testwidget();
~testwidget();
protected:
QSize minimumSizeHint() const override;
QSize sizeHint() const override;
void rotateBy(int xAngle, int yAngle, int zAngle);
void setClearColor(const QColor &color);
signals:
void clicked();
protected:
void initializeGL() override;
void paintGL() override;
void resizeGL(int width, int height) override;
void mousePressEvent(QMouseEvent *event) override;
void mouseMoveEvent(QMouseEvent *event) override;
void mouseReleaseEvent(QMouseEvent *event) override;
private:
QColor clearColor = Qt::black;
QPoint lastPos;
int xRot = 0;
int yRot = 0;
int zRot = 0;
QOpenGLTexture *textures[6] = {nullptr, nullptr, nullptr, nullptr, nullptr, nullptr};
QOpenGLShaderProgram *program = nullptr;
QOpenGLBuffer vbo;
QVector vertices;
QOpenGLVertexArrayObject vao;
QTimer* timer;
float m_xRos = 0.0f;
float m_yRos = 0.0f;
float m_zRos = 3.0f;
QVector3D cam;
int nCount=0;
QVector3D cameraPos;
QVector3D cameraTarget;
QVector3D cameraDirection;
float m_viewAngle=0.0f;
float radius = 10.0f;
float camX= 10.0f;
float camZ= 10.0f;
};
#endif // TESTWIDGET_H

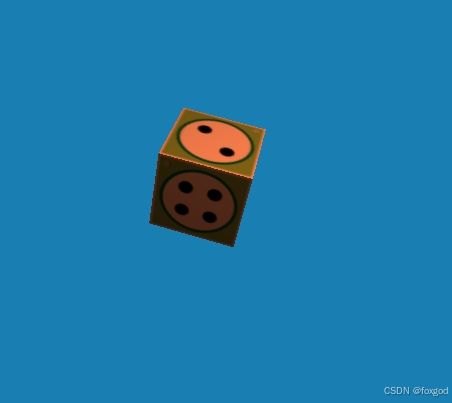

运行后结果：
