Containerd 安装使用与高级命令行工具 crictl、nerdctl

---

1. 安装 containerd

yum -y install containerd
systemctl status containerd

链接

修改镜像仓库地址

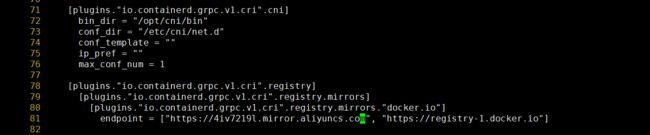

vi /etc/containerd/config.toml
#-----------------------------
    [plugins."io.containerd.grpc.v1.cri".registry]
      [plugins."io.containerd.grpc.v1.cri".registry.mirrors]
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
          endpoint = ["https://4iv7219l.mirror.aliyuncs.com", "https://registry-1.docker.io"]
......

启动可能会报错，参考 journalctl -xeu containerd 删除重复配置
链接

systemctl daemon-reload && systemctl restart containerd

2. containerd 基本使用

查看命名空间

ctr namespace ls

拉取镜像

ctr images pull docker.io/library/alpine:latest

查看镜像

ctr images ls
ctr -n default image ls

运行容器

ctr run -d --net-host docker.io/library/alpine:latest test-container sh

查看容器

ctr container ls
ctr -n default container ls
ctr -n default task ls

镜像打 tag

ctr images tag docker.io/library/redis:alpine harbor.junengcloud.com/tmp/redis:alpine

链接1
链接2

3. crictl 安装使用

3.1 crictl 安装

wget https://github.com/kubernetes-sigs/cri-tools/releases/download/v1.24.0/crictl-v1.24.0-linux-amd64.tar.gz

tar -zxvf crictl-v1.24.0-linux-amd64.tar.gz -C /usr/local/bin

cat > /etc/crictl.yaml <<EOF
runtime-endpoint: unix:///var/run/containerd/containerd.sock
image-endpoint: unix:///var/run/containerd/containerd.sock
timeout: 10
debug: false
pull-image-on-create: false
EOF

systemctl daemon-reload

如果有如下报错：链接

This could be that you are using an incorrect containerd configuration (maybe from a Docker install). You will need to update your containerd configuration to the containerd instance that you are running. One way of doing this is as follows:

mv /etc/containerd/config.toml /etc/containerd/config.bak
containerd config default > /etc/containerd/config.toml
systemctl daemon-reload
sytemctl restart containerd

3.2 crictl 使用

crictl ps
crictl images ps
crictl pull nginx:1.18.0
crictl pods --name etcd
crictl exec -it 1f73f2d81bf98 ls

链接

4. nerdctl 安装使用

4.1 nerdctl 安装

根据自己的 containerd 版本安装合适的 nerdctl

[21:29:54 root@c7-3~]#containerd --version
containerd containerd.io 1.6.8 9cd3357b7fd7218e4aec3eae239db1f68a5a6ec6

wget https://github.com/containerd/nerdctl/releases/download/v0.22.2/nerdctl-0.22.2-linux-amd64.tar.gz

tar -zxvf nerdctl-0.22.2-linux-amd64.tar.gz
mv nerdctl /usr/local/bin

安装 CNI 插件

wget https://github.com/containernetworking/plugins/releases/download/v1.1.1/cni-plugins-linux-amd64-v1.1.1.tgz
mkdir -p /opt/cni/bin
tar zxvf cni-plugins-linux-amd64-v1.1.1.tgz -C /opt/cni/bin/

4.2 nerdctl 使用

nerdctl pull nginx:1.18.0
nerdctl ps -a
nerdctl images -a
nerdctl run -d -p 8080:80 --name=nginx --restart=always nginx:1.18.0
nerdctl exec -it 70d014105fed bash
nerdctl network ls
nerdctl network inspect bridge
nerdctl rm -f 600f493049b9

5. 总结

---
