- SQL语句经过SqlParse解析成UnresolvedLogicalPlan；
- 使用analyzer结合数据数据字典（catalog）进行绑定，生成resolvedLogicalPlan；
- 使用optimizer对resolvedLogicalPlan进行优化，生成optimizedLogicalPlan；
- 使用SparkPlan将LogicalPlan转换成PhysicalPlan；
- 使用prepareForExecution()将PhysicalPlan转换成可执行物理计划；
- 使用execute()执行可执行物理计划；
- 生成SchemaRDD。
- SQL语句经过HiveQl.parseSql解析成Unresolved LogicalPlan，在这个解析过程中对hiveql语句使用getAst()获取AST树，然后再进行解析；
- 使用analyzer结合数据hive源数据Metastore（新的catalog）进行绑定，生成resolved LogicalPlan；
- 使用optimizer对resolved LogicalPlan进行优化，生成optimized LogicalPlan，优化前使用了ExtractPythonUdfs(catalog.PreInsertionCasts(catalog.CreateTables(analyzed)))进行预处理；
- 使用hivePlanner将LogicalPlan转换成PhysicalPlan；
- 使用prepareForExecution()将PhysicalPlan转换成可执行物理计划；
- 使用execute()执行可执行物理计划；
- 执行后，使用map(_.copy)将结果导入SchemaRDD。
spark sql 三个核心部分：
1. 可以加载各种结构化数据源(e.g., JSON, Hive, and Parquet).
2. 可以让你通过SQL ,spark 内部程序或者外部工具，通过标准的数据库连接(JDBC/ODBC)连接spark，比如一个商业智能的工具Tableau
3.当你通过使用spark程序，spark sql 提供丰富又智能的SQL或者 regular Python/Java/Scala code,包括 join RDDS ,SQL tables ，使用SQL自定义用户函数
DataFrames
A DataFrame isa distributed collection of data organized into named columns. It is conceptually equivalent to a table in a relational database or a data frame in R/Python, but with richer optimizations under the hood.DataFrames can be constructed from a wide array of sources such as: structured data files, tables in Hive, external databases, or existing RDDs.
SQLContext:
除了SQLContext之外 ，还有HiveContext 来创建,HiveContext包含是SQLContext的，功能比SQLContext更强大，可以操作HiveQL还可以定义UDF，在spark1.3.1以后版本更推荐使用HiveContext,但是需要依赖Hive jar包
Creating DataFrames
export SPARK_CLASSPATH=$SPARK_CLASSPATH:/home/wangyue/opt/hadoop/hadoop-2.3.0-cdh5.1.0/share/hadoop/common/hadoop-lzo-0.4.15-cdh5.1.0.jar
DataFrame Operations
// Select everybody, but increment the age by 1
// Select people older than 21
// Count people by age
Running SQL Queries Programmatically
The sql function on a SQLContext enables applications to run SQL queries programmatically and returns the result as a DataFrame.
val sqlContext = ... // An existing SQLContext
val df = sqlContext.sql("SELECT * FROM table")目前1.3.1版本后 可以通过SQLContext 运行 SQL程序，然后返回DataFrame格式的结果
目前有两种方式将RDD 转成DataFrame
1. Inferring the Schema Using Reflection
// sc is an existing SparkContext.
val sqlContext = new org.apache.spark.sql.SQLContext(sc)
// this is used to implicitly convert an RDD to a DataFrame.
import sqlContext.implicits._
// Define the schema using a case class.
// Note: Case classes in Scala 2.10 can support only up to 22 fields. To work around this limit,
// you can use custom classes that implement the Product interface.
case class Person(name: String, age: Int)
// Create an RDD of Person objects and register it as a table.
val people = sc.textFile("file:///home/wangyue/opt/spark/spark-1.3.1-bin-hadoop2.3/examples/src/main/resources/people.txt").map(_.split(",")).map(p => Person(p(0), p(1).trim.toInt)).toDF()
people.registerTempTable("people")
// SQL statements can be run by using the sql methods provided by sqlContext.
val teenagers = sqlContext.sql("SELECT name FROM people WHERE age >= 13 AND age <= 19")
// The results of SQL queries are DataFrames and support all the normal RDD operations.
// The columns of a row in the result can be accessed by ordinal.
teenagers.map(t => "Name: " + t(0)).collect().foreach(println)
2. Programmatically Specifying the Schema
When case classes cannot be defined ahead of time (for example, the structure of records is encoded in a string, or a text dataset will be parsed and fields will be projected differently for different users), a DataFrame can be created programmatically with three steps.
- Create an RDD of
Rows from the original RDD; - Create the schema represented by a
StructTypematching the structure ofRows in the RDD created in Step 1. - Apply the schema to the RDD of
Rows viacreateDataFramemethod provided bySQLContext.
For example:
// sc is an existing SparkContext.
val sqlContext = new org.apache.spark.sql.SQLContext(sc)
// Create an RDD
val people = sc.textFile("file:///home/wangyue/opt/spark/spark-1.3.1-bin-hadoop2.3/examples/src/main/resources/people.txt")
// The schema is encoded in a string
val schemaString = "name age"
// Import Row.
import org.apache.spark.sql.Row;
// Import Spark SQL data types
import org.apache.spark.sql.types.{StructType,StructField,StringType};
// Generate the schema based on the string of schema
val schema =
StructType(
schemaString.split(" ").map(fieldName => StructField(fieldName, StringType, true)))
// Convert records of the RDD (people) to Rows.
val rowRDD = people.map(_.split(",")).map(p => Row(p(0), p(1).trim))
// Apply the schema to the RDD.
val peopleDataFrame = sqlContext.createDataFrame(rowRDD, schema)
// Register the DataFrames as a table.
peopleDataFrame.registerTempTable("people")
// SQL statements can be run by using the sql methods provided by sqlContext.
val results = sqlContext.sql("SELECT name FROM people")
// The results of SQL queries are DataFrames and support all the normal RDD operations.
// The columns of a row in the result can be accessed by ordinal.

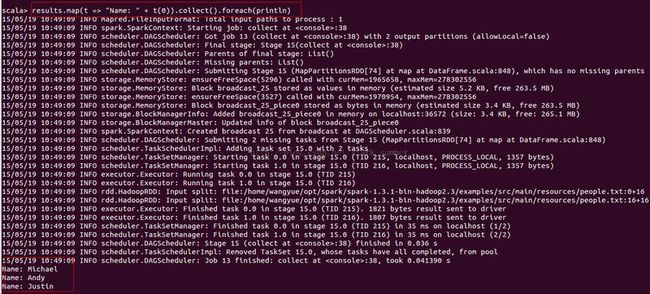

results.map(t => "Name: " + t(0)).collect().foreach(println)
Data Sources
1. Generic Load/Save Functions
yal df = sqlContext.load("people.parquet")
df.select("name", "age").save("namesAndAges.parquet")
2. Manually Specifying Options
val df = sqlContext.load("people.json", "json")
df.select("name", "age").save("namesAndAges.parquet", "parquet")
Saving to Persistent Tables
在HiveContext 下，DataFrame 会使用saveAsTable命令会将数据等信息保存到HiveMetastore中，这样即使重启启动spark sql还能活取到HiveMetastore中的数据
在SQLContext下，DataFrame 会使用saveAsTable命令会将数据等信息保存到managed table中，但这些数据通过metastore控制，当表执行drop会删除metastore中数据
Parquet Files
1. Loading Data Programmatically
// sqlContext from the previous example is used in this example.
// This is used to implicitly convert an RDD to a DataFrame.
import sqlContext.implicits._
val people = sc.textFile("file:///home/wangyue/opt/spark/spark-1.3.1-bin-hadoop2.3/examples/src/main/resources/people.txt").map(_.split(",")).map(p=>Person(p(0),p(1).trim.toInt)).toDF() ... // An RDD of case class objects, from the previous example.
// The RDD is implicitly converted to a DataFrame by implicits, allowing it to be stored using Parquet.
people.saveAsParquetFile("people.parquet")
// Read in the parquet file created above. Parquet files are self-describing so the schema is preserved.
// The result of loading a Parquet file is also a DataFrame.
val parquetFile = sqlContext.parquetFile("people.parquet")
//Parquet files can also be registered as tables and then used in SQL statements.
parquetFile.registerTempTable("parquetFile")
val teenagers = sqlContext.sql("SELECT name FROM parquetFile WHERE age >= 13 AND age <= 19")// sqlContext from the previous example is used in this example.
// This is used to implicitly convert an RDD to a DataFrame.
import sqlContext.implicits._
val people = sc.textFile("file:///home/wangyue/opt/spark/spark-1.3.1-bin-hadoop2.3/examples/src/main/resources/people.txt").map(_.split(",")).map(p=>Person(p(0),p(1).trim.toInt)).toDF()
// The RDD is implicitly converted to a DataFrame by implicits, allowing it to be stored using Parquet.
people.saveAsParquetFile("people.parquet")
// Read in the parquet file created above. Parquet files are self-describing so the schema is preserved.
// The result of loading a Parquet file is also a DataFrame.
val parquetFile = sqlContext.parquetFile("people.parquet")
//Parquet files can also be registered as tables and then used in SQL statements.
parquetFile.registerTempTable("parquetFile")
val teenagers = sqlContext.sql("SELECT name FROM parquetFile WHERE age >= 13 AND age <= 19")
teenagers.map(t => "Name: " + t(0)).collect().foreach(println)
Schema merging
/ sqlContext from the previous example is used in this example.
// This is used to implicitly convert an RDD to a DataFrame.
import sqlContext.implicits._
// Create a simple DataFrame, stored into a partition directory
val df1 = sc.makeRDD(1 to 5).map(i => (i, i * 2)).toDF("single", "double")
df1.saveAsParquetFile("data/test_table/key=1")
// Create another DataFrame in a new partition directory,
// adding a new column and dropping an existing column
val df2 = sc.makeRDD(6 to 10).map(i => (i, i * 3)).toDF("single", "triple")
df2.saveAsParquetFile("data/test_table/key=2")
// Read the partitioned table
val df3 = sqlContext.parquetFile("data/test_table")
df3.printSchema()
// The final schema consists of all 3 columns in the Parquet files together
// with the partiioning column appeared in the partition directory paths.
// root
// |-- single: int (nullable = true)
// |-- double: int (nullable = true)
// |-- triple: int (nullable = true)
// |-- key : int (nullable = true)
JSON Datasets
Spark SQL can automatically infer the schema of a JSON dataset and load it as a DataFrame. This conversion can be done using one of two methods in a SQLContext:
-
jsonFile- loads data from a directory of JSON files where each line of the files is a JSON object. -
jsonRDD- loads data from an existing RDD where each element of the RDD is a string containing a JSON object.
Note that the file that is offered as jsonFile is not a typical JSON file. Each line must contain a separate, self-contained valid JSON object. As a consequence, a regular multi-line JSON file will most often fail.
// sc is an existing SparkContext.
val sqlContext = new org.apache.spark.sql.SQLContext(sc)
// A JSON dataset is pointed to by path.
// The path can be either a single text file or a directory storing text files.
val path = "file:///home/wangyue/opt/spark/spark-1.3.1-bin-hadoop2.3/examples/src/main/resources/people.json"// Create a DataFrame from the file(s) pointed to by pathval people = sqlContext.jsonFile(path)// The inferred schema can be visualized using the printSchema() method.people.printSchema()// root// |-- age: integer (nullable = true)// |-- name: string (nullable = true)// Register this DataFrame as a table.people.registerTempTable("people")// SQL statements can be run by using the sql methods provided by sqlContext.val teenagers = sqlContext.sql("SELECT name FROM people WHERE age >= 13 AND age <= 19")// Alternatively, a DataFrame can be created for a JSON dataset represented by// an RDD[String] storing one JSON object per string.val anotherPeopleRDD = sc.parallelize( """{"name":"Yin","address":{"city":"Columbus","state":"Ohio"}}""" :: Nil)val anotherPeople = sqlContext.jsonRDD(anotherPeopleRDD)
全部查询：
scala> val anotherPeopleSql = sqlContext.sql("select name,address.city from anotherPeople")
scala> anotherPeopleSql.map(t => "Name: " + t(0)+ " city:"+t(1)).collect().foreach(println)
尊重原创，未经允许不得转载：http://blog.csdn.net/stark_summer/article/details/45825177
