一个请假单流程的实现(struts2.1.8+spring2.5+hibernate3集成jbpm4.3)



网上随便找了个请假的流程图，在此先谢谢提供图片的人：

使用jbpm工具画出流程图，中文好像是乱码，所以改为英文：



 leave.jpdl.xml内容：

<?xml version="1.0" encoding="UTF-8"?>

 <process name="leave" xmlns="http://jbpm.org/4.3/jpdl">
    <start g="159,47,48,48" name="start1">
       <transition to="exclusive1"/>
    </start>
    <decision expr="#{job}" g="161,152,48,48" name="exclusive1">
       <transition g="42,179:43,-27" name="isChief" to="boosApprove"/>
       <transition g="316,175:-83,-23" name="isnotChief" to="chiefApprove"/>
    </decision>
    <state g="-3,220,92,52" name="boosApprove">
       <transition g="47,340:" to="sendEmail"/>
    </state>
    <state g="270,214,92,52" name="chiefApprove">
       <transition to="exclusive2"/>
    </state>
    <decision expr="#{day}" g="160,219,48,48" name="exclusive2">
       <transition g="-2,-20" name="gt10" to="boosApprove"/>
       <transition g="186,323:12,-47" name="le10" to="sendEmail"/>
    </decision>
    <end g="171,410,48,48" name="end"/>
    <state g="146,313,92,52" name="sendEmail">
       <transition to="end"/>
    </state>

 </process>

分析之后，有如下一些表：
用户user_
角色role_(简化到user_)
请假单leave_
假设有这么几个用户：
陈均  --普通员工
唐平 --级别最高的，BOOS，老板
胡杰 --级别比较高的，chief主管
张小 --普通员工
用户测试数据：

Sql代码

INSERT INTO `user_` VALUES ('9', '陈均', '普通员工');
 INSERT INTO `user_` VALUES ('10', '胡杰', '主管');
 INSERT INTO `user_` VALUES ('11', '唐平', '老板');
 INSERT INTO `user_` VALUES ('12', '张小', '普通员工');



现在集成jbpm4.3,hibernate3,spring2.5,struts2.1.8。

 系统初步设计如图：

1.因为jbpm里面带有hibernate，所以创建web项目后，导入jbpm-4.3\lib下的所有包，导入jbpm-4.3\jbpm.jar,
把jbpm4.3\lib\下面得juel.jar，juel-engine.jar，juel-impl.jar放到tomcat的lib下面。导入spring2.5的jar，导入struts2.1.8所需jar包。以下jar包不是最简，有些不是必须的。

spring2.5所需jar包清单：
aspectjrt.jar
aspectjweaver.jar
cglib-nodep-2.1_3.jar
common-annotations.jar
commons-logging.jar
log4j-1.2.15.jar
spring.jar
spring-webmvc-struts.jar
------------------------------------
struts2.1.8所需jar包清单：
commons-fileupload-1.2.1.jar
commons-io-1.3.2.jar
freemarker-2.3.15.jar
ognl-2.7.3.jar
struts2-core-2.1.8.1.jar
struts2-dojo-plugin-2.1.8.1.jar
struts2-spring-plugin-2.1.8.1.jar
xwork-core-2.1.6.jar
-----------------------------------
数据库和数据源所需jar包：
c3p0-0.9.1.2.jar
mysql-connector-java-5.1.7-bin.jar
找到jbpm-4.3\install\src\cfg\jbpm\下的spring.jbpm.cfg.xml文件，放入项目的src处，改名为jbpm.cfg.xml.

在项目src下面创建applicationContext.xml配置文件，内容如下：

Xml代码

<?xml version="1.0" encoding="UTF-8"?>
 <beans xmlns="http://www.springframework.org/schema/beans"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xmlns:context="http://www.springframework.org/schema/context"
      xmlns:p="http://www.springframework.org/schema/p"
     xmlns:aop="http://www.springframework.org/schema/aop"
     xmlns:tx="http://www.springframework.org/schema/tx"
     xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
           http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-2.5.xsd
           http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd
            http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd">

     <!-- 开启注解配置 -->
     <context:annotation-config />

     <!-- 对指定的包进行组件扫描 -->
     <context:component-scan base-package="org.forever.leave" />

     <!-- 配置数据源,导入c3p0-0.9.1.2.jar,mysql-connector-java-5.1.7-bin.jar -->
     <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource"
         destroy-method="close">
         <property name="driverClass">
             <value>com.mysql.jdbc.Driver</value>
         </property>
         <property name="jdbcUrl">
             <value>jdbc:mysql://localhost:3306/jbpmdb</value>
         </property>
         <property name="user">
             <value>root</value>
         </property>
         <property name="password">
             <value>root</value>
         </property>
     </bean>

     <!-- 集成hibernate配置 -->
     <bean id="sessionFactory"
         class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
         <property name="dataSource" ref="dataSource" />
         <property name="hibernateProperties" ref="hibernateProperties" />
         <property name="mappingLocations">
             <list>
                 <value>classpath*:org/forever/leave/entities/*.hbm.xml</value>
                 <value>classpath:jbpm.repository.hbm.xml</value>
                 <!-- 以下几个jbpm.*.hbm.xml由jBPM自带 -->
                 <value>classpath:jbpm.execution.hbm.xml</value>
                 <value>classpath:jbpm.history.hbm.xml</value>
                 <value>classpath:jbpm.task.hbm.xml</value>
                 <value>classpath:jbpm.identity.hbm.xml</value>
             </list>
         </property>
     </bean>

     <bean name="hibernateProperties"
         class="org.springframework.beans.factory.config.PropertiesFactoryBean">
         <property name="properties">
             <props>
                 <prop key="hibernate.dialect">org.hibernate.dialect.MySQLDialect</prop>
                 <prop key="hibernate.show_sql">true</prop>
                 <prop key="hibernate.hbm2ddl.auto">update</prop>
             </props>
         </property>
     </bean>

     <!-- jbpm配置 -->
     <bean id="springHelper" class="org.jbpm.pvm.internal.processengine.SpringHelper" />
     <bean id="processEngine" factory-bean="springHelper"
         factory-method="createProcessEngine" />

     <!-- 模板配置自己写的，不是必须的 -->
     <bean id="jbpmTemplate" class="org.forever.leave.jbpm.JbpmTemplate">
         <property name="processEngine" ref="processEngine"></property>
     </bean>

     <!-- 数据层用的模板工具，不是必须的 -->
     <bean id="hibernateTemplate" class="org.springframework.orm.hibernate3.HibernateTemplate">
         <property name="sessionFactory" ref="sessionFactory"></property>
     </bean>

     <!-- 事务配置，必须 -->
     <bean id="transactionManager"
         class="org.springframework.orm.hibernate3.HibernateTransactionManager">
         <property name="sessionFactory" ref="sessionFactory" />
     </bean>

     <!-- 切面配置 -->
     <aop:config>
         <aop:pointcut expression="execution(* org.forever.leave.service..*.*(..))"
             id="transactionPointcut" />
         <aop:advisor advice-ref="txAdvice" pointcut-ref="transactionPointcut" />
     </aop:config>
     <!-- 通知配置 -->
     <tx:advice id="txAdvice" transaction-manager="transactionManager">
         <tx:attributes>
             <tx:method name="get*" read-only="true" propagation="NOT_SUPPORTED" />
             <tx:method name="find*" read-only="true" propagation="NOT_SUPPORTED" />
             <tx:method name="*" propagation="REQUIRED" />
         </tx:attributes>
     </tx:advice>



 </beans>

添加 log4j.properties文件；
模板类JbpmTemplate:

Java代码

package org.forever.leave.jbpm;

 import org.jbpm.api.ExecutionService;
 import org.jbpm.api.HistoryService;
 import org.jbpm.api.ManagementService;
 import org.jbpm.api.ProcessEngine;
 import org.jbpm.api.ProcessInstance;
 import org.jbpm.api.RepositoryService;
 import org.jbpm.api.TaskService;

 /**
 * jbpm模板类(初步实现)
 *
 * @author Administrator
 *
 */
 public class JbpmTemplate {

     /**
     * 部署流程到数据库
     *
     * @param resourceName
     *            资源文件名字 比如(org/forever/jbpm/jpdl/process.jpdl.xml)
     * @return 返回流程定义id(格式：key-version)
     */
     public String Deploy(String resourceName) {
         return repositoryService.createDeployment().addResourceFromClasspath(
                resourceName).deploy();
    }

     /**
     * 创建一个新的流程实例
     *
     * @param processDefinitionKey
     *            (process.jpdl.xml中process标签的key)
     * @param processInstanceKey
     *            (用户给的key,可以使用uuid等)
     * @return 流程实例
     */
     public ProcessInstance addProcessInstance(String processDefinitionKey,
            String processInstanceKey) {
         return executionService.startProcessInstanceByKey(processDefinitionKey,
                processInstanceKey);

    }

     /**
     * 根据key获取流程实例(这里我使用的uuid)
     *
     * @param key
     *            (对应于数据库表jbpm4_execution中的KEY_字段)
     * @return 返回查找到得流程实例，没有返回null
     */
     public ProcessInstance getProcessInstance(String key) {
         return executionService.createProcessInstanceQuery()
                .processInstanceKey(key).uniqueResult();
    }

     /**
     * 彻底删除文件的部署
     *
     * @param deploymentId流程定义id
     */
     public void deleteDeploymentCascade(String deploymentId) {
        repositoryService.deleteDeploymentCascade(deploymentId);
    }

     public JbpmTemplate() {

    }

     public JbpmTemplate(ProcessEngine processEngine) {
         this.processEngine = processEngine;
        repositoryService = processEngine.getRepositoryService();
        executionService = processEngine.getExecutionService();
        taskService = processEngine.getTaskService();
        historyService = processEngine.getHistoryService();
        managementService = processEngine.getManagementService();
    }

     private ProcessEngine processEngine;
     private RepositoryService repositoryService = null;
     private ExecutionService executionService = null;
     private TaskService taskService = null;
     private HistoryService historyService = null;
     private ManagementService managementService = null;

     public ProcessEngine getProcessEngine() {
         return processEngine;
    }

     public void setProcessEngine(ProcessEngine processEngine) {
         this.processEngine = processEngine;
        System.out.println(processEngine);
        repositoryService = processEngine.getRepositoryService();
        executionService = processEngine.getExecutionService();
        taskService = processEngine.getTaskService();
        historyService = processEngine.getHistoryService();
        managementService = processEngine.getManagementService();
    }

     public RepositoryService getRepositoryService() {
         return repositoryService;
    }

     public void setRepositoryService(RepositoryService repositoryService) {
         this.repositoryService = repositoryService;
    }

     public ExecutionService getExecutionService() {
         return executionService;
    }

     public void setExecutionService(ExecutionService executionService) {
         this.executionService = executionService;
    }

     public TaskService getTaskService() {
         return taskService;
    }

     public void setTaskService(TaskService taskService) {
         this.taskService = taskService;
    }

     public HistoryService getHistoryService() {
         return historyService;
    }

     public void setHistoryService(HistoryService historyService) {
         this.historyService = historyService;
    }

     public ManagementService getManagementService() {
         return managementService;
    }

     public void setManagementService(ManagementService managementService) {
         this.managementService = managementService;
    }

}

创建测试类Test：

Java代码

import java.util.UUID;

 import org.forever.leave.jbpm.JbpmTemplate;
 import org.jbpm.api.ProcessInstance;
 import org.springframework.context.ApplicationContext;
 import org.springframework.context.support.ClassPathXmlApplicationContext;

 public class Test {

     public static void main(String[] args) {
         ApplicationContext context = new ClassPathXmlApplicationContext(
                 "applicationContext.xml");

        JbpmTemplate jbpmTemplate = (JbpmTemplate) context
                 .getBean("jbpmTemplate");
        System.out.println(jbpmTemplate);

         jbpmTemplate.Deploy("org/forever/leave/jbpm/jpdl/leave.jpdl.xml");
        UUID uuid = UUID.randomUUID();
    }
}

控制台输出没有报错说明jbpm和spring初步集成成功；
访问http://localhost:8080/leave/user/queryList.action获取到用户列表信息，说明集成成功。
项目中需要修改mysql方言为org.hibernate.dialect.MySQLInnoDBDialect，事务service改为biz，刚发现的，呵呵
下一步进行业务的实现。
未完
因为朋友需要，所以对其进行了简单的实现：
在实现中发现集成的时候，如果你用mysql数据库，请设置你的方言为：org.hibernate.dialect.MySQLInnoDBDialect

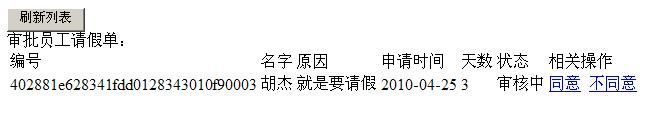

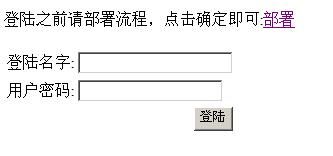

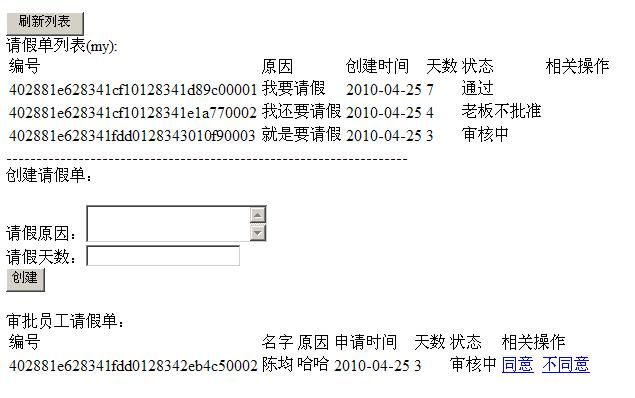

先看一哈这个实现了简单业务的一个图，在此用的中文，也是网上找的：



<?xml version="1.0" encoding="UTF-8"?>

<process key="leave" name="leave" xmlns="http://jbpm.org/4.3/jpdl">
   <start g="201,14,48,48" name="开始">
      <transition g="-42,-10" name="请假" to="填写请假单"/>
   </start>
   <task assignee="writerForm" g="178,87,92,52" name="填写请假单">
      <transition g="-97,2" name="判断是不是经理" to="是不是经理"/>
   </task>
   <decision expr="#{manager}" g="204,158,48,48" name="是不是经理">
      <transition g="-23,-11" name="否" to="经理审核"/>
      <transition g="14,-11" name="是" to="老板审批"/>
   </decision>
   <task assignee="#{username}" g="103,252,92,52" name="经理审核">
      <transition g="150,450:10,-21" name="经理批准" to="结束"/>
      <transition g="-22,-22" name="请假天数>5" to="老板审批"/>
      <transition g="-61,-1" name="经理不批准" to="终止"/>
      <transition g="149,114:-55,82" name="经理驳回" to="填写请假单"/>
   </task>

   <!-- 这里只有一个老板，所以写死了，如果有多个老板，写法同上,业务就会改变 -->
   <task assignee="张杰" g="278,251,92,52" name="老板审批">
      <transition g="326,450:-58,-24" name="老板批准" to="结束"/>
      <transition g="7,0" name="老板不批准" to="终止"/>
      <transition g="323,114:13,61" name="老板驳回" to="填写请假单"/>
   </task>
   <end g="219,429,48,48" name="结束" state="confirm"/>
   <end g="220,360,48,48" name="终止" state="dissent"/>
</process>

 写了个经理审批的测试类过程：

package org.forever.leave.biz.test;

import java.util.ArrayList;
import java.util.Date;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.UUID;

import org.forever.leave.entities.Leave;
import org.forever.leave.entities.User;
import org.jbpm.api.ProcessInstance;
import org.jbpm.api.task.Task;
import org.junit.Test;

//请假测试
//运行顺序
//testDeploy()
//testCresteLeave()
//testStart()
//testGetTask()
//testGetLeave()
public class LeaveTest extends BaseTest{

    //部署流程
    @Test
    public void testDeploy(){
        String resourceName ="org/forever/leave/jbpm/jpdl/leave.jpdl.xml";
        jbpmTemplate.Deploy(resourceName);

    }

    //新建请假单
    @Test
    public void testCresteLeave(){

        //现假设用户陈均登陆了系统，然后进行请假
        String loginName = "cj";//登陆者
        String password = "cj";//登陆密码
        User user = userDao.get(loginName,password);
        //status=新建，就是未提交的
        UUID uuid = UUID.randomUUID();
        Leave leave = new Leave(user, 3,new Date(),"新建", "生病了");
        leave.setLeaveId(uuid.toString());
        //保存到数据库
        leaveDao.save(leave);
    }

    // 启动流程实例,提交请假申请
    //注意（如果要对该测试类成功测试，首先确保存在juel-engine.jar，juel-impl.jar，juel.jar）
    //部署到tomcat里面的时候就把juel.jar，juel-engine.jar，juel-impl.jar放到tomcat的lib下面
    @Test
    public void testStart() {
        //进行业务流转所需的变量
        String loginName = "cj";//登陆者
        String password = "cj";//登陆密码
        User user = userDao.get(loginName,password);
        // 3.启动流程实例,绑定业务key,key最好是唯一的
        List<?> list = leaveDao.findByUserLeave(user.getUserId());//该用户可能有多次请假的记录
        //假设用户选择的是index=0的那个请假单
        Leave leave = (Leave)list.get(0);


        String position = user.getPosition();//用户的职位
        Map<String, Object> variables = new HashMap<String, Object>();//流程中要用到的变量信息

        variables.put("leaveId",leave.getLeaveId());//存放该实例的请假单

        if("员工".equals(position)){//如果是员工请假
            variables.put("manager", "否");
            variables.put("username","胡杰");//指定一个经理进行审批

        }else if("经理".equals(position)){//如果是经理请假
            variables.put("manager", "是");
            //只有一个boos，所以在xml中指定了，在此就不用指定了
        }
        //此时就获取到了该请假单的id
        //通过该leaveId来绑定一个流程实例
        ProcessInstance processInstance = jbpmTemplate.addProcessInstance("leave",variables, leave.getLeaveId());
        //该表单到时候是在web页面进行申请时填写好的
        System.out.println("请假单已填写：" + processInstance.isActive("填写请假单"));

        String taskId = jbpmTemplate.findPersonalTasks("writerForm").get(0).getId();
        //让任务向下流转,提交任务
        jbpmTemplate.completeTask(taskId);

    }

    //获取任务集合
    @Test
    public void testGetTask(){
        //经理登陆系统，获取审批任务
        String username = "胡杰";
        List<Leave> leaves = new ArrayList<Leave>();//该经理可能对多个请假单审批，该集合提供给页面使用的
        List<Task> list = jbpmTemplate.findPersonalTasks(username);
        if(list.size()==0){
            System.out.println(username + "没有任务.........");
        }
        else{
            for (Task task : list) {
                System.out.println("任务名字：" + task.getName());
                System.out.println("任务参与者：" + task.getAssignee());
                String taskId = task.getId();
                String leaveId = (String) jbpmTemplate.getVariableByTaskId(taskId, "leaveId");
                Leave leave = leaveDao.findbyIdLeave(leaveId);
                leave.setTaskId(taskId);
                leaves.add(leave);
            }
        }

        //页面显示,并全部通过审批
        for (Leave leave : leaves) {
            System.out.println(leave);
            //批准流程
            ProcessInstance processInstance = jbpmTemplate.getProcessInstance(leave.getLeaveId());
            String taskId = leave.getTaskId();
            int day = leave.getDay();//请假天数
            if(day>5 && true){//如果大于5天，并且经理批准，也要提交给boos审核
                jbpmTemplate.completeTask(taskId, "请假天数>5");
            }else{//直接通过,既让任务流转到结束
                jbpmTemplate.completeTask(taskId,"经理批准");
            }
            System.out.println("审批结果：" + processInstance.getState());
            leave.setStatus("通过");
            leaveDao.update(leave);//更新结果
        }


    }

    //获取指定用户的请假单集合
    @Test
    public void testGetLeave(){
        //进行业务流转所需的变量
        String loginName = "cj";//登陆者
        String password = "cj";//登陆密码
        User user = userDao.get(loginName,password);
        //页面显示用
        List<?> list = leaveDao.findByUserLeave(user.getUserId());
        for (Object object : list) {
            System.out.println(object);
            //是否已经申请
            //已经提交的请假单不能进行删除操作(所以慎重，呵呵)
            //新建状态的请假单可以进行删除操作
        }

    }

}

web版的我截几个效果图，具体过程你们下载来感受吧:

login.jsp登陆页面http://localhost:90/leave/login.jsp：第一次需要部署一哈

 普通员工登陆用户名和密码为cj:

 经理用户名和密码为hj,登陆后如图：


 老板的用户名和密码zxp,进去后如图：
