windows 上实现Apache 负载均衡 +tomcat群集 （二）

Tomcat集群的配置：

1.       下载 tomcat 的软件包：下载解压版本

Binary Distributions

・         Core: o    zip ( pgp , md5 )

下载地址：

http://apache.freelamp.com/tomcat/tomcat-6/v6.0.20/bin/apache-tomcat-6.0.20.zip

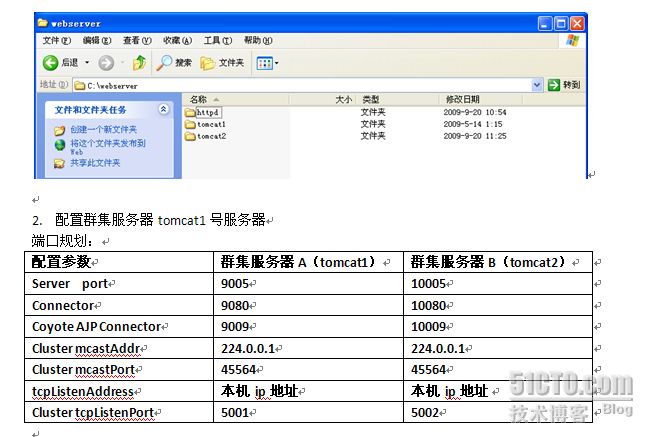

解压 tomcat 到 c 盘根目录，重命名为 tomcat1 ，然后复制 tomcat1 为 tomcat2.



修改 server.xml 配置文件



Tomcat1 中修改的部分：

1.<Server port="9005" shutdown="SHUTDOWN">





 2. <Connector port="9080" protocol="HTTP/1.1"

               connectionTimeout="20000"

               redirectPort="8443" />



1.       <Connector port="9009" protocol="AJP/1.3" redirectPort="8443" />





4. <Host name="localhost"  appBase="webapps"

            unpackWARs="true" autoDeploy="true"

            xmlValidation="false" xmlNamespaceAware="false">

----------------------------------- 添加的部分 -----------------------------------

添加在 <Host></Host> 之间

<Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"  channelSendOptions="6">

<Manager className="org.apache.catalina.ha.session.BackupManager"

expireSessionsOnShutdown="false"

notifyListenersOnReplication="true"

mapSendOptions="6"/>



<Channel className="org.apache.catalina.tribes.group.GroupChannel">

<Membership className="org.apache.catalina.tribes.membership.McastService"

address="224.0.0.1"

port="45564"

frequency="500"

dropTime="3000"/>

<Receiver className="org.apache.catalina.tribes.transport.nio.NioReceiver"

address="auto"

port=" 5001 "

selectorTimeout="100"

maxThreads="6"/>

<Sender className="org.apache.catalina.tribes.transport.ReplicationTransmitter">

<Transport className="org.apache.catalina.tribes.transport.nio.PooledParallelSender"/>

</Sender>

<Interceptor className="org.apache.catalina.tribes.group.interceptors.TcpFailureDetector"/>

<Interceptor className="org.apache.catalina.tribes.group.interceptors.MessageDispatch15Interceptor"/>

<Interceptor className="org.apache.catalina.tribes.group.interceptors.ThroughputInterceptor"/>

</Channel>

<Valve className="org.apache.catalina.ha.tcp.ReplicationValve"

filter=".*\.gif;.*\.js;.*\.jpg;.*\.png;.*\.htm;.*\.html;.*\.css;.*\.txt;"/>

<Deployer className="org.apache.catalina.ha.deploy.FarmWarDeployer"

tempDir="/tmp/war-temp/"

deployDir="/tmp/war-deploy/"

watchDir="/tmp/war-listen/"

watchEnabled="false"/>

<ClusterListener className="org.apache.catalina.ha.session.ClusterSessionListener"/>

</Cluster>

      </Host>





Tomcat2 中修改的部分：

1.<Server port="10005" shutdown="SHUTDOWN">



2 ． <Connector port="10080" protocol="HTTP/1.1"

               connectionTimeout="20000"

               redirectPort="8443" />



3.<Connector port="10009" protocol="AJP/1.3" redirectPort="8443" />



4.  添加在 <Host></Host> 之间



<Host name="localhost"  appBase="webapps"

            unpackWARs="true" autoDeploy="true"

            xmlValidation="false" xmlNamespaceAware="false">

<Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"  channelSendOptions="6">

<Manager className="org.apache.catalina.ha.session.BackupManager"

expireSessionsOnShutdown="false"

notifyListenersOnReplication="true"

mapSendOptions="6"/>

<Channel className="org.apache.catalina.tribes.group.GroupChannel">

<Membership className="org.apache.catalina.tribes.membership.McastService"

address="228.0.0.4"

port="45564"

frequency="500"

dropTime="3000"/>

<Receiver className="org.apache.catalina.tribes.transport.nio.NioReceiver"

address="auto"

port="5002"

selectorTimeout="100"

maxThreads="6"/>

<Sender className="org.apache.catalina.tribes.transport.ReplicationTransmitter">

<Transport className="org.apache.catalina.tribes.transport.nio.PooledParallelSender"/>

</Sender>

<Interceptor className="org.apache.catalina.tribes.group.interceptors.TcpFailureDetector"/>

<Interceptor className="org.apache.catalina.tribes.group.interceptors.MessageDispatch15Interceptor"/>

<Interceptor className="org.apache.catalina.tribes.group.interceptors.ThroughputInterceptor"/>

</Channel>

<Valve className="org.apache.catalina.ha.tcp.ReplicationValve"

filter=".*\.gif;.*\.js;.*\.jpg;.*\.png;.*\.htm;.*\.html;.*\.css;.*\.txt;"/>

<Deployer className="org.apache.catalina.ha.deploy.FarmWarDeployer"

tempDir="/tmp/war-temp/"

deployDir="/tmp/war-deploy/"

watchDir="/tmp/war-listen/"

watchEnabled="false"/>

<ClusterListener className="org.apache.catalina.ha.session.ClusterSessionListener"/>

</Cluster>

 </Host>



集群测试

在 2 个 tomcat 里面添加网页





Tomcat1 上的 \webapps\ROOT\index.html 内容如下：

<html>

<head><title>Tomcat 群集 1</title></head>

<body>

<center>Tomcat 1 号机在 tomcatA 机上

</center>

</body>

</html>



Tomcat2 上的 webapps\ROOT\index.html 内容如下：

<html>

<head><title>Tomcat  群集 2</title></head>

<body>

<center>Tomcat 2 号机在 TomcatB 机上

</center>

</body>

</html>





启动 Tomcat1 和 Tomcat2 ，再启动 Apache
