DXUT工作模式的简单解析-底层框架

      这里要讨论的是，DXUT中的一般框架。以前看了很多资料了，讲得十分详细。不过我在这里就把一些简单的东西总结一下，比如DXUT的工作机制以及模式。对只想了解一下并且快速上手使用的人应该很有帮助。
      下面要说的只是我自己自学以及领悟到的内容而已，难免有疏漏和错误，希望读者可以帮我指出。

      DXUT，就是DirectX SDK中附带的一个功能齐全的Direct3D底层框架，有各种语言版本，但其实构架都差不多。这里以C++的为标准，SDK版本为June 2008。

      先把DirectX SDK里的EmptyProject安装了，打开工程。

      简单了解的话，只用来看一下这个DXUT.h，我再稍微说一下就应该大概明白了。
      不要被代码吓住！！！往后看吧。这个代码是拿来对照讲的。

// --------------------------------------------------------------------------------------
2

// File: DXUT.h
3

//
4

// Copyright (c) Microsoft Corporation. All rights reserved.
5

// --------------------------------------------------------------------------------------
6

#pragma once
7

#ifndef DXUT_H
8

#define DXUT_H
9

#ifndef UNICODE
11

#error "DXUT requires a Unicode build. See the nearby comments for details"
12

//
13

// If you are using Microsoft Visual C++ .NET, under the General tab of the project
14

// properties change the Character Set to 'Use Unicode Character Set'.
15

//
16

// Windows XP and later are native Unicode so Unicode applications will perform better.
17

// For Windows 98 and Windows Me support, consider using the Microsoft Layer for Unicode (MSLU).
18

//
19

// To use MSLU, link against a set of libraries similar to this
20

// /nod:kernel32.lib /nod:advapi32.lib /nod:user32.lib /nod:gdi32.lib /nod:shell32.lib /nod:comdlg32.lib /nod:version.lib /nod:mpr.lib /nod:rasapi32.lib /nod:winmm.lib /nod:winspool.lib /nod:vfw32.lib /nod:secur32.lib /nod:oleacc.lib /nod:oledlg.lib /nod:sensapi.lib UnicoWS.lib kernel32.lib advapi32.lib user32.lib gdi32.lib shell32.lib comdlg32.lib version.lib mpr.lib rasapi32.lib winmm.lib winspool.lib vfw32.lib secur32.lib oleacc.lib oledlg.lib sensapi.lib dxerr.lib dxguid.lib d3dx9d.lib d3d9.lib comctl32.lib dsound.lib
21

// and put the unicows.dll (available for download from msdn.microsoft.com) in the exe's folder.
22

//
23

// For more details see the MSDN article titled:
24

// "MSLU: Develop Unicode Applications for Windows 9x Platforms with the Microsoft Layer for Unicode"
25

// at http://msdn.microsoft.com/msdnmag/issues/01/10/MSLU/default.aspx
26

//
27

#endif
28

// --------------------------------------------------------------------------------------
30

// Structs
31

// --------------------------------------------------------------------------------------
32

class CD3DEnumeration;
33

struct DXUTDeviceSettings
35

{
36

UINT AdapterOrdinal;
37

D3DDEVTYPE DeviceType;
38

D3DFORMAT AdapterFormat;
39

DWORD BehaviorFlags;
40

D3DPRESENT_PARAMETERS pp;
41

} ;
42

// --------------------------------------------------------------------------------------
45

// Error codes
46

// --------------------------------------------------------------------------------------
47

#define DXUTERR_NODIRECT3D MAKE_HRESULT(SEVERITY_ERROR, FACILITY_ITF, 0x0901)
48

#define DXUTERR_NOCOMPATIBLEDEVICES MAKE_HRESULT(SEVERITY_ERROR, FACILITY_ITF, 0x0902)
49

#define DXUTERR_MEDIANOTFOUND MAKE_HRESULT(SEVERITY_ERROR, FACILITY_ITF, 0x0903)
50

#define DXUTERR_NONZEROREFCOUNT MAKE_HRESULT(SEVERITY_ERROR, FACILITY_ITF, 0x0904)
51

#define DXUTERR_CREATINGDEVICE MAKE_HRESULT(SEVERITY_ERROR, FACILITY_ITF, 0x0905)
52

#define DXUTERR_RESETTINGDEVICE MAKE_HRESULT(SEVERITY_ERROR, FACILITY_ITF, 0x0906)
53

#define DXUTERR_CREATINGDEVICEOBJECTS MAKE_HRESULT(SEVERITY_ERROR, FACILITY_ITF, 0x0907)
54

#define DXUTERR_RESETTINGDEVICEOBJECTS MAKE_HRESULT(SEVERITY_ERROR, FACILITY_ITF, 0x0908)
55

#define DXUTERR_INCORRECTVERSION MAKE_HRESULT(SEVERITY_ERROR, FACILITY_ITF, 0x0909)
56

// --------------------------------------------------------------------------------------
59

// Callback registration
60

// --------------------------------------------------------------------------------------
61

typedef bool (CALLBACK * LPDXUTCALLBACKISDEVICEACCEPTABLE)( D3DCAPS9 * pCaps, D3DFORMAT AdapterFormat, D3DFORMAT BackBufferFormat, bool bWindowed, void * pUserContext );
62

typedef bool (CALLBACK * LPDXUTCALLBACKMODIFYDEVICESETTINGS)( DXUTDeviceSettings * pDeviceSettings, const D3DCAPS9 * pCaps, void * pUserContext );
63

typedef HRESULT (CALLBACK * LPDXUTCALLBACKDEVICECREATED)( IDirect3DDevice9 * pd3dDevice, const D3DSURFACE_DESC * pBackBufferSurfaceDesc, void * pUserContext );
64

typedef HRESULT (CALLBACK * LPDXUTCALLBACKDEVICERESET)( IDirect3DDevice9 * pd3dDevice, const D3DSURFACE_DESC * pBackBufferSurfaceDesc, void * pUserContext );
65

typedef void (CALLBACK * LPDXUTCALLBACKDEVICEDESTROYED)( void * pUserContext );
66

typedef void (CALLBACK * LPDXUTCALLBACKDEVICELOST)( void * pUserContext );
67

typedef void (CALLBACK * LPDXUTCALLBACKFRAMEMOVE)( IDirect3DDevice9 * pd3dDevice, double fTime, float fElapsedTime, void * pUserContext );
68

typedef void (CALLBACK * LPDXUTCALLBACKFRAMERENDER)( IDirect3DDevice9 * pd3dDevice, double fTime, float fElapsedTime, void * pUserContext );
69

typedef void (CALLBACK * LPDXUTCALLBACKKEYBOARD)( UINT nChar, bool bKeyDown, bool bAltDown, void * pUserContext );
70

typedef void (CALLBACK * LPDXUTCALLBACKMOUSE)( bool bLeftButtonDown, bool bRightButtonDown, bool bMiddleButtonDown, bool bSideButton1Down, bool bSideButton2Down, int nMouseWheelDelta, int xPos, int yPos, void * pUserContext );
71

typedef LRESULT (CALLBACK * LPDXUTCALLBACKMSGPROC)( HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam, bool * pbNoFurtherProcessing, void * pUserContext );
72

typedef void (CALLBACK * LPDXUTCALLBACKTIMER)( UINT idEvent, void * pUserContext );
73

// Device callbacks
75

void DXUTSetCallbackDeviceCreated( LPDXUTCALLBACKDEVICECREATED pCallbackDeviceCreated, void * pUserContext = NULL );
76

void DXUTSetCallbackDeviceReset( LPDXUTCALLBACKDEVICERESET pCallbackDeviceReset, void * pUserContext = NULL );
77

void DXUTSetCallbackDeviceLost( LPDXUTCALLBACKDEVICELOST pCallbackDeviceLost, void * pUserContext = NULL );
78

void DXUTSetCallbackDeviceDestroyed( LPDXUTCALLBACKDEVICEDESTROYED pCallbackDeviceDestroyed, void * pUserContext = NULL );
79

void DXUTSetCallbackDeviceChanging( LPDXUTCALLBACKMODIFYDEVICESETTINGS pCallbackModifyDeviceSettings, void * pUserContext = NULL );
80

// Frame callbacks
82

void DXUTSetCallbackFrameMove( LPDXUTCALLBACKFRAMEMOVE pCallbackFrameMove, void * pUserContext = NULL );
83

void DXUTSetCallbackFrameRender( LPDXUTCALLBACKFRAMERENDER pCallbackFrameRender, void * pUserContext = NULL );
84

// Message callbacks
86

void DXUTSetCallbackKeyboard( LPDXUTCALLBACKKEYBOARD pCallbackKeyboard, void * pUserContext = NULL );
87

void DXUTSetCallbackMouse( LPDXUTCALLBACKMOUSE pCallbackMouse, bool bIncludeMouseMove = false , void * pUserContext = NULL );
88

void DXUTSetCallbackMsgProc( LPDXUTCALLBACKMSGPROC pCallbackMsgProc, void * pUserContext = NULL );
89

// --------------------------------------------------------------------------------------
92

// Initialization
93

// --------------------------------------------------------------------------------------
94

HRESULT DXUTInit( bool bParseCommandLine = true , bool bHandleDefaultHotkeys = true , bool bShowMsgBoxOnError = true , bool bHandleAltEnter = true );
95

// Choose either DXUTCreateWindow or DXUTSetWindow. If using DXUTSetWindow, consider using DXUTStaticWndProc
97

HRESULT DXUTCreateWindow( const WCHAR * strWindowTitle = L " Direct3D Window " ,
98

HINSTANCE hInstance = NULL, HICON hIcon = NULL, HMENU hMenu = NULL,
99

int x = CW_USEDEFAULT, int y = CW_USEDEFAULT );
100

HRESULT DXUTSetWindow( HWND hWndFocus, HWND hWndDeviceFullScreen, HWND hWndDeviceWindowed, bool bHandleMessages = true );
101

LRESULT CALLBACK DXUTStaticWndProc( HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam );
102

103

// Choose either DXUTCreateDevice or DXUTSetDevice or DXUTCreateDeviceFromSettings
104

HRESULT DXUTCreateDevice( UINT AdapterOrdinal = D3DADAPTER_DEFAULT, bool bWindowed = true ,
105

int nSuggestedWidth = 0 , int nSuggestedHeight = 0 ,
106

LPDXUTCALLBACKISDEVICEACCEPTABLE pCallbackIsDeviceAcceptable = NULL,
107

LPDXUTCALLBACKMODIFYDEVICESETTINGS pCallbackModifyDeviceSettings = NULL,
108

void * pUserContext = NULL );
109

HRESULT DXUTCreateDeviceFromSettings( DXUTDeviceSettings * pDeviceSettings, bool bPreserveInput = false , bool bClipWindowToSingleAdapter = true );
110

HRESULT DXUTSetDevice( IDirect3DDevice9 * pd3dDevice );
111

112

// Choose either DXUTMainLoop or implement your own main loop
113

HRESULT DXUTMainLoop( HACCEL hAccel = NULL );
114

115

// If not using DXUTMainLoop consider using DXUTRender3DEnvironment
116

void DXUTRender3DEnvironment();
117

118

119

// --------------------------------------------------------------------------------------
120

// Finding valid device settings
121

// --------------------------------------------------------------------------------------
122

enum DXUT_MATCH_TYPE
123

{
124

DXUTMT_IGNORE_INPUT = 0, // Use the closest valid value to a default
125

DXUTMT_PRESERVE_INPUT, // Use input without change, but may cause no valid device to be found
126

DXUTMT_CLOSEST_TO_INPUT // Use the closest valid value to the input
127

} ;
128

129

struct DXUTMatchOptions
130

{
131

DXUT_MATCH_TYPE eAdapterOrdinal;
132

DXUT_MATCH_TYPE eDeviceType;
133

DXUT_MATCH_TYPE eWindowed;
134

DXUT_MATCH_TYPE eAdapterFormat;
135

DXUT_MATCH_TYPE eVertexProcessing;
136

DXUT_MATCH_TYPE eResolution;
137

DXUT_MATCH_TYPE eBackBufferFormat;
138

DXUT_MATCH_TYPE eBackBufferCount;
139

DXUT_MATCH_TYPE eMultiSample;
140

DXUT_MATCH_TYPE eSwapEffect;
141

DXUT_MATCH_TYPE eDepthFormat;
142

DXUT_MATCH_TYPE eStencilFormat;
143

DXUT_MATCH_TYPE ePresentFlags;
144

DXUT_MATCH_TYPE eRefreshRate;
145

DXUT_MATCH_TYPE ePresentInterval;
146

} ;
147

148

HRESULT DXUTFindValidDeviceSettings( DXUTDeviceSettings * pOut, DXUTDeviceSettings * pIn = NULL, DXUTMatchOptions * pMatchOptions = NULL );
149

150

151

// --------------------------------------------------------------------------------------
152

// Common Tasks
153

// --------------------------------------------------------------------------------------
154

void DXUTSetCursorSettings( bool bShowCursorWhenFullScreen, bool bClipCursorWhenFullScreen );
155

void DXUTSetMultimonSettings( bool bAutoChangeAdapter );
156

void DXUTSetShortcutKeySettings( bool bAllowWhenFullscreen = false , bool bAllowWhenWindowed = true ); // Controls the Windows key, and accessibility shortcut keys
157

void DXUTSetWindowSettings( bool bCallDefWindowProc = true );
158

void DXUTSetConstantFrameTime( bool bConstantFrameTime, float fTimePerFrame = 0.0163f );
159

HRESULT DXUTSetTimer( LPDXUTCALLBACKTIMER pCallbackTimer, float fTimeoutInSecs = 1.0f , UINT * pnIDEvent = NULL, void * pCallbackUserContext = NULL );
160

HRESULT DXUTKillTimer( UINT nIDEvent );
161

HRESULT DXUTToggleFullScreen();
162

HRESULT DXUTToggleREF();
163

void DXUTPause( bool bPauseTime, bool bPauseRendering );
164

void DXUTResetFrameworkState();
165

void DXUTShutdown( int nExitCode = 0 );
166

167

168

// --------------------------------------------------------------------------------------
169

// State Retrieval
170

// --------------------------------------------------------------------------------------
171

IDirect3D9 * DXUTGetD3DObject(); // Does not addref unlike typical Get* APIs
172

IDirect3DDevice9 * DXUTGetD3DDevice(); // Does not addref unlike typical Get* APIs
173

DXUTDeviceSettings DXUTGetDeviceSettings();
174

D3DPRESENT_PARAMETERS DXUTGetPresentParameters();
175

const D3DSURFACE_DESC * DXUTGetBackBufferSurfaceDesc();
176

const D3DCAPS9 * DXUTGetDeviceCaps();
177

HINSTANCE DXUTGetHINSTANCE();
178

HWND DXUTGetHWND();
179

HWND DXUTGetHWNDFocus();
180

HWND DXUTGetHWNDDeviceFullScreen();
181

HWND DXUTGetHWNDDeviceWindowed();
182

RECT DXUTGetWindowClientRect();
183

RECT DXUTGetWindowClientRectAtModeChange(); // Useful for returning to windowed mode with the same resolution as before toggle to full screen mode
184

RECT DXUTGetFullsceenClientRectAtModeChange(); // Useful for returning to full screen mode with the same resolution as before toggle to windowed mode
185

double DXUTGetTime();
186

float DXUTGetElapsedTime();
187

bool DXUTIsWindowed();
188

float DXUTGetFPS();
189

LPCWSTR DXUTGetWindowTitle();
190

LPCWSTR DXUTGetFrameStats( bool bIncludeFPS = false );
191

LPCWSTR DXUTGetDeviceStats();
192

bool DXUTIsRenderingPaused();
193

bool DXUTIsTimePaused();
194

bool DXUTIsActive();
195

int DXUTGetExitCode();
196

bool DXUTGetShowMsgBoxOnError();
197

bool DXUTGetHandleDefaultHotkeys();
198

bool DXUTIsKeyDown( BYTE vKey ); // Pass a virtual-key code, ex. VK_F1, 'A', VK_RETURN, VK_LSHIFT, etc
199

bool DXUTIsMouseButtonDown( BYTE vButton ); // Pass a virtual-key code: VK_LBUTTON, VK_RBUTTON, VK_MBUTTON, VK_XBUTTON1, VK_XBUTTON2
200

bool DXUTGetAutomation(); // Returns true if -automation parameter is used to launch the app
201

202

#endif
203

204

205

206

207

千万别被代码吓住。对于不需要深入理解的我们来说，大多数都是不需要关心的。如果您需要深入理解的话，我非常抱歉我帮不上忙。在CPPBLOG里面有个标题为“天行健君子当自强不息”的一个BLOG里面有专门详细解析DXUT的文章。链接请自己百度一下吧。

于是我们来关注一下这个优美的框架。它定义了很多回调函数，以及留了许多接口。
我们需要关心的是这几个：
DXUTSetCallbackDeviceCreated
      为框架挂接上Direct3D设备创建后的回调函数
DXUTSetCallbackDeviceReset
      挂接Direct3D设备重置后的回调函数
DXUTSetCallbackDeviceLost
      挂接Direct3D设备丢失后的回调函数
DXUTSetCallbackDeviceDestroyed
      挂接Direct3D设备销毁后的回调函数
DXUTSetCallbackFrameRender
      挂接每帧渲染场景时的回调函数
DXUTSetCallbackFrameMove
      挂接每帧渲染前需要更新场景时的回调函数
DXUTSetCallbackMouse
      挂接鼠标事件的回调函数
DXUTSetCallbackKeyboard
      挂接键盘事件的回调函数

于是我们打开EmptyProject.cpp
看着WinMain函数

// --------------------------------------------------------------------------------------
2

// Initialize everything and go into a render loop
3

// --------------------------------------------------------------------------------------
4

INT WINAPI WinMain( HINSTANCE, HINSTANCE, LPSTR, int )
5

{
6

//设置回调函数
8

DXUTSetCallbackDeviceCreated( OnCreateDevice );
9

DXUTSetCallbackDeviceReset( OnResetDevice );
10

DXUTSetCallbackDeviceLost( OnLostDevice );
11

DXUTSetCallbackDeviceDestroyed( OnDestroyDevice );
12

DXUTSetCallbackMsgProc( MsgProc );
13

DXUTSetCallbackFrameRender( OnFrameRender );
14

DXUTSetCallbackFrameMove( OnFrameMove );
15

DXUTSetCallbackMouse( OnMouseEvent ,true);//第二个参数是指是否包含鼠标移动事件
16

DXUTSetCallbackKeyboard( OnKeyEvent );
17

// 这里写在程序底层初始化前需要的代码
19

// 初始化DXUT、程序窗口、Direct3D设备
22

DXUTInit( true, false, true ); // Parse the command line, handle the default hotkeys, and show msgboxes
23

DXUTSetCursorSettings( true, true ); // Show the cursor and clip it when in full screen
24

DXUTCreateWindow( “EmptyProject”);//窗口标题
25

DXUTCreateDevice( D3DADAPTER_DEFAULT, true, 640, 480, IsDeviceAcceptable, ModifyDeviceSettings );//创建设备
26

// 开始DXUT主循环
27

DXUTMainLoop();
28

// 这里写清理底层的代码
30

return DXUTGetExitCode();
31

}

看见了么，在这里挂接了需要的回调函数，不如我们将他们叫做“事件”，这样更好理解。
自己看一下就能明白那些代码的意思了

OnCreateDevice OnResetDevice OnLostDevice OnDestroyDevice MSgProc OnFrameRender OnFrameMove OnMouseEvent OnKetEvent
这些都是已经定义好的CALLBACK，我们的框架将从DXUTMainLoop()这里开始

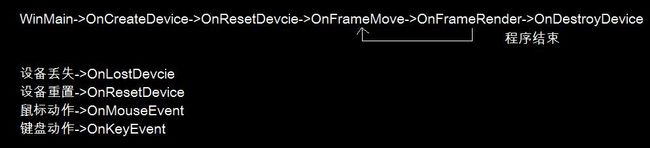

简单来说，我们需要了解的就只有这些事件的触发顺序了。
HRESULT CALLBACK OnCreateDevice( Device* pd3dDevice, const D3DSURFACE_DESC* pBackBufferSurfaceDesc, void* pUserContext )
      这个事件在设备创建完毕时就会触发，最先触发的东西。第一个参数是创建后的设备，第二个是设备的表面参数。pUserContext不需要关心，因此不讨论。下同。

HRESULT CALLBACK OnResetDevice( Device* pd3dDevice, const D3DSURFACE_DESC* pBackBufferSurfaceDesc, void* pUserContext )
      这个事件在设备重置的时候会触发。那么什么叫做设备重置呢？等下会和设备丢失一起说。第一个参数是重置后的设备，第二个是重置后设备的表面参数。

void CALLBACK OnLostDevice( void* pUserContext )
      这个事件在设备丢失的时候会触发。举个简单的例子，把窗口最小化的时候设备会丢失，而恢复的时候设备会重置。从全屏换为窗口的时候也会丢失并且重置。大概就是改变窗口的大小、位置、是否全屏的时候，会导致设备丢失，随后恢复的时候会重置。这两个事件的触发就是为了在窗口改变的时候重新设置一些参数，让画面适应当前窗口设置。

void CALLBACK OnFrameMove( Device* pd3dDevice, double fTime, float fElapsedTime, void* pUserContext )
      这个事件在每帧绘制前会触发，为的是更新场景信息。第一个参数是传入的Direct3D设备，第二个参数是从第一次触发这个事件到现在为止的时间，第三个参数是这次触发此事件距上次的时间。

void CALLBACK OnFrameRender( Device* pd3dDevice, double fTime, float fElapsedTime, void* pUserContext )
      这个事件在每帧渲染屏幕的时候触发。参数意义和OnFrameMove一样。

void CALLBACK OnMouseEvent(bool bLeftButtonDown, bool bRightButtonDown, bool bMiddleButtonDown, bool bSideButton1Down,
         bool bSideButton2Down, int nMouseWheelDelta, int xPos, int yPos, void* pUserContext)
      这个事件在鼠标有动作的时候触发。bLeftButtonDown:左键是否按下，bRighButtonDown:右键是否按下，bMiddleButtonDown:中间键是否按下，bSidebutton1Down:边键1是否按下，bSideButton2Down:边键2是否按下，nMouseWheelDelta:滚轮的滚动值，向手指指的方向滚动一格是-120，反之则为120，xPos:在窗口中的X坐标，yPos:在窗口中的Y坐标。

void CALLBACK OnKeyEvent( UINT nChar, bool bKeyDown, bool bAltDown, void* pUserContext )
      这个事件在键盘有动作的时候触发。nChar:发生动作的键，bKeyDown:发生动作的键是被按下还是被抬起，bAltDown:Alt键是否同时被按下。

这些了解了后，你就可以开始干事儿了。你可以把上面的回调函数都当做事件来看，而且是多线程的，这样更方便。
总结一下事件顺序：

如上图所示，DXUT的工作顺序大概就是这样。对于不需要深入了解DXUT工作细节来说，已经差不多了。

现在应该对框架的工作机制有一定得认识了，这篇简单的文章也就这样结束了。下一篇还是预告了吧，是在DXUT框架下，关于2D方面的东西。

顺便说一些DXUT.h中比较实用的接口
163行:void DXUTPause( bool bPauseTime, bool bPauseRendering ); 让OnFrameMove和OnFrameRender事件暂停或恢复触发，第一个参数为是否停止计时，第二个为是否停止绘制。
178行:HWND DXUTGetHWND();获取目前窗口句柄
182行:RECT DXUTGetWindowClientRect();
188行:float DXUTGetFPS();获取当前的FPS（Frame Per second 每秒帧数）
差不多就这些。

以上的代码在EmptyProject里面全部都有，这篇文章只是帮还没有接触过的新手入门而已。请勿鄙视，有任何意见和建议请提出，谢谢了。

现在已经傻瓜式地把框架搭建好了，并且可以简单使用了。那么下一步该干嘛？干事儿呗。
下一篇：Direct3D中的简单2D运用。有空再写了，先预告了吧。

DXUT工作模式的简单解析-底层框架

你可能感兴趣的:(DXUT工作模式的简单解析-底层框架)
