从 C++/ATL 客户程序调用 Javascript 编写的组件
有这个问题是因为, 我们可能要用 JavaScript 语言作为 "胶水" 粘合我们的 C++/ATL 组件, 那, 怎么在客户端使用 "胶水" 呢"? 以下就是它的简介.
首先, 用 JavaScript 语言编写组件, 以下是个例子:
<?xml version="1.0" encoding="UTF-8"?>
<?component error="true" debug="true"?>
<component id="XrhTest.LowerToUpper">
<registration
description = "UpperCase and lowCase convertion"
progid="XrhTest.LowerToUpper"
version="1.0"
classid="{9B88510F-9D5B-4dcd-9068-8AB0B4F7999C}" remotable="true">
</registration>
<public>
<!-- define method -->
<method name="toLower">
<parameter name="str"/>
</method>
<method name="toUpper">
<parameter name="str"/>
</method>
</public>
<script language="JavaScript">
<![CDATA[
function toLower(str)
{
var result=str.toLowerCase();
return result;
}
function toUpper(str)
{
var result=str.toUpperCase();
return result;
}
]]>
</script>
</component>
<?component error="true" debug="true"?>
<component id="XrhTest.LowerToUpper">
<registration
description = "UpperCase and lowCase convertion"
progid="XrhTest.LowerToUpper"
version="1.0"
classid="{9B88510F-9D5B-4dcd-9068-8AB0B4F7999C}" remotable="true">
</registration>
<public>
<!-- define method -->
<method name="toLower">
<parameter name="str"/>
</method>
<method name="toUpper">
<parameter name="str"/>
</method>
</public>
<script language="JavaScript">
<![CDATA[
function toLower(str)
{
var result=str.toLowerCase();
return result;
}
function toUpper(str)
{
var result=str.toUpperCase();
return result;
}
]]>
</script>
</component>
将这个组件保存为 lower2upper.wsc 文件.
然后, 注册这个组件, 方法是, 在这个 wsc 文件上右击鼠标, 然后选 "注册" 菜单项, 完成注册, 点击 OK 按钮完成操作. 如下图
注册完成后， 在注册表内有以下条目
[
HKEY_CLASSES_ROOT\CLSID\{9B88510F-9D5B-4DCD-9068-8AB0B4F7999C}
]
@
=
"
UpperCase and lowCase convertion
"
"
AppID
"
=
"
{9B88510F-9D5B-4DCD-9068-8AB0B4F7999C}
"
[
HKEY_CLASSES_ROOT\CLSID\{9B88510F-9D5B-4DCD-9068-8AB0B4F7999C}\InprocServer32
]
@
=
"
C:\\WINDOWS\\System32\\scrobj.dll
"
"
ThreadingModel
"
=
"
Apartment
"
[
HKEY_CLASSES_ROOT\CLSID\{9B88510F-9D5B-4DCD-9068-8AB0B4F7999C}\ProgID
]
@
=
"
XrhTest.LowerToUpper.1.0
"
[
HKEY_CLASSES_ROOT\CLSID\{9B88510F-9D5B-4DCD-9068-8AB0B4F7999C}\ScriptletURL
]
@
=
"
file:///D:/lower2upper.wsc
"
[
HKEY_CLASSES_ROOT\CLSID\{9B88510F-9D5B-4DCD-9068-8AB0B4F7999C}\VersionIndependentProgID
]
@
=
"
XrhTest.LowerToUpper
"
最后, 我们来编写 C++ 客户端, 随便创建一个 C++ 文件, 然后用 VC6 编译, 运行, 查看结果. 示例代码如下:
#include
<
atlbase.h
>
extern CComModule _Module;
#include < atlcom.h >
void main()
{
CoInitialize(NULL);
{
HRESULT hr = E_FAIL;
CComQIPtr < IDispatch > spTmp;
hr = spTmp.CoCreateInstance(L " XrhTest.LowerToUpper " );
if (SUCCEEDED(hr))
{
CComDispatchDriver spDisp(spTmp);
CComVariant varParam(L " The quick brown fox jumps over the lazy dog " );
CComVariant varResult;
hr = spDisp.Invoke1(L " toUpper " , & varParam, & varResult);
if (SUCCEEDED(hr))
{
MessageBoxW(NULL, (LPCWSTR) varResult.bstrVal, L " MB_OK " , MB_OK);
}
}
}
CoUninitialize();
}
CComModule _Module;

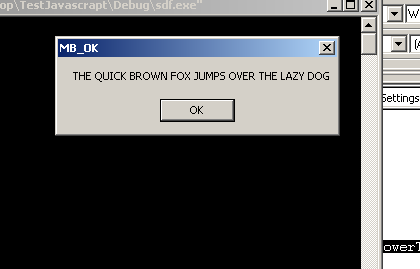

如果不出意外, 运行结果将弹出一个全是大写文本的对话框. 如下图:
extern CComModule _Module;
#include < atlcom.h >
void main()
{
CoInitialize(NULL);
{
HRESULT hr = E_FAIL;
CComQIPtr < IDispatch > spTmp;
hr = spTmp.CoCreateInstance(L " XrhTest.LowerToUpper " );
if (SUCCEEDED(hr))
{
CComDispatchDriver spDisp(spTmp);
CComVariant varParam(L " The quick brown fox jumps over the lazy dog " );
CComVariant varResult;
hr = spDisp.Invoke1(L " toUpper " , & varParam, & varResult);
if (SUCCEEDED(hr))
{
MessageBoxW(NULL, (LPCWSTR) varResult.bstrVal, L " MB_OK " , MB_OK);
}
}
}
CoUninitialize();
}
CComModule _Module;
以上所讲的组件注册将会在注册表内留下痕迹, 不够绿色. 如果组件不注册, 或者脚本内没有 <registration> 元素, 可以使用以下介绍的方法来使用 wsc 组件.
#include
<
atlbase.h
>
extern
CComModule _Module; #include
<
atlcom.h
>
HRESULT CreateScriptComponent(LPCTSTR lpszScriptletURL, OUT IDispatch
**
ppDispatch)
{
HRESULT hr = E_FAIL; do
{ if (NULL == ppDispatch) { break;
} CComPtr<IBindCtx> pbc; CComPtr<IMoniker> pMoniker; hr = CreateBindCtx(0, &pbc); if (FAILED(hr)) { break; } CComBSTR strPath(L"script:"); strPath.Append(lpszScriptletURL); ULONG lEaten = 0; hr = MkParseDisplayName(pbc, strPath, &lEaten, &pMoniker); if (FAILED(hr)) { break; } hr = BindMoniker(pMoniker, 0, __uuidof(IDispatch), (void**)ppDispatch); if (FAILED(hr)) { break; } } while(false); return hr;
}
int
_tmain(
int
argc, _TCHAR
*
argv[])
{ HRESULT hr = E_FAIL; CoInitialize(NULL); do { CComPtr<IDispatch> pScript; hr = CreateScriptComponent( _T("file:///d:/lower2upper.wsc"), // _T("d:\\lower2upper.wsc") &pScript); if (FAILED(hr)) { break; } CComDispatchDriver spDisp(pScript); CComVariant varParam(L"The quick brown fox jumps over the lazy dog"); CComVariant varResult; HRESULT hr = spDisp.Invoke1(L"toUpper", &varParam, &varResult); if (SUCCEEDED(hr)) { MessageBoxW(NULL, (LPCWSTR) varResult.bstrVal, L"MB_OK", MB_OK); } } while (false); CoUninitialize(); return 0;}
CComModule _Module;
参考文献:
http://blog.csdn.net/broadview2006/archive/2009/03/19/4004361.aspx
http://www.vckbase.com/document/viewdoc/?id=1518
延伸阅读:
<< 怎样在 Windows 环境下调试 JScript 脚本>>
<< 几行代码让你的程序加入vbscipt脚本扩展功能>>
http://support.microsoft.com/kb/221992/en-us
http://support.microsoft.com/kb/223139/en-us
http://support.microsoft.com/kb/196135/en-us
http://support.microsoft.com/kb/168214/
http://support.microsoft.com/kb/183698/
PS, 一个稍微有点用的例子:
源代码: http://www.cppblog.com/Files/free2000fly/jsTest.zip
