SpringBoot | 第四十四章：SpringBoot2.x(2.1.6)集成Swagger2.x(2.6.1)访问静态资源404与访问swagger-ui.html404的问题

问题

       在维护开源项目：https://springboot.plus 时，使用SpringBoot依赖的版本是2.1.6.RELEASE，Swagger依赖版本是2.6.1，发现一个问题，在SpringBoot2.1.6集成Swagger2.6.1后，无法正常访问在src/main/resources/目录下 static文件夹中的 静态资源文件

一、引入Maven依赖如下：



            io.springfox
            springfox-swagger2
            ${swagger2.version}


            io.springfox
            springfox-swagger-ui
            ${swagger2.version}



二, 编写配置文件 :

/**
 * Copyright 2019-2029 geekidea(https://github.com/geekidea)
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package io.geekidea.springbootplus.config;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.service.Parameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.List;

/**
 * Swagger2全局配置
 * @author geekidea
 * @date 2018-11-08
 */
@Configuration
@EnableSwagger2
public class Swagger2Config {

    /**
     * 标题
     */
    @Value("${swagger.title}")
    private String title;

    /**
     * 基本包
     */
    @Value("${swagger.base.package}")
    private String basePackage;

    /**
     * 描述
     */
    @Value("${swagger.description}")
    private String description;

    /**
     * URL
     */
    @Value("${swagger.url}")
    private String url;

    /**
     * 作者
     */
    @Value("${swagger.contact.name}")
    private String contactName;

    /**
     * 作者网址
     */
    @Value("${swagger.contact.url}")
    private String contactUrl;

    /**
     * 作者邮箱
     */
    @Value("${swagger.contact.email}")
    private String contactEmail;

    /**
     * 版本
     */
    @Value("${swagger.version}")
    private String version;

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage(basePackage))
                .paths(PathSelectors.any())
                .build()
                .globalOperationParameters(setHeaderToken());
    }
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title(title)
                .description(description)
                .termsOfServiceUrl(url)
                .contact(new Contact(contactName,contactUrl,contactEmail))
                .version(version)
                .build();
    }
    private List setHeaderToken() {
        List pars = new ArrayList<>();

        // TODO  测试token值,上线关闭
        String testTokenValue = "";
        ParameterBuilder tokenPar = new ParameterBuilder();
        Parameter tokenParameter = tokenPar.name("token").description("token").modelRef(new ModelRef("string")).parameterType("header").required(false).defaultValue(testTokenValue).build();
        pars.add(tokenParameter);
        return pars;
    }
}

到目前已经配置完成, 启动项目访问: http://localhost:${port}/${context-path}/swagger-ui.html

如果访问成功,则不需要配置,如果访问失败, 报错404, 则进行下面配置:

三, 解决404报错:

/**
 * Copyright 2019-2029 geekidea(https://github.com/geekidea)
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package io.geekidea.springbootplus.config;

import io.geekidea.springbootplus.common.web.interceptor.PermissionInterceptor;
import io.geekidea.springbootplus.common.web.interceptor.TokenTimeoutInterceptor;
import io.geekidea.springbootplus.config.core.SpringBootPlusProperties;
import io.geekidea.springbootplus.security.interceptor.JwtInterceptor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

/**
 * @author geekidea
 * @date 2018-11-08
 */
@Configuration
@Slf4j
public class WebMvcConfig implements WebMvcConfigurer {

    @Autowired
    private SpringBootPlusProperties springBootPlusProperties;

    @Autowired
    private JwtInterceptor jwtInterceptor;

    @Autowired
    private PermissionInterceptor permissionInterceptor;

    @Autowired
    private TokenTimeoutInterceptor tokenTimeoutInterceptor;

    @Override
    public void addInterceptors(InterceptorRegistry registry) {

//        // JWT拦截器
//        registry.addInterceptor(jwtInterceptor)
//                .addPathPatterns("/**")
//                .excludePathPatterns(springBootPlusProperties.getInterceptorConfig().getJwtConfig().getExcludePath());
//
//        // TOKEN超时拦截器
//        registry.addInterceptor(tokenTimeoutInterceptor)
//                .addPathPatterns("/**")
//                .excludePathPatterns(springBootPlusProperties.getInterceptorConfig().getTokenTimeoutConfig().getExcludePath());
//
//        // 权限拦截器
//        registry.addInterceptor(permissionInterceptor)
//                .addPathPatterns("/**")
//                .excludePathPatterns(springBootPlusProperties.getInterceptorConfig().getPermissionConfig().getExcludePath());

    }

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
    	registry.addResourceHandler("/static/**")
                .addResourceLocations("classpath:/static/");//解决访问静态资源404
        registry.addResourceHandler("swagger-ui.html") //解决访问swagger资源404
                .addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**") //解决访问swagger资源404
                .addResourceLocations("classpath:/META-INF/resources/webjars/");
    }
}

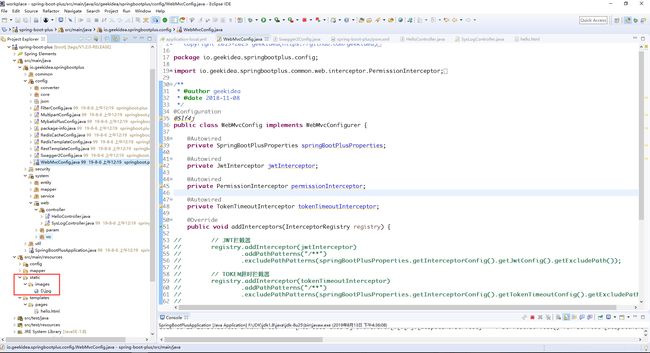

项目结构：

访问swagger-ui.html：http://localhost:8888/swagger-ui.html#/

访问静态资源文件：http://localhost:8888/static/images/D.jpg
