16 - Enabling UMG

添加UI显示
编辑工程的.build.cs 添加UMG Slate SlateCore

// Copyright 1998-2017 Epic Games, Inc. All Rights Reserved.

using UnrealBuildTool;

public class BatteryCollector : ModuleRules
{
public BatteryCollector(TargetInfo Target)
{
PublicDependencyModuleNames.AddRange(new string[] { "Core", "CoreUObject", "Engine", "InputCore", "UMG", "HeadMountedDisplay" });
PrivateDependencyModuleNames.AddRange(new string[] { "Slate", "SlateCore"});

}

}

编辑BatteryCollectorGameMode.h 添加UserWidget class 和UserWIdget PowerToWin(这节用不到) 添加BeginPlay函数


编辑BatteryCollectorGameMode.cpp 添加头文件

include "Blueprint/UserWidget.h"

在BeginPlay函数中 初始化PowerToWin 并且调用CreateWidget 创建并添加UI

最终BatteryCollectorGameMode.h

// Copyright 1998-2017 Epic Games, Inc. All Rights Reserved.

pragma once

include "GameFramework/GameModeBase.h"

include "BatteryCollectorGameMode.generated.h"

UCLASS(minimalapi)
class ABatteryCollectorGameMode : public AGameModeBase
{
GENERATED_BODY()

public:
ABatteryCollectorGameMode();
virtual void Tick(float DeltaSeconds) override;

UFUNCTION(BlueprintPure, Category = "Power")
float GetPowerToWin() const;

virtual void BeginPlay() override;

protected:
UPROPERTY(EditDefaultsOnly, BlueprintReadWrite, Category = "Power")
float DecayRate;

UPROPERTY(EditDefaultsOnly, BlueprintReadWrite, Category = "Power")
float PowerToWin;

UPROPERTY(EditDefaultsOnly, BlueprintReadWrite, Category = "Power")
TSubclassOf HUDWidgetClass;

UPROPERTY()
class UUserWidget* CurrentWidget;

};

最终BatteryCollectorGameMode.cpp
// Copyright 1998-2017 Epic Games, Inc. All Rights Reserved.

include "BatteryCollector.h"

include "BatteryCollectorGameMode.h"

include "BatteryCollectorCharacter.h"

include "Kismet/GameplayStatics.h"

include "Blueprint/UserWidget.h"

ABatteryCollectorGameMode::ABatteryCollectorGameMode()
{
// set default pawn class to our Blueprinted character
static ConstructorHelpers::FClassFinder PlayerPawnBPClass(TEXT("/Game/ThirdPersonCPP/Blueprints/ThirdPersonCharacter"));
if (PlayerPawnBPClass.Class != NULL)
{
DefaultPawnClass = PlayerPawnBPClass.Class;
}
DecayRate = 0.01f;
PrimaryActorTick.bCanEverTick = true;
}

void ABatteryCollectorGameMode::BeginPlay()
{
Super::BeginPlay();
ABatteryCollectorCharacter* MyCharacter = Cast(UGameplayStatics::GetPlayerPawn(this, 0));
if (MyCharacter)
{
PowerToWin = MyCharacter->GetInitialPower()*1.25f;
}
if (HUDWidgetClass != NULL)
{
CurrentWidget = CreateWidget(GetWorld(), HUDWidgetClass);
if(CurrentWidget != NULL)
{
CurrentWidget->AddToViewport();
}
}
}

void ABatteryCollectorGameMode::Tick(float DeltaSeconds)
{
Super::Tick(DeltaSeconds);
ABatteryCollectorCharacter* MyCharacter = Cast(UGameplayStatics::GetPlayerPawn(this, 0));
if (MyCharacter)
{
if (MyCharacter->GetCurrentPower() > 0)
{
MyCharacter->UpdatePower(-DeltaSecondsDecayRate(MyCharacter->GetInitialPower()));
}

}

}

//编译通过 临时添加
float ABatteryCollectorGameMode::GetPowerToWin()const
{
return 0.0f;
}

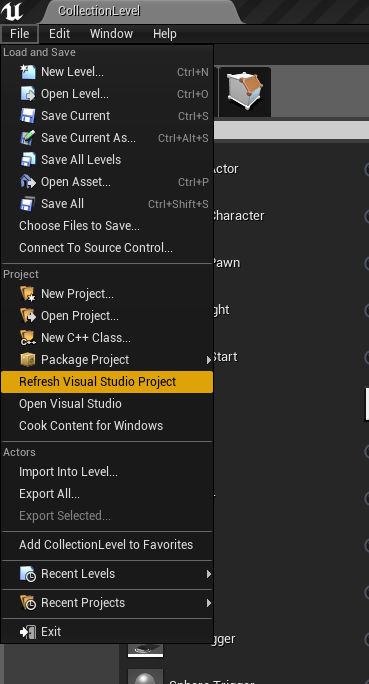

编译如果出现无法找到"Blueprint/UserWidget" 的情况 按照下图刷新工程 重新编译
