图像清晰度评价

1.灰度差



function out_val=difference_absolute(img);
I=rgb2gray(img);
[m,n]=size(I);
f=0.0;
I=double(I);
for x=1:m-1;
    for y=1:n-1;
        Ix=I(x+1,y)-I(x,y);
        Iy=I(x,y+1)-I(x,y);
        f=f+abs(Ix)+abs(Iy);
    end
end
out_val=f/m/n;

2.边缘强度





function outval = edge_intensity(img)
% OUTVAL = EDGE_INTENSITY(IMG)

if nargin == 1
    img=rgb2gray(img);
    img = double(img);
    % Create horizontal sobel matrix
    w = fspecial('sobel');

    % Get the size of img
    [r c ] = size(img);

    gx = imfilter(img,w,'replicate');
    gy = imfilter(img,w','replicate');

    for m = 1 : r
        for n = 1 : c

                g(m,n) = sqrt(gx(m,n)*gx(m,n) + gy(m,n)*gy(m,n));

        end
    end
    outval = mean(mean(g));
else
    error('Wrong number of input!');
end







3.main



clear all;
close all;
clc;
PathName = '.\2\';
FileName = '.jpg' ;

n=20
tic

for ii=1:n
       imageName=strcat(PathName,num2str(ii),FileName);
       im = imread(imageName);
       a(ii)=difference_absolute(im);
       b(ii)=edge_intensity(im);
end
toc;
a=a/max(a);
b=b/max(b);
figure(1);plot(a,'-r+');hold on
plot(b,'-b*');hold on
xlabel('len.s position');
ylabel('value');
title('清晰度评价函数');

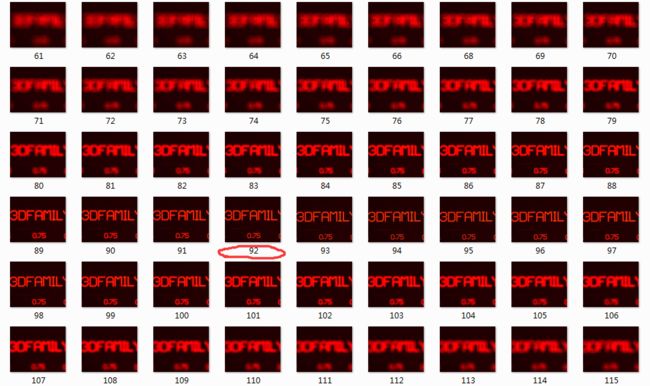

4.输入图片

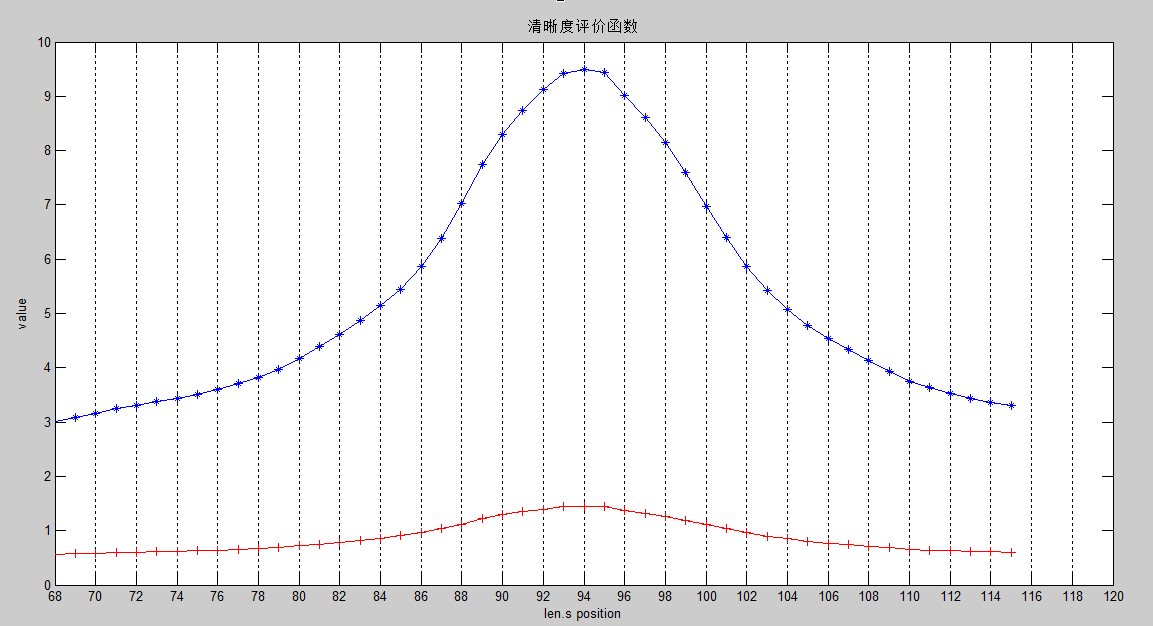

5.对两组结果归一化后如下所示：



     第14张图片最清晰，与人眼观察结果一致。



对另一组图片进行测试，结果如下：









处理效果上边缘算子明显优于灰度差，但时间上消耗很大。

边缘算子：96.872847 seconds.
灰度差：     4.645993 seconds.



测试样本：https://download.csdn.net/download/liuuze5/10496164
