simulink教程(自动控制原理)

1.启动simulink
命令行输入simulink或者
在这里插入图片描述
会弹出
simulink教程(自动控制原理)_第1张图片

2,点击blank model,出现新窗口

simulink教程(自动控制原理)_第2张图片
新建或者打开模型文件
在这里插入图片描述
There are two major classes of items in Simulink: blocks and lines. Blocks are used to generate, modify, combine, output, and display signals. Lines are used to transfer signals from one block to another.

There are several general classes of blocks within the Simulink library:

Sources: used to generate various signals
Sinks: used to output or display signals
Continuous: continuous-time system elements (transfer functions, state-space models, PID controllers, etc.)
Discrete: linear, discrete-time system elements (discrete transfer functions, discrete state-space models, etc.)
Math Operations: contains many common math operations (gain, sum, product, absolute value, etc.)
Ports & Subsystems: contains useful blocks to build a system

simulink教程(自动控制原理)_第3张图片
simulink教程(自动控制原理)_第4张图片

RUN

添加block,修改transfer function
在这里插入图片描述

simulink教程(自动控制原理)_第5张图片
run
simulink教程(自动控制原理)_第6张图片

继续修改transfer function
simulink教程(自动控制原理)_第7张图片
simulink教程(自动控制原理)_第8张图片
Since the new transfer function has a very fast response, it compressed into a very narrow part of the scope window. This is not really a problem with the scope, but with the simulation itself. Simulink simulated the system for a full ten seconds even though the system had reached steady state shortly after one second.

To correct this, you need to change the parameters of the simulation itself. In the model window, select Model Configuration Parameters from the Simulation menu. You will see the following dialog box.

simulink教程(自动控制原理)_第9张图片
There are many simulation parameter options; we will only be concerned with the start and stop times, which tell Simulink over what time period to perform the simulation. Change Start time from 0.0 to 0.8 (since the step doesn’t occur until t = 1.0). Change Stop time from 10.0 to 2.0, which should be only shortly after the system settles. Close the dialog box and rerun the simulation. Now, the scope window should provide a much better display of the step response as shown below.
simulink教程(自动控制原理)_第10张图片
simulink教程(自动控制原理)_第11张图片

Building Systems

First, you will gather all of the necessary blocks from the block libraries. Then you will modify the blocks so they correspond to the blocks in the desired model. Finally, you will connect the blocks with lines to form the complete system. After this, you will simulate the complete system to verify that it works.

Gathering Blocks

Follow the steps below to collect the necessary blocks:

Create a new model (New from the File menu or hit Ctrl-N). You will get a blank model window.
Click on the Tools tab and then select Library Browser.
Then click on the Sources listing in the Simulink library browser.

simulink教程(自动控制原理)_第12张图片
This will bring up the Sources block library. Sources are used to generate signals.

Drag the Step block from the Sources window into the left side of your model window.
simulink教程(自动控制原理)_第13张图片

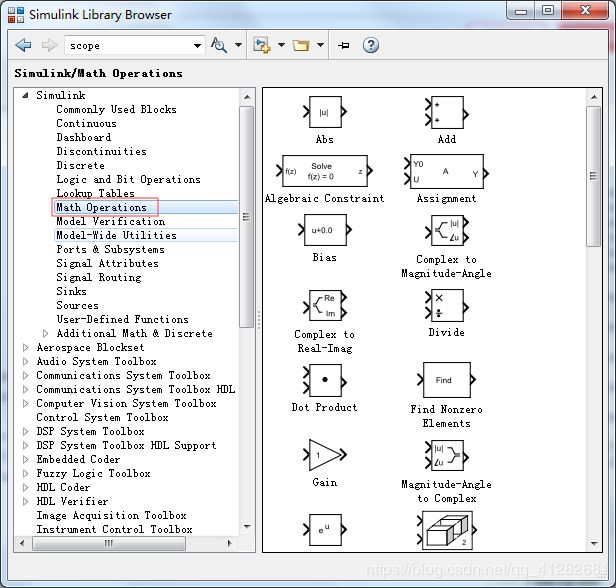

Click on the Math Operations listing in the main Simulink window.
From this library, drag a Sum and Gain block into the model window and place them to the right of the Step block in that order.
Click on the Continuous listing in the main Simulink window.
First, from this library, drag a PID Controller block into the model window and place it to the right of the Gain block.
From the same library, drag a Transfer Function block into the model window and place it to the right of the PID Controller block.

simulink教程(自动控制原理)_第14张图片
simulink教程(自动控制原理)_第15张图片

simulink教程(自动控制原理)_第16张图片

Click on the Sinks listing in the main Simulink window.
Drag the Scope block into the right side of the model window.

simulink教程(自动控制原理)_第17张图片
Modify Blocks

Double-click on the Sum block. Since you will want the second input to be subtracted, enter ± into the list of signs field. Close the dialog box.
Double-click the Gain block. Change the gain to 2.5 and close the dialog box.
Double-click the PID Controller block and change the Proportional gain to 1 and the Integral gain to 2. Close the dialog box.
Double-click the Transfer Function block. Leave the numerator [1], but change the denominator to [1 2 4]. Close the dialog box. The model should appear as:
Change the name of the PID Controller block to PI Controller by double-clicking on the word PID Controller.
Similarly, change the name of the Transfer Function block to Plant. Now, all the blocks are entered properly. Your model should appear as:
simulink教程(自动控制原理)_第18张图片

Drag the mouse from the output terminal of the Step block to the positive input of the Sum input. Another option is to click on the Step block and then Ctrl-Click on the Sum block to connect the two togther. You should see the following.

Drag a line off the negative portion of the Sum block straight down and release the mouse so the line is incomplete. From the endpoint of this line, click and drag to the line between the Plant and the Scope. The model should now appear as follows.
simulink教程(自动控制原理)_第19张图片
以上照做后可能会报错
在这里插入图片描述
解决方法就是
simulink教程(自动控制原理)_第20张图片
simulink教程(自动控制原理)_第21张图片
解决

simulink教程(自动控制原理)_第22张图片

参数可以用代数代替
In some cases, parameters, such as gain, may be calculated in MATLAB to be used in a Simulink model. If this is the case, it is not necessary to enter the result of the MATLAB calculation directly into Simulink. For example, suppose we calculated the gain in MATLAB in the variable K. Emulate this by entering the following command at the MATLAB command prompt.

simulink教程(自动控制原理)_第23张图片
simulink教程(自动控制原理)_第24张图片
也可以run
