数据可视化-制作交易收盘价

数据可视化-制作交易收盘价

思路：从网上下载json格式的文件----→先打开json格式的文件，储存月份、日期、星期等的数据----→建立收盘价折线图和收盘价对数变换折线图----→为做时间序列分析数据，先进行封装函数----→做按月份、按周期、按星期的对应图----→最后做数据仪表盘

import json

#将数据加载到一个列表里
filename = 'btc_close_2017.json'
with open(filename) as f:
	btc_data = json.load(f)
#打印每一天的信息
for btc_dict in btc_data:
	date = btc_dict['date']
	month = int(btc_dict['month'])
	week = btc_dict['week']
	weekday = btc_dict['weekday']
	close = int(float(btc_dict['close']))
	print("{} is month {} week {}, {}, the close price is {} RMB".format(date, month, week, weekday, close))

#创建5个列表，分别存储日期和收盘价
dates = []
months = []
weeks = []
weekdays = []
close = []
for btc_dict in btc_data:
	dates.append(btc_dict['date'])
	months.append(btc_dict['month'])
	weeks.append(int(btc_dict['week']))
	weekdays.append(btc_dict['weekday'])
	close.append(int(float(btc_dict['close'])))

import pygal

line_chart = pygal.Line(x_label_rotation=20,show_minor_x_labels=False)
line_chart.title = '收盘价（￥）'
line_chart.x_labels = dates
N = 20#x轴坐标每隔20天显示一次
line_chart.x_labels_major = dates[::N]
line_chart.add('收盘价', close)
line_chart.render_to_file('收盘价折线图（￥）.svg')

import pygal
import math

line_chart = pygal.Line(x_label_rotation=20, show_minor_x_labels=False)
line_chart.title = '收盘价对数变换（￥）'
line_chart.x_labels = dates
N = 20 #x轴坐标每隔20天显示一次
line_chart.x_labels_major = dates[::N]
close_log = [math.log10(_) for _ in close]
line_chart.add('log收盘价', close_log)
line_chart.render_to_file('收盘价对数变换折线图（￥）.svg')

from itertools import groupby

def draw_line(x_data, y_data, title, y_legend):
	xy_map = []
	for x, y in groupby(sorted(zip(x_data, y_data)), key=lambda _: _[0]):
		y_list = [v for _, v in y]
		xy_map.append([str(x), sum(y_list) / len(y_list)])#(x, x月的每日均值)
	x_unique, y_mean = [*zip(*xy_map)]
	line_chart = pygal.Line()
	line_chart.title = title
	line_chart.x_labels = x_unique
	line_chart.add(y_legend, y_mean)
	line_chart.render_to_file(str(title)+' .svg')
	return line_chart


idx_month = dates.index('2017-12-01')
line_chart_month = draw_line(months[:idx_month], close[:idx_month], '收盘价月日均值(￥)',  '月日均值')
line_chart_month


idx_week = dates.index('2017-12-11')
line_chart_week = draw_line(weeks[1:idx_week], close[1:idx_week], '收盘价周日均值(￥)', '周日均值')
line_chart_week


idx_week = dates.index('2017-12-11')
wd = ['Monday', 'Tuesday', 'Wednesday', 'Thursday', 'Friday', 'Saturday', 'Sunday']
weekdays_int = [wd.index(w) + 1 for w in weekdays[1:idx_week]]
line_chart_weekday = draw_line(weekdays_int, close[1:idx_week], '收盘价星期均值', '星期均值')
line_chart_weekday.x_labels = ['周一', '周二', '周三', '周四', '周五', '周六', '周日']


with open('收盘价Dashboard.html', 'w',encoding='utf8') as html_file:
	html_file.write('\n')
	for svg in [
			'收盘价折线图（￥）.svg', '收盘价对数变换折线图（￥）.svg', '收盘价月日均值(￥).svg',
			'收盘价周日均值(￥).svg', '收盘价星期均值(￥).svg']:
		html_file.write('	\n'.format(svg))
	html_file.write('')

最后生成5张图：

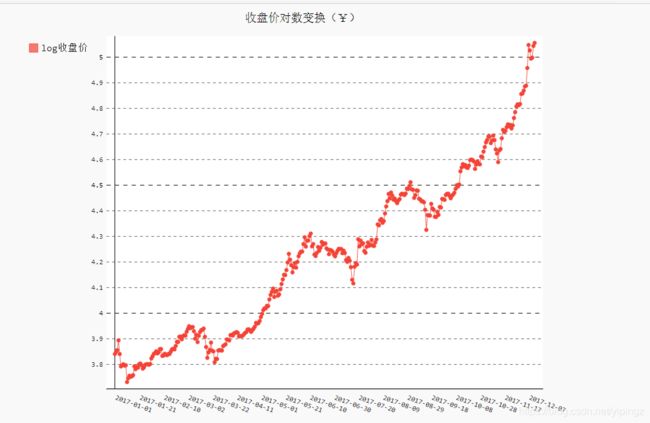

收盘价对数变换折线图为：

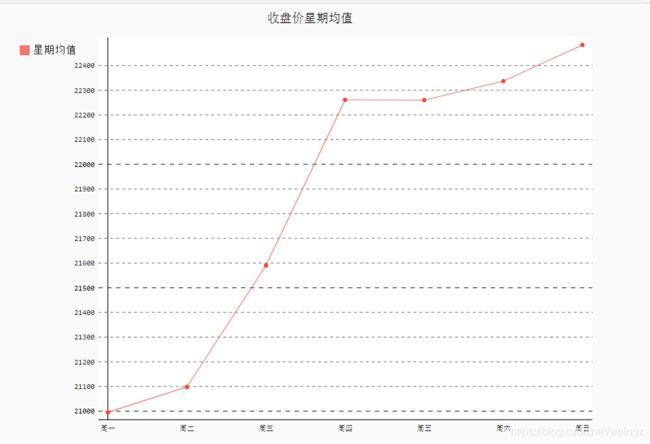

收盘价星期均值为：

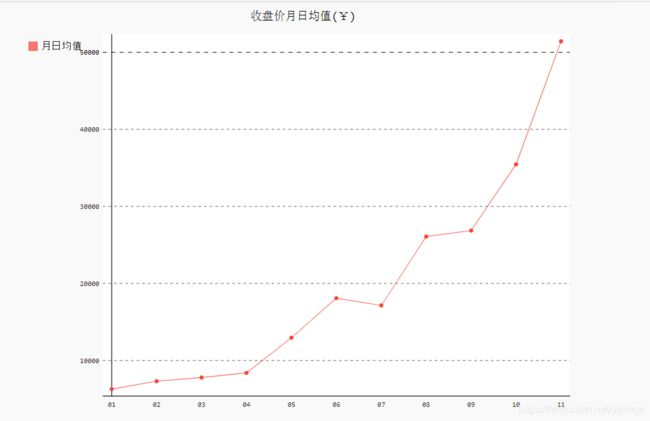

收盘价月日均值：

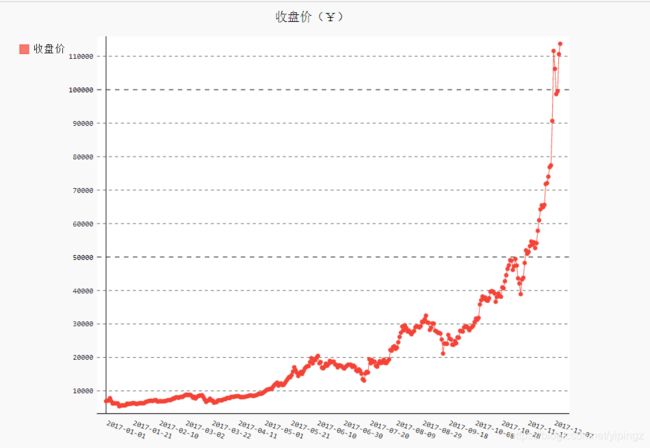

收盘价折线图：

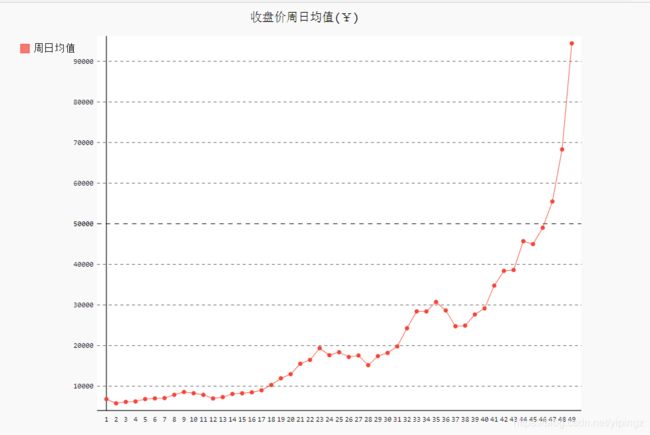

收盘价周日均值：

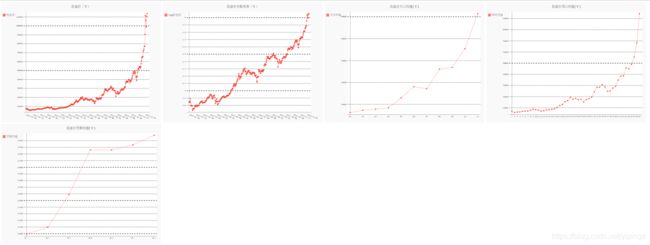

收盘价Dashboard：

过程中遇到的难点：
函数：以作月日均值为例
sorted(zip(x_data,y_data)返回一个排序后的元组列表为[(1,5383),(1,5566)…(1,7070)…(11,65583)]
lambda是隐形函数，key = lambda_: [0]是按元组中的第一个元素分组，[1]的话是按第二个元素分组
groupby()进行分组，key = lambda: _[0]代表：按照元组列表中的第一个元素进行分类，可被分成11组，x为1~11月份，y是对应的元组，即：
1[(1,5383),(1,5566)…(1,7835)]
2[(2,6793),(2,6811)…(2,8076)]依次类推
