[Unity实战]攻击范围的绘制

原文链接:http://blog.csdn.net/lyh916/article/details/50383376

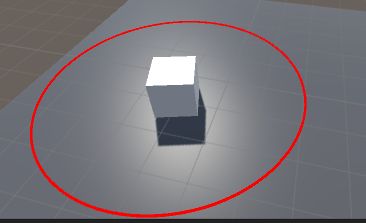

效果图:












代码如下:

[csharp]  view plain  copy

  1. using UnityEngine;
  2. using System.Collections.Generic;
  3.
  4. public class DrawTool : MonoBehaviour {
  5.
  6.     private static LineRenderer GetLineRenderer(Transform t)
  7.     {
  8.         LineRenderer lr = t.GetComponent();
  9.         if (lr == null)
  10.         {
  11.             lr = t.gameObject.AddComponent();
  12.         }
  13.         lr.SetWidth(0.1f, 0.1f);
  14.         return lr;
  15.     }
  16.
  17.     public static void DrawLine(Transform t, Vector3 start, Vector3 end)
  18.     {
  19.         LineRenderer lr = GetLineRenderer(t);
  20.         lr.SetVertexCount(2);
  21.         lr.SetPosition(0, start);
  22.         lr.SetPosition(1, end);
  23.     }
  24.
  25.     //绘制空心扇形
  26.     public static void DrawSector(Transform t, Vector3 center, float angle, float radius)
  27.     {
  28.         LineRenderer lr = GetLineRenderer(t);
  29.         int pointAmount = 100;//点的数目,值越大曲线越平滑
  30.         float eachAngle = angle / pointAmount;
  31.         Vector3 forward = t.forward;
  32.
  33.         lr.SetVertexCount(pointAmount);
  34.         lr.SetPosition(0, center);
  35.         lr.SetPosition(pointAmount - 1, center);
  36.
  37.         for (int i = 1; i < pointAmount - 1; i++)
  38.         {
  39.             Vector3 pos = Quaternion.Euler(0f, -angle / 2 + eachAngle * (i - 1), 0f) * forward * radius + center;
  40.             lr.SetPosition(i, pos);
  41.         }
  42.     }
  43.
  44.     //绘制空心圆
  45.     public static void DrawCircle(Transform t, Vector3 center, float radius)
  46.     {
  47.         LineRenderer lr = GetLineRenderer(t);
  48.         int pointAmount = 100;//点的数目,值越大曲线越平滑
  49.         float eachAngle = 360f / pointAmount;
  50.         Vector3 forward = t.forward;
  51.
  52.         lr.SetVertexCount(pointAmount + 1);
  53.
  54.         for (int i = 0; i <= pointAmount; i++)
  55.         {
  56.             Vector3 pos = Quaternion.Euler(0f, eachAngle * i, 0f) * forward * radius + center;
  57.             lr.SetPosition(i, pos);
  58.         }
  59.     }
  60.
  61.     //绘制空心长方形
  62.     //以长方形的底边中点为攻击方位置(从俯视角度来看)
  63.     public static void DrawRectangle(Transform t, Vector3 bottomMiddle, float length, float width)
  64.     {
  65.         LineRenderer lr = GetLineRenderer(t);
  66.         lr.SetVertexCount(5);
  67.
  68.         lr.SetPosition(0, bottomMiddle - t.right * (width / 2));
  69.         lr.SetPosition(1, bottomMiddle - t.right * (width / 2) + t.forward * length);
  70.         lr.SetPosition(2, bottomMiddle + t.right * (width / 2) + t.forward * length);
  71.         lr.SetPosition(3, bottomMiddle + t.right * (width / 2));
  72.         lr.SetPosition(4, bottomMiddle - t.right * (width / 2));
  73.     }
  74.
  75.     //绘制空心长方形2D
  76.     //distance指的是这个长方形与Transform t的中心点的距离
  77.     public static void DrawRectangle2D(Transform t, float distance, float length, float width)
  78.     {
  79.         LineRenderer lr = GetLineRenderer(t);
  80.         lr.SetVertexCount(5);
  81.
  82.         if (MathTool.IsFacingRight(t))
  83.         {
  84.             Vector2 forwardMiddle = new Vector2(t.position.x + distance, t.position.y);
  85.             lr.SetPosition(0, forwardMiddle + new Vector2(0, width / 2));
  86.             lr.SetPosition(1, forwardMiddle + new Vector2(length, width / 2));
  87.             lr.SetPosition(2, forwardMiddle + new Vector2(length, -width / 2));
  88.             lr.SetPosition(3, forwardMiddle + new Vector2(0, -width / 2));
  89.             lr.SetPosition(4, forwardMiddle + new Vector2(0, width / 2));
  90.         }
  91.         else
  92.         {
  93.             Vector2 forwardMiddle = new Vector2(t.position.x - distance, t.position.y);
  94.             lr.SetPosition(0, forwardMiddle + new Vector2(0, width / 2));
  95.             lr.SetPosition(1, forwardMiddle + new Vector2(-length, width / 2));
  96.             lr.SetPosition(2, forwardMiddle + new Vector2(-length, -width / 2));
  97.             lr.SetPosition(3, forwardMiddle + new Vector2(0, -width / 2));
  98.             lr.SetPosition(4, forwardMiddle + new Vector2(0, width / 2));
  99.         }
  100.     }
  101.
  102.
  103.     public static GameObject go;
  104.     public static MeshFilter mf;
  105.     public static MeshRenderer mr;
  106.     public static Shader shader;
  107.     private static GameObject CreateMesh(List vertices)
  108.     {
  109.         int[] triangles;
  110.         Mesh mesh = new Mesh();
  111.
  112.         int triangleAmount = vertices.Count - 2;
  113.         triangles = new int[3 * triangleAmount];
  114.
  115.         //根据三角形的个数,来计算绘制三角形的顶点顺序(索引)
  116.         //顺序必须为顺时针或者逆时针
  117.         for (int i = 0; i < triangleAmount; i++)
  118.         {
  119.             triangles[3 * i] = 0;//固定第一个点
  120.             triangles[3 * i + 1] = i + 1;
  121.             triangles[3 * i + 2] = i + 2;
  122.         }
  123.
  124.         if (go == null)
  125.         {
  126.             go = new GameObject("mesh");
  127.             go.transform.position = new Vector3(0, 0.1f, 0);//让绘制的图形上升一点,防止被地面遮挡
  128.             mf = go.AddComponent();
  129.             mr = go.AddComponent();
  130.             shader = Shader.Find("Unlit/Color");
  131.         }
  132.
  133.         mesh.vertices = vertices.ToArray();
  134.         mesh.triangles = triangles;
  135.
  136.         mf.mesh = mesh;
  137.         mr.material.shader = shader;
  138.         mr.material.color = Color.red;
  139.
  140.         return go;
  141.     }
  142.
  143.     //绘制实心扇形
  144.     public static void DrawSectorSolid(Transform t, Vector3 center, float angle, float radius)
  145.     {
  146.         int pointAmount = 100;//点的数目,值越大曲线越平滑
  147.         float eachAngle = angle / pointAmount;
  148.         Vector3 forward = t.forward;
  149.
  150.         List vertices = new List();
  151.         vertices.Add(center);
  152.
  153.         for (int i = 1; i < pointAmount - 1; i++)
  154.         {
  155.             Vector3 pos = Quaternion.Euler(0f, -angle / 2 + eachAngle * (i - 1), 0f) * forward * radius + center;
  156.             vertices.Add(pos);
  157.         }
  158.
  159.         CreateMesh(vertices);
  160.     }
  161.
  162.     //绘制实心圆
  163.     public static void DrawCircleSolid(Transform t, Vector3 center, float radius)
  164.     {
  165.         int pointAmount = 100;//点的数目,值越大曲线越平滑
  166.         float eachAngle = 360f / pointAmount;
  167.         Vector3 forward = t.forward;
  168.
  169.         List vertices = new List();
  170.
  171.         for (int i = 0; i <= pointAmount; i++)
  172.         {
  173.             Vector3 pos = Quaternion.Euler(0f, eachAngle * i, 0f) * forward * radius + center;
  174.             vertices.Add(pos);
  175.         }
  176.
  177.         CreateMesh(vertices);
  178.     }
  179.
  180.     //绘制实心长方形
  181.     //以长方形的底边中点为攻击方位置(从俯视角度来看)
  182.     public static void DrawRectangleSolid(Transform t, Vector3 bottomMiddle, float length, float width)
  183.     {
  184.         List vertices = new List();
  185.
  186.         vertices.Add(bottomMiddle - t.right * (width / 2));
  187.         vertices.Add(bottomMiddle - t.right * (width / 2) + t.forward * length);
  188.         vertices.Add(bottomMiddle + t.right * (width / 2) + t.forward * length);
  189.         vertices.Add(bottomMiddle + t.right * (width / 2));
  190.
  191.         CreateMesh(vertices);
  192.     }
  193.
  194.     //绘制实心长方形2D
  195.     //distance指的是这个长方形与Transform t的中心点的距离
  196.     public static void DrawRectangleSolid2D(Transform t, float distance, float length, float width)
  197.     {
  198.         List vertices = new List();
  199.
  200.         if (MathTool.IsFacingRight(t))
  201.         {
  202.             Vector3 forwardMiddle = new Vector3(t.position.x + distance, t.position.y);
  203.             vertices.Add(forwardMiddle + new Vector3(0, width / 2));
  204.             vertices.Add(forwardMiddle + new Vector3(length, width / 2));
  205.             vertices.Add(forwardMiddle + new Vector3(length, -width / 2));
  206.             vertices.Add(forwardMiddle + new Vector3(0, -width / 2));
  207.         }
  208.         else
  209.         {
  210.             //看不到颜色但点击mesh可以看到形状
  211.             Vector3 forwardMiddle = new Vector3(t.position.x - distance, t.position.y);
  212.             vertices.Add(forwardMiddle + new Vector3(0, width / 2));
  213.             vertices.Add(forwardMiddle + new Vector3(-length, width / 2));
  214.             vertices.Add(forwardMiddle + new Vector3(-length, -width / 2));
  215.             vertices.Add(forwardMiddle + new Vector3(0, -width / 2));
  216.         }
  217.
  218.         CreateMesh(vertices);
  219.     }
  220.
  221. }


测试:

[csharp]  view plain  copy

  1. using UnityEngine;
  2. using System.Collections;
  3.
  4. public class TestDraw : MonoBehaviour {
  5.
  6.     void Start ()
  7.     {
  8.         //DrawTool.DrawSector(transform, transform.localPosition, 60, 3);
  9.
  10.         //DrawTool.DrawCircle(transform, transform.localPosition, 3);
  11.
  12.         //DrawTool.DrawRectangle(transform, transform.localPosition, 5, 2);
  13.
  14.         //DrawTool.DrawSectorSolid(transform, transform.localPosition, 60, 3);
  15.
  16.         //DrawTool.DrawCircleSolid(transform, transform.localPosition, 3);
  17.
  18.         DrawTool.DrawRectangleSolid(transform, transform.localPosition, 5, 2);
  19.     }
  20.
  21. }

然后,为了更好地测试数据,应该要有这样一个东西:


[csharp]  view plain  copy

  1. using UnityEngine;
  2. using System.Collections;
  3.
  4. public enum DrawType
  5. {
  6.     DrawSector,              //绘制空心扇形
  7.     DrawCircle,              //绘制空心圆
  8.     DrawRectangle,           //绘制空心长方形
  9.     DrawRectangle2D,         //绘制空心长方形2D
  10.     DrawSectorSolid,         //绘制实心扇形
  11.     DrawCircleSolid,         //绘制实心圆
  12.     DrawRectangleSolid,      //绘制实心长方形
  13.     DrawRectangleSolid2D,    //绘制实心长方形2D
  14. }
  15.
  16. ///
  17. /// 要把动画上的脚本(继承StateMachineBehaviour)取消勾选
  18. ///
  19. public class DebugDistanceAngle : MonoBehaviour {
  20.
  21.     private GameObject go;
  22.     private Animator animator;
  23.
  24.     public string modelName;//角色路径
  25.     public string animationName;//动画名字,即Animator窗口看到的动画名字
  26.
  27.     public float time;//播放进度
  28.     public DrawType drawType;
  29.
  30.     public float distance;
  31.     public float angle;
  32.     public float radius;
  33.     public float length;
  34.     public float width;
  35.
  36.     void Start ()
  37.     {
  38.         if (modelName.Length > 0)
  39.         {
  40.             go = Instantiate(Resources.Load(modelName));
  41.             go.transform.localPosition = Vector3.zero;
  42.             animator = go.GetComponent();
  43.         }
  44.     }
  45.
  46.     void Update ()
  47.     {
  48.         if ((go != null) && (time != 0))
  49.         {
  50.             animator.Play(animationName, 0, time);
  51.         }
  52.
  53.         switch (drawType)
  54.         {
  55.             case DrawType.DrawSector :
  56.                 DrawTool.DrawSector(go.transform, go.transform.position, angle, radius);
  57.                 break;
  58.             case DrawType.DrawCircle:
  59.                 DrawTool.DrawCircle(go.transform, go.transform.position, radius);
  60.                 break;
  61.             case DrawType.DrawRectangle:
  62.                 DrawTool.DrawRectangle(go.transform, go.transform.position, length, width);
  63.                 break;
  64.             case DrawType.DrawRectangle2D:
  65.                 DrawTool.DrawRectangle2D(go.transform, distance, length, width);
  66.                 break;
  67.             case DrawType.DrawSectorSolid:
  68.                 DrawTool.DrawSectorSolid(go.transform, go.transform.position, angle, radius);
  69.                 break;
  70.             case DrawType.DrawCircleSolid:
  71.                 DrawTool.DrawCircleSolid(go.transform, go.transform.position, radius);
  72.                 break;
  73.             case DrawType.DrawRectangleSolid:
  74.                 DrawTool.DrawRectangleSolid(go.transform, go.transform.position, length, width);
  75.                 break;
  76.             case DrawType.DrawRectangleSolid2D:
  77.                 DrawTool.DrawRectangleSolid2D(go.transform, distance, length, width);
  78.                 break;
  79.             default :
  80.                 break;
  81.         }
  82.     }
  83.
  84. }

[csharp]  view plain  copy

  1. using UnityEngine;
  2. using System.Collections;
  3. using UnityEditor;
  4.
  5. [CustomEditor(typeof(DebugDistanceAngle))]
  6. [ExecuteInEditMode]
  7. public class DebugDistanceAngleEditor : Editor {
  8.
  9.     private bool canGetDragEvent;
  10.
  11.     public override void OnInspectorGUI()
  12.     {
  13.         DebugDistanceAngle d = target as DebugDistanceAngle;
  14.
  15.         EditorGUILayout.LabelField("请把角色放在Resources文件夹中,点击Play之后将通过Resources进行加载");
  16.         canGetDragEvent = EditorGUILayout.Toggle("通过拖拽获取角色路径", canGetDragEvent);
  17.         EditorGUILayout.LabelField("角色路径");
  18.         if (canGetDragEvent)
  19.         {
  20.             if (Event.current.type == EventType.DragExited)
  21.             {
  22.                 if (DragAndDrop.paths != null && DragAndDrop.paths.Length > 0)
  23.                 {
  24.                     string s = DragAndDrop.paths[0];
  25.                     s = s.Substring(s.IndexOf("Resources/"));
  26.                     s = s.Remove(0, "Resources/".Length);
  27.                     s = s.Substring(0, s.IndexOf('.'));
  28.                     d.modelName = s;
  29.                 }
  30.             }
  31.         }
  32.         d.modelName = EditorGUILayout.TextArea(d.modelName);
  33.
  34.         d.animationName = EditorGUILayout.TextField("动画名字", d.animationName);
  35.
  36.         EditorGUILayout.LabelField("播放进度");
  37.         d.time = EditorGUILayout.Slider(d.time, 0, 1);
  38.
  39.         d.drawType = (DrawType)EditorGUILayout.EnumPopup("绘制类型" ,d.drawType);
  40.         switch (d.drawType)
  41.         {
  42.             case DrawType.DrawSector:
  43.                 EditorGUILayout.LabelField("绘制空心扇形");
  44.                 EditorGUILayout.LabelField("角度");
  45.                 d.angle = EditorGUILayout.Slider(d.angle, 0, 180);
  46.                 EditorGUILayout.LabelField("半径");
  47.                 d.radius = EditorGUILayout.Slider(d.radius, 0, 10);
  48.                 break;
  49.
  50.
  51.             case DrawType.DrawCircle:
  52.                 EditorGUILayout.LabelField("绘制空心圆");
  53.                 EditorGUILayout.LabelField("半径");
  54.                 d.radius = EditorGUILayout.Slider(d.radius, 0, 10);
  55.                 break;
  56.
  57.
  58.             case DrawType.DrawRectangle:
  59.                 EditorGUILayout.LabelField("绘制空心长方形");
  60.                 EditorGUILayout.LabelField("长度");
  61.                 d.length = EditorGUILayout.Slider(d.length, 0, 10);
  62.                 EditorGUILayout.LabelField("宽度");
  63.                 d.width = EditorGUILayout.Slider(d.width, 0, 10);
  64.                 break;
  65.
  66.
  67.             case DrawType.DrawRectangle2D:
  68.                 EditorGUILayout.LabelField("绘制空心长方形2D");
  69.                 EditorGUILayout.LabelField("距离");
  70.                 d.distance = EditorGUILayout.Slider(d.distance, 0, 10);
  71.                 EditorGUILayout.LabelField("长度");
  72.                 d.length = EditorGUILayout.Slider(d.length, 0, 10);
  73.                 EditorGUILayout.LabelField("宽度");
  74.                 d.width = EditorGUILayout.Slider(d.width, 0, 10);
  75.                 break;
  76.
  77.
  78.             case DrawType.DrawSectorSolid:
  79.                 EditorGUILayout.LabelField("绘制实心扇形");
  80.                 EditorGUILayout.LabelField("角度");
  81.                 d.angle = EditorGUILayout.Slider(d.angle, 0, 180);
  82.                 EditorGUILayout.LabelField("半径");
  83.                 d.radius = EditorGUILayout.Slider(d.radius, 0, 10);
  84.                 break;
  85.
  86.
  87.             case DrawType.DrawCircleSolid:
  88.                 EditorGUILayout.LabelField("绘制实心圆");
  89.                 EditorGUILayout.LabelField("半径");
  90.                 d.radius = EditorGUILayout.Slider(d.radius, 0, 10);
  91.                 break;
  92.
  93.
  94.             case DrawType.DrawRectangleSolid:
  95.                 EditorGUILayout.LabelField("绘制实心长方形");
  96.                 EditorGUILayout.LabelField("长度");
  97.                 d.length = EditorGUILayout.Slider(d.length, 0, 10);
  98.                 EditorGUILayout.LabelField("宽度");
  99.                 d.width = EditorGUILayout.Slider(d.width, 0, 10);
  100.                 break;
  101.
  102.
  103.             case DrawType.DrawRectangleSolid2D:
  104.                 EditorGUILayout.LabelField("绘制实心长方形2D");
  105.                 EditorGUILayout.LabelField("距离");
  106.                 d.distance = EditorGUILayout.Slider(d.distance, 0, 10);
  107.                 EditorGUILayout.LabelField("长度");
  108.                 d.length = EditorGUILayout.Slider(d.length, 0, 10);
  109.                 EditorGUILayout.LabelField("宽度");
  110.                 d.width = EditorGUILayout.Slider(d.width, 0, 10);
  111.                 break;
  112.
  113.
  114.             default:
  115.                 break;
  116.         }
  117.     }
  118. }



[csharp]  view plain  copy

  1. using UnityEngine;
  2. using System.Collections;
  3.
  4. public class MathTool {
  5.
  6.     public static float piDivide180 = Mathf.PI / 180;
  7.
  8.     public static bool IsFacingRight(Transform t)
  9.     {
  10.         if (t.localEulerAngles.y > 0) return false;
  11.         else return true;
  12.     }
  13.
  14.     public static void FacingRight(Transform t)
  15.     {
  16.         t.localEulerAngles = new Vector3(0, 0, 0);
  17.     }
  18.
  19.     public static void FacingLeft(Transform t)
  20.     {
  21.         t.localEulerAngles = new Vector3(0, 180, 0);
  22.     }
  23.
  24.     public static Vector2 GetVector2(Vector3 a)
  25.     {
  26.         Vector2 posA = new Vector2(a.x, a.z);
  27.         return posA;
  28.     }
  29.
  30.     public static float GetDistance(Transform a, Transform b)
  31.     {
  32.         Vector2 posA = GetVector2(a.position);
  33.         Vector2 posB = GetVector2(b.position);
  34.         return Vector2.Distance(posA, posB);
  35.     }
  36.
  37.     public static Vector2 GetDirection(Transform a, Transform b)
  38.     {
  39.         Vector2 posA = GetVector2(a.position);
  40.         Vector2 posB = GetVector2(b.position);
  41.         return posB - posA;
  42.     }
  43.

你可能感兴趣的:([Unity实战]攻击范围的绘制)
