先序，中序，后序线索二叉树

　//后序线索，这种方法不容易想到
 1 #include<iostream>

 2 #include<cstring>

 3 #include<cstdio>

 4 #include<algorithm>

 5

 6 using namespace std;

 7

 8 struct TREE{

 9     int    val;

10     TREE *ch[2];

11     TREE *thread;//该节点的线索的下一个节点

12     TREE(){}

13     TREE(int val){

14         this->val = val;

15         ch[0] = ch[1] = NULL;

16         thread = NULL;

17     }

18 };

19

20 void buildT(TREE * &T){

21     int x;

22     scanf("%d", &x);

23     if(x == -1) return ;

24

25     T = new TREE(x);

26     buildT(T->ch[0]);

27     buildT(T->ch[1]);

28 }

29

30

31 void postThread(TREE *T, TREE *pre){

32     if(!T) return;

33     postThread(T->ch[0], T);

34     postThread(T->ch[1], T);

35     if(pre){

36         if(pre->ch[0] == T && pre->ch[1])//T是左子树

37             T->thread = pre->ch[1]; //T的下一个节点就是它的兄弟节点

38         else //T是右子树

39             T->thread = pre;//T的下一个节点就是它 的父亲节点

40     }

41 }

42

43 void printT_pre(TREE *T){//前序打印

44     if(!T) return ;

45     printf("%d ", T->val);

46     printT_pre(T->ch[0]);

47     printT_pre(T->ch[1]);

48 }

49

50 void printT_Thread(TREE *T){//后序线索打印

51     TREE *root = T;

52     bool flag = true;//表明T所在的字数没有访问过

53     while(1){

54         while(flag && T->ch[0]) T = T->ch[0];

55         printf("%d ", T->val);

56         if(T->thread->ch[0] == T || T->thread->ch[1] == T)

57             flag = false;//如果 T没有兄弟节点了，就一直沿着它的父节点向上走

58         else flag = true;

59         T = T->thread;

60         if(T == root){//再次回到最顶端父节点时， 结束！

61            printf("%d ", T->val);

62            break;

63         }

64     }

65 }

66

67 int main(){

68     TREE *T = NULL;

69     buildT(T);

70     printT_pre(T);

71     printf("\n");

72     postThread(T, NULL);

73     printT_Thread(T);

74     printf("\n");

75     return 0;

76 }

 下面是基本按照同样的套路实现二叉树的先序，中序，后序的线索

//先序线索
#include<stdio.h>

#include<stdlib.h>

#define Thread 1

#define Tlink 0

typedef struct tree

{

   int d;

   struct tree* lchild;

   struct tree* rchild;

   int Ltag, Rtag;

}*TREE;



void build_tree(TREE &T)

{

   int d;

   scanf("%d", &d);

   if(d!=-1)

     {

         T=(TREE)malloc(sizeof(tree));

         T->d=d;

         T->lchild=T->rchild=NULL;

         T->Ltag=T->Rtag=Tlink;

         build_tree(T->lchild);

         build_tree(T->rchild);

     }

}



TREE pre;



void preThread_tree(TREE p)

{

   if(p)

     {

        if(!p->lchild)

          {

               p->lchild=pre;

               p->Ltag=Thread;

          }

        if(!pre->rchild)

          {

              pre->rchild=p;

              pre->Rtag=Thread;

          }

         pre=p;

         if(p->Ltag==Tlink)//考虑到只有一个结点或两个节点情况，

            preThread_tree(p->lchild);//如果没有 if语句可能出现死循环

         if(p->Rtag==Tlink)

            preThread_tree(p->rchild);

     }

}



void print_preThr_tree(TREE T)

{

   TREE p=T;

   while(1)

    {

       while(p->Ltag==Tlink)

         {

             printf("%d ", p->d);

             p=p->lchild;

         }

       printf("%d ", p->d);

       p=p->rchild;

       if(p==T) break;

       while(p->Rtag==Thread)

         {

             printf("%d ", p->d);

            p=p->rchild;

         }



    }

}



void print_tree(TREE T)

{

    if(T)

     {

        printf("%d ", T->d);

        print_tree(T->lchild);

        print_tree(T->rchild);

     }

}





int main()

{

   TREE T=NULL;

   build_tree(T);

   print_tree(T);//递归先序遍历

   printf("\n");

   pre=T;

   preThread_tree(T);//非递归先序遍历

   pre->rchild=T;

   print_preThr_tree(T);

   return 0;

}



//中序线索
#include<stdio.h>

#include<stdlib.h>

#define Thread 1

#define Tlink 0

typedef struct tree

{

   int d;

   struct tree* lchild;

   struct tree* rchild;

   int Ltag, Rtag;

}*TREE;



void build_tree(TREE &T)

{

   int d;

   scanf("%d", &d);

   if(d!=-1)

     {

         T=(TREE)malloc(sizeof(tree));

         T->d=d;

         T->lchild=T->rchild=NULL;

         T->Ltag=T->Rtag=Tlink;

         build_tree(T->lchild);

         build_tree(T->rchild);

     }

}



TREE pre;



void inorThread_tree(TREE p)

{

   if(p)

     {

         if(p->Ltag==Tlink)//当只有一个结点的时候，要加上这句话

           inorThread_tree(p->lchild);

        if(!p->lchild)

          {

               p->lchild=pre;

               p->Ltag=Thread;

          }

        if(!pre->rchild)

          {

              pre->rchild=p;

              pre->Rtag=Thread;

          }

         pre=p;

         if(p->Rtag==Tlink)

           inorThread_tree(p->rchild);

     }

}



void print_tree(TREE T){

    if(T)

     {

        print_tree(T->lchild);

        printf("%d ", T->d);

        print_tree(T->rchild);

     }

}



void print_inorThr_tree(TREE T)

{

   TREE p=T;

   while(1)

    {

       while(p->Ltag==Tlink)

         p=p->lchild;

       printf("%d ", p->d);

       while(p->Rtag==Thread)

         {

             p=p->rchild;

             printf("%d ", p->d);

         }

       p=p->rchild;

       if(p==T)

         break;

    }

}



int main()

{

   TREE T=NULL;

   build_tree(T);

   print_tree(T);//递归中序遍历

   printf("\n");

   pre=T;

   inorThread_tree(T);//非递归中序遍历

   pre->rchild=T;

   pre->Rtag=0;//保证只有一个结点的情况

   print_inorThr_tree(T);

   return 0;

}

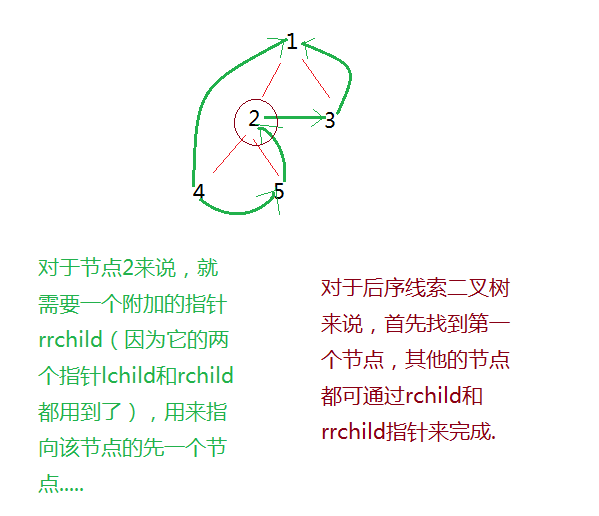

//后序线索
#include<stdio.h>

#include<stdlib.h>

#define Thread 1

#define Tlink 0

typedef struct tree

{

   int d;

   struct tree* lchild;

   struct tree* rchild;

   struct tree* rrchild;

   int Ltag, Rtag;

}*TREE;



void build_tree(TREE &T)

{

   int d;

   scanf("%d", &d);

   if(d!=-1)

     {

         T=(TREE)malloc(sizeof(tree));

         T->d=d;

         T->lchild=T->rchild=NULL;

         T->Ltag=T->Rtag=Tlink;

         build_tree(T->lchild);

         build_tree(T->rchild);

     }

}



TREE pre;



void postThread_tree(TREE p)

{

   if(p)

     {

         if(p->Ltag==Tlink)

            postThread_tree(p->lchild);

         if(p->Rtag==Tlink)

            postThread_tree(p->rchild);



         if(!p->lchild)

          {

               p->lchild=pre;

               p->Ltag=Thread;

          }

         if(!pre->rchild )

          {

              pre->rchild=p;

              pre->Rtag=Thread;

          } else {

              pre->rrchild=p;

          }

          pre=p;

     }

}



void print_postThr_tree(TREE T)

{

   TREE p=T;

   while(p->Ltag==Tlink)

      p=p->lchild;

   while(1)

    {

       printf("%d ", p->d);

       if(p==T)

         break;

       if(p->Rtag == Thread)

            p=p->rchild;

       else

               p=p->rrchild;

    }

}



void print_tree(TREE T)

{

    if(T)

     {

        print_tree(T->lchild);

        print_tree(T->rchild);

        printf("%d ", T->d);

     }

}





int main()

{

   TREE T=NULL;

   build_tree(T);

   print_tree(T);//递归后序遍历

   printf("\n");

   pre=T;

   postThread_tree(T);//非递归后序遍历

   pre->rchild=T;

   pre->Rtag = Thread;

   print_postThr_tree(T);

   return 0;

}
