DAVID数据制作KEGG的气泡图和柱状图

DAVID数据制作KEGG的气泡图和柱状图

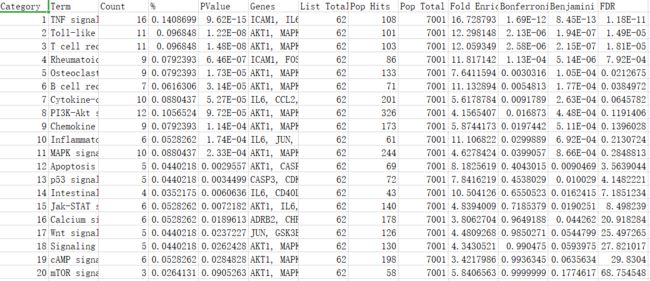

DAVID数据制作KEGG的气泡图和柱状图_第1张图片

rm(list=ls())

library(ggplot2)

library(Cairo)

setwd("C:\\Users\\wyccccc\\Desktop\\DAVIDKEGG")

GO_BP <- read.table("DAVIDKEGG.tsv",header = T,sep="\t")

png_path="./figure/GO_BP.png"

CairoPNG(png_path, width = 12, height = 7, units='in', dpi=600)

ggplot(data=GO_BP)+

  geom_bar(aes(x=reorder(Term,Count),y=Count, fill=-log10(PValue)), stat='identity') +

  coord_flip() +

  scale_fill_gradient(expression(-log["10"](P.value)),low="red", high = "blue") +

  xlab("") +

  ylab("Gene count") +

  scale_y_continuous(expand=c(0, 0))+

  theme(

    axis.text.x=element_text(color="black",size=rel(1.5)),

    axis.text.y=element_text(color="black", size=rel(1.6)),

    axis.title.x = element_text(color="black", size=rel(1.6)),

    legend.text=element_text(color="black",size=rel(1.0)),

    legend.title = element_text(color="black",size=rel(1.1))

    # legend.position=c(0,1),legend.justification=c(-1,0)

    # legend.position="top",

    )

dev.off()

成功

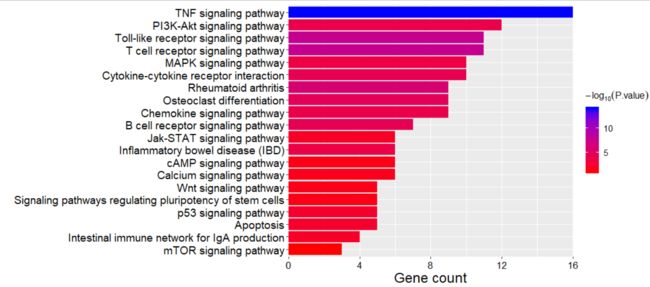

DAVID数据制作KEGG的气泡图和柱状图_第2张图片

另:气泡图的代码

rm(list=ls())

library(ggplot2)

library(Cairo)

setwd("/home/ ")

GO_BP <- read.table("./enh_statistics/A549_GO_BP_spe.tsv",header = T,sep="\t")

png_path="./figure/GO_BP.png"

CairoPNG(png_path, width = 12, height = 7, units='in', dpi=600)

ggplot(data=GO_BP)+

  geom_bar(aes(x=reorder(Term,Count),y=Count, fill=-log10(PValue)), stat='identity') +

  coord_flip() +

  scale_fill_gradient(expression(-log["10"](P.value)),low="red", high = "blue") +

  xlab("") +

  ylab("Gene count") +

  scale_y_continuous(expand=c(0, 0))+

  theme(

    axis.text.x=element_text(color="black",size=rel(1.5)),

    axis.text.y=element_text(color="black", size=rel(1.6)),

    axis.title.x = element_text(color="black", size=rel(1.6)),

    legend.text=element_text(color="black",size=rel(1.0)),

    legend.title = element_text(color="black",size=rel(1.1))

    # legend.position=c(0,1),legend.justification=c(-1,0)

    # legend.position="top",

    )

dev.off()
