OpenLayers: layerSwitcher扩展,加入group layer功能

做开发时,有时候图层很多,需要有同时打开关闭多个图层的功能,但是正式版的layerSwitcher不支持group layer功能.

从网上搜到layerSwitcher的扩展,是在源代码里添加对grouplayer的操作和事件支持.

对layerSwitcher.js进行修改后,需要重新build一下,生成新的openlayers.js



在写script添加图层的时候，加入group信息，如下例子：

代码








   var
    dm
   =

   new
    OpenLayers.Layer.WMS(
   "
   DM Solutions Transit
   "
   ,

   "
   http://www2.dmsolutions.ca/cgi-bin/mswms_gmap
   "
   ,
                {layers:
   "
   rail,road
   "
   ,
                 transparent:
   "
   true
   "
   , format:
   "
   image/png
   "

                },
                { //将"DM Solutions Transit"放入名叫Transit的组里
                  group:
   "Transit"

                });





如果想嵌套图层，只需要加“/”表示层级关系








    ...
      group:
   "Transit/Roads"
   ,
 ...

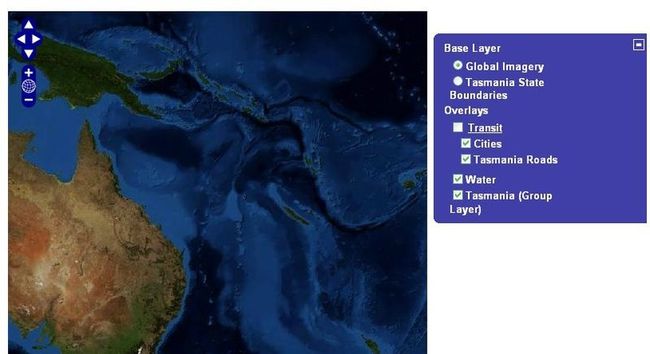

看看效果图:

这是修改后的layerSwitcher.js的压缩文件: 下载



下面详细列出layerSwitcher.js需要添加的代码:

粗体字为添加的代码

代码

    minimizeDiv:  null ,

     /* *
     * Property: maximizeDiv
     * {DOMElement}
      */
    maximizeDiv:  null ,

     /* *
     * APIProperty: ascending
     * {Boolean}
      */
    ascending:  true ,

     /* *        * Property: groupDivs
      * Object with {DOMElements}, {Booleans} and {Strings}
      */
      groups: {
               groupDivs:{},
               checked: {},
               layers:{},
               display: {}
               },



代码

  clearLayersArray:  function (layersType) {
         var  layers  =   this [layersType  +   " Layers " ];
         if  (layers) {
             for ( var  i = 0 , len = layers.length; i < len ; i ++ ) {
                 var  layer  =  layers[i];
                OpenLayers.Event.stopObservingElement(layer.inputElem);
                OpenLayers.Event.stopObservingElement(layer.labelSpan);
            }
        }
         this [layersType  +   " LayersDiv " ].innerHTML  =   "" ;
         this [layersType  +   " Layers " ]  =  [];

         this.groups.groupDivs =  {};
    },



代码

 redraw:  function () {
         // if the state hasn't changed since last redraw, no need
         //  to do anything. Just return the existing div.
         if  ( ! this .checkRedraw()) {
             return   this .div;
        }

         // clear out previous layers
         this .clearLayersArray( " base " );
         this .clearLayersArray( " data " );

         var  containsOverlays  =   false ;
         var  containsBaseLayers  =   false ;

         //  Save state -- for checking layer if the map state changed.
         //  We save this before redrawing, because in the process of redrawing
         //  we will trigger more visibility changes, and we want to not redraw
         //  and enter an infinite loop.
         var  len  =   this .map.layers.length;
         this .layerStates  =   new  Array(len);
         for  ( var  i = 0 ; i  < len; i ++ ) {
             var  layer  =   this .map.layers[i];
             this .layerStates[i]  =  {
                 ' name ' : layer.name,
                 ' visibility ' : layer.visibility,
                 ' inRange ' : layer.inRange,
                 ' id ' : layer.id
            };

         /**

         *  create group divs
         */
         if (layer.group && ! layer.isBaseLayer) {
                layer.group = layer.group.replace(/\/$/,"");
                layer.group = layer.group.replace(/^\//,"");
                this .createGroupDiv(layer.group);
             }

        }

         var  layers  =   this .map.layers.slice();



代码

  //  create line break
                 var  br  =  document.createElement( " br " );
                 var  groupArray  =  (baseLayer)  ?   this .baseLayers
                                             :  this .dataLayers;
                groupArray.push({
                     ' layer ' : layer,
                     ' inputElem ' : inputElem,
                     ' labelSpan ' : labelSpan
                });

                 var  groupDiv  =  (baseLayer)  ?   this .baseLayersDiv
                                           :  this .dataLayersDiv;
                groupDiv.appendChild(inputElem);
                groupDiv.appendChild(labelSpan);
                groupDiv.appendChild(br);

                 /*
                 *  layer group for data layers
                 */
                  if (! baseLayer) {
                     // no group
                     if (layer.group == null )  {
                         this .dataLayersDiv.appendChild(inputElem);
                         this .dataLayersDiv.appendChild(labelSpan);
                         this .dataLayersDiv.appendChild(br);
                     }
                     // group exists it is most probably allready there
                     else  {
                         var groupname =  layer.group;
                         var div = this .groups.groupDivs[groupname];
                         div.appendChild(inputElem);
                         div.appendChild(labelSpan);
                         div.appendChild(br);
                         // append layer to the group
                         this .appendLayerToGroups(layer);
                     }
                 }
                 // base layers
                 else  {
                     this .baseLayersDiv.appendChild(inputElem);
                     this .baseLayersDiv.appendChild(labelSpan);
                     this .baseLayersDiv.appendChild(br);
                 }
            }
        }

         //  if no overlays, dont display the overlay label
         this .dataLbl.style.display  =  (containsOverlays)  ?   ""  :  " none " ;




代码

 onInputClick:  function (e) {

         if  ( ! this .inputElem.disabled) {
             if  ( this .inputElem.type  ==   " radio " ) {
                 this .inputElem.checked  =   true ;
                 this .layer.map.setBaseLayer( this .layer);
            }  else  {
                 this .inputElem.checked  =   ! this .inputElem.checked;
                 this .layerSwitcher.updateMap();
            }
        }
        OpenLayers.Event.stop(e);
    },

       /**

      * Method:
      * A group label has been clicked, check or uncheck its corresponding input
      *
      * Parameters:
      * e - {Event}
      *
      * Context:
      *  - {DOMElement} inputElem
      *  - {<OpenLayers.Control.LayerSwitcher>} layerSwitcher
      *  - {DOMElement} groupDiv
      */

     onInputGroupClick: function (e) {

         // setup the check value
         var check = !this .inputElem.checked;

         // get all <input></input> tags in this div
         var inputs = this.groupDiv.getElementsByTagName("input" );

         // check the group input, other inputs are in groupDiv,
         // inputElem is in parent div
         this.inputElem.checked= check;

         // store to groupCheckd structure, where it can be later found
         this.layerSwitcher.groups.checked[this.inputElem.value] =  check;

         for (var i = 0; i < inputs.length; i++ ) {
             // same as above
             inputs[i].checked= check;
             this.layerSwitcher.groups.checked[inputs[i].value] =  check;
         }

         // groups are done, now the layers
         var dataLayers = this .layerSwitcher.dataLayers;
         for (var j = 0; j < dataLayers.length; j++ ) {
             var layerEntry =  dataLayers[j];
             if (this .layerSwitcher.isInGroup(
                     this .inputElem.value,layerEntry.layer.id)) {
                 layerEntry.inputElem.checked =  check;
                 layerEntry.layer.setVisibility(check);
             }
         }

         OpenLayers.Event.stop(e);
     },



代码

  onLayerClick:  function (e) {
         this .updateMap();
    },

     /* *
      * Method: onGroupClick
      * Make the div with layers invisible
      *
      * Context:
      * layergroup - {String}
      * groups - {Array} of {DOMElements}
      */
     onGroupClick: function (e) {
         var layergroup = this .layergroup;
         var div = this .groups.groupDivs[layergroup];
         if  (div) {
             if (div.style.display != "block" ) {
                 div.style.display = "block" ;
                 this.groups.display[layergroup] = "block" ;
             }
             else  {
                 div.style.display = "none" ;
                 this.groups.display[layergroup] = "none" ;
             }
         }
     },



代码

 mouseUp:  function (evt) {
         if  ( this .isMouseDown) {
             this .isMouseDown  =   false ;
             this .ignoreEvent(evt);
        }
    },
     /* *
      * Method: createGroupDiv
      * Creates <div></div> element for group of layers defined by input string.
      *
      * Parameters:
      * layergroup - {Strin} with group structure as "Parent Group/It's child"
      *
      * Returns:
      * {DOMElement} <div></div> object for this group of layers
      */
     createGroupDiv: function (layergroup) {
          var groupNames = layergroup.split("/"); // array with layer names
          var groupName = groupNames[groupNames.length-1]; // name of the last group in the line
         var br = document.createElement("br" );
         var groupDiv = this .groups.groupDivs[layergroup];

         // groupDiv does not exist: create
         if (! groupDiv) {

             // search for the parent div - it can be another group div, or
             // this dataLayersDiv directly
             var parentDiv = this.groups.groupDivs[groupNames.slice(0,groupNames.length-2).join("/" )];

             if (! parentDiv) {

                 // dataLayersDiv is parent div
                 if (groupNames.length == 1 ) {
                     parentDiv = this .dataLayersDiv;
                 }
                 // there is no such thing, like parent div,
                 else  {
                     parentDiv = this.createGroupDiv( groupNames.slice(0,groupNames.length-1).join("/" ));
                 }
             }

             // create the div
             groupDiv = document.createElement("div" );
             groupDiv.classes="olLayerGroup" ;
             groupDiv.style.marginLeft="10px" ;
             groupDiv.style.marginBottom="5px" ;
             if (!this .groups.display[layergroup]) {
                 this.groups.display[layergroup] = "block" ;
             }
             groupDiv.style.display= this .groups.display[layergroup];
             this.groups.groupDivs[layergroup] =  groupDiv;

             // create the label
             var groupLbl = document.createElement("span" );
             groupLbl.innerHTML="<u>"+groupName+"</u><br/>" ;
             groupLbl.style.marginTop = "3px" ;
             groupLbl.style.marginLeft = "3px" ;
             groupLbl.style.marginBottom = "3px" ;
             groupLbl.style.fontWeight = "bold" ;

             // setup mouse click event on groupLbl
             OpenLayers.Event.observe(groupLbl, "mouseup" ,
                 OpenLayers.Function.bindAsEventListener(
                     this .onGroupClick, {layergroup: layergroup, groups:
                     this .groups}));

              // create input checkbox
             var groupInput = document.createElement("input" );
             groupInput.id = "input_" + groupNames.join("_" );
             groupInput.name = groupNames.join("_" );
             groupInput.type = "checkbox" ;
              groupInput.value =  layergroup;
             groupInput.checked = false ;
             groupInput.defaultChecked = false ;
              if (!this .groups.checked[layergroup]) {
                 this.groups.checked[layergroup] = false ;
             }
             groupInput.checked = this .groups.checked[layergroup];
             groupInput.defaultChecked = this .groups.checked[layergroup];

             // create empty array of layers
             if (!this .groups.layers[layergroup]) {
                 this.groups.layers[layergroup] =  [];
             }

             // setup mouse click event on groupInput
             var context =  {groupDiv: groupDiv,
                             layerSwitcher: this ,
                             inputElem: groupInput};

             OpenLayers.Event.observe(groupInput, "mouseup" ,
                 OpenLayers.Function.bindAsEventListener(
                     this .onInputGroupClick, context));

             // append to parent div
             parentDiv.appendChild(groupInput);
             parentDiv.appendChild(groupLbl);
             parentDiv.appendChild(groupDiv);

         }

         return this .groups.groupDivs[layergroup];
     },

     appendLayerToGroups: function (layer) {
         var groupNames = layer.group.split("/" );
         var groupName = null ;

         for (var i = 1; i <= groupNames.length; i++ ) {
             var groupName = groupNames.slice(0,i).join("/" );
              if (!this .isInGroup(groupName,layer.id)) {
                 this .groups.layers[groupName].push(layer);
             }
         }
      },

     isInGroup: function  (groupName, id) {
         for (var j = 0; j < this.groups.layers[groupName].length; j++ ) {
             if (this.groups.layers[groupName][j].id ==  id) {
                 return true ;
             }
         }
         return false ;
     },
