第八章 Flink集成Iceberg的DataStreamAPI、TableSQLAPI详解
1、概述
目前Flink支持使用DataStream API 和SQL API方式实时读取和写入I=ceberg表，建议使用SQL API方式实时读取和写入Iceberg表。
- Iceberg支持的Flink版本为1.11.x版本以上，以下为版本匹配关系：
| Flink版本 | Iceberg版本 | 备注 |
|---|---|---|
| Flink1.11.X | Iceberg0.11.1 | |
| Flink1.12.x ~ Flink1.13.x | Iceberg0.12.1 | SQL API有Bug |
| Flink1.14.x | Iceberg0.12.1 | SQL API有Bug |
本次学习以Flink和Iceberg整合使用Flink版本为1.14.5，Iceberg版本为0.12.1版本。
2、DataStream API
2.1、实时写入Iceberg表

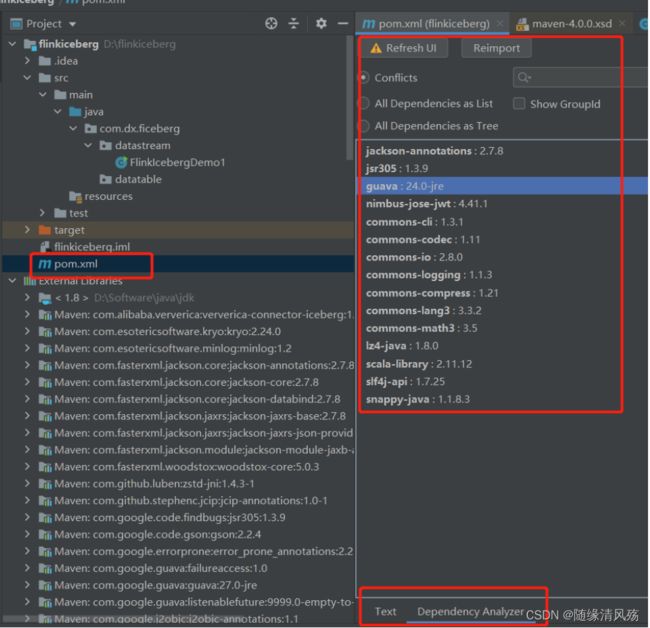

2.1.1、导入依赖
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0modelVersion>
<groupId>org.examplegroupId>
<artifactId>flinkiceberg1artifactId>
<version>1.0-SNAPSHOTversion>
<properties>
<project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
<maven.compiler.source>1.8maven.compiler.source>
<maven.compiler.target>1.8maven.compiler.target>
<flink.version>1.13.5flink.version>
<hadoop.version>3.1.1hadoop.version>
properties>
<dependencies>
<dependency>
<groupId>com.alibaba.ververicagroupId>
<artifactId>ververica-connector-icebergartifactId>
<version>1.13-vvr-4.0.7version>
<exclusions>
<exclusion>
<groupId>com.google.guavagroupId>
<artifactId>guava-parentartifactId>
exclusion>
exclusions>
dependency>
<dependency>
<groupId>org.apache.iceberggroupId>
<artifactId>iceberg-flink-runtimeartifactId>
<version>0.12.1version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-javaartifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-streaming-java_2.11artifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-clients_2.11artifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-streaming-scala_2.11artifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-connector-kafka_2.11artifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-connector-baseartifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.hadoopgroupId>
<artifactId>hadoop-clientartifactId>
<version>${hadoop.version}version>
<exclusions>
<exclusion>
<artifactId>guavaartifactId>
<groupId>com.google.guavagroupId>
exclusion>
exclusions>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-table-runtime-blink_2.11artifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-tableartifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-table-commonartifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-table-api-javaartifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-table-api-java-bridge_2.11artifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-table-planner_2.11artifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>org.apache.flinkgroupId>
<artifactId>flink-table-planner-blink_2.11artifactId>
<version>${flink.version}version>
dependency>
<dependency>
<groupId>junitgroupId>
<artifactId>junitartifactId>
<version>4.11version>
<scope>testscope>
dependency>
<dependency>
<groupId>org.slf4jgroupId>
<artifactId>slf4j-log4j12artifactId>
<version>1.7.25version>
<scope>testscope>
dependency>
<dependency>
<groupId>log4jgroupId>
<artifactId>log4jartifactId>
<version>1.2.17version>
dependency>
<dependency>
<groupId>org.slf4jgroupId>
<artifactId>slf4j-apiartifactId>
<version>1.7.25version>
dependency>
<dependency>
<groupId>org.slf4jgroupId>
<artifactId>slf4j-nopartifactId>
<version>1.7.25version>
<scope>testscope>
dependency>
<dependency>
<groupId>org.slf4jgroupId>
<artifactId>slf4j-simpleartifactId>
<version>1.7.5version>
dependency>
dependencies>
project>
2.1.2、创建Iceberg表
- 核心：通过Flink创建Iceberg表
-- 1、创建catalog
CREATE CATALOG hadoop_catalog WITH (
> 'type'='iceberg',
> 'catalog-type'='hadoop',
> 'warehouse'='hdfs://leidi01:8020/iceberg_catalog',
> 'property-version'='1'
> );
-- 2、创建databases
create database flink_iceberg;
-- 3、创建Sink表
CREATE TABLE hadoop_catalog.flink_iceberg.icebergdemo1 (
id STRING,
data STRING
);
- 运行结果
2.1.3、代码实现
public class FlinkIcebergDemo1 {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//1.必须设置checkpoint ,Flink向Iceberg中写入数据时当checkpoint发生后，才会commit数据。
env.enableCheckpointing(5000);
//2.读取Kafka 中的topic 数据
KafkaSource<String> source = KafkaSource.<String>builder()
.setBootstrapServers("192.168.6.102:6667")
.setTopics("json")
.setGroupId("my-group-id")
.setStartingOffsets(OffsetsInitializer.latest())
.setValueOnlyDeserializer(new SimpleStringSchema())
.build();
DataStreamSource<String> kafkaSource = env.fromSource(source, WatermarkStrategy.noWatermarks(), "Kafka Source");
//3.对数据进行处理，包装成RowData 对象，方便保存到Iceberg表中。
SingleOutputStreamOperator<RowData> dataStream = kafkaSource.map(new MapFunction<String, RowData>() {
@Override
public RowData map(String s) throws Exception {
System.out.println("s = "+s);
String[] split = s.split(",");
GenericRowData row = new GenericRowData(4);
row.setField(0, Integer.valueOf(split[0]));
row.setField(1, StringData.fromString(split[1]));
row.setField(2, Integer.valueOf(split[2]));
row.setField(3, StringData.fromString(split[3]));
return row;
}
});
//4.创建Hadoop配置、Catalog配置和表的Schema，方便后续向路径写数据时可以找到对应的表
Configuration hadoopConf = new Configuration();
Catalog catalog = new HadoopCatalog(hadoopConf,"hdfs://leidi01:8020/flinkiceberg/");
//配置iceberg 库名和表名
TableIdentifier name =
TableIdentifier.of("icebergdb", "flink_iceberg_tbl");
//创建Icebeng表Schema
Schema schema = new Schema(
Types.NestedField.required(1, "id", Types.IntegerType.get()),
Types.NestedField.required(2, "nane", Types.StringType.get()),
Types.NestedField.required(3, "age", Types.IntegerType.get()),
Types.NestedField.required(4, "loc", Types.StringType.get()));
//如果有分区指定对应分区，这里“loc”列为分区列，可以指定unpartitioned 方法不设置表分区
// PartitionSpec spec = PartitionSpec.unpartitioned();
PartitionSpec spec = PartitionSpec.builderFor(schema).identity("loc").build();
//指定Iceberg表数据格式化为Parquet存储
Map<String, String> props =
ImmutableMap.of(TableProperties.DEFAULT_FILE_FORMAT, FileFormat.PARQUET.name());
Table table = null;
// 通过catalog判断表是否存在，不存在就创建，存在就加载
if (!catalog.tableExists(name)) {
table = catalog.createTable(name, schema, spec, props);
}else {
table = catalog.loadTable(name);
}
TableLoader tableLoader = TableLoader.fromHadoopTable("hdfs://leidi01:8020/flinkiceberg//icebergdb/flink_iceberg_tbl", hadoopConf);
//5.通过DataStream Api 向Iceberg中写入数据
FlinkSink.forRowData(dataStream)
//这个 .table 也可以不写，指定tableLoader 对应的路径就可以。
.table(table)
.tableLoader(tableLoader)
//默认为false,追加数据。如果设置为true 就是覆盖数据
.overwrite(false)
.build();
env.execute("DataStream Api Write Data To Iceberg");
}
}
- 注意事项：
（1）需要设置Checkpoint，Flink向Iceberg中写入Commit数据时，只有Checkpoint成功之后才会Commit数据，否则后期在Hive中查询不到数据。
（2）读取Kafka数据后需要包装成RowData或者Row对象，才能向Iceberg表中写出数据。写出数据时默认是追加数据，如果指定overwrite就是全部覆盖数据。
（3）在向Iceberg表中写数据之前需要创建对应的Catalog、表Schema,否则写出时只指定对应的路径会报错找不到对应的Iceberg表。
（4）不建议使用DataStream API 向Iceberg中写数据，建议使用SQL API。
2.1.4、Kafka消费者启动
bin/kafka-console-producer.sh --topic json --broker-list leidi01:6667
bin/kafka-console-consumer.sh --bootstrap-server leidi01:6667 --topic json --from-beginning
- 生产数据
- 运行结果：
data中有两个分区
2.1.5、查询表结果
- 说明：
在Flink SQL中创建Hadoop Catalog。
-- 1、创建Hadoop Catalog
CREATE CATALOG flinkiceberg WITH (
'type'='iceberg',
'catalog-type'='hadoop',
'warehouse'='hdfs://leidi01:8020/flinkiceberg/',
'property-version'='1'
);
-- 2、查询表中数据
use catalog flinkiceberg;
use icebergdb;
select * from flink_iceberg_tbl;
- 运行结果
2.2、批量/实时读取Iceberg表
- 核心：DataStream API 读取Iceberg表又分为批量读取和实时读取，通过方法“streaming(true/false)”来控制。
2.2.1、批量读取
- 说明：设置方法“streaming(false)”
- 代码实现
public class FlinkIcebergRead {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//1.配置TableLoader
Configuration hadoopConf = new Configuration();
TableLoader tableLoader = TableLoader.fromHadoopTable("hdfs://leidi01:8020/flinkiceberg//icebergdb/flink_iceberg_tbl", hadoopConf);
//2.从Iceberg中读取全量/增量读取数据
DataStream<RowData> batchData = FlinkSource.forRowData().env(env)
.tableLoader(tableLoader)
//默认为false,整批次读取，设置为true 为流式读取
.streaming(false)
.build();
batchData.map(new MapFunction<RowData, String>() {
@Override
public String map(RowData rowData) throws Exception {
int id = rowData.getInt(0);
String name = rowData.getString(1).toString();
int age = rowData.getInt(2);
String loc = rowData.getString(3).toString();
return id+","+name+","+age+","+loc;
}
}).print();
env.execute("DataStream Api Read Data From Iceberg");
}
}
- 运行结果
2.2.2、实时读取
-
说明：设置方法“streaming(true)”
-
代码实现
DataStream<RowData> batchData = FlinkSource.forRowData().env(env)
.tableLoader(tableLoader)
//默认为false,整批次读取，设置为true 为流式读取
.streaming(true)
.build();
- Flink SQL插入数据
insert into flink_iceberg_tbl values (5,'s1',30,'guangzhou'),(6,'s2',31,'tianjin');
- 运行结果
2.2.3、指定基于快照实时增量读取数据
- 核心：设置方法StartSnapshotId(快照编号)
（1）查看快照编号
（2）代码实现
//2.从Iceberg中读取全量/增量读取数据
DataStream<RowData> batchData = FlinkSource.forRowData().env(env)
.tableLoader(tableLoader)
//基于某个快照实时增量读取数据，快照需要从元数据中获取
.startSnapshotId(1738199999360637062L)
//默认为false,整批次读取; 设置为true为流式读取
.streaming(true)
.build();
（3）运行结果
- 说明：*只读取到指定快照往后的数据*
2.2.4、合并Data Flies
- 说明：Iceberg提供Api通过定期提交任务将小文件合并成大文件，可以通过Flink 批任务来执行。
（1）未处理文件
- 说明：Iceberg每提交一次数据都会产生一个Data File。
（2）代码实现
public class RewrietDataFiles {
public static void main(String[] args) {
ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();
// 1、配置TableLoader
Configuration hadoopConf = new Configuration();
//2.创建Hadoop配置、Catalog配置和表的Schema，方便后续向路径写数据时可以找到对应的表
Catalog catalog = new HadoopCatalog(hadoopConf,"hdfs://leidi01:8020/flinkiceberg/");
//3.配置iceberg 库名和表名并加载表
TableIdentifier name = TableIdentifier.of("icebergdb", "flink_iceberg_tbl");
Table table = catalog.loadTable(name);
//4..合并 data files 小文件
RewriteDataFilesActionResult result = Actions.forTable(table)
.rewriteDataFiles()
//默认 512M ，可以手动通过以下指定合并文件大小，与Spark中一样。
.targetSizeInBytes(536870912L)
.execute();
}
}
（3）运行结果
3、SQL API
3.1、创建表并插入数据
（1）代码实现
public class SQLAPIWriteIceberg {
public static void main(String[] args) {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
StreamTableEnvironment tblEnv = StreamTableEnvironment.create(env);
env.enableCheckpointing(1000);
//1.创建Catalog
tblEnv.executeSql("CREATE CATALOG hadoop_iceberg WITH (" +
"'type'='iceberg'," +
"'catalog-type'='hadoop'," +
"'warehouse'='hdfs://leidi01:8020/flinkiceberg')");
//2.使用当前Catalog
tblEnv.useCatalog("hadoop_iceberg");
//3.创建数据库
tblEnv.executeSql("create database iceberg_db");
//4.使用数据库
tblEnv.useDatabase("iceberg_db");
//5.创建iceberg表 flink_iceberg_tbl
tblEnv.executeSql("create table hadoop_iceberg.iceberg_db.flink_iceberg_tbl2(id int,name string,age int,loc string) partitioned by (loc)");
//6.写入数据到表 flink_iceberg_tbl
tblEnv.executeSql("insert into hadoop_iceberg.iceberg_db.flink_iceberg_tbl2 values (1,'zs',18,'beijing'),(2,'ls',19,'shanghai'),(3,'ww',20,'guangzhou')");
}
}
（2）运行结果
- 说明：通过HDFS查看文件是否生成。
（3）查看数据
- 说明：通过FlinkSQL查看表中数据
-- 1、创建Catalog
CREATE CATALOG flinkiceberg WITH (
> 'type'='iceberg',
> 'catalog-type'='hadoop',
> 'warehouse'='hdfs://leidi01:8020/flinkiceberg/',
> 'property-version'='1'
> );
-- 2、查询数据
use catalog flinkiceberg
use iceberg_db;
select * from flink_iceberg_tbl2;
- 查看结果
3.2、批量查询表数据
- 说明：SQL API批量查询表中数据，直接查询显示即可
（1）代码逻辑
（2）代码实现
public class SQLAPIReadIceberg {
public static void main(String[] args) {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
StreamTableEnvironment tblEnv = StreamTableEnvironment.create(env);
env.enableCheckpointing(1000);
//1.创建Catalog
tblEnv.executeSql("CREATE CATALOG hadoop_iceberg WITH (" +
"'type'='iceberg'," +
"'catalog-type'='hadoop'," +
"'warehouse'='hdfs://leidi01:8020/flinkiceberg')");
//2.批量读取表数据
TableResult tableResult = tblEnv.executeSql("select * from hadoop_iceberg.iceberg_db.flink_iceberg_tbl2 ");
tableResult.print();
}
}
- 运行结果
3.3、实时查询表数据
- 说明：link SQL API 实时查询Iceberg表数据时需要设置参数**“table.dynamic-table-options.enabled”为true**，以支持SQL语法中的“OPTIONS”选项
（1）代码逻辑
（2）代码实现
public class SQLStreamReadIceberg {
public static void main(String[] args) {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
StreamTableEnvironment tblEnv = StreamTableEnvironment.create(env);
env.enableCheckpointing(1000);
Configuration configuration = tblEnv.getConfig().getConfiguration();
// 支持SQL语法中的 OPTIONS 选项
configuration.setBoolean("table.dynamic-table-options.enabled", true);
//1.创建Catalog
tblEnv.executeSql("CREATE CATALOG hadoop_iceberg WITH (" +
"'type'='iceberg'," +
"'catalog-type'='hadoop'," +
"'warehouse'='hdfs://leidi01:8020/flinkiceberg')");
//2.从Iceberg表当前快照读取所有数据，并继续增量读取数据
// streaming指定为true支持实时读取数据，monitor_interval 监控数据的间隔，默认1s
TableResult tableResult = tblEnv.executeSql("select * from hadoop_iceberg.iceberg_db.flink_iceberg_tbl2 /*+ OPTIONS('streaming'='true', 'monitor-interval'='1s')*/");
tableResult.print();
}
}
- 运行结果：
（3）测试验证
- FlinkSQL插入数据
insert into flink_iceberg_tbl2 values (5,'s1',30,'guangzhou'),(6,'s2',31,'tianjin');
- 运行结果：在IDEA的控制台可以看到新增数据
3.4、基于快照实时增量读取数据
- 说明：基于某个snapshot-id来继续实时获取数据
（1）代码逻辑
（2）代码实现
- FlinkSQL插入数据
insert into flink_iceberg_tbl2 values (7,'s11',30,'beijing'),(8,'s22',31,'beijing');
- snapshot-id如下：
- 代码实现
public class SQLSnapshotReadIceberg {
public static void main(String[] args) {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
StreamTableEnvironment tblEnv = StreamTableEnvironment.create(env);
env.enableCheckpointing(1000);
Configuration configuration = tblEnv.getConfig().getConfiguration();
// 支持SQL语法中的 OPTIONS 选项
configuration.setBoolean("table.dynamic-table-options.enabled", true);
//1.创建Catalog
tblEnv.executeSql("CREATE CATALOG hadoop_iceberg WITH (" +
"'type'='iceberg'," +
"'catalog-type'='hadoop'," +
"'warehouse'='hdfs://leidi01:8020/flinkiceberg')");
//2.从Iceberg 指定的快照继续实时读取数据，快照ID从对应的元数据中获取
//start-snapshot-id :快照ID
TableResult tableResult2 = tblEnv.executeSql("SELECT * FROM hadoop_iceberg.iceberg_db.flink_iceberg_tbl2 /*+ OPTIONS('streaming'='true', 'monitor-interval'='1s', 'start-snapshot-id'='8334669420406375204')*/");
tableResult2.print();
}
}
（3）运行结果
4、常见报错
4.1、window远程连接hadoop环境变量找不到
- 报错日志
HADOOP_HOME and hadoop.home.dir are unset.
- 报错原因：本地远程连接Hadoop系统时需要在本地配置相关的Hadoop变量，主要包括hadoop.dll 与 winutils.exe 等。
winutils：由于hadoop主要基于linux编写，**winutil.exe主要用于模拟linux下的目录环境**。当Hadoop在windows下运行或调用远程Hadoop集群的时候，需要该辅助程序才能运行。winutils是Windows中的二进制文件，适用于不同版本的Hadoop系统并构建在Windows VM上，该VM用以在Windows系统中测试Hadoop相关的应用程序。
- 解决方案：
（1）下载hadoop集群对应winutils版本
- 注意事项：如果你安装的hadoop版本是：3.1.2或者3.2.0 就用winutils-master里面的hadoop-3.0.0配置环境变量吧！
https://github.com/steveloughran/winutils
（2）将环境变量%HADOOP_HOME%设置为指向包含WINUTILS.EXE的BIN目录上方的目录
4.2、guava包版本冲突
- 报错日志
com.google.common.base.Preconditions.checkArgument(ZLjava/lang/String;Ljava/lang/Object;)V
- 报错原因：
guava包版本冲突 - 解决方案：使用Maven Helper插件解决冲突
①第一步：在pom界面点击Dependency Analyzer
②第二步：查看Dependency Analyzer功能界面
Ⅰ、显示冲突的jar包
Ⅱ、以列表形式显示所有依赖
Ⅲ、以数的形式显示所有依赖
③第三步：逐个解决conflicts列表中的jar包冲突问题，以guava为例：
点击guava，找到右侧部分红色字体，即依赖冲突的地方，下图显示当前guava版本是24.0，但是有两个依赖的guava版本分别是27.0.0.1和16.0.1。
④将低版本依赖都排除掉
选中红色字体显示的内容->右键->Exclude，完成上述步骤结果如下：
⑤重新加载依赖配置
-------------------------------------------------------------------分割线-------------------------------------------------------------------------------
以上guava包冲突解决后依旧报错，将Hadoop版本从3.2.2降低到3.1.1不报错。
注意hive-3.1.2依赖的Hadoop版本是3.1.0 [3]，一般不建议runtime的Hadoop版本高于hive依赖的版本。
Ⅰ、解决方法一是在hive-exec里对guava做迁移，这个需要自己手动给hive-exec重新打包。
Ⅱ、解决方法二是降低Hadoop版本，这里不一定要降低集群的Hadoop版本，而只是降低flink和hive这边用到的Hadoop版本，相对于用老的Hadoop客户端去访问新的Hadoop服务器，这个小版本的包容性一般来说是没有问题的。
<hadoop.version>3.2.2hadoop.version>
将hadoop版本由3.2.2版本降低为3.1.1<-->
<hadoop.version>3.1.1hadoop.version>
4.4、log4j2配置文件报错
- 报错日志
ERROR StatusLogger No log4j2 configuration file found. Using default configuration: logging only errors to the console. Set system property 'org.apache.logging.log4j.simplelog.StatusLogger.level' to TRACE to show Log4j2 internal initialization logging.
- 报错原因：没有发现log4j2配置文件
- 解决方案：添加配置log4j2.xml文件，对应org.apache.logging.log4j.Logger
<Configuration status="WARN">
<Properties>
<property name="log_level" value="info" />
<Property name="log_dir" value="log" />
<property name="log_pattern"
value="[%d{yyyy-MM-dd HH:mm:ss.SSS}] [%p] - [%t] %logger - %m%n" />
<property name="file_name" value="test" />
<property name="every_file_size" value="100 MB" />
Properties>
<Appenders>
<Console name="Console" target="SYSTEM_OUT">
<PatternLayout pattern="${log_pattern}" />
Console>
<RollingFile name="RollingFile"
filename="${log_dir}/${file_name}.log"
filepattern="${log_dir}/$${date:yyyy-MM}/${file_name}-%d{yyyy-MM-dd}-%i.log">
<ThresholdFilter level="DEBUG" onMatch="ACCEPT"
onMismatch="DENY" />
<PatternLayout pattern="${log_pattern}" />
<Policies>
<SizeBasedTriggeringPolicy
size="${every_file_size}" />
<TimeBasedTriggeringPolicy modulate="true"
interval="1" />
Policies>
<DefaultRolloverStrategy max="20" />
RollingFile>
<RollingFile name="RollingFileErr"
fileName="${log_dir}/${file_name}-warnerr.log"
filePattern="${log_dir}/$${date:yyyy-MM}/${file_name}-%d{yyyy-MM-dd}-warnerr-%i.log">
<ThresholdFilter level="WARN" onMatch="ACCEPT"
onMismatch="DENY" />
<PatternLayout pattern="${log_pattern}" />
<Policies>
<SizeBasedTriggeringPolicy
size="${every_file_size}" />
<TimeBasedTriggeringPolicy modulate="true"
interval="1" />
Policies>
RollingFile>
Appenders>
<Loggers>
<Root level="${log_level}">
<AppenderRef ref="Console" />
<AppenderRef ref="RollingFile" />
<appender-ref ref="RollingFileErr" />
Root>
Loggers>
Configuration>
4.5、Flink Hive Catalog报错
- 报错日志
Exception in thread "main" java.lang.NoSuchMethodError: org.apache.calcite.sql.parser.SqlParser.config()Lorg/apache/calcite/sql/parser/SqlParser$Config;
-
报错原因：依赖报错
-
解决方案：将所有依赖切换到2.12，切换
flink-table-api-java-bridge到flink-table-api-scala-bridge_2.12。
