Docker部署RocketMQ集群

方案:
1 个 Name Server
2 个 Master Broker
Docker 使用不同端口号部署


10.168.. rocketMq 端口号:
rmqnamesrv-a 9876
rmqbroker-a 10909,10911,10912
rmqbroker-b 11909,11911,11912
rmqconsole 9000
http://id:9000/

0、参考资料

https://www.likecs.com/show-62610.html
https://blog.csdn.net/qiaodaima0/article/details/125431771


1、拉取镜像

docker pull rocketmqinc/rocketmq:4.3.0
docker pull styletang/rocketmq-console-ng

2、安装 docker-compose

curl -L https://get.daocloud.io/docker/compose/releases/download/1.24.1/docker-compose-`uname -s`-`uname -m` > /usr/local/bin/docker-compose
sudo chmod +x /usr/local/bin/docker-compose
docker-compose --version

3、创建数据文件夹文件夹

mkdir docker_rocketmq_data
cd docker_rocketmq_data

mkdir -p ./logs/nameserver-a
mkdir -p ./store/nameserver-a

mkdir -p ./logs/broker-a
mkdir -p ./store/broker-a

mkdir -p ./logs/broker-b
mkdir -p ./store/broker-b

4、broker-a.conf

brokerClusterName = rocketmq-cluster
brokerName = broker-a
brokerId = 0
brokerIP1 = 10.168.2.14
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH
namesrvAddr = 10.168.2.14:9876
autoCreateTopicEnable=true
listenPort = 10911
brokerRole=ASYNC_MASTER
flushDiskType=ASYNC_FLUSH

5、broker-b.conf

brokerClusterName = rocketmq-cluster
brokerName = broker-b
brokerId = 0
brokerIP1 = 10.168.2.14
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH
namesrvAddr=10.168.2.14:9876
autoCreateTopicEnable=true
listenPort = 11911
brokerRole=ASYNC_MASTER
flushDiskType=ASYNC_FLUSH

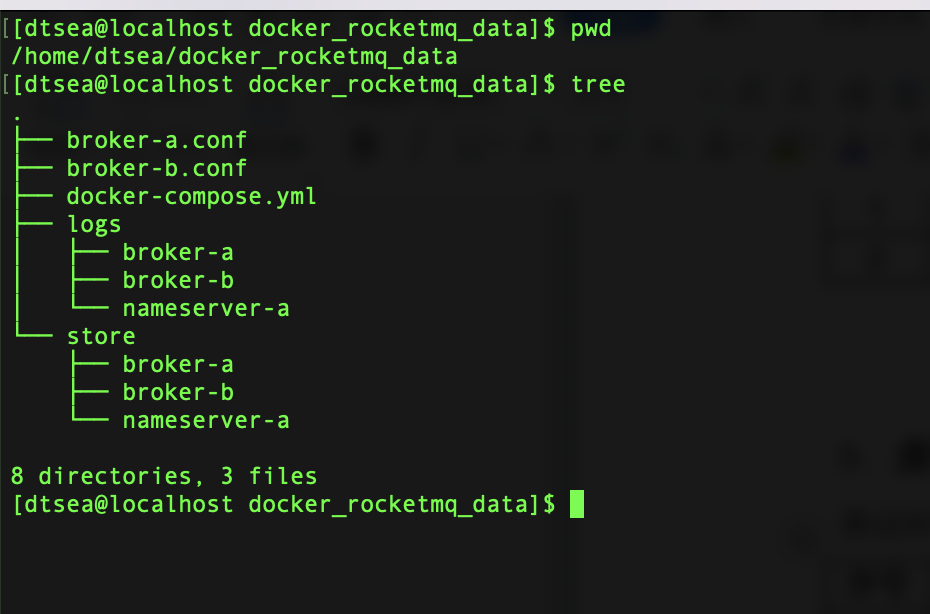

6、目录结构

![image.png](https://img-blog.csdnimg.cn/img_convert/54f85c6bdd907e367843425a17ca9b23.png#clientId=u77382857-7476-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=307&id=u4b7b1498&margin=[object Object]&name=image.png&originHeight=614&originWidth=930&originalType=binary&ratio=1&rotation=0&showTitle=false&size=119264&status=done&style=none&taskId=udfd625bc-dcea-4837-bf91-ab23a44ff56&title=&width=465)

7、docker-compose.yml

注意修改 volumes 路径

version: '3.5'
services:
  rmqnamesrv-a:
    image: rocketmqinc/rocketmq:4.3.0
    container_name: rmqnamesrv-a
    ports:
      - 9876:9876
    volumes:
      - /home/userName/docker_rocketmq_data/logs/nameserver-a:/opt/logs
      - /home/userName/docker_rocketmq_data/store/nameserver-a:/opt/store
    command: sh mqnamesrv
    networks:
        rmq:
          aliases:
            - rmqnamesrv-a

  rmqbroker-a:
    image: rocketmqinc/rocketmq:4.3.0
    container_name: rmqbroker-a
    ports:
      - 10909:10909
      - 10911:10911
      - 10912:10912
    volumes:
      - /home/userName/docker_rocketmq_data/logs/broker-a:/opt/logs
      - /home/userName/docker_rocketmq_data/store/broker-a:/opt/store
      - /home/userName/docker_rocketmq_data/broker-a.conf:/opt/rocketmq-4.3.0/conf/broker.conf
    environment:
        TZ: Asia/Shanghai
        NAMESRV_ADDR: "rmqnamesrv-a:9876"
        JAVA_OPTS: " -Duser.home=/opt"
        JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /opt/rocketmq-4.3.0/conf/broker.conf autoCreateTopicEnable=true &
    links:
      - rmqnamesrv-a:rmqnamesrv-a
    networks:
      rmq:
        aliases:
          - rmqbroker-a

  rmqbroker-b:
    image: rocketmqinc/rocketmq:4.3.0
    container_name: rmqbroker-b
    ports:
      - 11909:11909
      - 11911:11911
      - 11912:11912
    volumes:
      - /home/userName/docker_rocketmq_data/logs/broker-b:/opt/logs
      - /home/userName/docker_rocketmq_data/store/broker-b:/opt/store
      - /home/userName/docker_rocketmq_data/broker-b.conf:/opt/rocketmq-4.3.0/conf/broker.conf
    environment:
        TZ: Asia/Shanghai
        NAMESRV_ADDR: "rmqnamesrv-b:9876"
        JAVA_OPTS: " -Duser.home=/opt"
        JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /opt/rocketmq-4.3.0/conf/broker.conf autoCreateTopicEnable=true &
    links:
      - rmqnamesrv-a:rmqnamesrv-a
    networks:
      rmq:
        aliases:
          - rmqbroker-b

  rmqconsole:
    image: styletang/rocketmq-console-ng
    container_name: rmqconsole
    ports:
      - 9000:8080
    environment:
        JAVA_OPTS: -Drocketmq.namesrv.addr=rmqnamesrv-a:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false
    networks:
      rmq:
        aliases:
          - rmqconsole
networks:
  rmq:
    name: rmq
    driver: bridge

8、启动服务

docker-compose -f docker-compose.yml up -d

9、端口号

10.168.2.14 rocketMq 端口号:

rmqnamesrv-a 9876

rmqbroker-a 10909,10911,10912

rmqbroker-b 11909,11911,11912

rmqconsole 9000

http://ip:9000/

10、配置文件说明

brokerClusterName = rocketmq-cluster
brokerName = broker-a
brokerId = 0
#这个很有讲究 如果是正式环境 这里一定要填写内网地址(安全)
#如果是用于测试或者本地这里建议要填外网地址,因为你的本地代码是无法连接到阿里云内网,只能连接外网。
brokerIP1 = xxxxx
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH
# 内网的(阿里云有内网IP和外网IP)
namesrvAddr=172.18.0.5:9876;172.18.0.5:9877
autoCreateTopicEnable=true
#Broker 对外服务的监听端口,
listenPort = 10911
#Broker角色
#- ASYNC_MASTER 异步复制Master
#- SYNC_MASTER 同步双写Master
#- SLAVE
brokerRole=ASYNC_MASTER
#刷盘方式
#- ASYNC_FLUSH 异步刷盘
#- SYNC_FLUSH 同步刷盘
flushDiskType=ASYNC_FLUSH

11、测试代码

pom.xml

<dependency>
    <groupId>org.apache.rocketmq</groupId>
        <artifactId>rocketmq-client</artifactId>
    <version>4.3.0</version>
</dependency>

Producer.java

import org.apache.rocketmq.client.producer.DefaultMQProducer;
import org.apache.rocketmq.client.producer.SendResult;
import org.apache.rocketmq.common.message.Message;
import org.apache.rocketmq.remoting.common.RemotingHelper;

/**
 * 消息生产者
 * @author huangzr
 * @date 2022/7/8 15:12
 */
public class Producer {
    public static void main(String[] args) throws Exception {
        DefaultMQProducer producer = new DefaultMQProducer("niwei_producer_group");
        producer.setNamesrvAddr("ip:9876");
        producer.setSendMsgTimeout(100000);
        producer.start();
        for (int i = 0; i < 100; i++) {
            Message msg = new Message(
                    "topic_rocket_example" /* 消息主题名 */,
                    "TagA" /* 消息标签 */,
                    ("Hello Java demo RocketMQ " +
                            i).getBytes(RemotingHelper.DEFAULT_CHARSET) /* 消息内容 */
            );
            SendResult sendResult = producer.send(msg);
            System.out.printf("%s%n", sendResult);
        }
        producer.shutdown();
    }
}

Consumer.java

import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyContext;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.client.consumer.listener.MessageListenerConcurrently;
import org.apache.rocketmq.common.consumer.ConsumeFromWhere;
import org.apache.rocketmq.common.message.MessageExt;

import java.io.UnsupportedEncodingException;
import java.util.Date;
import java.util.List;

/**
 * 消费者
 * @author huangzr
 * @date 2022/7/8 15:13
 */
public class Consumer {
    public static void main(String[] args) throws Exception {
        DefaultMQPushConsumer consumer = new
                DefaultMQPushConsumer("niwei_consumer_group");
        consumer.setNamesrvAddr("ip:9876");
        consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_FIRST_OFFSET);
        consumer.subscribe("topic_rocket_example", "*");
        consumer.registerMessageListener(new MessageListenerConcurrently() {
            public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext context) {
                if (list != null) {
                    for (MessageExt ext : list) {
                        try {
                            System.out.println(new Date() + new
                                    String(ext.getBody(), "UTF-8"));
                        } catch (UnsupportedEncodingException e) {
                            e.printStackTrace();
                        }
                    }
                }
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }
        });
        consumer.start();
        System.out.println("消息消费者已启动");
    }
}
