[Angular] 主从表结构，从表记录在主表固定栏位上呈现

Background

主从表结构，有时为了方便数据呈现，在UI上不显示从表资料，那么需要动态把从表的资料加载到主表的固定栏位上。

例如：主表是人员信息，从表是银行卡信息，一个人在同一家银行可能有多张银行卡，且一个人可能在多家银行开户。

How to implement?

1. Provided data list of person and bank account informaciton

a. Person information

personData: any[] = [
    {
      key: '1',
      name: 'John Brown',
      age: 32,
      address: 'New York No. 1 Lake Park'
    },
    {
      key: '2',
      name: 'Jim Green',
      age: 42,
      address: 'London No. 1 Lake Park'
    },
    {
      key: '3',
      name: 'Joe Black',
      age: 32,
      address: 'Sidney No. 1 Lake Park'
    }
  ];

b. Bank list

  banks = [
    { code: 'icbc', name: '工行' },
    { code: 'abc', name: '农行' },
    { code: 'ccb', name: '建行' },
    { code: 'bocom', name: '交行' },
    { code: 'boc', name: '中行' }
  ];

 c. Bank account list

  bankAccounts: BankAccount[] = [
    { key: '1', account: '1-工行001', bank: 'icbc' },
    { key: '2', account: '2-交行001', bank: 'bocom' },
    { key: '3', account: '3-建行001', bank: 'ccb' },
    { key: '3', account: '3-农行001', bank: 'abc' },
    { key: '1', account: '1-农行001', bank: 'abc' },
    { key: '1', account: '1-农行002', bank: 'abc' },
    { key: '2', account: '2-工行001', bank: 'icbc' },
    { key: '1', account: '1-工行002', bank: 'icbc' }
  ];

2. Interface

a. Person

interface Person {
  key: string;
  name: string;
  age: number;
  address: string;
  icbc: string;
  abc: string;
  ccb: string;
  bocom: string;
  boc: string;
}

b. Bank account

interface BankAccount {
  key: string;
  account: string;
  bank: string;
}

3. Implementation method

const refList = this.bankAccounts;
    const refType = this.banks;

    // 循环主表
    for (let item of this.personData) {
      //循环从表需显示在主表呈现的类型
      refType.forEach(typ => {
        const accoutsOfBank = refList.filter(o => o.key === item.key && o.bank === typ.code); //[{}]
        let accounts = '';
        // 按从表类型把资料合并
        for (const element of accoutsOfBank) {
          accounts += `${element.account};`;
        }
        // 根据从表类型，把合并的资料更新至主表固定栏位上
        switch (typ.code) {
          case 'icbc':
            item.icbc = accounts;
            break;
          case 'abc':
            item.abc = accounts;
            break;
          case 'ccb':
            item.ccb = accounts;
            break;
          case 'bocom':
            item.bocom = accounts;
            break;
          case 'boc':
            item.boc = accounts;
            break;
          default:
            break;
        }
      });
    }

4. The full source code

import { NgFor } from '@angular/common';
import { ChangeDetectionStrategy, Component, OnInit } from '@angular/core';

import { NzDividerModule } from 'ng-zorro-antd/divider';
import { NzTableModule } from 'ng-zorro-antd/table';

interface Person {
  key: string;
  name: string;
  age: number;
  address: string;
  icbc: string;
  abc: string;
  ccb: string;
  bocom: string;
  boc: string;
}

interface BankAccount {
  key: string;
  account: string;
  bank: string;
}

@Component({
  selector: 'app-pages-sample-master-detail',
  template: `


      主从表结构，有时为了方便数据呈现，在UI上不显示从表资料，那么需要动态把从表的资料加载到主表的固定栏位上。
      例如：主表是人员信息，从表是银行卡信息，一个人在同一家银行可能有多张银行卡，且一个人可能在多家银行开户。




          Name
          Age
          Address
          {{ bank.name }}
          Action




          {{ data.name }}
          {{ data.age }}
          {{ data.address }}
          {{ data.icbc }}
          {{ data.abc }}
          {{ data.ccb }}
          {{ data.bocom }}
          {{ data.boc }}

            Action 一 {{ data.name }}

            Delete




  `,
  changeDetection: ChangeDetectionStrategy.OnPush,
  standalone: true,
  providers: [],
  imports: [NzTableModule, NzDividerModule, NgFor]
})
export class MasterDetailComponent implements OnInit {
  personData: any[] = [
    {
      key: '1',
      name: 'John Brown',
      age: 32,
      address: 'New York No. 1 Lake Park'
    },
    {
      key: '2',
      name: 'Jim Green',
      age: 42,
      address: 'London No. 1 Lake Park'
    },
    {
      key: '3',
      name: 'Joe Black',
      age: 32,
      address: 'Sidney No. 1 Lake Park'
    }
  ];

  banks = [
    { code: 'icbc', name: '工行' },
    { code: 'abc', name: '农行' },
    { code: 'ccb', name: '建行' },
    { code: 'bocom', name: '交行' },
    { code: 'boc', name: '中行' }
  ];

  bankAccounts: BankAccount[] = [
    { key: '1', account: '1-工行001', bank: 'icbc' },
    { key: '2', account: '2-交行001', bank: 'bocom' },
    { key: '3', account: '3-建行001', bank: 'ccb' },
    { key: '3', account: '3-农行001', bank: 'abc' },
    { key: '1', account: '1-农行001', bank: 'abc' },
    { key: '1', account: '1-农行002', bank: 'abc' },
    { key: '2', account: '2-工行001', bank: 'icbc' },
    { key: '1', account: '1-工行002', bank: 'icbc' }
  ];

  constructor() {}

  ngOnInit(): void {
    const refList = this.bankAccounts;
    const refType = this.banks;

    // 循环主表
    for (let item of this.personData) {
      //循环从表需显示在主表呈现的类型
      refType.forEach(typ => {
        const accoutsOfBank = refList.filter(o => o.key === item.key && o.bank === typ.code); //[{}]
        let accounts = '';
        // 按从表类型把资料合并
        for (const element of accoutsOfBank) {
          accounts += `${element.account};`;
        }
        // 根据从表类型，把合并的资料更新至主表固定栏位上
        switch (typ.code) {
          case 'icbc':
            item.icbc = accounts;
            break;
          case 'abc':
            item.abc = accounts;
            break;
          case 'ccb':
            item.ccb = accounts;
            break;
          case 'bocom':
            item.bocom = accounts;
            break;
          case 'boc':
            item.boc = accounts;
            break;
          default:
            break;
        }
      });
    }

    console.log(this.personData);
  }
}

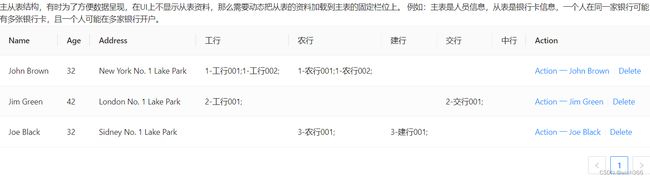

5. Test result
