01-网络归划与实施设计应用主、备网络,静态路由和HSRPBGP

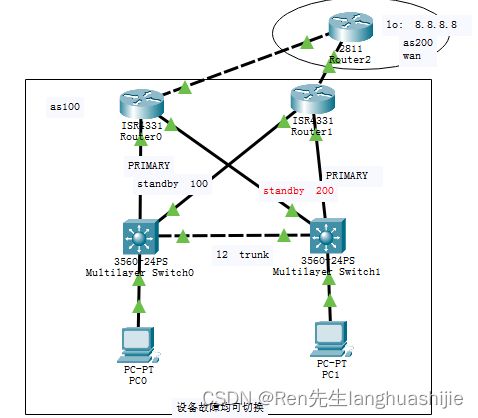

01-网络归划与实施设计应用主、备网络,静态路由和HSRPBGP_第1张图片

 主、备网络,静态路由和HSRP,实现了主、备并BGP互接,另外冗余也正常,经测试属于可行并且简洁可靠方案。



R0#SH RUN

Building configuration...

Current configuration : 979 bytes

!

version 16.6.4

no service timestamps log datetime msec

no service timestamps debug datetime msec

no service password-encryption

!

hostname R1

!

!

!

!

!

!

!

!

ip cef

no ipv6 cef

!

!

!

!

!

!

!

!

!

!

no ip domain-lookup

!

!

spanning-tree mode pvst

!

!

!

!

!

!

interface Loopback0

ip address 1.1.1.1 255.255.255.255

!

interface GigabitEthernet0/0/0

ip address 100.0.0.2 255.255.255.0

duplex auto

speed auto

standby 100 ip 100.0.0.1

standby 100 priority 120

standby 100 preempt

!

interface GigabitEthernet0/0/1

ip address 200.0.0.3 255.255.255.0

duplex auto

speed auto

standby 200 ip 200.0.0.1

standby 200 priority 90

standby 200 preempt

!

interface GigabitEthernet0/0/2

no ip address

duplex auto

speed auto

shutdown

!

interface Vlan1

no ip address

shutdown

!

ip classless

ip route 10.0.0.0 255.255.255.0 100.0.0.254

ip route 10.1.0.0 255.255.255.0 100.0.0.254

!

ip flow-export version 9

R1#sh run

Building configuration...

interface Loopback0

ip address 2.2.2.2 255.255.255.255

!

interface GigabitEthernet0/0/0

ip address 200.0.0.2 255.255.255.0

duplex auto

speed auto

standby 200 ip 200.0.0.1

standby 200 priority 120

standby 200 preempt

!

interface GigabitEthernet0/0/1

ip address 100.0.0.3 255
