一个手机的屏幕大小是有限的,那么我要显示的东西显示不下怎么办?这就会使用到ScrollView来进行滚动显示,他的定义如下:
可以看到ScrollView是继承于FrameLayout的,所以ScrollView也可以当做一个布局来看,而在后面的例子也能看出ScrollView确实是有布局管理器一样的效果。因为ScrollView有两种(一种是横的HorizontalScrollView,一种是垂直的ScrollView,为了区分,后面就称其为VerticalScrollView),所以今天的例子有点多,我把这两个结合在一起。
要实现的功能如下:在VerticalScrollView中放入8个按钮当做导航,点击屏幕空白处来控制导航的伸缩,在HorizontalScrollView中放入8个按钮,当做菜单。具体实现效果如下:

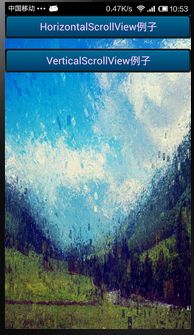

主界面

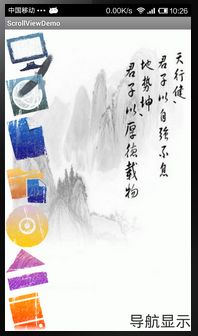

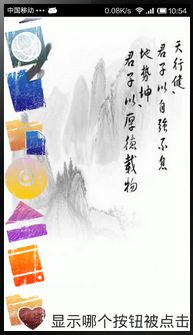

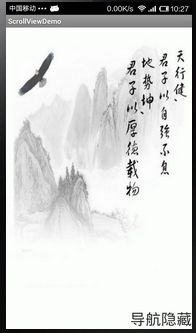

VerticalScrollView效果:

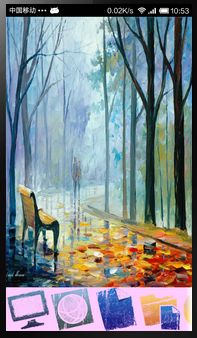

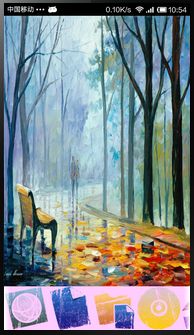

HorzontalScrollView效果:
其中上面VerticalScrollView用到了动画(后面有专门的篇幅来学习,这里只是为了效果,可直接拷贝动画文件)。
在res文件夹下面建立一个anim的子文件夹存放动画文件(inoftranslate和outoftranslate),代码如下:
outoftranslate:
<?xml version="1.0" encoding="utf-8"?> <set xmlns:android="http://schemas.android.com/apk/res/android"> <translate android:fromXDelta="0" android:toXDelta="-100%" android:fromYDelta="0" android:toYDelta="0" android:duration="1000"/> <alpha android:fromAlpha="1" android:toAlpha="0" android:duration="1000"></alpha> </set>
inoftranslate:
<?xml version="1.0" encoding="utf-8"?> <set xmlns:android="http://schemas.android.com/apk/res/android"> <translate android:fromXDelta="-100%" android:toXDelta="0" android:fromYDelta="0" android:toYDelta="0" android:duration="1000"/> <alpha android:fromAlpha="0" android:toAlpha="1" android:duration="1000"></alpha> </set>
然后新建两个布局文件(horizontal.xml和vertical.xml),代码如下:
horizontal.xml:
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" > <ImageView android:id="@+id/imageView1" android:layout_width="fill_parent" android:layout_height="fill_parent" android:layout_above="@+id/bottom" android:background="@drawable/img_2" /> <HorizontalScrollView android:id="@+id/bottom" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_alignParentBottom="true" android:scrollbars="none" > <LinearLayout android:layout_width="wrap_content" android:layout_height="match_parent" android:orientation="horizontal" android:background="#ffccff" > <Button android:id="@+id/Button1" android:layout_width="wrap_content" android:layout_weight="1" android:layout_height="wrap_content" android:background="@drawable/png_1" /> <Button android:id="@+id/Button2" android:layout_weight="1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_2" /> <Button android:id="@+id/Button3" android:layout_weight="1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_3" /> <Button android:id="@+id/Button4" android:layout_weight="1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_4" /> <Button android:id="@+id/Button5" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_5" /> <Button android:id="@+id/Button6" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_6" /> <Button android:id="@+id/Button7" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_7" /> <Button android:id="@+id/Button8" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_8" /> </LinearLayout> </HorizontalScrollView> </RelativeLayout>
vertical.xml:
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:id="@+id/mainLayout" android:layout_width="match_parent" android:layout_height="match_parent" > <ImageView android:id="@+id/imageView1" android:layout_width="fill_parent" android:layout_height="fill_parent" android:layout_above="@+id/bottom" android:background="@drawable/img_1" /> <ScrollView android:id="@+id/scrollView1" android:scrollbars="none" android:layout_width="wrap_content" android:layout_height="wrap_content" > <LinearLayout android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" > <Button android:id="@+id/Button1" android:layout_width="wrap_content" android:layout_weight="1" android:layout_height="wrap_content" android:background="@drawable/png_1" /> <Button android:id="@+id/Button2" android:layout_weight="1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_2" /> <Button android:id="@+id/Button3" android:layout_weight="1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_3" /> <Button android:id="@+id/Button4" android:layout_weight="1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_4" /> <Button android:id="@+id/Button5" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_5" /> <Button android:id="@+id/Button6" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_6" /> <Button android:id="@+id/Button7" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_7" /> <Button android:id="@+id/Button8" android:layout_width="wrap_content" android:layout_height="wrap_content" android:background="@drawable/png_8" /> </LinearLayout> </ScrollView> <TextView android:id="@+id/show" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignParentBottom="true" android:layout_alignParentRight="true" android:text="显示哪个按钮被点击" android:textSize="30sp" /> </RelativeLayout>
然后是main.xml:
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" android:background="@drawable/background"> <Button android:id="@+id/horizontal" android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="HorizontalScrollView例子" android:textColor="#ffccff" android:textSize="20sp" android:background="@drawable/button_selector" /> <Button android:id="@+id/vertical" android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="VerticalScrollView例子" android:textColor="#ffccff" android:textSize="20sp" android:layout_marginTop="20dp" android:background="@drawable/button_selector" /> </LinearLayout>
接下来新建两个java文件(HorizontalScrollView.java和VerticalScrollView.java),代码如下:
HorizontalScrollView.java:
package com.example.scrollviewdemo; import android.app.Activity; import android.os.Bundle; import android.view.Window; /** * @author Kay * @blog http://blog.csdn.net/Kaypro */ public class HorizontalScrollView extends Activity{ @Override protected void onCreate(Bundle savedInstanceState) { // TODO Auto-generated method stub super.onCreate(savedInstanceState); requestWindowFeature(Window.FEATURE_NO_TITLE); super.setContentView(R.layout.horizontal); } }
VerticalScrollView.java:
package com.example.scrollviewdemo; import android.app.Activity; import android.os.Bundle; import android.view.MotionEvent; import android.view.View; import android.view.Window; import android.view.View.OnClickListener; import android.view.animation.Animation; import android.view.animation.AnimationUtils; import android.view.animation.LinearInterpolator; import android.widget.Button; import android.widget.RelativeLayout; import android.widget.ScrollView; import android.widget.TextView; /** * @author Kay * @blog http://blog.csdn.net/Kaypro */ public class VerticalScrollView extends Activity { private ScrollView scroll = null; private RelativeLayout mainLayout = null; private Animation outoftranslate; private Animation inoftranslate; private TextView show = null; private Button button1 = null; private Button button2 = null; private Button button3 = null; private Button button4 = null; private Button button5 = null; private Button button6 = null; private Button button7 = null; private Button button8 = null; /** * 是否显示导航栏(true为显示) */ private boolean isOut = true; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); requestWindowFeature(Window.FEATURE_NO_TITLE); setContentView(R.layout.vertical); init(); } private void init(){ mainLayout = (RelativeLayout)super.findViewById(R.id.mainLayout); scroll = (ScrollView)super.findViewById(R.id.scrollView1); show = (TextView)super.findViewById(R.id.show); button1 = (Button)super.findViewById(R.id.Button1); button2 = (Button)super.findViewById(R.id.Button2); button3 = (Button)super.findViewById(R.id.Button3); button4 = (Button)super.findViewById(R.id.Button4); button5 = (Button)super.findViewById(R.id.Button5); button6 = (Button)super.findViewById(R.id.Button6); button7 = (Button)super.findViewById(R.id.Button7); button8 = (Button)super.findViewById(R.id.Button8); button1.setOnClickListener(new MyClick()); button2.setOnClickListener(new MyClick()); button3.setOnClickListener(new MyClick()); button4.setOnClickListener(new MyClick()); button5.setOnClickListener(new MyClick()); button6.setOnClickListener(new MyClick()); button7.setOnClickListener(new MyClick()); button8.setOnClickListener(new MyClick()); //加载anim文件夹下面的动画文件inoftranslate和outoftranslate inoftranslate = AnimationUtils.loadAnimation(this, R.anim.inoftranslate); outoftranslate = AnimationUtils.loadAnimation(this, R.anim.outoftranslate); //设置动画速率为线性变化 inoftranslate.setInterpolator(new LinearInterpolator()); outoftranslate.setInterpolator(new LinearInterpolator()); //设置动画结束停留在结束位置 inoftranslate.setFillAfter(true); outoftranslate.setFillAfter(true); //上一篇讲过的OnTouchListener mainLayout.setOnTouchListener(new View.OnTouchListener() { @Override public boolean onTouch(View v, MotionEvent event) { // TODO Auto-generated method stub switch(event.getAction()){ case MotionEvent.ACTION_DOWN: isOut = !isOut; if(!isOut){ //隐藏导航 System.out.println("--------"+isOut+"-------"); scroll.startAnimation(outoftranslate); show.setText("导航隐藏"); }else{ //显示导航 System.out.println("--------"+isOut+"-------"); scroll.startAnimation(inoftranslate); show.setText("导航显示"); } } return false; } }); } private class MyClick implements OnClickListener{ //按钮个数较多,新建内部类实现OnClickListener接口,根据id判断点击哪个按钮。 @Override public void onClick(View v) { // TODO Auto-generated method stub switch(v.getId()){ case R.id.Button1: show.setText("Button 1被点击.."); break; case R.id.Button2: show.setText("Button 2被点击.."); break; case R.id.Button3: show.setText("Button 3被点击.."); break; case R.id.Button4: show.setText("Button 4被点击.."); break; case R.id.Button5: show.setText("Button 5被点击.."); break; case R.id.Button6: show.setText("Button 6被点击.."); break; case R.id.Button7: show.setText("Button 7被点击.."); break; case R.id.Button8: show.setText("Button 8被点击.."); break; } } } }
最后是MainActivity.java:
package com.example.scrollviewdemo; import android.app.Activity; import android.content.Intent; import android.os.Bundle; import android.view.View; import android.view.View.OnClickListener; import android.view.Window; import android.widget.Button; /** * @author Kay * @blog http://blog.csdn.net/Kaypro */ public class MainActivity extends Activity { private Button horizontal = null; private Button vertical = null; @Override protected void onCreate(Bundle savedInstanceState) { // TODO Auto-generated method stub super.onCreate(savedInstanceState); requestWindowFeature(Window.FEATURE_NO_TITLE); super.setContentView(R.layout.main); init(); } private void init(){ horizontal = (Button)super.findViewById(R.id.horizontal); vertical = (Button)super.findViewById(R.id.vertical); horizontal.setOnClickListener(new MyClick()); vertical.setOnClickListener(new MyClick()); } private class MyClick implements OnClickListener{ @Override public void onClick(View v) { // TODO Auto-generated method stub switch (v.getId()) { case R.id.horizontal: //新建一个意图 Intent intent1 = new Intent(); //设置跳转的Activity intent1.setClass(MainActivity.this, HorizontalScrollView.class); //开始跳转 startActivity(intent1); break; case R.id.vertical: Intent intent2 = new Intent(); intent2.setClass(MainActivity.this, VerticalScrollView.class); startActivity(intent2); break; } } } }
最后由于新建了两个Activity,所以要在AndroidManifest.xml里面注册,注册完如下:
<?xml version="1.0" encoding="utf-8"?> <manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.example.scrollviewdemo" android:versionCode="1" android:versionName="1.0" > <uses-sdk android:minSdkVersion="8" android:targetSdkVersion="10" /> <application android:allowBackup="true" android:icon="@drawable/ic_launcher" android:label="@string/app_name" android:theme="@style/AppTheme" > <activity android:name="com.example.scrollviewdemo.MainActivity" android:label="@string/app_name" > <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity> <activity android:name="com.example.scrollviewdemo.HorizontalScrollView"></activity> <activity android:name="com.example.scrollviewdemo.VerticalScrollView"></activity> </application> </manifest>
到这一步这个例子就算完成了,至于button按钮的效果,在控件篇(上) ( http://blog.csdn.net/kaypro/article/details/9730229 )就有说过,这里就不重复贴代码了。
这里说下在使用ScrollView要注意的地方,ScrollView只能包裹一个直接子元素,往往是一个内嵌布局管理器,而不能包含多个,否则程序会出现java.lang.IIIegalStateException:ScrollView can host only one direct child的异常。
这里把这个例子传到资源下载那里http://download.csdn.net/detail/zenglinkai/6037485。
