[简单]POI设置word 2007文本下划线样式及文字底纹

         直接上代码：



import java.io.FileOutputStream;
import java.math.BigInteger;
import java.util.Random;

import org.apache.poi.xwpf.usermodel.BreakType;
import org.apache.poi.xwpf.usermodel.ParagraphAlignment;
import org.apache.poi.xwpf.usermodel.TextAlignment;
import org.apache.poi.xwpf.usermodel.XWPFDocument;
import org.apache.poi.xwpf.usermodel.XWPFParagraph;
import org.apache.poi.xwpf.usermodel.XWPFRun;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTBackground;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTFonts;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTHighlight;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTHpsMeasure;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTPPr;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTRPr;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTShd;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTSpacing;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTUnderline;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.STHighlightColor;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.STLineSpacingRule;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.STShd;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.STUnderline;

public class POI_07_设置下划线样式_S3_Test {
	public static void main(String[] args) throws Exception {
		POI_07_设置下划线样式_S3_Test t = new POI_07_设置下划线样式_S3_Test();
		XWPFDocument doc = new XWPFDocument();
		// 需关闭护眼色才能看到效果
		t.setDocumentbackground(doc, "FDE9D9");//设置页面背景色
		t.testSetUnderLineStyle(doc);//设置下划线样式以及突出显示文本
		t.addNewPage(doc, BreakType.PAGE);
		t.testSetShdStyle(doc);//设置文字底纹
		t.saveDocument(doc,
				"f:/saveFile/temp/sys_" + System.currentTimeMillis() + ".docx");
	}

	public void testSetUnderLineStyle(XWPFDocument doc) {
		String[] colors = new String[] { "CCA6EF", "DD999D", "4FCEF0",
				"7A7A7A", "F3C917", "FFA932", "C7B571", "535354", "5FD2F1",
				"B5E900", "FEF8B6" };
		Random random = new Random();
		// TODO 这里为了方便测试写了数字,推荐写英文样式
		for (int i = 1; i <= 18; i++) {
			XWPFParagraph p = doc.createParagraph();
			setParagraphFontInfoAndUnderLineStyle(p, "测试下划线", "宋体", "1D8C56",
					"22", false, false, false, true, i,
					colors[Math.abs(random.nextInt(colors.length))], false, 0,
					null);
			setParagraphSpacingInfo(p, true, "0", "50", false, "0", "0", true,
					"240", STLineSpacingRule.Enum.forString("auto"));
			setParagraphAlignInfo(p, ParagraphAlignment.LEFT,
					TextAlignment.CENTER);
		}
	}

	public void testSetShdStyle(XWPFDocument doc) {
		String[] colors = new String[] { "CCA6EF", "DD999D", "4FCEF0",
				"7A7A7A", "F3C917", "FFA932", "C7B571", "535354", "5FD2F1",
				"B5E900", "FEF8B6" };
		Random random = new Random();
		// TODO 这里为了方便测试写了数字,推荐写英文样式
		for (int i = 1; i <= 38; i++) {
			XWPFParagraph p = doc.createParagraph();
			setParagraphFontInfoAndUnderLineStyle(p, "测试底纹", "宋体", "1D8C56",
					"22", false, false, false, false, i, null, true, i,
					colors[Math.abs(random.nextInt(colors.length))]);
			setParagraphSpacingInfo(p, true, "0", "50", false, "0", "0", true,
					"240", STLineSpacingRule.Enum.forString("auto"));
			setParagraphAlignInfo(p, ParagraphAlignment.LEFT,
					TextAlignment.CENTER);
		}
	}

	public void setParagraphAlignInfo(XWPFParagraph p,
			ParagraphAlignment pAlign, TextAlignment valign) {
		p.setAlignment(pAlign);
		p.setVerticalAlignment(valign);
	}

	public void setParagraphSpacingInfo(XWPFParagraph p, boolean isSpace,
			String before, String after, boolean isPLine, String beforeLines,
			String afterLines, boolean isLine, String line,
			STLineSpacingRule.Enum lineValue) {
		CTPPr pPPr = null;
		if (p.getCTP() != null) {
			if (p.getCTP().getPPr() != null) {
				pPPr = p.getCTP().getPPr();
			} else {
				pPPr = p.getCTP().addNewPPr();
			}
		}
		CTSpacing pSpacing = pPPr.getSpacing() != null ? pPPr.getSpacing()
				: pPPr.addNewSpacing();
		if (isSpace) {
			// 段前磅数
			if (before != null) {
				pSpacing.setBefore(new BigInteger(before));
			}
			// 段后磅数
			if (after != null) {
				pSpacing.setAfter(new BigInteger(after));
			}
		}
		if (isPLine) {
			// 段前行数
			if (beforeLines != null) {
				pSpacing.setBeforeLines(new BigInteger(beforeLines));
			}
			// 段后行数
			if (afterLines != null) {
				pSpacing.setAfterLines(new BigInteger(afterLines));
			}
		}
		// 间距
		if (isLine) {
			if (line != null) {
				pSpacing.setLine(new BigInteger(line));
			}
			if (lineValue != null) {
				pSpacing.setLineRule(lineValue);
			}
		}
	}

	public void setParagraphFontInfoAndUnderLineStyle(XWPFParagraph p,
			String content, String fontFamily, String colorVal,
			String fontSize, boolean isBlod, boolean isItalic,
			boolean isStrike, boolean isUnderLine, int underLineStyle,
			String underLineColor, boolean isShd, int shdValue, String shdColor) {
		XWPFRun pRun = null;
		if (p.getRuns() != null && p.getRuns().size() > 0) {
			pRun = p.getRuns().get(0);
		} else {
			pRun = p.createRun();
		}
		pRun.setText(content);

		CTRPr pRpr = null;
		if (pRun.getCTR() != null) {
			pRpr = pRun.getCTR().getRPr();
			if (pRpr == null) {
				pRpr = pRun.getCTR().addNewRPr();
			}
		}

		// 设置字体
		CTFonts fonts = pRpr.isSetRFonts() ? pRpr.getRFonts() : pRpr
				.addNewRFonts();
		fonts.setAscii(fontFamily);
		fonts.setEastAsia(fontFamily);
		fonts.setHAnsi(fontFamily);

		// 设置字体大小
		CTHpsMeasure sz = pRpr.isSetSz() ? pRpr.getSz() : pRpr.addNewSz();
		sz.setVal(new BigInteger(fontSize));

		CTHpsMeasure szCs = pRpr.isSetSzCs() ? pRpr.getSzCs() : pRpr
				.addNewSzCs();
		szCs.setVal(new BigInteger(fontSize));

		// 设置字体样式
		if (isBlod) {
			pRun.setBold(isBlod);
		}
		if (isItalic) {
			pRun.setItalic(isItalic);
		}
		if (isStrike) {
			pRun.setStrike(isStrike);
		}
		if (colorVal != null) {
			pRun.setColor(colorVal);
		}

		// 设置字突出显示文本
		if (underLineStyle > 0 && underLineStyle < 17) {
			CTHighlight hightLight = pRpr.isSetHighlight() ? pRpr
					.getHighlight() : pRpr.addNewHighlight();
			hightLight.setVal(STHighlightColor.Enum.forInt(underLineStyle));
		}

		// 设置下划线样式
		if (isUnderLine) {
			CTUnderline u = pRpr.isSetU() ? pRpr.getU() : pRpr.addNewU();
			u.setVal(STUnderline.Enum.forInt(Math.abs(underLineStyle % 19)));
			if (underLineColor != null) {
				u.setColor(underLineColor);
			}
		}

		if (isShd) {
			// 设置底纹
			CTShd shd = pRpr.isSetShd() ? pRpr.getShd() : pRpr.addNewShd();
			if (shdValue > 0 && shdValue <= 38) {
				shd.setVal(STShd.Enum.forInt(shdValue));
			}
			if (shdColor != null) {
				shd.setColor(shdColor);
			}
		}
	}

	// 设置页面背景色
	public void setDocumentbackground(XWPFDocument document, String bgColor) {
		CTBackground bg = document.getDocument().isSetBackground() ? document
				.getDocument().getBackground() : document.getDocument()
				.addNewBackground();
		bg.setColor(bgColor);
	}

	public void addNewPage(XWPFDocument document, BreakType breakType) {
		XWPFParagraph xp = document.createParagraph();
		xp.createRun().addBreak(breakType);
	}

	public void saveDocument(XWPFDocument document, String savePath)
			throws Exception {
		FileOutputStream fos = new FileOutputStream(savePath);
		document.write(fos);
		fos.close();
	}
}

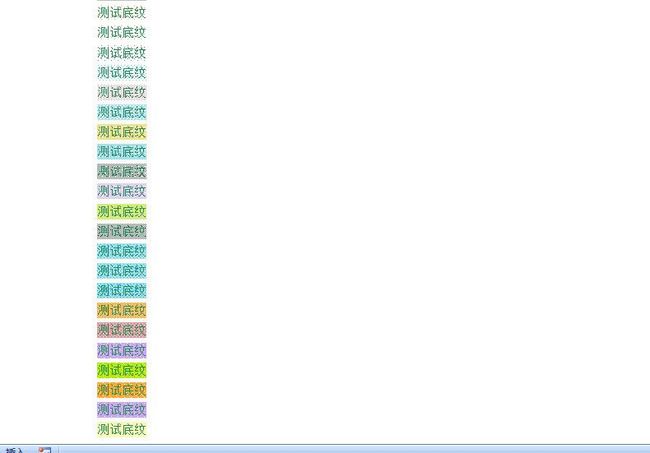

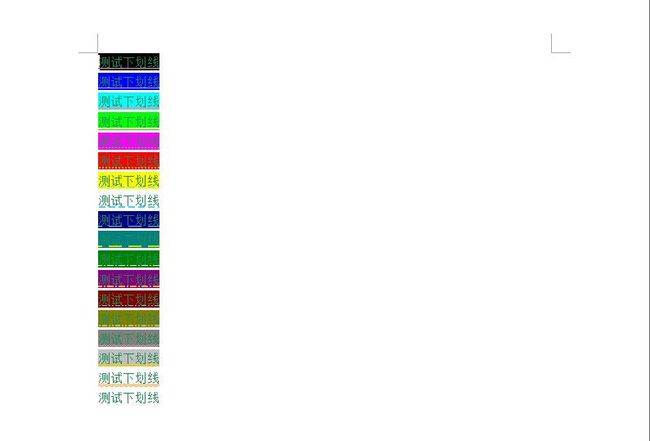

    结果为:
