Java Drools5.1 规则流基础【示例】

一、问题描述



假设雇员Employ有：

           学历信息 eduInfo,   简历信息  resume,

           考核信息 annualExam  和奖惩信息 awardPunish；

要确定其：

           基本工资 basicSalary， 职务工资 dutySalary，

           分红金额 bonus 和 总工资 totalSalary.



规则如下：

【1】学历决定基本工资（basicSalary）：

                       ====>本科1500研究生2500

【2】简历决定职务工资(dutySalary) :

                       ====>技术2000管理4500

【3】年度考核决定分红(bonus)：

                       ====>分红总金额1000

                       ==>考核结果：

                        ==>优秀100%（1000）；良好90%（900）；

                                       合格60%（600）； 不合格0%（0）；

【4】奖惩决定计算最终工资与【123】项工资之和的比例：

                       ====>奖励：*110%（+10%）

                       ====>惩罚：*90%（-10%）

                       ====>无：*100%（0%）

【5】计算总工资： （【1】+【2】+【3】）*【4】



二、问题分析



1.基本流程：



P【计算基本工资，计算职务工资，计算分红， 计算奖惩比例】

                    ====>计算总工资(根据奖惩情况)

其中，P[i,...,k]表示任务i,...,k并发执行，====>表示顺序执行。

即有：P[1,2,3, 4] ===> 5



三、概要设计



【1】类Employ的设计：

【2】规则文件的编写和组织：

                ==>学历规则文件：EduInfoRule.drl

                ==>简历规则文件：ResumeRule.drl

                ==>分红规则文件：BonusRule.drl

                ==>奖惩规则文件：AwardPunish.drl

                ==>计算总工资规则：TotalRule.drl

【3】规则文件的组合（规则流）：



                 ==>EduInfo.drl含规则组basic_salary

                 ==>ResumeRule.drl含规则组duty_salary

                 ==>BonusRule.drl含规则组bonus_salary

                 ==>AwardPunish.drl含规则组award_punish

                  ==>TotalRule.drl含规则组sum_salary



组合方式：

[start]--->  P[basic_sal ary , duty_salary, bonus_salary, award_punish]

                  --->sum_salary ---> [end]





其中：P表示并发，--->表示顺序 【规则流图在后面的实现中给出】



【4】编写测试文件：EmployTest.java


四、详细设计



【1】使用EclipseIDE作为开发环境，drools5.1作为规则引擎

【2】为简单起见，Employ类的属性作了简化处理，

             eduInfo, resume , annualExam,   awardPunish均为String,

                   basic{duty,bonus,total}_salary , percent作为double类型。

五、规则文件及规则流



              EduInfoRule.drl:

package myrules;
import sample.Employ;

rule"Bachelor"
      ruleflow-group"basic_salary"
when
   emp:Employ(eduInfo =="bachelor");
then
   System.out.println("execrule Bachelor ... ");
   emp.setBasicSalary(1500);
end

rule"Master"
      ruleflow-group"basic_salary"
when
   emp:Employ(eduInfo=="master")
then
   System.out.println("execrule Master ... ");
   emp.setBasicSalary(2500);
end

Resume.drl

package myrules
import sample.Employ;

rule"Technician"
       ruleflow-group"duty_salary"
when
   emp:Employ(resume=="tech")
then
   System.out.println("execrule Technician ... ");
  emp.setDutySalary(2000);
end

rule"Manager"
      ruleflow-group"duty_salary"
when
   emp:Employ(awardPunish=="manager")
then
   System.out.println("execrule manager ... ");
   emp.setDutySalary(4500);
end

BonusRule.drl

package myrules
import sample.Employ;

rule"Excellent"
      ruleflow-group"bonus_salary"
when
  emp: Employ(annualExam=="excellent")
then
   System.out.println("execrule Excellent ... ");
  emp.setBonus(1000*1.0);
end

rule"Good"
       ruleflow-group"bonus_salary"
when
  emp: Employ(annualExam=="good")
then
   System.out.println("execrule Good ... ");
  emp.setBonus(1000*0.9);
end

rule"Common"
      ruleflow-group"bonus_salary"
when
  emp: Employ(annualExam=="common")
then
   System.out.println("execrule Common ... ");
  emp.setBonus(1000*0.6);
end

rule"failing"
       ruleflow-group"bonus_salary"
when
  emp: Employ(annualExam=="failing")
then
   System.out.println("execrule failing ... ");
  emp.setBonus(1000*0.0);
end

AwardPunish.drl

packagemyrules
importsample.Employ;

rule"Award"
       ruleflow-group"award_punish"
when
   emp:Employ(awardPunish=="award")
then
   System.out.println("execrule Award ... ");
  emp.setPercent(1.10);
end

rule"Punishment"
       ruleflow-group"award_punish"
when
   emp:Employ(awardPunish=="punish")
then
   System.out.println("execrule Punishment ... ");
  emp.setPercent(0.90);
end

rule"None"
      ruleflow-group"award_punish"
when
   emp:Employ(awardPunish=="none")
then
   System.out.println("execrule None ... ");
  emp.setPercent(1.00);
end

TotalRule.drl

package myrules
import sample.Employ;

rule"Total"
  ruleflow-group"sum_salary"
when
   emp: Employ()
then
   System.out.println("execrule Total ... ");
   double total =emp.getBasicSalary() + emp.getDutySalary() +
                 emp.getBonus();
   emp.setTotalSalary(total*emp.getPercent());
end

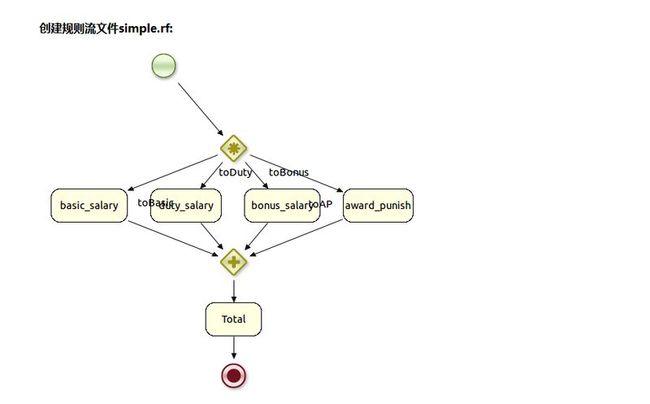

注意：

       [1]Split结点类型为OR，约束选择alwaystrue.表示选择其规则组中所有符合事实的规则进行并发执行；

       [2] Join结点类型为AND，表示当且进当上述规则组均执行完毕后，才执行后面的规则或进程。




六、测试代码：



Employ:

package sample;

public class Employ {

	public static final double BONUS = 1000;

	private String eduInfo;
	private String resume;
	private String annualExam;
	private String awardPunish;

	private double basicSalary;
	private double dutySalary;
	private double bonus;
	private double percent;

	private double totalSalary;

	public String getEduInfo() {
		return eduInfo;
	}
	public void setEduInfo(String eduInfo) {
		this.eduInfo = eduInfo;
	}
	public String getResume() {
		return resume;
	}
	public void setResume(String resume) {
		this.resume = resume;
	}
	public String getAnnualExam() {
		return annualExam;
	}
	public void setAnnualExam(String annualExam) {
		this.annualExam = annualExam;
	}
	public String getAwardPunish() {
		return awardPunish;
	}
	public void setAwardPunish(String awardPunish) {
		this.awardPunish = awardPunish;
	}

	public double getBasicSalary() {
		return basicSalary;
	}
	public void setBasicSalary(double basicSalary) {
		this.basicSalary = basicSalary;
	}

	public double getDutySalary() {
		return dutySalary;
	}
	public void setDutySalary(double dutySalary) {
		this.dutySalary = dutySalary;
	}

	public double getBonus() {
		return bonus;
	}
	public void setBonus(double bonus) {
		this.bonus = bonus;
	}

	public double getPercent() {
		return percent;
	}
	public void setPercent(double percent) {
		this.percent = percent;
	}

	public double getTotalSalary() {
		return totalSalary;
	}
	public void setTotalSalary(double totalSalary) {
		this.totalSalary = totalSalary;
	}

    public String toString() {
    	return "[" + eduInfo + " " + resume + " " + annualExam + " " +
    	             awardPunish + " " + basicSalary + " " + dutySalary + " " +
    	             bonus + " " + totalSalary + "]";
    }

}

EmployTest:

package sample;

import org.drools.KnowledgeBase;
import org.drools.KnowledgeBaseFactory;
import org.drools.builder.KnowledgeBuilder;
import org.drools.builder.KnowledgeBuilderError;
import org.drools.builder.KnowledgeBuilderErrors;
import org.drools.builder.KnowledgeBuilderFactory;
import org.drools.builder.ResourceType;
import org.drools.io.ResourceFactory;
import org.drools.logger.KnowledgeRuntimeLogger;
import org.drools.logger.KnowledgeRuntimeLoggerFactory;
import org.drools.runtime.StatefulKnowledgeSession;

public class EmployTest {

	public static void main(String[] args) {

		try {
			// load up the knowledge base
			KnowledgeBase kbase = readKnowledgeBase();
			StatefulKnowledgeSession ksession = kbase.newStatefulKnowledgeSession();
			KnowledgeRuntimeLogger logger = KnowledgeRuntimeLoggerFactory.newFileLogger(ksession, "test");
			// go !
			Employ emp = new Employ();
			emp.setEduInfo("master");
			emp.setResume("tech");
			emp.setAnnualExam("good");
			emp.setAwardPunish("award");
			ksession.insert(emp);
			ksession.startProcess("myrules.salary");
			ksession.fireAllRules();
			System.out.println("Basic Salary: " + emp.getBasicSalary());
			System.out.println("Duty Salary: " + emp.getDutySalary());
			System.out.println("Bonus      : " + emp.getBonus());
			System.out.println("rate       : " + emp.getPercent());
			System.out.printf("Total Salary: %.0f" , emp.getTotalSalary());
			logger.close();
		} catch (Throwable t) {
			t.printStackTrace();
		}

	}

	private static KnowledgeBase readKnowledgeBase() throws Exception {
		KnowledgeBuilder kbuilder = KnowledgeBuilderFactory.newKnowledgeBuilder();
		kbuilder.add(ResourceFactory.newClassPathResource("rules/EduInfoRule.drl"), ResourceType.DRL);
		kbuilder.add(ResourceFactory.newClassPathResource("rules/ResumeRule.drl"), ResourceType.DRL);
		kbuilder.add(ResourceFactory.newClassPathResource("rules/BonusRule.drl"), ResourceType.DRL);
		kbuilder.add(ResourceFactory.newClassPathResource("rules/AwardPunish.drl"), ResourceType.DRL);
	    kbuilder.add(ResourceFactory.newClassPathResource("rules/TotalRule.drl"), ResourceType.DRL);
		kbuilder.add(ResourceFactory.newClassPathResource("rules/salary.rf"), ResourceType.DRF);
		KnowledgeBuilderErrors errors = kbuilder.getErrors();
		if (errors.size() > 0) {
			for (KnowledgeBuilderError error: errors) {
				System.err.println(error);
			}
			throw new IllegalArgumentException("Could not parse knowledge.");
		}
		KnowledgeBase kbase = KnowledgeBaseFactory.newKnowledgeBase();
		kbase.addKnowledgePackages(kbuilder.getKnowledgePackages());
		return kbase;
	}

}

测试结果：

               execrule Technician ...

           execrule Master ...

execrule Good ...

execrule Award ...

execrule Total ...

BasicSalary: 2500.0

DutySalary: 2000.0

Bonus : 900.0

rate : 1.1

TotalSalary: 5940





七、总结




Javadrools规则流基础：




【1】掌握规则引擎的基本工作原理；

【2】掌握规则文件的编写；

【3】掌握规则流图的绘制及应用程序集成。

【4】掌握规则组合的两种基本方式【并发和顺序】的实现方式。




下一步：




【1】更复杂的规则组合；

【2】规则文件的组织、管理；

【3】规则文件的自动生成；

【4】用户自定义规则；



NOTE:  关于XP下的示例作了一些修改，主要增加了XML格式的规则流文件及一个简单的自动生成顺序规则流的方法。已经上传至CSDN下载，请在下面网址下载：http://download.csdn.net/source/3462802
