网格模型高级技术（9）
类CDXUTMesh的详细说明请参阅DXUT源码分析 ---- 类CDXUTMesh。
使用CDXUTMesh进行网格模型的绘制
首先在OnCreate()函数中创建CDXUTMesh对象：
g_dxut_mesh = new CDXUTMesh();
g_dxut_mesh->Create(pd3dDevice, L"airplane.x");
接着在OnFrameRender()中绘制（先绘制不透明的网格，再绘制半透明的网格）：
// Render the scene
if( SUCCEEDED( pd3dDevice->BeginScene() ) )
{
pd3dDevice->SetRenderState(D3DRS_ALPHABLENDENABLE, FALSE);
g_dxut_mesh->Render(pd3dDevice, true, false);
pd3dDevice->SetRenderState(D3DRS_ALPHABLENDENABLE, TRUE);
pd3dDevice->SetRenderState(D3DRS_SRCBLEND, D3DBLEND_SRCALPHA);
pd3dDevice->SetRenderState(D3DRS_DESTBLEND, D3DBLEND_INVSRCALPHA);
g_dxut_mesh->Render(pd3dDevice, false, true);
// restore alpha belnd state to disabled
pd3dDevice->SetRenderState(D3DRS_ALPHABLENDENABLE, FALSE);
RenderText();
V(g_button_dlg.OnRender(fElapsedTime));
V( pd3dDevice->EndScene() );
}

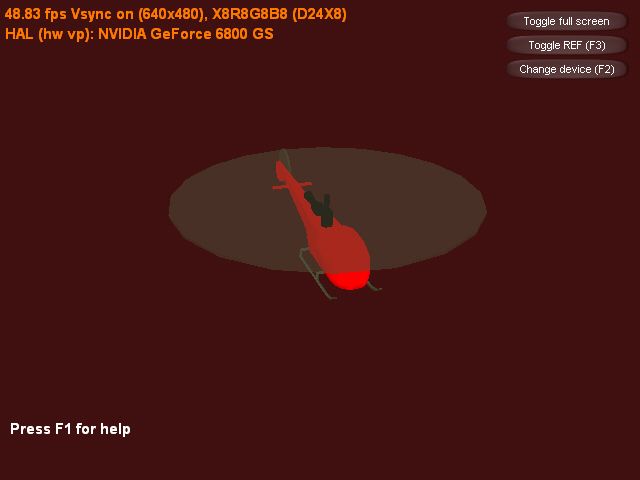

示例截图:
主程序：
#include
"
dxstdafx.h
"
#include " resource.h "
#pragma warning(disable : 4127 4995 )
#define IDC_TOGGLE_FULLSCREEN 1
#define IDC_TOGGLE_REF 2
#define IDC_CHANGE_DEVICE 3
#define release_com(p) do { if(p) { (p)->Release(); (p) = NULL; } } while(0)
ID3DXFont * g_font;
ID3DXSprite * g_text_sprite;
bool g_show_help;
CDXUTDialogResourceManager g_dlg_resource_manager;
CD3DSettingsDlg g_settings_dlg;
CDXUTDialog g_button_dlg;
CDXUTMesh * g_dxut_mesh;
// --------------------------------------------------------------------------------------
// Rejects any devices that aren't acceptable by returning false
// --------------------------------------------------------------------------------------
bool CALLBACK IsDeviceAcceptable( D3DCAPS9 * pCaps, D3DFORMAT AdapterFormat,
D3DFORMAT BackBufferFormat, bool bWindowed, void * pUserContext )
{
// Typically want to skip backbuffer formats that don't support alpha blending
IDirect3D9 * pD3D = DXUTGetD3DObject();
if ( FAILED( pD3D -> CheckDeviceFormat( pCaps -> AdapterOrdinal, pCaps -> DeviceType, AdapterFormat,
D3DUSAGE_QUERY_POSTPIXELSHADER_BLENDING, D3DRTYPE_TEXTURE, BackBufferFormat ) ) )
return false ;
return true ;
}
// --------------------------------------------------------------------------------------
// Before a device is created, modify the device settings as needed.
// --------------------------------------------------------------------------------------
bool CALLBACK ModifyDeviceSettings( DXUTDeviceSettings * pDeviceSettings, const D3DCAPS9 * pCaps, void * pUserContext )
{
// If video card does not support hardware vertex processing, then uses sofaware vertex processing.
if ((pCaps -> DevCaps & D3DDEVCAPS_HWTRANSFORMANDLIGHT) == 0 )
pDeviceSettings -> BehaviorFlags = D3DCREATE_SOFTWARE_VERTEXPROCESSING;
static bool is_first_time = true ;
if (is_first_time)
{
is_first_time = false ;
// if using reference device, then pop a warning message box.
if (pDeviceSettings -> DeviceType == D3DDEVTYPE_REF)
DXUTDisplaySwitchingToREFWarning();
}
return true ;
}
// --------------------------------------------------------------------------------------
// Remove path from fullname, and convert filename from multibyte to wchar.
// --------------------------------------------------------------------------------------
void RemovePathFromFileName(LPSTR fullname, LPWSTR wfilename)
{
WCHAR wbuf[MAX_PATH] = { 0 };
MultiByteToWideChar(CP_ACP, 0 , fullname, - 1 , wbuf, MAX_PATH);
LPWSTR w_last_back_slash = wcsrchr(wbuf, ' \\ ' );
if (w_last_back_slash)
lstrcpy(wfilename, ++ w_last_back_slash);
else
lstrcpy(wfilename, wbuf);
}
// --------------------------------------------------------------------------------------
// Create any D3DPOOL_MANAGED resources here
// --------------------------------------------------------------------------------------
HRESULT CALLBACK OnCreateDevice( IDirect3DDevice9 * pd3dDevice,
const D3DSURFACE_DESC * pBackBufferSurfaceDesc,
void * pUserContext )
{
HRESULT hr;
V_RETURN(g_dlg_resource_manager.OnCreateDevice(pd3dDevice));
V_RETURN(g_settings_dlg.OnCreateDevice(pd3dDevice));
D3DXCreateFont(pd3dDevice, 18 , 0 , FW_BOLD, 1 , FALSE, DEFAULT_CHARSET, OUT_DEFAULT_PRECIS, DEFAULT_QUALITY,
DEFAULT_PITCH | FF_DONTCARE, L " Arial " , & g_font);
g_dxut_mesh = new CDXUTMesh();
g_dxut_mesh -> Create(pd3dDevice, L " airplane.x " );
return S_OK;
}
// --------------------------------------------------------------------------------------
// Create any D3DPOOL_DEFAULT resources here
// --------------------------------------------------------------------------------------
HRESULT CALLBACK OnResetDevice( IDirect3DDevice9 * pd3dDevice,
const D3DSURFACE_DESC * pBackBufferSurfaceDesc,
void * pUserContext )
{
HRESULT hr;
V_RETURN(g_dlg_resource_manager.OnResetDevice());
V_RETURN(g_settings_dlg.OnResetDevice());
V_RETURN(g_font -> OnResetDevice());
V_RETURN(D3DXCreateSprite(pd3dDevice, & g_text_sprite));
// set dialog position and size
g_button_dlg.SetLocation(pBackBufferSurfaceDesc -> Width - 170 , 0 );
g_button_dlg.SetSize( 170 , 170 );
// setup view matrix
D3DXMATRIX mat_view;
D3DXVECTOR3 eye( 0.0f , 10.0f , - 20.0f );
D3DXVECTOR3 at( 0.0f , 0.0f , 0.0f );
D3DXVECTOR3 up( 0.0f , 1.0f , 0.0f );
D3DXMatrixLookAtLH( & mat_view, & eye, & at, & up);
pd3dDevice -> SetTransform(D3DTS_VIEW, & mat_view);
// set projection matrix
D3DXMATRIX mat_proj;
float aspect = ( float )pBackBufferSurfaceDesc -> Width / pBackBufferSurfaceDesc -> Height;
D3DXMatrixPerspectiveFovLH( & mat_proj, D3DX_PI / 4 , aspect, 1.0f , 100.0f );
pd3dDevice -> SetTransform(D3DTS_PROJECTION, & mat_proj);
// setup light
D3DLIGHT9 light;
ZeroMemory( & light, sizeof (D3DLIGHT9));
light.Type = D3DLIGHT_DIRECTIONAL;
light.Diffuse.r = 1.0f ;
light.Diffuse.g = 1.0f ;
light.Diffuse.b = 1.0f ;
D3DXVECTOR3 light_dir( 0.0f , - 1.0f , 1.0f );
D3DXVec3Normalize((D3DXVECTOR3 * ) & light.Direction, & light_dir);
pd3dDevice -> SetLight( 0 , & light);
pd3dDevice -> LightEnable( 0 , TRUE);
pd3dDevice -> SetRenderState(D3DRS_LIGHTING, TRUE);
pd3dDevice -> SetRenderState(D3DRS_AMBIENT, 0x00FFFF80 );
return S_OK;
}
// --------------------------------------------------------------------------------------
// Release resources created in the OnResetDevice callback here
// --------------------------------------------------------------------------------------
void CALLBACK OnLostDevice( void * pUserContext )
{
g_dlg_resource_manager.OnLostDevice();
g_settings_dlg.OnLostDevice();
g_font -> OnLostDevice();
release_com(g_text_sprite);
}
// --------------------------------------------------------------------------------------
// Release resources created in the OnCreateDevice callback here
// --------------------------------------------------------------------------------------
void CALLBACK OnDestroyDevice( void * pUserContext )
{
g_dlg_resource_manager.OnDestroyDevice();
g_settings_dlg.OnDestroyDevice();
release_com(g_font);
SAFE_DELETE(g_dxut_mesh);
}
// --------------------------------------------------------------------------------------
// Handle updates to the scene
// --------------------------------------------------------------------------------------
void CALLBACK OnFrameMove( IDirect3DDevice9 * pd3dDevice, double fTime, float fElapsedTime, void * pUserContext )
{
D3DXMATRIX mat_world, mat_trans, mat_rot_y;
D3DXMatrixRotationY( & mat_rot_y, ( float )fTime);
D3DXMatrixTranslation( & mat_trans, 0.0f , 0.0f , 30.0f - 30.0f * cos(( float )fTime));
mat_world = mat_rot_y * mat_trans;
pd3dDevice -> SetTransform(D3DTS_WORLD, & mat_world);
}
// --------------------------------------------------------------------------------------
// Render the helper information
// --------------------------------------------------------------------------------------
void RenderText()
{
CDXUTTextHelper text_helper(g_font, g_text_sprite, 20 );
text_helper.Begin();
// show frame and device states
text_helper.SetInsertionPos( 5 , 5 );
text_helper.SetForegroundColor( D3DXCOLOR( 1.0f , 0.475f , 0.0f , 1.0f ) );
text_helper.DrawTextLine( DXUTGetFrameStats( true ) );
text_helper.DrawTextLine( DXUTGetDeviceStats() );
// show helper information
const D3DSURFACE_DESC * surface_desc = DXUTGetBackBufferSurfaceDesc();
if (g_show_help)
{
text_helper.SetInsertionPos( 10 , surface_desc -> Height - 15 * 6 );
text_helper.SetForegroundColor( D3DXCOLOR( 1.0f , 0.475f , 0.0f , 1.0f ) );
text_helper.DrawTextLine(L " Controls (F1 to hide): " );
text_helper.SetInsertionPos( 40 , surface_desc -> Height - 15 * 4 );
text_helper.DrawTextLine(L " Quit: ESC " );
}
else
{
text_helper.SetInsertionPos( 10 , surface_desc -> Height - 15 * 4 );
text_helper.SetForegroundColor( D3DXCOLOR( 1.0f , 1.0f , 1.0f , 1.0f ) );
text_helper.DrawTextLine(L " Press F1 for help " );
}
text_helper.End();
}
// --------------------------------------------------------------------------------------
// Render the scene
// --------------------------------------------------------------------------------------
void CALLBACK OnFrameRender( IDirect3DDevice9 * pd3dDevice, double fTime, float fElapsedTime, void * pUserContext )
{
HRESULT hr;
if (g_settings_dlg.IsActive())
{
g_settings_dlg.OnRender(fElapsedTime);
return ;
}
// Clear the render target and the zbuffer
V( pd3dDevice -> Clear( 0 , NULL, D3DCLEAR_TARGET | D3DCLEAR_ZBUFFER, D3DCOLOR_ARGB( 0 , 64 , 16 , 16 ), 1.0f , 0 ) );
// Render the scene
if ( SUCCEEDED( pd3dDevice -> BeginScene() ) )
{
pd3dDevice -> SetRenderState(D3DRS_ALPHABLENDENABLE, FALSE);
g_dxut_mesh -> Render(pd3dDevice, true , false );
pd3dDevice -> SetRenderState(D3DRS_ALPHABLENDENABLE, TRUE);
pd3dDevice -> SetRenderState(D3DRS_SRCBLEND, D3DBLEND_SRCALPHA);
pd3dDevice -> SetRenderState(D3DRS_DESTBLEND, D3DBLEND_INVSRCALPHA);
g_dxut_mesh -> Render(pd3dDevice, false , true );
// restore alpha belnd state to disabled
pd3dDevice -> SetRenderState(D3DRS_ALPHABLENDENABLE, FALSE);
RenderText();
V(g_button_dlg.OnRender(fElapsedTime));
V( pd3dDevice -> EndScene() );
}
}
// --------------------------------------------------------------------------------------
// Handle messages to the application
// --------------------------------------------------------------------------------------
LRESULT CALLBACK MsgProc( HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam,
bool * pbNoFurtherProcessing, void * pUserContext )
{
* pbNoFurtherProcessing = g_dlg_resource_manager.MsgProc(hWnd, uMsg, wParam, lParam);
if ( * pbNoFurtherProcessing)
return 0 ;
if (g_settings_dlg.IsActive())
{
g_settings_dlg.MsgProc(hWnd, uMsg, wParam, lParam);
return 0 ;
}
* pbNoFurtherProcessing = g_button_dlg.MsgProc(hWnd, uMsg, wParam, lParam);
if ( * pbNoFurtherProcessing)
return 0 ;
return 0 ;
}
// --------------------------------------------------------------------------------------
// Handle keybaord event
// --------------------------------------------------------------------------------------
void CALLBACK OnKeyboardProc(UINT charater, bool is_key_down, bool is_alt_down, void * user_context)
{
if (is_key_down)
{
switch (charater)
{
case VK_F1:
g_show_help = ! g_show_help;
break ;
}
}
}
// --------------------------------------------------------------------------------------
// Handle events for controls
// --------------------------------------------------------------------------------------
void CALLBACK OnGUIEvent(UINT event , int control_id, CDXUTControl * control, void * user_context)
{
switch (control_id)
{
case IDC_TOGGLE_FULLSCREEN:
DXUTToggleFullScreen();
break ;
case IDC_TOGGLE_REF:
DXUTToggleREF();
break ;
case IDC_CHANGE_DEVICE:
g_settings_dlg.SetActive( true );
break ;
}
}
// --------------------------------------------------------------------------------------
// Initialize dialogs
// --------------------------------------------------------------------------------------
void InitDialogs()
{
g_settings_dlg.Init( & g_dlg_resource_manager);
g_button_dlg.Init( & g_dlg_resource_manager);
g_button_dlg.SetCallback(OnGUIEvent);
int x = 35 , y = 10 , width = 125 , height = 22 ;
g_button_dlg.AddButton(IDC_TOGGLE_FULLSCREEN, L " Toggle full screen " , x, y, width, height);
g_button_dlg.AddButton(IDC_TOGGLE_REF, L " Toggle REF (F3) " , x, y += 24 , width, height);
g_button_dlg.AddButton(IDC_CHANGE_DEVICE, L " Change device (F2) " , x, y += 24 , width, height, VK_F2);
}
// --------------------------------------------------------------------------------------
// Initialize everything and go into a render loop
// --------------------------------------------------------------------------------------
INT WINAPI WinMain( HINSTANCE, HINSTANCE, LPSTR, int )
{
// Enable run-time memory check for debug builds.
#if defined(DEBUG) | defined(_DEBUG)
_CrtSetDbgFlag( _CRTDBG_ALLOC_MEM_DF | _CRTDBG_LEAK_CHECK_DF );
#endif
// Set the callback functions
DXUTSetCallbackDeviceCreated( OnCreateDevice );
DXUTSetCallbackDeviceReset( OnResetDevice );
DXUTSetCallbackDeviceLost( OnLostDevice );
DXUTSetCallbackDeviceDestroyed( OnDestroyDevice );
DXUTSetCallbackMsgProc( MsgProc );
DXUTSetCallbackFrameRender( OnFrameRender );
DXUTSetCallbackFrameMove( OnFrameMove );
DXUTSetCallbackKeyboard(OnKeyboardProc);
// TODO: Perform any application-level initialization here
InitDialogs();
// Initialize DXUT and create the desired Win32 window and Direct3D device for the application
DXUTInit( true , true , true ); // Parse the command line, handle the default hotkeys, and show msgboxes
DXUTSetCursorSettings( true , true ); // Show the cursor and clip it when in full screen
DXUTCreateWindow( L " Use DXUT Mesh Class " );
DXUTCreateDevice( D3DADAPTER_DEFAULT, true , 640 , 480 , IsDeviceAcceptable, ModifyDeviceSettings );
// Start the render loop
DXUTMainLoop();
// TODO: Perform any application-level cleanup here
return DXUTGetExitCode();
}
#include " resource.h "
#pragma warning(disable : 4127 4995 )
#define IDC_TOGGLE_FULLSCREEN 1
#define IDC_TOGGLE_REF 2
#define IDC_CHANGE_DEVICE 3
#define release_com(p) do { if(p) { (p)->Release(); (p) = NULL; } } while(0)
ID3DXFont * g_font;
ID3DXSprite * g_text_sprite;
bool g_show_help;
CDXUTDialogResourceManager g_dlg_resource_manager;
CD3DSettingsDlg g_settings_dlg;
CDXUTDialog g_button_dlg;
CDXUTMesh * g_dxut_mesh;
// --------------------------------------------------------------------------------------
// Rejects any devices that aren't acceptable by returning false
// --------------------------------------------------------------------------------------
bool CALLBACK IsDeviceAcceptable( D3DCAPS9 * pCaps, D3DFORMAT AdapterFormat,
D3DFORMAT BackBufferFormat, bool bWindowed, void * pUserContext )
{
// Typically want to skip backbuffer formats that don't support alpha blending
IDirect3D9 * pD3D = DXUTGetD3DObject();
if ( FAILED( pD3D -> CheckDeviceFormat( pCaps -> AdapterOrdinal, pCaps -> DeviceType, AdapterFormat,
D3DUSAGE_QUERY_POSTPIXELSHADER_BLENDING, D3DRTYPE_TEXTURE, BackBufferFormat ) ) )
return false ;
return true ;
}
// --------------------------------------------------------------------------------------
// Before a device is created, modify the device settings as needed.
// --------------------------------------------------------------------------------------
bool CALLBACK ModifyDeviceSettings( DXUTDeviceSettings * pDeviceSettings, const D3DCAPS9 * pCaps, void * pUserContext )
{
// If video card does not support hardware vertex processing, then uses sofaware vertex processing.
if ((pCaps -> DevCaps & D3DDEVCAPS_HWTRANSFORMANDLIGHT) == 0 )
pDeviceSettings -> BehaviorFlags = D3DCREATE_SOFTWARE_VERTEXPROCESSING;
static bool is_first_time = true ;
if (is_first_time)
{
is_first_time = false ;
// if using reference device, then pop a warning message box.
if (pDeviceSettings -> DeviceType == D3DDEVTYPE_REF)
DXUTDisplaySwitchingToREFWarning();
}
return true ;
}
// --------------------------------------------------------------------------------------
// Remove path from fullname, and convert filename from multibyte to wchar.
// --------------------------------------------------------------------------------------
void RemovePathFromFileName(LPSTR fullname, LPWSTR wfilename)
{
WCHAR wbuf[MAX_PATH] = { 0 };
MultiByteToWideChar(CP_ACP, 0 , fullname, - 1 , wbuf, MAX_PATH);
LPWSTR w_last_back_slash = wcsrchr(wbuf, ' \\ ' );
if (w_last_back_slash)
lstrcpy(wfilename, ++ w_last_back_slash);
else
lstrcpy(wfilename, wbuf);
}
// --------------------------------------------------------------------------------------
// Create any D3DPOOL_MANAGED resources here
// --------------------------------------------------------------------------------------
HRESULT CALLBACK OnCreateDevice( IDirect3DDevice9 * pd3dDevice,
const D3DSURFACE_DESC * pBackBufferSurfaceDesc,
void * pUserContext )
{
HRESULT hr;
V_RETURN(g_dlg_resource_manager.OnCreateDevice(pd3dDevice));
V_RETURN(g_settings_dlg.OnCreateDevice(pd3dDevice));
D3DXCreateFont(pd3dDevice, 18 , 0 , FW_BOLD, 1 , FALSE, DEFAULT_CHARSET, OUT_DEFAULT_PRECIS, DEFAULT_QUALITY,
DEFAULT_PITCH | FF_DONTCARE, L " Arial " , & g_font);
g_dxut_mesh = new CDXUTMesh();
g_dxut_mesh -> Create(pd3dDevice, L " airplane.x " );
return S_OK;
}
// --------------------------------------------------------------------------------------
// Create any D3DPOOL_DEFAULT resources here
// --------------------------------------------------------------------------------------
HRESULT CALLBACK OnResetDevice( IDirect3DDevice9 * pd3dDevice,
const D3DSURFACE_DESC * pBackBufferSurfaceDesc,
void * pUserContext )
{
HRESULT hr;
V_RETURN(g_dlg_resource_manager.OnResetDevice());
V_RETURN(g_settings_dlg.OnResetDevice());
V_RETURN(g_font -> OnResetDevice());
V_RETURN(D3DXCreateSprite(pd3dDevice, & g_text_sprite));
// set dialog position and size
g_button_dlg.SetLocation(pBackBufferSurfaceDesc -> Width - 170 , 0 );
g_button_dlg.SetSize( 170 , 170 );
// setup view matrix
D3DXMATRIX mat_view;
D3DXVECTOR3 eye( 0.0f , 10.0f , - 20.0f );
D3DXVECTOR3 at( 0.0f , 0.0f , 0.0f );
D3DXVECTOR3 up( 0.0f , 1.0f , 0.0f );
D3DXMatrixLookAtLH( & mat_view, & eye, & at, & up);
pd3dDevice -> SetTransform(D3DTS_VIEW, & mat_view);
// set projection matrix
D3DXMATRIX mat_proj;
float aspect = ( float )pBackBufferSurfaceDesc -> Width / pBackBufferSurfaceDesc -> Height;
D3DXMatrixPerspectiveFovLH( & mat_proj, D3DX_PI / 4 , aspect, 1.0f , 100.0f );
pd3dDevice -> SetTransform(D3DTS_PROJECTION, & mat_proj);
// setup light
D3DLIGHT9 light;
ZeroMemory( & light, sizeof (D3DLIGHT9));
light.Type = D3DLIGHT_DIRECTIONAL;
light.Diffuse.r = 1.0f ;
light.Diffuse.g = 1.0f ;
light.Diffuse.b = 1.0f ;
D3DXVECTOR3 light_dir( 0.0f , - 1.0f , 1.0f );
D3DXVec3Normalize((D3DXVECTOR3 * ) & light.Direction, & light_dir);
pd3dDevice -> SetLight( 0 , & light);
pd3dDevice -> LightEnable( 0 , TRUE);
pd3dDevice -> SetRenderState(D3DRS_LIGHTING, TRUE);
pd3dDevice -> SetRenderState(D3DRS_AMBIENT, 0x00FFFF80 );
return S_OK;
}
// --------------------------------------------------------------------------------------
// Release resources created in the OnResetDevice callback here
// --------------------------------------------------------------------------------------
void CALLBACK OnLostDevice( void * pUserContext )
{
g_dlg_resource_manager.OnLostDevice();
g_settings_dlg.OnLostDevice();
g_font -> OnLostDevice();
release_com(g_text_sprite);
}
// --------------------------------------------------------------------------------------
// Release resources created in the OnCreateDevice callback here
// --------------------------------------------------------------------------------------
void CALLBACK OnDestroyDevice( void * pUserContext )
{
g_dlg_resource_manager.OnDestroyDevice();
g_settings_dlg.OnDestroyDevice();
release_com(g_font);
SAFE_DELETE(g_dxut_mesh);
}
// --------------------------------------------------------------------------------------
// Handle updates to the scene
// --------------------------------------------------------------------------------------
void CALLBACK OnFrameMove( IDirect3DDevice9 * pd3dDevice, double fTime, float fElapsedTime, void * pUserContext )
{
D3DXMATRIX mat_world, mat_trans, mat_rot_y;
D3DXMatrixRotationY( & mat_rot_y, ( float )fTime);
D3DXMatrixTranslation( & mat_trans, 0.0f , 0.0f , 30.0f - 30.0f * cos(( float )fTime));
mat_world = mat_rot_y * mat_trans;
pd3dDevice -> SetTransform(D3DTS_WORLD, & mat_world);
}
// --------------------------------------------------------------------------------------
// Render the helper information
// --------------------------------------------------------------------------------------
void RenderText()
{
CDXUTTextHelper text_helper(g_font, g_text_sprite, 20 );
text_helper.Begin();
// show frame and device states
text_helper.SetInsertionPos( 5 , 5 );
text_helper.SetForegroundColor( D3DXCOLOR( 1.0f , 0.475f , 0.0f , 1.0f ) );
text_helper.DrawTextLine( DXUTGetFrameStats( true ) );
text_helper.DrawTextLine( DXUTGetDeviceStats() );
// show helper information
const D3DSURFACE_DESC * surface_desc = DXUTGetBackBufferSurfaceDesc();
if (g_show_help)
{
text_helper.SetInsertionPos( 10 , surface_desc -> Height - 15 * 6 );
text_helper.SetForegroundColor( D3DXCOLOR( 1.0f , 0.475f , 0.0f , 1.0f ) );
text_helper.DrawTextLine(L " Controls (F1 to hide): " );
text_helper.SetInsertionPos( 40 , surface_desc -> Height - 15 * 4 );
text_helper.DrawTextLine(L " Quit: ESC " );
}
else
{
text_helper.SetInsertionPos( 10 , surface_desc -> Height - 15 * 4 );
text_helper.SetForegroundColor( D3DXCOLOR( 1.0f , 1.0f , 1.0f , 1.0f ) );
text_helper.DrawTextLine(L " Press F1 for help " );
}
text_helper.End();
}
// --------------------------------------------------------------------------------------
// Render the scene
// --------------------------------------------------------------------------------------
void CALLBACK OnFrameRender( IDirect3DDevice9 * pd3dDevice, double fTime, float fElapsedTime, void * pUserContext )
{
HRESULT hr;
if (g_settings_dlg.IsActive())
{
g_settings_dlg.OnRender(fElapsedTime);
return ;
}
// Clear the render target and the zbuffer
V( pd3dDevice -> Clear( 0 , NULL, D3DCLEAR_TARGET | D3DCLEAR_ZBUFFER, D3DCOLOR_ARGB( 0 , 64 , 16 , 16 ), 1.0f , 0 ) );
// Render the scene
if ( SUCCEEDED( pd3dDevice -> BeginScene() ) )
{
pd3dDevice -> SetRenderState(D3DRS_ALPHABLENDENABLE, FALSE);
g_dxut_mesh -> Render(pd3dDevice, true , false );
pd3dDevice -> SetRenderState(D3DRS_ALPHABLENDENABLE, TRUE);
pd3dDevice -> SetRenderState(D3DRS_SRCBLEND, D3DBLEND_SRCALPHA);
pd3dDevice -> SetRenderState(D3DRS_DESTBLEND, D3DBLEND_INVSRCALPHA);
g_dxut_mesh -> Render(pd3dDevice, false , true );
// restore alpha belnd state to disabled
pd3dDevice -> SetRenderState(D3DRS_ALPHABLENDENABLE, FALSE);
RenderText();
V(g_button_dlg.OnRender(fElapsedTime));
V( pd3dDevice -> EndScene() );
}
}
// --------------------------------------------------------------------------------------
// Handle messages to the application
// --------------------------------------------------------------------------------------
LRESULT CALLBACK MsgProc( HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam,
bool * pbNoFurtherProcessing, void * pUserContext )
{
* pbNoFurtherProcessing = g_dlg_resource_manager.MsgProc(hWnd, uMsg, wParam, lParam);
if ( * pbNoFurtherProcessing)
return 0 ;
if (g_settings_dlg.IsActive())
{
g_settings_dlg.MsgProc(hWnd, uMsg, wParam, lParam);
return 0 ;
}
* pbNoFurtherProcessing = g_button_dlg.MsgProc(hWnd, uMsg, wParam, lParam);
if ( * pbNoFurtherProcessing)
return 0 ;
return 0 ;
}
// --------------------------------------------------------------------------------------
// Handle keybaord event
// --------------------------------------------------------------------------------------
void CALLBACK OnKeyboardProc(UINT charater, bool is_key_down, bool is_alt_down, void * user_context)
{
if (is_key_down)
{
switch (charater)
{
case VK_F1:
g_show_help = ! g_show_help;
break ;
}
}
}
// --------------------------------------------------------------------------------------
// Handle events for controls
// --------------------------------------------------------------------------------------
void CALLBACK OnGUIEvent(UINT event , int control_id, CDXUTControl * control, void * user_context)
{
switch (control_id)
{
case IDC_TOGGLE_FULLSCREEN:
DXUTToggleFullScreen();
break ;
case IDC_TOGGLE_REF:
DXUTToggleREF();
break ;
case IDC_CHANGE_DEVICE:
g_settings_dlg.SetActive( true );
break ;
}
}
// --------------------------------------------------------------------------------------
// Initialize dialogs
// --------------------------------------------------------------------------------------
void InitDialogs()
{
g_settings_dlg.Init( & g_dlg_resource_manager);
g_button_dlg.Init( & g_dlg_resource_manager);
g_button_dlg.SetCallback(OnGUIEvent);
int x = 35 , y = 10 , width = 125 , height = 22 ;
g_button_dlg.AddButton(IDC_TOGGLE_FULLSCREEN, L " Toggle full screen " , x, y, width, height);
g_button_dlg.AddButton(IDC_TOGGLE_REF, L " Toggle REF (F3) " , x, y += 24 , width, height);
g_button_dlg.AddButton(IDC_CHANGE_DEVICE, L " Change device (F2) " , x, y += 24 , width, height, VK_F2);
}
// --------------------------------------------------------------------------------------
// Initialize everything and go into a render loop
// --------------------------------------------------------------------------------------
INT WINAPI WinMain( HINSTANCE, HINSTANCE, LPSTR, int )
{
// Enable run-time memory check for debug builds.
#if defined(DEBUG) | defined(_DEBUG)
_CrtSetDbgFlag( _CRTDBG_ALLOC_MEM_DF | _CRTDBG_LEAK_CHECK_DF );
#endif
// Set the callback functions
DXUTSetCallbackDeviceCreated( OnCreateDevice );
DXUTSetCallbackDeviceReset( OnResetDevice );
DXUTSetCallbackDeviceLost( OnLostDevice );
DXUTSetCallbackDeviceDestroyed( OnDestroyDevice );
DXUTSetCallbackMsgProc( MsgProc );
DXUTSetCallbackFrameRender( OnFrameRender );
DXUTSetCallbackFrameMove( OnFrameMove );
DXUTSetCallbackKeyboard(OnKeyboardProc);
// TODO: Perform any application-level initialization here
InitDialogs();
// Initialize DXUT and create the desired Win32 window and Direct3D device for the application
DXUTInit( true , true , true ); // Parse the command line, handle the default hotkeys, and show msgboxes
DXUTSetCursorSettings( true , true ); // Show the cursor and clip it when in full screen
DXUTCreateWindow( L " Use DXUT Mesh Class " );
DXUTCreateDevice( D3DADAPTER_DEFAULT, true , 640 , 480 , IsDeviceAcceptable, ModifyDeviceSettings );
// Start the render loop
DXUTMainLoop();
// TODO: Perform any application-level cleanup here
return DXUTGetExitCode();
}
下载示例工程
