我的C++ 的基础一直都不太扎实,最近有点空闲时间,找了本 C++ Primer 仔细的读了读。看完运算符重载那一章时,就想到写个复数类来练一练手。

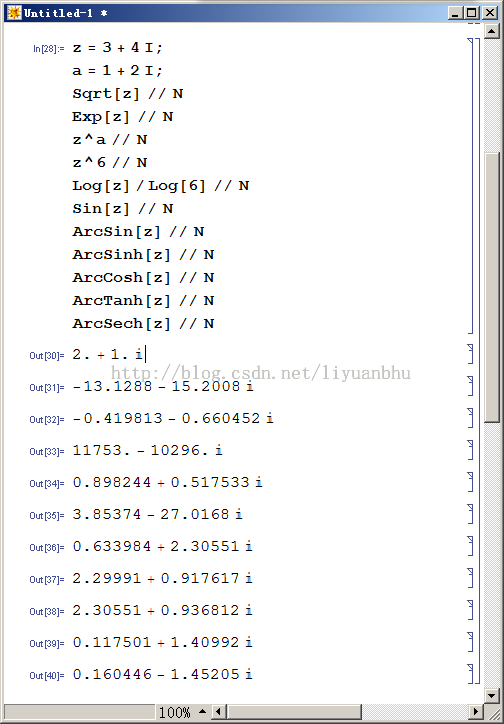

实际上 C++ 中是有复数类的,而且还是个模版类,比我这个类用起来更灵活。不过我的类也有自己的特点,就是支持相当多的数学函数,那些函数相应的代码是从 GSL 中借来的,所以计算结果还算是可靠的,大多数的函数的计算结果 都用 Mathematica 验算过了,看起来还算是挺靠谱的。
下面先贴出头文件。
#ifndef COMPLEX_H #define COMPLEX_H #include <iostream> class Complex { public: Complex(const Complex &z); Complex(double x = 0.0, double y = 0.0); ~Complex(); double real() const {return dat[0];} double image() const {return dat[1];} double abs() const {return hypot(dat[0], dat[1]);} void set(double x, double y) {dat[0] = x; dat[1] = y;} inline double arg() const; inline double abs2() const; inline double logabs () const; Complex conjugate() const; Complex inverse() const; Complex operator +(const Complex &other) const; Complex operator +(const double &other) const; Complex operator -(const Complex &other) const; Complex operator -(const double &other) const; Complex operator *(const Complex &other) const; Complex operator *(const double &other) const; Complex operator /(const Complex &other) const; Complex operator /(const double &other) const; void operator +=(const Complex &other); void operator +=(const double &other); void operator -=(const Complex &other); void operator -=(const double &other); void operator *=(const Complex &other); void operator *=(const double &other); void operator /=(const Complex &other); void operator /=(const double &other); Complex& operator =(const Complex &other); Complex& operator =(const double &other); private: double dat[2]; friend std::ostream& operator << (std::ostream&, const Complex & z); friend Complex operator -(const Complex &other); }; Complex sqrt(const Complex& a); Complex exp(const Complex& a); Complex pow(const Complex& a, const Complex& b); Complex pow(const Complex& a, double b); Complex log(const Complex& a); Complex log10 (const Complex &a); Complex log(const Complex &a, const Complex &b); // 三角函数 Complex sin (const Complex& a); Complex cos (const Complex& a); Complex tan (const Complex& a); Complex cot (const Complex& a); Complex sec (const Complex& a); Complex csc (const Complex& a); // 反三角函数 Complex arcsin_real (double a); Complex arccos_real(double a); Complex arcsec_real (double a); Complex arctan_real (double a); Complex arccsc_real(double a); Complex arcsin (const Complex& a); Complex arccos (const Complex& a); Complex arctan (const Complex& a); Complex arcsec (const Complex& a); Complex arccsc (const Complex& a); Complex arccot (const Complex& a); /********************************************************************** * Complex Hyperbolic Functions **********************************************************************/ Complex sinh (const Complex& a); Complex cosh (const Complex& a); Complex tanh (const Complex& a); Complex sech (const Complex& a); Complex csch (const Complex& a); Complex coth (const Complex& a); /********************************************************************** * Inverse Complex Hyperbolic Functions **********************************************************************/ Complex arccoth (const Complex& a); Complex arccsch (const Complex& a); Complex arcsech (const Complex& a); Complex arctanh_real (double a); Complex arctanh (const Complex& a); Complex arccosh_real (double a); Complex arccosh (const Complex& a); Complex arcsinh (const Complex& a); Complex polar(double r, double theta); double fabs(const Complex &z); #endif // COMPLEX_H
复数的实部和虚部存在了一个数组中,而不是放到两个double型变量中,这样做也是遵循了 GSL 的代码,据GSL 的作者解释,这样可以最大限度的保证 实部和虚部是连续放置的。代码还算简单,这里就对几个重点做些解释。
Complex operator +(const Complex &other) const;
operator + 必须要声明为 const。否则下面的代码无法通过编译。
const Complex a(1, 2); const Complex b(2, 3); Complex c = a + b;
Complex operator -(const Complex &other);这个函数是为了类似如下代码使用的
c = -a + b;
实际上这个函数不用声明为 友元函数,因为它不需要访问越权访问Complex 的私有变量。之所以这么写只是想用一下 friend 关键字。不过我个人认为外部函数还是不应该越权访问类的私有变量的,因此 friend 用的越少越好。所以后面实现的各种数学函数都没有声明为友元函数。
下面是Complex 的基本实现。
#include "complex.h" #include <cmath> Complex::Complex(double x, double y) { dat[0] = x; dat[1] = y; } Complex::Complex(const Complex &z) { dat[0] = z.dat[0]; dat[1] = z.dat[1]; } Complex::~Complex() { } double Complex::arg() const { double x = dat[0]; double y = dat[1]; if (x == 0.0 && y == 0.0) { return 0; } return std::atan2 (y, x); } double Complex::abs2() const { double x = dat[0]; double y = dat[1]; return (x * x + y * y); } double Complex::logabs () const { double xabs = fabs (dat[0]); double yabs = fabs (dat[1]); double max, u; if (xabs >= yabs) { max = xabs; u = yabs / xabs; } else { max = yabs; u = xabs / yabs; } /* Handle underflow when u is close to 0 */ return log (max) + 0.5 * log1p (u * u); } Complex Complex::conjugate() const { Complex z(dat[0], -dat[1]); return z; } Complex Complex::inverse() const { double s = 1.0 / fabs (*this); double x = this->real(); double y = this->image(); Complex z(x * s * s, - y * s * s); return z; } void Complex::operator +=(const Complex &other) { dat[0] += other.dat[0]; dat[1] += other.dat[1]; } void Complex::operator +=(const double &other) { dat[0] += other; } void Complex::operator -=(const Complex &other) { dat[0] -= other.dat[0]; dat[1] -= other.dat[1]; } void Complex::operator -=(const double &other) { dat[0] -= other; } void Complex::operator *=(const Complex &other) { double x, y; x = (dat[0] * other.dat[0] - dat[1] * other.dat[1]); y = (dat[1] * other.dat[0] + dat[0] * other.dat[1]); dat[0] = x; dat[1] = y; } void Complex::operator *=(const double &other) { dat[0] = dat[0] * other; dat[1] = dat[1] * other; } void Complex::operator /=(const Complex &other) { double x, y; double a = other.dat[0] * other.dat[0] + other.dat[1] * other.dat[1]; x = ((dat[0] * other.dat[0]) + (dat[1] * other.dat[1])) / a; y = ((dat[1] * other.dat[0]) - (dat[0] * other.dat[1])) / a; dat[0] = x; dat[1] = y; } void Complex::operator /=(const double &other) { dat[0] = dat[0]/other; dat[1] = dat[1]/other; } Complex Complex::operator+(const Complex &other) const { Complex temp(*this); temp += other; return temp; } Complex Complex::operator +(const double &other) const { Complex temp(*this); temp += other; return temp; } Complex Complex::operator -(const Complex &other) const { Complex temp(*this); temp -= other; return temp; } Complex Complex::operator -(const double &other) const { Complex temp(*this); temp -= other; return temp; } Complex operator -(const Complex &other) { Complex temp(-other.real(), -other.image()); return temp; } Complex Complex::operator *(const Complex &other) const { Complex temp(*this); temp *= other; return temp; } Complex Complex::operator *(const double &other) const { Complex temp(*this); temp *= other; return temp; } Complex Complex::operator /(const Complex &other) const { Complex temp(*this); temp /= other; return temp; } Complex Complex::operator /(const double &other) const { Complex temp(*this); temp /= other; return temp; } Complex& Complex::operator =(const Complex &other) { this->dat[0] = other.dat[0]; this->dat[1] = other.dat[1]; return *this; } Complex& Complex::operator =(const double &other) { this->dat[0] = other; this->dat[1] = 0; return *this; } std::ostream& operator << (std::ostream& out, const Complex & z) { out << "real = " << z.dat[0] << std::endl; out << "image = " << z.dat[1] << std::endl; return out; }
Complex polar(double r, double theta) { Complex z(r * cos(theta), r * sin(theta)); return z; } double fabs(const Complex &z) { return hypot(z.real(), z.image()); } Complex sqrt(const Complex& a) { Complex z; if (a.real() == 0.0 && a.image() == 0.0) { z = Complex(0, 0); } else { double x = fabs (a.real()); double y = fabs (a.image()); double w; if (x >= y) { double t = y / x; w = sqrt (x) * sqrt (0.5 * (1.0 + sqrt (1.0 + t * t))); } else { double t = x / y; w = sqrt (y) * sqrt (0.5 * (t + sqrt (1.0 + t * t))); } if (a.real() >= 0.0) { double ai = a.image(); z.set (w, ai / (2.0 * w)); } else { double ai = a.image(); double vi = (ai >= 0) ? w : -w; z.set( ai / (2.0 * vi), vi); } } return z; } Complex exp(const Complex& a) { double rho = exp (a.real()); double theta = a.image(); Complex z(rho * cos (theta), rho * sin (theta)); return z; } Complex pow(const Complex& a, const Complex& b) { /* z=a^b */ Complex z; if (a.real() == 0 && a.image() == 0.0) { if (b.real() == 0 && b.image() == 0.0) { z.set(1.0, 0.0); } else { z.set( 0.0, 0.0); } } else if (b.real() == 1.0 && b.image() == 0.0) { return a; } else if (b.real() == -1.0 && b.image() == 0.0) { return a.inverse(); } else { double logr = a.logabs(); double theta = a.arg(); double br = b.real(), bi = b.image(); double rho = exp (logr * br - bi * theta); double beta = theta * br + bi * logr; z.set( rho * cos (beta), rho * sin (beta)); } return z; } Complex pow(const Complex &a, double b) { /* z=a^b */ Complex z; if (a.real() == 0 && a.image() == 0) { if (b == 0) { z.set( 1, 0); } else { z.set( 0, 0); } } else { double logr = a.logabs(); double theta = a.arg(); double rho = exp (logr * b); double beta = theta * b; z.set( rho * cos (beta), rho * sin (beta)); } return z; } Complex log (const Complex &a) { /* z=log(a) */ double logr = a.logabs(); double theta = a.arg(); Complex z(logr, theta); return z; } Complex log10 (const Complex &a) { /* z = log10(a) */ return log (a) / log (10.0); } Complex log(const Complex &a, const Complex &b) { return log (a) / log (b); }
Complex sin (const Complex& a) { /* z = sin(a) */ double R = a.real(), I = a.image(); Complex z; if (I == 0.0) { /* avoid returing negative zero (-0.0) for the imaginary part */ z.set( sin (R), 0.0); } else { z.set( sin (R) * cosh (I), cos (R) * sinh (I)); } return z; } Complex cos (const Complex& a) { double R = a.real(), I = a.image(); Complex z; if (I == 0.0) { /* avoid returing negative zero (-0.0) for the imaginary part */ z.set(cos (R), 0.0); } else { z.set( cos (R) * cosh (I), sin (R) * sinh (-I)); } return z; } Complex tan (const Complex& a) { double R = a.real(), I = a.image(); Complex z; if (fabs (I) < 1) { double D = pow (cos (R), 2.0) + pow (sinh (I), 2.0); z.set( 0.5 * sin (2 * R) / D, 0.5 * sinh (2 * I) / D); } else { double u = exp (-I); double C = 2 * u / (1 - pow (u, 2.0)); double D = 1 + pow (cos (R), 2.0) * pow (C, 2.0); double S = pow (C, 2.0); double T = 1.0 / tanh (I); z.set( 0.5 * sin (2 * R) * S / D, T / D); } return z; } Complex cot (const Complex& a) { /* z = cot(a) */ Complex z = tan (a); return z.inverse(); } Complex sec (const Complex& a) { Complex z = cos (a); return z.inverse(); } Complex csc (const Complex& a) { Complex z = sin (a); return z.inverse(); } Complex arcsin_real(double a) { /* z = arcsin(a) */ Complex z; if (fabs (a) <= 1.0) { z.set( asin (a), 0.0); } else { if (a < 0.0) { z.set( -M_PI_2, acosh (-a)); } else { z.set( M_PI_2, -acosh (a)); } } return z; } Complex arcsin (const Complex& a) { /* z = arcsin(a) */ double R = a.real(), I = a.image(); Complex z; if (I == 0) { z = arcsin(R); } else { double x = fabs (R), y = fabs (I); double r = hypot (x + 1, y), s = hypot (x - 1, y); double A = 0.5 * (r + s); double B = x / A; double y2 = y * y; double real, imag; const double A_crossover = 1.5, B_crossover = 0.6417; if (B <= B_crossover) { real = asin (B); } else { if (x <= 1) { double D = 0.5 * (A + x) * (y2 / (r + x + 1) + (s + (1 - x))); real = atan (x / sqrt (D)); } else { double Apx = A + x; double D = 0.5 * (Apx / (r + x + 1) + Apx / (s + (x - 1))); real = atan (x / (y * sqrt (D))); } } if (A <= A_crossover) { double Am1; if (x < 1) { Am1 = 0.5 * (y2 / (r + (x + 1)) + y2 / (s + (1 - x))); } else { Am1 = 0.5 * (y2 / (r + (x + 1)) + (s + (x - 1))); } imag = log1p (Am1 + sqrt (Am1 * (A + 1))); } else { imag = log (A + sqrt (A * A - 1)); } z.set( (R >= 0) ? real : -real, (I >= 0) ? imag : -imag); } return z; } Complex arccos (const Complex& a) { /* z = arccos(a) */ double R = a.real(), I = a.image(); Complex z; if (I == 0) { z = arccos(R); } else { double x = fabs (R), y = fabs (I); double r = hypot (x + 1, y), s = hypot (x - 1, y); double A = 0.5 * (r + s); double B = x / A; double y2 = y * y; double real, imag; const double A_crossover = 1.5, B_crossover = 0.6417; if (B <= B_crossover) { real = acos (B); } else { if (x <= 1) { double D = 0.5 * (A + x) * (y2 / (r + x + 1) + (s + (1 - x))); real = atan (sqrt (D) / x); } else { double Apx = A + x; double D = 0.5 * (Apx / (r + x + 1) + Apx / (s + (x - 1))); real = atan ((y * sqrt (D)) / x); } } if (A <= A_crossover) { double Am1; if (x < 1) { Am1 = 0.5 * (y2 / (r + (x + 1)) + y2 / (s + (1 - x))); } else { Am1 = 0.5 * (y2 / (r + (x + 1)) + (s + (x - 1))); } imag = log1p (Am1 + sqrt (Am1 * (A + 1))); } else { imag = log (A + sqrt (A * A - 1)); } z.set( (R >= 0) ? real : M_PI - real, (I >= 0) ? -imag : imag); } return z; } Complex arccos_real(double a) { /* z = arccos(a) */ Complex z; if (fabs (a) <= 1.0) { z.set( acos (a), 0); } else { if (a < 0.0) { z.set( M_PI, -acosh (-a)); } else { z.set( 0, acosh (a)); } } return z; } Complex arctan (const Complex& a) { /* z = arctan(a) */ double R = a.real(), I = a.image(); Complex z; if (I == 0) { z.set( atan (R), 0); } else { /* FIXME: This is a naive implementation which does not fully take into account cancellation errors, overflow, underflow etc. It would benefit from the Hull et al treatment. */ double r = hypot (R, I); double imag; double u = 2 * I / (1 + r * r); /* FIXME: the following cross-over should be optimized but 0.1 seems to work ok */ if (fabs (u) < 0.1) { imag = 0.25 * (log1p (u) - log1p (-u)); } else { double A = hypot (R, I + 1); double B = hypot (R, I - 1); imag = 0.5 * log (A / B); } if (R == 0) { if (I > 1) { z.set( M_PI_2, imag); } else if (I < -1) { z.set( -M_PI_2, imag); } else { z.set( 0, imag); }; } else { z.set( 0.5 * atan2 (2 * R, ((1 + r) * (1 - r))), imag); } } return z; } Complex arcsec (const Complex& a) { /* z = arcsec(a) */ Complex z = a.inverse(); return arccos(z); } Complex arcsec_real (double a) { /* z = arcsec(a) */ Complex z; if (a <= -1.0 || a >= 1.0) { z.set( acos (1 / a), 0.0); } else { if (a >= 0.0) { z.set( 0, acosh (1 / a)); } else { z.set( M_PI, -acosh (-1 / a)); } } return z; } Complex arccsc (const Complex& a) { /* z = arccsc(a) */ Complex z = a.inverse(); return arcsin (z); } Complex arccsc_real(double a) { /* z = arccsc(a) */ Complex z; if (a <= -1.0 || a >= 1.0) { z.set( asin (1 / a), 0.0); } else { if (a >= 0.0) { z.set( M_PI_2, -acosh (1 / a)); } else { z.set(-M_PI_2, acosh (-1 / a)); } } return z; } Complex arccot (const Complex& a) { /* z = arccot(a) */ Complex z; if (a.real() == 0.0 && a.image() == 0.0) { z.set( M_PI_2, 0); } else { z = a.inverse(); z = arctan (z); } return z; }
Complex sinh (const Complex& a) { /* z = sinh(a) */ double R = a.real(), I = a.image(); Complex z; z.set( sinh (R) * cos (I), cosh (R) * sin (I)); return z; } Complex cosh (const Complex& a) { /* z = cosh(a) */ double R = a.real(), I = a.image(); Complex z; z.set( cosh (R) * cos (I), sinh (R) * sin (I)); return z; } Complex tanh (const Complex& a) { /* z = tanh(a) */ double R = a.real(), I = a.image(); Complex z; if (fabs(R) < 1.0) { double D = pow (cos (I), 2.0) + pow (sinh (R), 2.0); z.set( sinh (R) * cosh (R) / D, 0.5 * sin (2 * I) / D); } else { double D = pow (cos (I), 2.0) + pow (sinh (R), 2.0); double F = 1 + pow (cos (I) / sinh (R), 2.0); z.set( 1.0 / (tanh (R) * F), 0.5 * sin (2 * I) / D); } return z; } Complex sech (const Complex& a) { /* z = sech(a) */ Complex z = cosh (a); return z.inverse(); } Complex csch (const Complex& a) { /* z = csch(a) */ Complex z = sinh (a); return z.inverse(); } Complex coth (const Complex& a) { /* z = coth(a) */ Complex z = tanh (a); return z.inverse(); } /********************************************************************** * Inverse Complex Hyperbolic Functions **********************************************************************/ Complex arcsinh (const Complex& a) { /* z = arcsinh(a) */ Complex z = a * Complex(0, 1.0); z = arcsin (z); z *= Complex(0, -1); return z; } Complex arccosh (const Complex& a) { /* z = arccosh(a) */ Complex z = arccos (a); if(z.image() > 0) { z *= Complex(0, -1); } else { z *= Complex(0, 1); } return z; } Complex arccosh (double a) { /* z = arccosh(a) */ Complex z; if (a >= 1) { z.set( acosh (a), 0); } else { if (a >= -1.0) { z.set( 0, acos (a)); } else { z.set( acosh (-a), M_PI); } } return z; } Complex arctanh (const Complex& a) { /* z = arctanh(a) */ if (a.image() == 0.0) { return arctanh (a.real()); } else { Complex z = a * Complex(0, 1.0); z = arctan (z); z = z * Complex(0, -1.0); return z; } } Complex arctanh_real (double a) { /* z = arctanh(a) */ Complex z; if (a > -1.0 && a < 1.0) { z.set( atanh (a), 0); } else { z.set( atanh (1 / a), (a < 0) ? M_PI_2 : -M_PI_2); } return z; } Complex arcsech (const Complex& a) { /* z = arcsech(a); */ Complex t = a.inverse(); return arccosh (t); } Complex arccsch (const Complex& a) { /* z = arccsch(a) */ Complex t = a.inverse(); return arcsinh (t); } Complex arccoth (const Complex& a) { /* z = arccoth(a) */ Complex t = a.inverse(); return arctanh (t); }
double acosh (const double x); double atanh (const double x); double asinh (const double x); double log1p (const double x);
#define GSL_SQRT_DBL_EPSILON 1.4901161193847656e-08 #define GSL_DBL_EPSILON 2.2204460492503131e-16 #ifndef M_LN2 #define M_LN2 0.69314718055994530941723212146 /* ln(2) */ #endif inline double fdiv(double a, double b) { return a / b; } inline double nan (void) { return fdiv (0.0, 0.0); } inline double posinf (void) { return fdiv (+1.0, 0.0); } inline double neginf (void) { return fdiv (-1.0, 0.0); } double log1p (const double x) { volatile double y, z; y = 1 + x; z = y - 1; return log(y) - (z - x) / y ; /* cancels errors with IEEE arithmetic */ } double acosh (const double x) { if (x > 1.0 / GSL_SQRT_DBL_EPSILON) { return log (x) + M_LN2; } else if (x > 2) { return log (2 * x - 1 / (sqrt (x * x - 1) + x)); } else if (x > 1) { double t = x - 1; return log1p (t + sqrt (2 * t + t * t)); } else if (x == 1) { return 0; } else { return nan(); } } double asinh (const double x) { double a = fabs (x); double s = (x < 0) ? -1 : 1; if (a > 1 / GSL_SQRT_DBL_EPSILON) { return s * (log (a) + M_LN2); } else if (a > 2) { return s * log (2 * a + 1 / (a + sqrt (a * a + 1))); } else if (a > GSL_SQRT_DBL_EPSILON) { double a2 = a * a; return s * log1p (a + a2 / (1 + sqrt (1 + a2))); } else { return x; } } double atanh (const double x) { double a = fabs (x); double s = (x < 0) ? -1 : 1; if (a > 1) { return nan(); } else if (a == 1) { return (x < 0) ? neginf() : posinf(); } else if (a >= 0.5) { return s * 0.5 * log1p (2 * a / (1 - a)); } else if (a > GSL_DBL_EPSILON) { return s * 0.5 * log1p (2 * a + 2 * a * a / (1 - a)); } else { return x; } }
#include <iostream> #include "complex.h" using namespace std; int main() { Complex z(1, 2); cout << z << endl; cout << z.conjugate() << endl; cout << -z << endl; cout << z + Complex(3, 4) << endl; cout << z - Complex(3, 4) << endl; cout << z * Complex(3, 4) << endl; cout << z / Complex(3, 4) << endl; z = Complex(3, 4); cout << z << endl; cout << z.inverse() << endl; cout << "Hello World!" << endl; cout << sqrt(Complex(3, 4)) << endl; cout << exp(Complex(3, 4)) << endl; cout << pow(Complex(3, 4), Complex(1, 2)) << endl; cout << pow(Complex(3, 4), 6) << endl; cout << log(Complex(3, 4), 6) << endl; cout << sin(Complex(3, 4)) << endl; cout << arcsin(Complex(3, 4)) << endl; cout << polar(1, 3.14159265358979 / 4) << endl; cout << arcsinh(Complex(3, 4)) << endl; cout << arccosh(Complex(3, 4)) << endl; cout << arctanh(Complex(3, 4)) << endl; cout << arcsech(Complex(3, 4)) << endl; z = 2; cout << z << endl; return 0; }
