cocos2d-x学习日志(16) --富文本

      最近做聊天系统，遇到棘手的问题，就是字体要支持多颜色、换行、表情（图片）、超链接！我们不会从OpenGL底层来做这个工作，因为那样工作量非常大，不现实，考虑在已有的cocos2d-x接口上进行处理，来组合出我们需要富文本。因Android IOS 似乎都支持 freetype2，所以就优先考虑了。

1.下载准备：

      freetype2：http://download.savannah.gnu.org/releases/freetype/

      扩展库：https://github.com/happykevins/cocos2dx-ext

2.搭建环境

2.1 配置freetype2

2.2.创建工程，添加文件，如下：

      工程根目录：

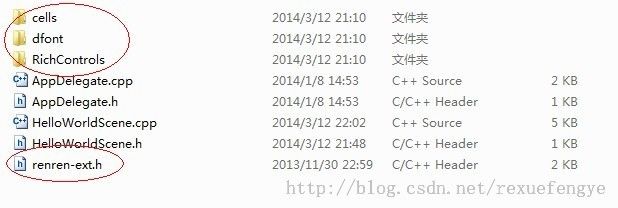

      class文件夹：

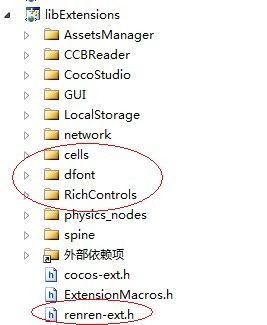

       vs2010工程目录：



3. 代码：

HelloWorldScene.h

#ifndef __HELLOWORLD_SCENE_H__
#define __HELLOWORLD_SCENE_H__

#include "cocos2d.h"
#include "cocos-ext.h"
#include <renren-ext.h>
USING_NS_CC;
USING_NS_CC_EXT;

class HelloWorld : public cocos2d::CCLayer
{
public:
    // Here's a difference. Method 'init' in cocos2d-x returns bool, instead of returning 'id' in cocos2d-iphone
    virtual bool init();

    // there's no 'id' in cpp, so we recommend returning the class instance pointer
    static cocos2d::CCScene* scene();

    // a selector callback
    void menuCloseCallback(CCObject* pSender);

    // implement the "static node()" method manually
    CREATE_FUNC(HelloWorld);

	bool ccTouchBegan(CCTouch *pTouch, CCEvent *pEvent);
	void ccTouchMoved(CCTouch* pTouch, CCEvent* pEvent);

	// HTML events
	void onHTMLClicked(
		IRichNode* root, IRichElement* ele, int _id);
	void onHTMLMoved(
		IRichNode* root, IRichElement* ele, int _id,
		const CCPoint& location, const CCPoint& delta);
};

#endif // __HELLOWORLD_SCENE_H__

HelloWorldScene.cpp

static CCHTMLLabel* s_htmlLabel = NULL;
std::string tt;
// on "init" you need to initialize your instance
bool HelloWorld::init()
{
    //////////////////////////////
    // 1. super init first
    if ( !CCLayer::init() )
    {
        return false;
    }

    CCSize visibleSize = CCDirector::sharedDirector()->getVisibleSize();
    CCPoint origin = CCDirector::sharedDirector()->getVisibleOrigin();

    /////////////////////////////
    // 2. add a menu item with "X" image, which is clicked to quit the program
    //    you may modify it.

    // add a "close" icon to exit the progress. it's an autorelease object
    CCMenuItemImage *pCloseItem = CCMenuItemImage::create(
                                        "CloseNormal.png",
                                        "CloseSelected.png",
                                        this,
                                        menu_selector(HelloWorld::menuCloseCallback));

	pCloseItem->setPosition(ccp(origin.x + visibleSize.width - pCloseItem->getContentSize().width/2 ,
                                origin.y + pCloseItem->getContentSize().height/2));

    // create menu, it's an autorelease object
    CCMenu* pMenu = CCMenu::create(pCloseItem, NULL);
    pMenu->setPosition(CCPointZero);
    this->addChild(pMenu, 1);

	using namespace dfont;

	CCLayerColor* l = CCLayerColor::create(ccc4(0xb0, 0xb0, 0xb0, 0xff));
	l->setContentSize(this->getContentSize());
	this->addChild(l);

	//控件文字样式(尺寸、对齐方式、字体等等)
	// font1
	FontCatalog* font_catalog = NULL;
	font_catalog = FontFactory::instance()->create_font(
		"font1", "simhei.ttf", 0xffffffff, 32, e_plain, 0.0f, 0xffffffff, 0);
	// font2
	font_catalog = FontFactory::instance()->create_font(
		"font2", "simkai.ttf", 0xffffffff, 24, e_shadow, 1.0f, 0xff000000, 0);
	font_catalog->add_hackfont("htmltest/Marker Felt.ttf", latin_charset(), -1);
	// font3
	font_catalog = FontFactory::instance()->create_font(
		"font3", "simli.ttf", 0xffffffff, 20, e_border, 1.0f, 0xff000000, 0);
	font_catalog->add_hackfont("simhei.ttf", latin_charset(), 5);


	CCSize vsize = CCDirector::sharedDirector()->getVisibleSize();
	CCString* str_utf8 = CCString::createWithContentsOfFile("html.htm");

	CCHTMLLabel* htmllabel = CCHTMLLabel::createWithString(str_utf8->getCString(),
		CCSize(vsize.width*0.8f, vsize.height), "default");
	htmllabel->setAnchorPoint(ccp(0.5f,0.5f));
	htmllabel->setPosition(ccp(vsize.width*0.5f, vsize.height*0.5f));
	addChild(htmllabel);

	s_htmlLabel = htmllabel;
	//创建超链接
	htmllabel->registerListener(this, &HelloWorld::onHTMLClicked, &HelloWorld::onHTMLMoved );

	FontFactory::instance()->dump_textures();

    return true;
}

void HelloWorld::onHTMLClicked(
	IRichNode* root, IRichElement* ele, int _id)
{
	CCLog("[On Clicked] id=%d", _id);

	if ( !s_htmlLabel )
	{
		return;
	}
	else if ( _id == 1002 ) // close
	{
		s_htmlLabel->setVisible(false);
	}
	else if ( _id == 2000 ) //reload
	{
		CCString* str_utf8 = CCString::createWithContentsOfFile("html.htm");
		s_htmlLabel->setString(str_utf8->getCString());
	}
}

void HelloWorld::onHTMLMoved(
	IRichNode* root, IRichElement* ele, int _id,
	const CCPoint& location, const CCPoint& delta)
{
	CCLog("[On Moved] id=%d", _id);

	if ( !s_htmlLabel )
	{
		return;
	}
	else if ( _id == 1001 )
	{
		s_htmlLabel->setPosition(ccpAdd(delta, s_htmlLabel->getPosition()));
	}
}


bool HelloWorld::ccTouchBegan(CCTouch *pTouch, CCEvent *pEvent)
{
	return true;
}

void HelloWorld::ccTouchMoved(CCTouch *pTouch, CCEvent *pEvent)
{

}

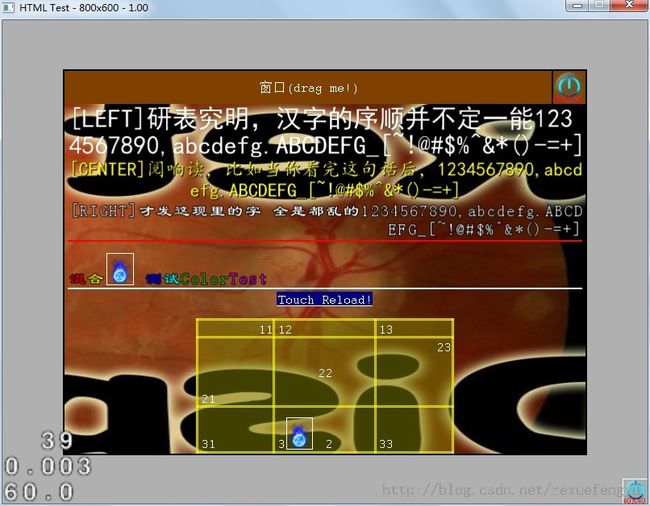

运行效果图：

      点击超链接：



      控制台显示：
