android 图片渐变处理

http://stackoverflow.com/questions/8417608/awful-background-image-quality-in-android/8417703#8417703

First of all, make sure that your original image looks good so you're not just getting the problem from there.
Then, in your onCreate() method, do:

code1:

getWindow().setFormat(PixelFormat.RGBA_8888); getWindow().addFlags(WindowManager.LayoutParams.FLAG_DITHER);

And to load your image explicitly as a 32-bit image (RGBA-8888 configuration) add the following where you load your views:

code2:

BitmapFactory.Options options = new BitmapFactory.Options(); options.inPreferredConfig = Bitmap.Config.ARGB_8888; Bitmap gradient = BitmapFactory.decodeResource(getResources(), R.drawable.gradient, options); findViewById(R.id.main).setBackgroundDrawable(new BitmapDrawable(gradient));


Comparison between different approaches:(these are all screenshots from the resulting application)

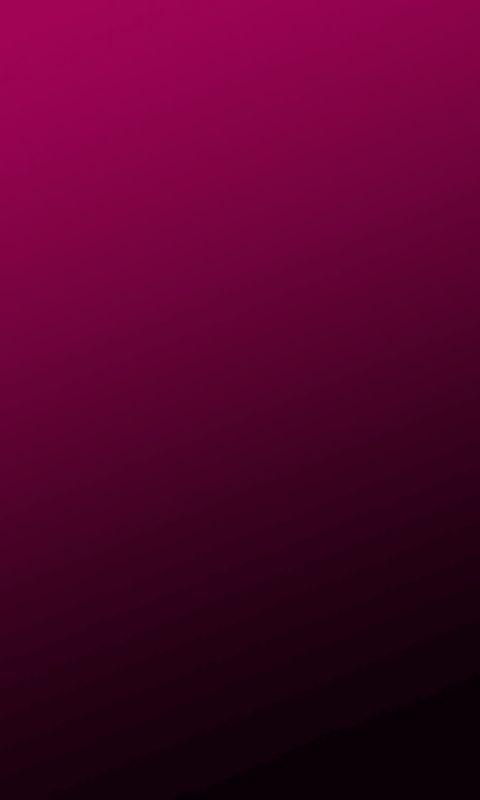

My source images (64 colors to the left, 24 bit to the right):
image1 and image2:
android 图片渐变处理_第1张图片 android 图片渐变处理_第2张图片
1: Raw 64-color image (image1) set as background from layout XML:
android 图片渐变处理_第3张图片
2: The same image (image1), using code1:
android 图片渐变处理_第4张图片
3: The same image (image1) using both code1 and code2:
android 图片渐变处理_第5张图片
4: image2, loaded with code1 and code2 (in this case the dithering is not really important as both the source and destination use 8 bits per color):
android 图片渐变处理_第6张图片
