以太坊源码情景分析之挖矿

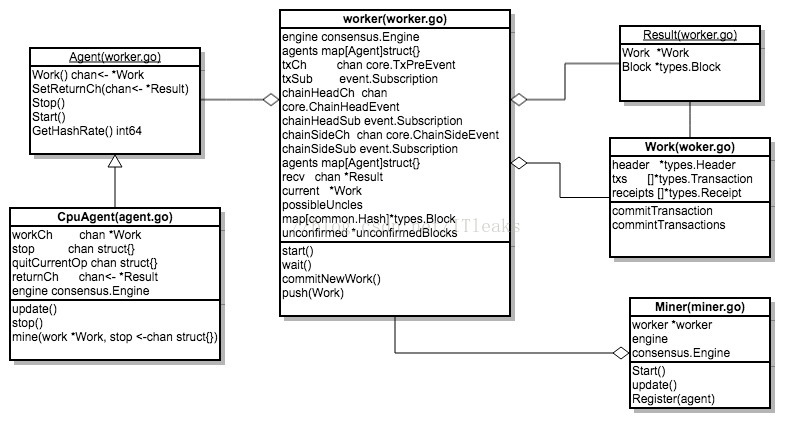

数据结构分析
- Miner类
它是对外类，暴露给外部模块使用的, 具体挖矿的事务由它的成员变量worker管理
它的update函数负责监听downloader的各种事件(收到新块事件等)，恰当的通知worker启动或停止mine，以防止多个新块出现。
- Work类
这个是一个数据类，里面包含了交易数据(transactions)及收据(receipts)
-
worker类
它负责准备区管理组装事务，比如什么时候开始挖新块，停止挖块，使用engine组装Work, 交给agent做seal,即使用pow/clique打包块
- Engine类：
共识算法的实现，比如区块头的格式，难度，pow/clique算法
- CpuAgent类：
继承Agent, 只是一种agent,调用具体的engine执行seal,即pow/clique算法，找出合适的nonce，填充block的剩余字段数据
该类处理完后的最终结果通过returnCh(chan *Result)通道唤醒worker.wait函数，worker.wait拿到完整的block数据然后插入chain并通知其他节点
其实，还有其他agent的实现类，比如remoteagent实现矿池各个节点共同计算
总结：
一个新区块被挖掘出的过程其实就是Block对象数据被填充的过程，这个填充过程可以分为两个步骤
- 一是组装出一个新区块，这个区块的数据基本完整，包括成员Header的大部分属性以及交易列表txs，叔区块uncles[]，并且所有交易已经执行完毕，所有收据(Receipt)也已收集完毕，这部分主要由worker完成
- 二是填补该区块剩余的成员属性，比如Header.Difficulty， Header.nonce, Header.mixdigest等,这些工作是由Agent调用
接口实现体，利用共识算法来完成的。
下面以块生成事件驱动过程来分析挖矿的整个过程
生成新区块
worker.update函数会监听各种事件，当发现有ChainHeadEvent事件时即开始miner新区块, ChainHeadEvent说明新块已经添加到区块链，因而可以挖新区块了
区块数据准备
func
(self
*
worker)
update
() {
defer
self.txSub.
Unsubscribe
()
defer
self.chainHeadSub.
Unsubscribe
()
defer
self.chainSideSub.
Unsubscribe
()
for
{
// A real event arrived, process interesting content
select
{
// Handle ChainHeadEvent
case
<-
self.chainHeadCh:
self.
commitNewWork
()
}
func
(self
*
worker)
commitNewWork
() {
num
:=
parent.
Number
()
header := &types.Header{
ParentHash: parent.
Hash
(),
Number: num.
Add
(num, common.Big1),
GasLimit: core.
CalcGasLimit
(parent),
Extra: self.extra,
Time: big.
NewInt
(tstamp),
}
// Only set the coinbase if we are mining (avoid spurious block rewards)
if
atomic.
LoadInt32
(
&
self.mining)
==
1
{
header.Coinbase
=
self.coinbase
}
//header数据的准备，比如计算难度
if err := self.engine.Prepare(self.chain, header); err != nil {
log.
Error
(
"Failed to prepare header for mining"
,
"err"
, err)
return
}
// Could potentially happen if starting to mine in an odd state.
//新创建一个Work,并设置为worker.current
err := self.makeCurrent(parent, header)
if
err
!=
nil
{
log.
Error
(
"Failed to create mining context"
,
"err"
, err)
return
}
// Create the current work task and check any fork transitions needed
work
:=
self.current
//取出pending交易用来打包到block中
pending, err := self.eth.TxPool().Pending()
if
err
!=
nil
{
log.
Error
(
"Failed to fetch pending transactions"
,
"err"
, err)
return
}
txs
:=
types.
NewTransactionsByPriceAndNonce
(self.current.signer, pending)
//执行transaction（比如智能合约），这个函数会生成work.reciepts
work.commitTransactions(self.mux, txs, self.chain, self.coinbase)
// compute uncles for the new block.
var
(
uncles
[]
*
types.Header
badUncles
[]common.Hash
)
//挑选至多2个uncle block数据打包到block中
for
hash
,
uncle
:=
range
self.possibleUncles {
if
len
(uncles)
==
2
{
break
}
if err := self.commitUncle(work, uncle.Header()); err != nil {
log.
Trace
(
"Bad uncle found and will be removed"
,
"hash"
, hash)
log.
Trace
(fmt.
Sprint
(uncle))
badUncles
=
append
(badUncles, hash)
}
else
{
log.
Debug
(
"Committing new uncle to block"
,
"hash"
, hash)
uncles
=
append
(uncles, uncle.
Header
())
}
}
// Create the new block to seal with the consensus engine
if
work.Block
,
err
=
self.engine.Finalize
(self.chain, header, work.state, work.txs, uncles, work.receipts); err
!=
nil
{
log.
Error
(
"Failed to finalize block for sealing"
,
"err"
, err)
return
}
self.push(work)
}
func
(self
*
worker)
push
(work
*
Work) {
if
atomic.
LoadInt32
(
&
self.mining)
!=
1
{
return
}
for
agent
:=
range
self.agents {
atomic.
AddInt32
(
&
self.atWork,
1
)
if
ch
:=
agent.Work
(); ch
!=
nil
{
ch
<- work
}
}
}
- 准备新区块的时间Time(系统时间)，Num(父区块Num +1)，ParentHash;其余字段比如Difficulty，GasLimit， nonce, root等，均留待之后共识算法中确定。
-
调用Engine.Prepare()函数，完成Header对象的字段的初始值。
-
根据已有的Header对象，创建一个新的Work对象，并用其更新worker.current成员变量。
-
准备新区块的交易列表，来源是TxPool中那些最近加入的tx，并执行这些交易。
-
准备新区块的叔区块uncles[]，来源是worker.possibleUncles[]，而possibleUncles[]中的每个区块都从事件ChainSideEvent中搜集得到, 叔区块最多有两个。
-
调用Engine.Finalize()函数，对新区块“定型”，填充上Header.Root, TxHash, ReceiptHash, UncleHash等几个属性。
-
把创建的Work对象，通过channel发送给每一个登记过的Agent，进行后续的挖掘。（self.push(work)）
后续挖掘是执行POW/Clique算法，计算出nonce,并填充mixdigest等字段
区块数据打包
数据打包其实就是根据共识算法进一步填充block里的信息，这个由Agent（CpuAgent）来执行
func
(self
*
CpuAgent)
update
() {
out:
for
{
select
{
//接收到新的work
case
work
:=
<-
self.workCh:
self.mu
.
Lock
()
if
self.quitCurrentOp
!=
nil
{
close
(self.quitCurrentOp)
}
self.quitCurrentOp
=
make
(
chan
struct
{})
go
self.
mine
(work, self.quitCurrentOp)
self.mu
.
Unlock
()
case
<-
self.stop:
self.mu
.
Lock
()
if
self.quitCurrentOp
!=
nil
{
close
(self.quitCurrentOp)
self.quitCurrentOp
=
nil
}
self.mu
.
Unlock
()
break
out
}
}
}
func
(self
*
CpuAgent)
mine
(work
*
Work, stop
<-
chan
struct
{}) {
if
result
,
err
:=
self.
engine.
Seal
(self.chain, work.Block, stop); result
!=
nil
{
log.
Info
(
"Successfully sealed new block"
,
"number"
, result.
Number
(),
"hash"
, result.
Hash
())
self.returnCh
<-
&
Result{work, result}
}
else
{
if
err
!=
nil
{
log.
Warn
(
"Block sealing failed"
,
"err"
, err)
}
self.returnCh
<-
nil
}
}
func
(ethash
*
Ethash)
Seal
(chain consensus.ChainReader, block
*
types.Block, stop
<-
chan
struct
{}) (
*
types.Block,
error
) {
// If we're running a fake PoW, simply return a 0 nonce immediately
// Create a runner and the multiple search threads it directs
abort
:=
make
(
chan
struct
{})
found := make(chan *types.Block)
ethash.lock.
Lock
()
threads
:=
ethash.threads
ethash.lock.
Unlock
()
if
threads
==
0
{
threads
=
runtime.
NumCPU
()
}
if
threads
<
0
{
threads
=
0
// Allows disabling local mining without extra logic around local/remote
}
var
pend
sync.WaitGroup
//多线程挖矿
for
i
:=
0
; i
<
threads; i
++
{
pend.
Add
(
1
)
go
func
(id
int
, nonce
uint64
) {
defer
pend.
Done
()
// 执行Pow挖矿逻辑
ethash.
mine
(block, id, nonce, abort, found)
}(i,
uint64
(ethash.rand.
Int63
()))
}
// Wait until sealing is terminated or a nonce is found
var
result
*
types.Block
select
{
case
<-
stop:
// Outside abort, stop all miner threads
close
(abort)
case
result
=
<-
found
:
// 等待直至挖出一个新块，返回
// One of the threads found a block, abort all others
close
(abort)
case
<-
ethash.update:
// 用新配置重新挖矿
// Thread count was changed on user request, restart
close
(abort)
pend.
Wait
()
return ethash.Seal(chain, block, stop)
}
// Wait for all miners to terminate and return the block
pend.
Wait
()
return result, nil
}
func
(ethash
*
Ethash)
mine
(block
*
types.Block, id
int
, seed
uint64
, abort
chan
struct
{}, found
chan
*
types.Block) {
// Extract some data from the header
var
(
header
=
block.
Header
()
hash
=
header.
HashNoNonce
().
Bytes
()
//根据难度系数计算出pow目标值target
target = new(big.Int).Div(maxUint256, header.Difficulty)
number
=
header.Number.
Uint64
()
dataset
=
ethash.
dataset
(number)
)
// Start generating random nonces until we abort or find a good one
var
(
attempts
=
int64
(
0
)
//nonce初始值，后面就不停循环递增碰撞
nonce = seed
)
//无穷循环执行POW碰撞
for
{
select
{
default
:
// We don't have to update hash rate on every nonce, so update after after 2^X nonces
attempts
++
if
(attempts
%
(
1
<<
15
))
==
0
{
ethash.hashrate.
Mark
(attempts)
attempts
=
0
}
// Compute the PoW value of this nonce
// 用POW算法计算nonce
digest
,
result
:=
hashimotoFull
(dataset.dataset, hash, nonce)
if
new
( big.Int
).
SetBytes
(result).
Cmp
(target)
<=
0
{
// Correct nonce found, create a new header with it
header
=
types.
CopyHeader
(header)
header.Nonce
=
types.
EncodeNonce
(nonce)
header.MixDigest
=
common.
BytesToHash
(digest)
// Seal and return a block (if still needed)
select
{
//将最终数据返回给worker
case
found
<-
block.
WithSeal
(header
):
logger.
Trace
(
"Ethash nonce found and reported"
,
"attempts"
, nonce
-
seed,
"nonce"
, nonce)
case
<-
abort:
logger.
Trace
(
"Ethash nonce found but discarded"
,
"attempts"
, nonce
-
seed,
"nonce"
, nonce)
}
break
search
}
nonce
++
}
}
// Datasets are unmapped in a finalizer. Ensure that the dataset stays live
// during sealing so it's not unmapped while being read.
runtime.
KeepAlive
(dataset)
}
区块数据插入主链
刚刚前面区块已经完整的打包好了，就等加入链了。从前面的代码可知，打包好的blocky已经传送到CpuAgent.returnCh这个通道了
func
(self
*
CpuAgent)
mine
(work
*
Work, stop
<-
chan
struct
{}) {
if
result
,
err
:=
self.
engine.
Seal
(self.chain, work.Block, stop); result
!=
nil
{
log.
Info
(
"Successfully sealed new block"
,
"number"
, result.
Number
(),
"hash"
, result.
Hash
())
self.returnCh
<-
&
Result{work, result}
}
那这个通道的接收方是谁呢？
func
(self
*
worker)
register
(agent Agent) {
self.mu
.
Lock
()
defer
self.mu
.
Unlock
()
self.agents[agent]
=
struct
{}{}
agent.
SetReturnCh
(self.recv)
}
func
(self
*
CpuAgent)
SetReturnCh
(ch
chan
<-
*
Result) {
self.returnCh
=
ch }
从上面的代码可以看出CpuAgent.returnCh就是woker.recv,所以接收打包后的block的对象是worker.recv,处理函数是worker.wait,具体如下
func
(self
*
worker)
wait
() {
for
{
mustCommitNewWork
:=
true
//等待获取打包好的block
for result := range self.recv {
atomic.
AddInt32
(
&
self.atWork,
-
1
)
if
result
==
nil
{
continue
}
block
:=
result.Block
work
:=
result.Work
// Update the block hash in all logs since it is now available and not when the
// receipt/log of individual transactions were created.
for
_
,
r
:=
range
work.receipts {
for
_
,
l
:=
range
r.Logs {
l.BlockHash
=
block.
Hash
()
}
}
for
_
,
log
:=
range
work.state.
Logs
() {
log.BlockHash
=
block.
Hash
()
}
//将交易的state写入数据库及更新trie对象，这个后面会单独写一个章节介绍
stat, err := self.chain.WriteBlockWithState(block, work.receipts, work.state)
if
err
!=
nil
{
log.
Error
(
"Failed writing block to chain"
,
"err"
, err)
continue
}
// check if canon block and write transactions
if
stat
==
core.CanonStatTy {
// implicit by posting ChainHeadEvent
mustCommitNewWork
=
false
}
// Broadcast the block and announce chain insertion event
//通知新块产生了
self.mux.Post(core.NewMinedBlockEvent{Block: block})
var
(
events
[]
interface
{}
logs
=
work.state.
Logs
()
)
events
=
append
(events, core.ChainEvent{Block: block, Hash: block.
Hash
(), Logs: logs})
if
stat
==
core.CanonStatTy {
events
=
append
(events, core.ChainHeadEvent{Block: block})
}
self.chain.
PostChainEvents
(events, logs)
// Insert the block into the set of pending ones to wait for confirmations
self.unconfirmed.
Insert
(block.
NumberU64
(), block.
Hash
())
if
mustCommitNewWork {
//开始新块的挖掘
self.commitNewWork()
}
}
}
}
取消生产新区快
我们知道POW模式下生产一个区块需要很长的时间，那生产的过程中就会发生很多事，比如本地开始从其他节点同步区块，这时就需要停止本地区块的生成
func
(self
*
Miner)
update
() {
events
:=
self.mux.
Subscribe
(downloader.StartEvent{}, downloader.DoneEvent{}, downloader.FailedEvent{})
out:
for
ev
:=
range
events.
Chan
() {
switch
ev.Data.(type) {
case
downloader.StartEvent:
atomic.
StoreInt32
(
&
self.canStart,
0
)
if
self.
Mining
() {
self.
Stop
()
atomic.
StoreInt32
(
&
self.shouldStart,
1
)
log.
Info
(
"Mining aborted due to sync"
)
}
case
downloader.DoneEvent, downloader.FailedEvent:
shouldStart
:=
atomic.
LoadInt32
(
&
self.shouldStart)
==
1
atomic.
StoreInt32
(
&
self.canStart,
1
)
atomic.
StoreInt32
(
&
self.shouldStart,
0
)
if
shouldStart {
self.
Start
(self.coinbase)
}
// unsubscribe. we're only interested in this event once
events.
Unsubscribe
()
// stop immediately and ignore all further pending events
break
out
}
}
}
func
(self
*
Miner)
Stop
() {
self.worker.stop()
atomic.
StoreInt32
(
&
self.mining,
0
)
atomic.
StoreInt32
(
&
self.shouldStart,
0
)
}
func
(self
*
worker)
stop
() {
if
atomic.
LoadInt32
(
&
self.mining)
==
1
{
for
agent
:=
range
self.agents {
agent.Stop()
}
}
}
func
(self
*
CpuAgent)
Stop
() {
self.stop <- struct{}{}
done:
// Empty work channel
for
{
select
{
//将所有的work清空
case <-self.workCh:
default
:
break
done
}
}
}
func
(self
*
CpuAgent)
update
() {
out:
for
{
select
{
case <-self.stop:
self.mu
.
Lock
()
if
self.quitCurrentOp
!=
nil
{
close(self.quitCurrentOp)
self.quitCurrentOp
=
nil
}
self.mu
.
Unlock
()
break
out
}
}
}
到这里为止，stop传递到了CpuAgent.quitCurrentOp,那这个通道又是如何影响最后pow逻辑的呢？
接着看
func
(self
*
CpuAgent)
update
() {
out:
for
{
select
{
case
work
:=
<-
self.workCh:
self.mu
.
Lock
()
if
self.quitCurrentOp
!=
nil
{
close
(self.quitCurrentOp)
}
self.quitCurrentOp
=
make
(
chan
struct
{})
go
self.
mine
(work, self.quitCurrentOp)
}
func
(self
*
CpuAgent)
mine
(work
*
Work, stop
<-
chan
struct
{}) {
if
result
,
err
:=
self.engine.
Seal
(self.chain, work.Block, stop); result
!=
nil
{
log.
Info
(
"Successfully sealed new block"
,
"number"
, result.
Number
(),
"hash"
, result.
Hash
())
self.returnCh
<-
&
Result{work, result}
….
}
}
func
(ethash
*
Ethash)
mine
(block
*
types.Block, id
int
, seed
uint64
,
abort
chan
struct
{}
, found
chan
*
types.Block) {
// Extract some data from the header
for
{
select
{
case
<-
abort:
// Mining terminated, update stats and abort
logger.
Trace
(
"Ethash nonce search aborted"
,
"attempts"
, nonce
-
seed)
ethash.hashrate.
Mark
(attempts)
break
search
default
:
// We don't have to update hash rate on every nonce, so update after after 2^X nonces
attempts
++
if
(attempts
%
(
1
<<
15
))
==
0
{
ethash.hashrate.
Mark
(attempts)
attempts
=
0
}
// Compute the PoW value of this nonce
// 用POW算法计算nonce
digest
,
result
:=
hashimotoFull
(dataset.dataset, hash, nonce)
if
new
( big.Int
).
SetBytes
(result).
Cmp
(target)
<=
0
{
// Correct nonce found, create a new header with it
header
=
types.
CopyHeader
(header)
header.Nonce
=
types.
EncodeNonce
(nonce)
header.MixDigest
=
common.
BytesToHash
(digest)
// Seal and return a block (if still needed)
select
{
//将最终数据返回给worker
case
found
<-
block.
WithSeal
(header
):
logger.
Trace
(
"Ethash nonce found and reported"
,
"attempts"
, nonce
-
seed,
"nonce"
, nonce)
case
<-
abort:
logger.
Trace
(
"Ethash nonce found but discarded"
,
"attempts"
, nonce
-
seed,
"nonce"
, nonce)
}
break
search
}
nonce
++
}
从上可知，stop的动作最后传递到了hash碰撞循环逻辑，然后就会取消hash碰撞
/********************************
* 本文来自CSDN博主"爱踢门"
* 转载请标明出处
: http://blog.csdn.net/itleaks
******************************************/
