Python3.5实现BP算法小实例

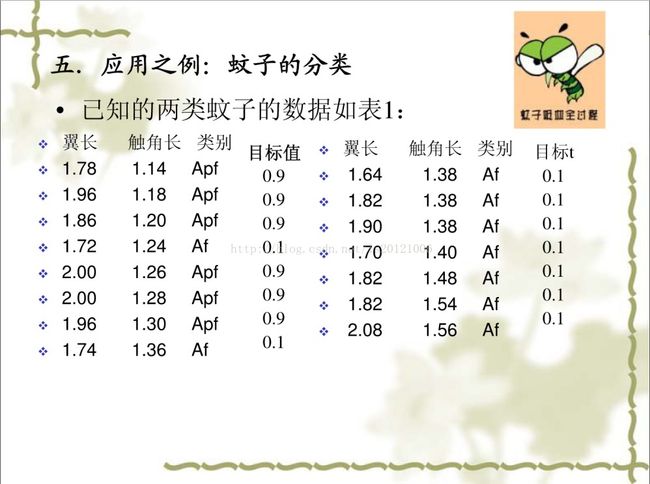

具体问题描述在下面PPT中，PPT链接： http://pan.baidu.com/s/1b3GRHc

import random, math
import numpy as np

# 输入值
a0 = [[1.78, 1.14, -1], [1.96, 1.18, -1], [1.86, 1.20, -1], [1.72, 1.24, -1], [2.00, 1.26, -1],
      [2.00,1.28,-1], [1.96,1.30,-1], [1.74,1.36,-1], [1.64,1.38,-1], [1.82,1.38,-1],
      [1.90,1.38,-1], [1.70,1.40,-1], [1.82,1.48,-1], [1.82,1.54,-1], [2.08,1.56,-1]]
# 目标值
t = [0.9,0.9,0.9,0.1,0.9,0.9,0.9,0.1,0.1,0.1,0.1,0.1,0.1,0.1,0.1]
# 权重
w1 = np.random.randn(2,3)
w2 = np.random.randn(1,3)

# 学习率
ate = 0.1
# 迭代 100 轮
for Epoch in range(15000):
    k = Epoch % 15
    # 第一层输出加工一
    u01 = w1[0][0] * a0[k][0] + w1[0][1] * a0[k][1] + w1[0][2] * a0[k][2]
    u02 = w1[1][0] * a0[k][0] + w1[1][1] * a0[k][1] + w1[1][2] * a0[k][2]
    # 第一层输出加工二,即激活函数
    a1 = [0, 0, -1]
    a1[0] = 1 / (1 + math.exp(-u01))
    a1[1] = 1 / (1 + math.exp(-u02))

    # 第二层输出加工一
    u11 = w2[0][0] * a1[0] + w2[0][1] * a1[1] + w2[0][2] * a1[2]
    # 第二层输出加工二
    a2 = 1 / (1 + math.exp(-u11))

    # 倒数第一层偏倒
    a21 = math.exp(-u11) / math.pow((1 + math.exp(-u11)), 2)
    ww2 = (t[k] - a2) * a21
    # 其实 ww2 是需要乘以其对应的 a1[i] 才算是某个权重的真正的偏倒数，这里为了简化编程没有乘，
    # 下面三行代码更新权重时会乘上，下文 ww1 同理
    w2[0][0] = w2[0][0] + ate * ww2 * a1[0]
    w2[0][1] = w2[0][1] + ate * ww2 * a1[1]
    w2[0][2] = w2[0][2] + ate * ww2 * a1[2]

    # 倒数第二层偏倒，有两行权重，所以有两个偏导数
    a11 = math.exp(-u01) / math.pow((1 + math.exp(-u01)), 2)
    a12 = math.exp(-u02) / math.pow((1 + math.exp(-u02)), 2)
    ww1 = [0, 0]
    ww1[0] = (ww2 * w2[0][0]) * a11
    ww1[1] = (ww2 * w2[0][1]) * a12
    # 更新权重
    for i in range(2):
        for j in range(3):
            w1[i][j] = w1[i][j] + ate * ww1[i] * a0[k][j]

# 测试最后结果
for k in range(15):
      # 第一层输出加工一
      u01 = w1[0][0] * a0[k][0] + w1[0][1] * a0[k][1] + w1[0][2] * a0[k][2]
      u02 = w1[1][0] * a0[k][0] + w1[1][1] * a0[k][1] + w1[1][2] * a0[k][2]
      # 第一层输出加工二
      a1 = [0, 0, -1]
      a1[0] = 1 / (1 + math.exp(-u01))
      a1[1] = 1 / (1 + math.exp(-u02))

      # 第二层输出加工一
      u11 = w2[0][0] * a1[0] + w2[0][1] * a1[1] + w2[0][2] * a1[2]
      # 第二层输出加工二
      a2 = 1 / (1 + math.exp(-u11))

      #  计算的值如果大于0.5则为第一类，否则为第二类，t[k]是正确答案
      if(a2 > 0.5):
            print(0.9, t[k])
      else:
            print(0.1, t[k])
