Gallery画廊,SlidingDrawer侧滑

Gallery控件用于灵活展示图片)过期

java:

package com.example.gallerytext;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.Gallery;
import android.widget.Toast;

public class MainActivity extends Activity {
    Gallery gallery;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        gallery=(Gallery) findViewById(R.id.gallery);
        GalleryAdapter galleryAdapter = new GalleryAdapter(MainActivity.this);
        gallery.setAdapter(galleryAdapter);
        //相应的点击事件
        gallery.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView adapterView, View view, int i, long l) {
                Toast.makeText(MainActivity.this, "您点击的是" + i, Toast.LENGTH_LONG).show();
            }
        });
    }



    }

xml里面写Gallery属性

继承BaseAdapter适配器

package com.example.gallerytext;

import android.content.Context;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.Gallery;
import android.widget.ImageView;

/**
 * Created by ZWH on 2016/5/16.
 */
public class GalleryAdapter extends BaseAdapter {
    private Context mContext;
    //设置要展示的图片资源
    int[] images = {R.drawable.ic_launcher,R.drawable.f1,R.drawable.f2,R.drawable.f3,R.drawable.f4,R.drawable.f5,R.drawable.f6,R.drawable.f7,R.drawable.f8,R.drawable.f9,R.drawable.f10,};

    public GalleryAdapter(Context context) {
        this.mContext = context;
    }

    @Override
    public int getCount() {
        return images.length;
    }

    @Override
    public Object getItem(int i) {
        return i;
    }

    @Override
    public long getItemId(int i) {
        return i;
    }

    @Override
    public View getView(int i, View view, ViewGroup viewGroup) {
        //在此最好判断一下view是否为空
        ImageView image = new ImageView(mContext);
        image.setImageResource(images[i]);
        image.setAdjustViewBounds(true);
        //设置宽高
        image.setLayoutParams(new Gallery.LayoutParams(
                ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT));
        return image;
    }
}

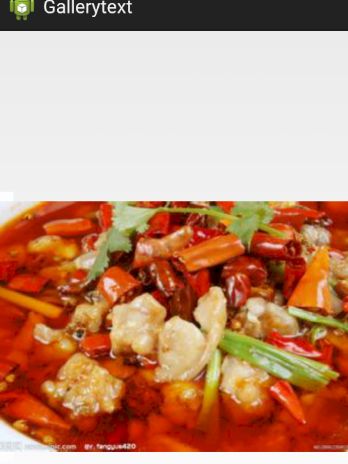

效果图


安卓中1.5后加入了SlidingDrawer【隐藏式抽屉】，设计原理在你的UI布局有限的情况下，放不下太多的控件的时候，可以考虑用这个隐藏式抽屉。用SlidingDrawer注意两点，一个是android：handle（委托要展开的图片加载Layout配置） 和android：content（要展开的Layout Content）:

主java里打

package com.example.slid;

import android.app.Activity;
import android.content.res.Configuration;
import android.os.Bundle;
import android.widget.GridView;
import android.widget.ImageView;
import android.widget.SlidingDrawer;

public class MainActivity extends Activity {

    private GridView gridView;
    private SlidingDrawer slidingDrawer;
    private ImageView imageView;
    private int[] icons={
        R.drawable.widget01, R.drawable.widget02,
        R.drawable.widget03, R.drawable.widget04,
        R.drawable.widget05, R.drawable.widget06,
        R.drawable.widget07, R.drawable.widget08,
        R.drawable.widget09,
    };

    private String[] items={"家园卫士","安装包","游戏盒子",
   "链接电脑","记事本","垃圾箱","流量管理","软件修复","系统设置"
    };

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        gridView = (GridView)findViewById(R.id.mycontent);
        slidingDrawer = (SlidingDrawer)findViewById(R.id.sliding_drawer);//初始化
        imageView = (ImageView)findViewById(R.id.my_image);//拉菜单的小箭头
        MyGridViewAdapter adapter = new MyGridViewAdapter(this, items, icons);//继承了BaseAdapter基础适配器
        gridView.setAdapter(adapter);//设置适配
        slidingDrawer.setOnDrawerOpenListener(new SlidingDrawer.OnDrawerOpenListener() {
            //设置打开抽屉的监听
            public void onDrawerOpened() {
                //设置小箭头的方向
                imageView.setImageResource(R.drawable.right1);
            }
        });
        slidingDrawer.setOnDrawerCloseListener(new SlidingDrawer.OnDrawerCloseListener() {
              //设置关闭抽屉监听
            public void onDrawerClosed() {
                imageView.setImageResource(R.drawable.left1);
            }
        });
    }


}

基础适配器

package com.example.slid;

import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.TextView;

public class MyGridViewAdapter extends BaseAdapter{

    private Context context;
    private String[] items;
    private int[] icons;

    public MyGridViewAdapter(Context context, String[] items, int[] icons){
        this.context = context;
        this.items = items;
        this.icons = icons;
    }

    public int getCount() {
        return items.length;
    }

    public Object getItem(int arg0) {
        return items[arg0];
    }

    public long getItemId(int position) {
        return position;
    }

    public View getView(int position, View convertView, ViewGroup parent) {
        Shuju shuju=null;
        if(convertView==null){
            LayoutInflater layoutInflater = LayoutInflater.from(context);
            convertView = (View)layoutInflater .inflate(R.layout.wode, null);
            shuju=new Shuju();
            shuju.imageView = (ImageView)convertView.findViewById(R.id.image_view);
            shuju.textview = (TextView)convertView.findViewById(R.id.text_view);
            convertView.setTag(shuju);
        }else{
            shuju= (Shuju) convertView.getTag();
        }
        //第二种加载布局方式
        shuju.imageView.setImageResource(icons[position]);
        shuju.textview.setText(items[position]);
        return convertView;
    }
 class Shuju{
     TextView textview;
     ImageView imageView;
    }

}

主布局

内容控件xml

效果图
