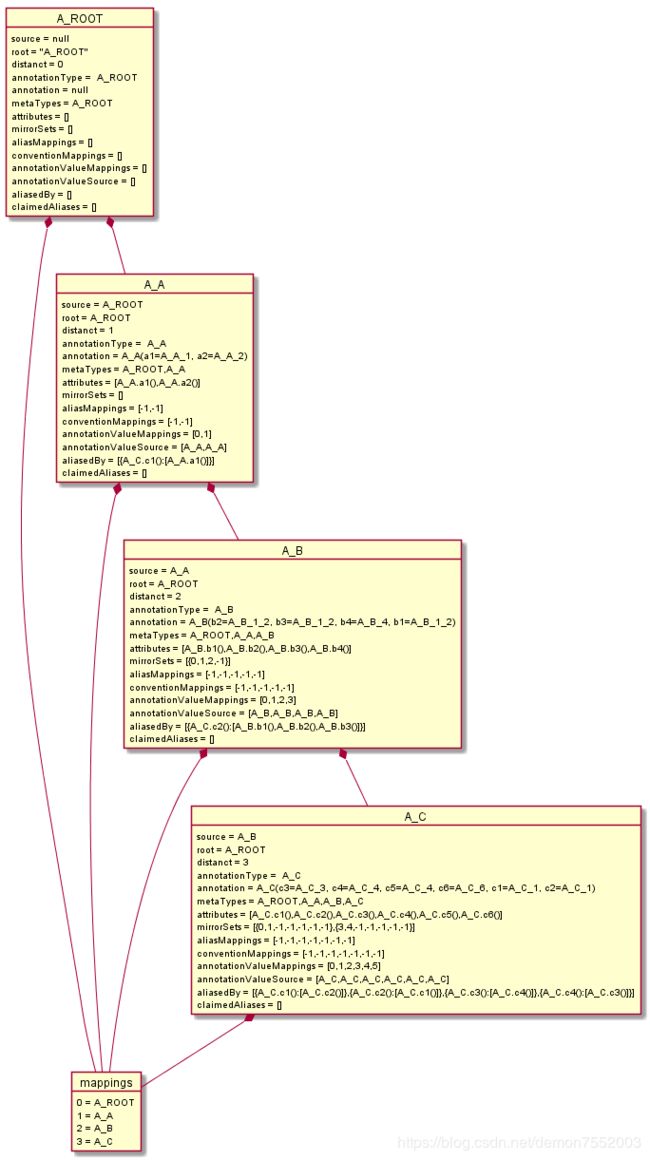

AnnotationTypeMapping帮助理解示例

注解定义

注解使用

---

Spring注解编程基石（一）

Spring注解编程基石（二）

Spring注解编程基石（三）

Spring注解编程基石（四）​​​​​​​

---

AnnotationsScanner

在AnnotatedElement的注解层级中查找相关Annotation的扫描器

扫描方法

	@Nullable
    //扫描获取注解
	static  R scan(C context, AnnotatedElement source, SearchStrategy searchStrategy,
			AnnotationsProcessor processor) {

		return scan(context, source, searchStrategy, processor, null);
	}

	@Nullable
	static  R scan(C context, AnnotatedElement source, SearchStrategy searchStrategy,
			AnnotationsProcessor processor, @Nullable BiPredicate> classFilter) {

		R result = process(context, source, searchStrategy, processor, classFilter);
		return processor.finish(result);
	}

	@Nullable
	private static  R process(C context, AnnotatedElement source,
			SearchStrategy searchStrategy, AnnotationsProcessor processor,
			@Nullable BiPredicate> classFilter) {
        //source为类
		if (source instanceof Class) {
			return processClass(context, (Class) source, searchStrategy, processor, classFilter);
		}
        //source为方法
		if (source instanceof Method) {
			return processMethod(context, (Method) source, searchStrategy, processor, classFilter);
		}
		return processElement(context, source, processor, classFilter);
	}

扫描source为Class方法

	@Nullable
    //根据查找策略扫描Class
	private static  R processClass(C context, Class source,
			SearchStrategy searchStrategy, AnnotationsProcessor processor,
			@Nullable BiPredicate> classFilter) {

		switch (searchStrategy) {
			case DIRECT:
				return processElement(context, source, processor, classFilter);
			case INHERITED_ANNOTATIONS:
				return processClassInheritedAnnotations(context, source, searchStrategy, processor, classFilter);
			case SUPERCLASS:
				return processClassHierarchy(context, source, processor, classFilter, false, false);
			case TYPE_HIERARCHY:
				return processClassHierarchy(context, source, processor, classFilter, true, false);
			case TYPE_HIERARCHY_AND_ENCLOSING_CLASSES:
				return processClassHierarchy(context, source, processor, classFilter, true, true);
		}
		throw new IllegalStateException("Unsupported search strategy " + searchStrategy);
	}

    @Nullable
    //查找直接注解策略
	private static  R processElement(C context, AnnotatedElement source,
			AnnotationsProcessor processor, @Nullable BiPredicate> classFilter) {

		R result = processor.doWithAggregate(context, 0);
		return (result != null ? result : processor.doWithAnnotations(
				context, 0, source, getDeclaredAnnotations(context, source, classFilter, false)));
	}

	@Nullable
     //查找继承注解策略
	private static  R processClassInheritedAnnotations(C context, Class source,
			SearchStrategy searchStrategy, AnnotationsProcessor processor, @Nullable BiPredicate> classFilter) {
        //如果没有层级，则返回查找直接注解结果
		if (isWithoutHierarchy(source, searchStrategy)) {
			return processElement(context, source, processor, classFilter);
		}
		Annotation[] relevant = null;
		int remaining = Integer.MAX_VALUE;
		int aggregateIndex = 0;
		Class root = source;
		while (source != null && source != Object.class && remaining > 0 &&
				!hasPlainJavaAnnotationsOnly(source)) {
			R result = processor.doWithAggregate(context, aggregateIndex);
			if (result != null) {
				return result;
			}
			if (isFiltered(source, context, classFilter)) {
				continue;
			}
			Annotation[] declaredAnnotations =
					getDeclaredAnnotations(context, source, classFilter, true);
			if (relevant == null && declaredAnnotations.length > 0) {
				relevant = root.getAnnotations();
				remaining = relevant.length;
			}
			for (int i = 0; i < declaredAnnotations.length; i++) {
				if (declaredAnnotations[i] != null) {
					boolean isRelevant = false;
					for (int relevantIndex = 0; relevantIndex < relevant.length; relevantIndex++) {
						if (relevant[relevantIndex] != null &&
								declaredAnnotations[i].annotationType() == relevant[relevantIndex].annotationType()) {
							isRelevant = true;
							relevant[relevantIndex] = null;
							remaining--;
							break;
						}
					}
					if (!isRelevant) {
						declaredAnnotations[i] = null;
					}
				}
			}
			result = processor.doWithAnnotations(context, aggregateIndex, source, declaredAnnotations);
			if (result != null) {
				return result;
			}
			source = source.getSuperclass();
			aggregateIndex++;
		}
		return null;
	}

	@Nullable
	private static  R processClassHierarchy(C context, Class source,
			AnnotationsProcessor processor, @Nullable BiPredicate> classFilter,
			boolean includeInterfaces, boolean includeEnclosing) {

		int[] aggregateIndex = new int[] {0};
		return processClassHierarchy(context, aggregateIndex, source, processor,
				classFilter, includeInterfaces, includeEnclosing);
	}

	@Nullable
	private static  R processClassHierarchy(C context, int[] aggregateIndex, Class source,
			AnnotationsProcessor processor, @Nullable BiPredicate> classFilter,
			boolean includeInterfaces, boolean includeEnclosing) {

		R result = processor.doWithAggregate(context, aggregateIndex[0]);
		if (result != null) {
			return result;
		}
		if (hasPlainJavaAnnotationsOnly(source)) {
			return null;
		}
		Annotation[] annotations = getDeclaredAnnotations(context, source, classFilter, false);
		result = processor.doWithAnnotations(context, aggregateIndex[0], source, annotations);
		if (result != null) {
			return result;
		}
		aggregateIndex[0]++;
		if (includeInterfaces) {
			for (Class interfaceType : source.getInterfaces()) {
				R interfacesResult = processClassHierarchy(context, aggregateIndex,
						interfaceType, processor, classFilter, true, includeEnclosing);
				if (interfacesResult != null) {
					return interfacesResult;
				}
			}
		}
		Class superclass = source.getSuperclass();
		if (superclass != Object.class && superclass != null) {
			R superclassResult = processClassHierarchy(context, aggregateIndex,
					superclass, processor, classFilter, includeInterfaces, includeEnclosing);
			if (superclassResult != null) {
				return superclassResult;
			}
		}
		Class enclosingClass = source.getEnclosingClass();
		if (includeEnclosing && enclosingClass != null) {
			R enclosingResult = processClassHierarchy(context, aggregateIndex,
					enclosingClass, processor, classFilter, includeInterfaces, true);
			if (enclosingResult != null) {
				return enclosingResult;
			}
		}
		return null;
	}

扫描source为Method方法

	@Nullable
    //根据查找策略扫描方法
	private static  R processMethod(C context, Method source,
			SearchStrategy searchStrategy, AnnotationsProcessor processor,
			@Nullable BiPredicate> classFilter) {

		switch (searchStrategy) {
			case DIRECT:
			case INHERITED_ANNOTATIONS:
				return processMethodInheritedAnnotations(context, source, processor, classFilter);
			case SUPERCLASS:
				return processMethodHierarchy(context, new int[] {0}, source.getDeclaringClass(),
						processor, classFilter, source, false);
			case TYPE_HIERARCHY:
			case TYPE_HIERARCHY_AND_ENCLOSING_CLASSES:
				return processMethodHierarchy(context, new int[] {0}, source.getDeclaringClass(),
						processor, classFilter, source, true);
		}
		throw new IllegalStateException("Unsupported search strategy " + searchStrategy);
	}

	@Nullable
	private static  R processMethodInheritedAnnotations(C context, Method source,
			AnnotationsProcessor processor, @Nullable BiPredicate> classFilter) {

		R result = processor.doWithAggregate(context, 0);
		return (result != null ? result :
				processMethodAnnotations(context, 0, source, processor, classFilter));
	}

	@Nullable
	private static  R processMethodHierarchy(C context, int[] aggregateIndex,
			Class sourceClass, AnnotationsProcessor processor,
			@Nullable BiPredicate> classFilter, Method rootMethod,
			boolean includeInterfaces) {

		R result = processor.doWithAggregate(context, aggregateIndex[0]);
		if (result != null) {
			return result;
		}
		if (hasPlainJavaAnnotationsOnly(sourceClass)) {
			return null;
		}
		boolean calledProcessor = false;
		if (sourceClass == rootMethod.getDeclaringClass()) {
			result = processMethodAnnotations(context, aggregateIndex[0],
					rootMethod, processor, classFilter);
			calledProcessor = true;
			if (result != null) {
				return result;
			}
		}
		else {
			for (Method candidateMethod : getBaseTypeMethods(context, sourceClass, classFilter)) {
				if (candidateMethod != null && isOverride(rootMethod, candidateMethod)) {
					result = processMethodAnnotations(context, aggregateIndex[0],
							candidateMethod, processor, classFilter);
					calledProcessor = true;
					if (result != null) {
						return result;
					}
				}
			}
		}
		if (Modifier.isPrivate(rootMethod.getModifiers())) {
			return null;
		}
		if (calledProcessor) {
			aggregateIndex[0]++;
		}
		if (includeInterfaces) {
			for (Class interfaceType : sourceClass.getInterfaces()) {
				R interfacesResult = processMethodHierarchy(context, aggregateIndex,
						interfaceType, processor, classFilter, rootMethod, true);
				if (interfacesResult != null) {
					return interfacesResult;
				}
			}
		}
		Class superclass = sourceClass.getSuperclass();
		if (superclass != Object.class && superclass != null) {
			R superclassResult = processMethodHierarchy(context, aggregateIndex,
					superclass, processor, classFilter, rootMethod, includeInterfaces);
			if (superclassResult != null) {
				return superclassResult;
			}
		}
		return null;
	}

辅助方法

   //获取基础类型方法
	private static  Method[] getBaseTypeMethods(
			C context, Class baseType, @Nullable BiPredicate> classFilter) {

		if (baseType == Object.class || hasPlainJavaAnnotationsOnly(baseType) ||
				isFiltered(baseType, context, classFilter)) {
			return NO_METHODS;
		}

		Method[] methods = baseTypeMethodsCache.get(baseType);
		if (methods == null) {
			boolean isInterface = baseType.isInterface();
			methods = isInterface ? baseType.getMethods() : ReflectionUtils.getDeclaredMethods(baseType);
			int cleared = 0;
			for (int i = 0; i < methods.length; i++) {
				if ((!isInterface && Modifier.isPrivate(methods[i].getModifiers())) ||
						hasPlainJavaAnnotationsOnly(methods[i]) ||
						getDeclaredAnnotations(methods[i], false).length == 0) {
					methods[i] = null;
					cleared++;
				}
			}
			if (cleared == methods.length) {
				methods = NO_METHODS;
			}
			baseTypeMethodsCache.put(baseType, methods);
		}
		return methods;
	}

    方法是否覆盖
	private static boolean isOverride(Method rootMethod, Method candidateMethod) {
		return (!Modifier.isPrivate(candidateMethod.getModifiers()) &&
				candidateMethod.getName().equals(rootMethod.getName()) &&
				hasSameParameterTypes(rootMethod, candidateMethod));
	}
    方法是否具有相同参数类型
	private static boolean hasSameParameterTypes(Method rootMethod, Method candidateMethod) {
		if (candidateMethod.getParameterCount() != rootMethod.getParameterCount()) {
			return false;
		}
		Class[] rootParameterTypes = rootMethod.getParameterTypes();
		Class[] candidateParameterTypes = candidateMethod.getParameterTypes();
		if (Arrays.equals(candidateParameterTypes, rootParameterTypes)) {
			return true;
		}
		return hasSameGenericTypeParameters(rootMethod, candidateMethod,
				rootParameterTypes);
	}

    方法是否具有相同泛型类型
	private static boolean hasSameGenericTypeParameters(
			Method rootMethod, Method candidateMethod, Class[] rootParameterTypes) {

		Class sourceDeclaringClass = rootMethod.getDeclaringClass();
		Class candidateDeclaringClass = candidateMethod.getDeclaringClass();
		if (!candidateDeclaringClass.isAssignableFrom(sourceDeclaringClass)) {
			return false;
		}
		for (int i = 0; i < rootParameterTypes.length; i++) {
			Class resolvedParameterType = ResolvableType.forMethodParameter(
					candidateMethod, i, sourceDeclaringClass).resolve();
			if (rootParameterTypes[i] != resolvedParameterType) {
				return false;
			}
		}
		return true;
	}

	@Nullable
	private static  R processMethodAnnotations(C context, int aggregateIndex, Method source,
			AnnotationsProcessor processor, @Nullable BiPredicate> classFilter) {

		Annotation[] annotations = getDeclaredAnnotations(context, source, classFilter, false);
		R result = processor.doWithAnnotations(context, aggregateIndex, source, annotations);
		if (result != null) {
			return result;
		}
		Method bridgedMethod = BridgeMethodResolver.findBridgedMethod(source);
		if (bridgedMethod != source) {
			Annotation[] bridgedAnnotations = getDeclaredAnnotations(context, bridgedMethod, classFilter, true);
			for (int i = 0; i < bridgedAnnotations.length; i++) {
				if (ObjectUtils.containsElement(annotations, bridgedAnnotations[i])) {
					bridgedAnnotations[i] = null;
				}
			}
			return processor.doWithAnnotations(context, aggregateIndex, source, bridgedAnnotations);
		}
		return null;
	}



	private static  Annotation[] getDeclaredAnnotations(C context,
			AnnotatedElement source, @Nullable BiPredicate> classFilter, boolean copy) {

		if (source instanceof Class && isFiltered((Class) source, context, classFilter)) {
			return NO_ANNOTATIONS;
		}
		if (source instanceof Method && isFiltered(((Method) source).getDeclaringClass(), context, classFilter)) {
			return NO_ANNOTATIONS;
		}
		return getDeclaredAnnotations(source, copy);
	}

	@SuppressWarnings("unchecked")
	@Nullable
	static  A getDeclaredAnnotation(AnnotatedElement source, Class annotationType) {
		Annotation[] annotations = getDeclaredAnnotations(source, false);
		for (Annotation annotation : annotations) {
			if (annotation != null && annotationType == annotation.annotationType()) {
				return (A) annotation;
			}
		}
		return null;
	}

	static Annotation[] getDeclaredAnnotations(AnnotatedElement source, boolean defensive) {
		boolean cached = false;
		Annotation[] annotations = declaredAnnotationCache.get(source);
		if (annotations != null) {
			cached = true;
		}
		else {
			annotations = source.getDeclaredAnnotations();
			if (annotations.length != 0) {
				boolean allIgnored = true;
				for (int i = 0; i < annotations.length; i++) {
					Annotation annotation = annotations[i];
					if (isIgnorable(annotation.annotationType()) ||
							!AttributeMethods.forAnnotationType(annotation.annotationType()).isValid(annotation)) {
						annotations[i] = null;
					}
					else {
						allIgnored = false;
					}
				}
				annotations = (allIgnored ? NO_ANNOTATIONS : annotations);
				if (source instanceof Class || source instanceof Member) {
					declaredAnnotationCache.put(source, annotations);
					cached = true;
				}
			}
		}
		if (!defensive || annotations.length == 0 || !cached) {
			return annotations;
		}
		return annotations.clone();
	}

	private static  boolean isFiltered(
			Class sourceClass, C context, @Nullable BiPredicate> classFilter) {

		return (classFilter != null && classFilter.test(context, sourceClass));
	}

	private static boolean isIgnorable(Class annotationType) {
		return AnnotationFilter.PLAIN.matches(annotationType);
	}

	static boolean isKnownEmpty(AnnotatedElement source, SearchStrategy searchStrategy) {
		if (hasPlainJavaAnnotationsOnly(source)) {
			return true;
		}
		if (searchStrategy == SearchStrategy.DIRECT || isWithoutHierarchy(source, searchStrategy)) {
			if (source instanceof Method && ((Method) source).isBridge()) {
				return false;
			}
			return getDeclaredAnnotations(source, false).length == 0;
		}
		return false;
	}

	static boolean hasPlainJavaAnnotationsOnly(@Nullable Object annotatedElement) {
		if (annotatedElement instanceof Class) {
			return hasPlainJavaAnnotationsOnly((Class) annotatedElement);
		}
		else if (annotatedElement instanceof Member) {
			return hasPlainJavaAnnotationsOnly(((Member) annotatedElement).getDeclaringClass());
		}
		else {
			return false;
		}
	}

	static boolean hasPlainJavaAnnotationsOnly(Class type) {
		return (type.getName().startsWith("java.") || type == Ordered.class);
	}

	private static boolean isWithoutHierarchy(AnnotatedElement source, SearchStrategy searchStrategy) {
		if (source == Object.class) {
			return true;
		}
		if (source instanceof Class) {
			Class sourceClass = (Class) source;
			boolean noSuperTypes = (sourceClass.getSuperclass() == Object.class &&
					sourceClass.getInterfaces().length == 0);
			return (searchStrategy == SearchStrategy.TYPE_HIERARCHY_AND_ENCLOSING_CLASSES ? noSuperTypes &&
					sourceClass.getEnclosingClass() == null : noSuperTypes);
		}
		if (source instanceof Method) {
			Method sourceMethod = (Method) source;
			return (Modifier.isPrivate(sourceMethod.getModifiers()) ||
					isWithoutHierarchy(sourceMethod.getDeclaringClass(), searchStrategy));
		}
		return true;
	}



MergedAnnotationSelector

提供在2个Annotation之间进行选择的策略。

public interface MergedAnnotationSelector {
    //是否最好的候选者
	default boolean isBestCandidate(MergedAnnotation annotation) {
		return false;
	}
    //选择
	MergedAnnotation select(MergedAnnotation existing, MergedAnnotation candidate);

}

默认有2个实现类：

• 选择最近策略
• 选择直接注解策略

MergedAnnotationSelectors.Nearest

选择距离较小。

	private static class Nearest implements MergedAnnotationSelector {

		@Override
		public boolean isBestCandidate(MergedAnnotation annotation) {
			return annotation.getDistance() == 0;
		}

		@Override
		public MergedAnnotation select(
				MergedAnnotation existing, MergedAnnotation candidate) {

			if (candidate.getDistance() < existing.getDistance()) {
				return candidate;
			}
			return existing;
		}

	}

MergedAnnotationSelectors.FirstDirectlyDeclared

选择第一个直接注解的。

	private static class FirstDirectlyDeclared implements MergedAnnotationSelector {

		@Override
		public boolean isBestCandidate(MergedAnnotation annotation) {
			return annotation.getDistance() == 0;
		}

		@Override
		public MergedAnnotation select(
				MergedAnnotation existing, MergedAnnotation candidate) {

			if (existing.getDistance() > 0 && candidate.getDistance() == 0) {
				return candidate;
			}
			return existing;
		}

	}

AnnotationTypeMapping

提供一个注解在root注解上下文之间的映射信息。AnnotationTypeMapping的实例是由AnnotationTypeMappings创建的，创建的过程是根据注解的注释体系从下往上进行的，上层实例的source指向下层实例，所有实例的root指向最下层的实例。

AnnotationTypeMapping.MirrorSets

MirrorSets是AnnotationTypeMapping一个内部类，是MirrorSet实例的容器。MirrorSet用于记录本注解里属性最终解析为同一个属性方法的属性信息集合，如果没有为同一个属性的别名，则不会产生MirrorSet实例，解析为同一个属性方法的一组镜像产生一个MirrorSet实例。

MirrorSet

 class MirrorSet {
            //此MirrorSet被引用了多少次。
			private int size;
            /** 表示MirrorSet每次被引用的属性的序号。
            注解镜像属性方法索引数组，size为属性方法数量。数组下标代表找到的第n-1个镜像方法，值为镜像方法的索引。
            例如方法3或者4互相镜像，则0:3,1:4，后续元素值都为-1.
            */
			private final int[] indexes = new int[attributes.size()];

            //更新状态，根据MirrorSets.assigned
			void update() {
				this.size = 0;
				Arrays.fill(this.indexes, -1);
				for (int i = 0; i < MirrorSets.this.assigned.length; i++) {
					if (MirrorSets.this.assigned[i] == this) {
						this.indexes[this.size] = i;
						this.size++;
					}
				}
			}
            //返回第一个不是默认值的方法的索引。
             int resolve(@Nullable Object source, @Nullable A annotation,
					BiFunction valueExtractor) {

				int result = -1;
				Object lastValue = null;
				for (int i = 0; i < this.size; i++) {
					Method attribute = attributes.get(this.indexes[i]);
                    //获取到属性的值。
					Object value = valueExtractor.apply(attribute, annotation);

					boolean isDefaultValue = (value == null ||
							isEquivalentToDefaultValue(attribute, value, valueExtractor));
                    //如果属性值不是默认值，并且与上一个值不相等，则继续判断。
					if (isDefaultValue || ObjectUtils.nullSafeEquals(lastValue, value)) {
						continue;
					}
                    //上一个值不为null 并且 与上一个值不相等，则抛出异常。
					if (lastValue != null &&
							!ObjectUtils.nullSafeEquals(lastValue, value)) {
						String on = (source != null) ? " declared on " + source : "";
						throw new AnnotationConfigurationException(String.format(
								"Different @AliasFor mirror values for annotation [%s]%s; attribute '%s' " +
								"and its alias '%s' are declared with values of [%s] and [%s].",
								getAnnotationType().getName(), on,
								attributes.get(result).getName(),
								attribute.getName(),
								ObjectUtils.nullSafeToString(lastValue),
								ObjectUtils.nullSafeToString(value)));
					}
                    //更新result，并更新lastValue。
					result = this.indexes[i];
					lastValue = value;
				}
				return result;
			}

        }



MirrorSets

class MirrorSets {

    private MirrorSet[] mirrorSets;
    //每个属性方法引用的MirrorSet的index。未引用MirrorSet设置为-1.
    private final MirrorSet[] assigned;

    MirrorSets() {
        //size为属性方法数量
        this.assigned = new MirrorSet[attributes.size()];
        this.mirrorSets = EMPTY_MIRROR_SETS;
    }

    /**
    * 对每个mapping，此方法会调用很多次。解析的最终属性是同一个属性方法的，作为一个镜像组。
    * aliases: 每个属性方法的所有层级的别名。
    */
    void updateFrom(Collection aliases) {
        MirrorSet mirrorSet = null;
        //是别名的属性的个数
        int size = 0;
        //上一个别名属性的下标
        int last = -1;
        for (int i = 0; i < attributes.size(); i++) {
            Method attribute = attributes.get(i);
            //本注解定义的属性是其他属性的别名
            if (aliases.contains(attribute)) {
                size++;
                if (size > 1) {
                    if (mirrorSet == null) {
                        mirrorSet = new MirrorSet();
                        this.assigned[last] = mirrorSet;
                    }
                    this.assigned[i] = mirrorSet;
                }
                last = i;
            }
        }
        if (mirrorSet != null) {
            mirrorSet.update();
            Set unique = new LinkedHashSet<>(Arrays.asList(this.assigned));
            unique.remove(null);
            this.mirrorSets = unique.toArray(EMPTY_MIRROR_SETS);
        }
    }

    int size() {
        return this.mirrorSets.length;
    }

    MirrorSet get(int index) {
        return this.mirrorSets[index];
    }

    @Nullable
    MirrorSet getAssigned(int attributeIndex) {
        return this.assigned[attributeIndex];
    }

    /**
    * 返回本mapping每个属性最终取值的属性方法的序号 数组。
    * source:注解
    * annotation：注解实例
    * valueExtractor：
    * @return
    */
    int[] resolve(@Nullable Object source, @Nullable Object annotation,
            BiFunction valueExtractor) {

        int[] result = new int[attributes.size()];
        for (int i = 0; i < result.length; i++) {
            result[i] = i;
        }
        for (int i = 0; i < size(); i++) {
            MirrorSet mirrorSet = get(i);
            //返回mirrorSet中第一个不是默认值的属性的序号。
            int resolved = mirrorSet.resolve(source, annotation, valueExtractor);
            //设置属性方法的最终取值的属性方法的序号。
            for (int j = 0; j < mirrorSet.size; j++) {
                result[mirrorSet.indexes[j]] = resolved;
            }
        }
        return result;
    }


}



属性

final class AnnotationTypeMapping {

	private static final MirrorSet[] EMPTY_MIRROR_SETS = new MirrorSet[0];

    /**
    *假设此AnnotationTypeMapping实例为 MA, 映射的为@A_A  注解。
    */
	@Nullable
    //引起此注解被解析的注解。例如：@A_A注解了@A_ROOT,则此属性指向了映射 @A_ROOT的AnnotationTypeMapping实例
	private final AnnotationTypeMapping source;
    //引起注解被解析的根注解。例如：@A_ROOT是解析的源头，
	private final AnnotationTypeMapping root;
    //离root的距离。@A_A距离@A_ROOT 为1。
	private final int distance;
    //此mapping对应的注解类型，此处为A_A
	private final Class annotationType;
    //涉及到的注解类型列表。包括source的metaTypes 加上 annotationType
	private final List> metaTypes;

	@Nullable
   //注解类型实例。
	private final Annotation annotation;
    //注解的属性方法列表包装类。
	private final AttributeMethods attributes;
/**
*MirrorSet集合
*本注解里声明的属性，最终为同一个属性的 别名 的属性集合为一个MirrorSet
*/
	private final MirrorSets mirrorSets;
//每个属性在root中对应的同名的属性方法的索引。与conventionMappings 的区别是，它是同名的属性，不考虑别名。
	private final int[] aliasMappings;
/**方便访问属性 的映射消息，如果在root中有别名，则优先获取，
*/
	private final int[] conventionMappings;
//与annotationValueSource是相匹配的，定义每个属性最终从哪个注解的哪个属性获取值。
	private final int[] annotationValueMappings;

	private final AnnotationTypeMapping[] annotationValueSource;

   //存储每个属性的所有别名属性方法（仅限于本注解定义中的属性方法），
// Key：AliasFor里定义的属性方法，value为本注解内声明的属性方法。resolveAliasedForTargets方法中解析
	private final Map> aliasedBy;
//本注解声明的所有属性方法的所有别名集合。最后用于注解定义检查然后会清空
	private final Set claimedAliases = new HashSet<>();
}

构造过程

	AnnotationTypeMapping(@Nullable AnnotationTypeMapping source,
			Class annotationType, @Nullable Annotation annotation) {

		this.source = source;
		this.root = (source != null ? source.getRoot() : this);
		this.distance = (source == null ? 0 : source.getDistance() + 1);
		this.annotationType = annotationType;
		this.metaTypes = merge(
				source != null ? source.getMetaTypes() : null,
				annotationType);
		this.annotation = annotation;
		this.attributes = AttributeMethods.forAnnotationType(annotationType);
		this.mirrorSets = new MirrorSets();
		this.aliasMappings = filledIntArray(this.attributes.size());
		this.conventionMappings = filledIntArray(this.attributes.size());
		this.annotationValueMappings = filledIntArray(this.attributes.size());
		this.annotationValueSource = new AnnotationTypeMapping[this.attributes.size()];
        //返回每个属性方法的所有别名（本注解声明的属性方法）。
		this.aliasedBy = resolveAliasedForTargets();
		processAliases();
		addConventionMappings();
		addConventionAnnotationValues();
	}

生成别名信息（直接AliasFor）

    //返回每个属性方法的所有别名（本注解声明的属性方法）。
    //Key：AliasFor里定义的属性方法，value为本注解内声明的属性方法。
    private Map> resolveAliasedForTargets() {
		Map> aliasedBy = new HashMap<>();
		for (int i = 0; i < this.attributes.size(); i++) {
            //声明的属性方法（作为value集合元素）。
			Method attribute = this.attributes.get(i);

			AliasFor aliasFor = AnnotationsScanner.getDeclaredAnnotation(attribute, AliasFor.class);
			if (aliasFor != null) {
                //最终解析的属性方法（作为key）。
				Method target = resolveAliasTarget(attribute, aliasFor);
				aliasedBy.computeIfAbsent(target, key -> new ArrayList<>()).add(attribute);
			}
		}
		return Collections.unmodifiableMap(aliasedBy);
	}



    //解析属性方法AliasFor的Method。
	private Method resolveAliasTarget(Method attribute, AliasFor aliasFor, boolean checkAliasPair) {
		if (StringUtils.hasText(aliasFor.value()) && StringUtils.hasText(aliasFor.attribute())) {
			throw new AnnotationConfigurationException(String.format(
					"In @AliasFor declared on %s, attribute 'attribute' and its alias 'value' " +
					"are present with values of '%s' and '%s', but only one is permitted.",
					AttributeMethods.describe(attribute), aliasFor.attribute(),
					aliasFor.value()));
		}
        aliased注解。
		Class targetAnnotation = aliasFor.annotation();
        //如果没有设置annotation属性，则表示是在本注解定义内。
		if (targetAnnotation == Annotation.class) {
			targetAnnotation = this.annotationType;
		}
        // aliased注解的属性。通过AliasFor的attribute或者value属性获取，
		String targetAttributeName = aliasFor.attribute();
		if (!StringUtils.hasLength(targetAttributeName)) {
			targetAttributeName = aliasFor.value();
		}
        //如果attribute或者value都没有值，则获取aliased注解的属性方法名称。
		if (!StringUtils.hasLength(targetAttributeName)) {
			targetAttributeName = attribute.getName();
		}
        //获取最终的aliased注解的属性方法。
		Method target = AttributeMethods.forAnnotationType(targetAnnotation).get(targetAttributeName);

        ...........  此处省略校验逻辑
		return target;
	}

全层级处理别名信息


    //处理别名，生成MirrorSets，
	private void processAliases() {
		List aliases = new ArrayList<>();
		for (int i = 0; i < this.attributes.size(); i++) {
			aliases.clear();
            //本属性方法的所有别名先加入。
			aliases.add(this.attributes.get(i));
            //再递归收集别名的别名，.......
			collectAliases(aliases);
			if (aliases.size() > 1) {
				processAliases(i, aliases);
			}
		}
	}

    //递归AnnotationTypeMapping链，收集别名（最终解析到此属性方法的所有别名）。
	private void collectAliases(List aliases) {
		AnnotationTypeMapping mapping = this;
		while (mapping != null) {
			int size = aliases.size();
			for (int j = 0; j < size; j++) {
				List additional = mapping.aliasedBy.get(aliases.get(j));
				if (additional != null) {
					aliases.addAll(additional);
				}
			}
			mapping = mapping.source;
		}
	}


    /**
    * 对每个属性方法，处理它的别名。
    * aliases:每个属性方法的所有层级的别名。
    */
	private void processAliases(int attributeIndex, List aliases) {
        //获取root声明的第一个别名属性的index。-1表示root不存在此属性方法的别名。
		int rootAttributeIndex = getFirstRootAttributeIndex(aliases);
		AnnotationTypeMapping mapping = this;
		while (mapping != null) {
            //在root中有别名，并且此mapping不是root
			if (rootAttributeIndex != -1 && mapping != this.root) {
				for (int i = 0; i < mapping.attributes.size(); i++) {
                    //如果别名中有此属性，则对应的属性index值为root的属性的index。
					if (aliases.contains(mapping.attributes.get(i))) {
						mapping.aliasMappings[i] = rootAttributeIndex;
					}
				}
			}
            //更新mapping的mirrorSets。
			mapping.mirrorSets.updateFrom(aliases);
            //mapping声明的属性方法的别名集合。
			mapping.claimedAliases.addAll(aliases);
			if (mapping.annotation != null) {
                //返回本mapping每个属性最终取值的属性方法的序号 数组。
				int[] resolvedMirrors = mapping.mirrorSets.resolve(null,
						mapping.annotation, ReflectionUtils::invokeMethod);
				for (int i = 0; i < mapping.attributes.size(); i++) {
                    //本属性方法是别名，则设置注解值的最终来源（mppaing和属性序号）
					if (aliases.contains(mapping.attributes.get(i))) {
						this.annotationValueMappings[attributeIndex] = resolvedMirrors[i];
						this.annotationValueSource[attributeIndex] = mapping;
					}
				}
			}
			mapping = mapping.source;
		}
	}



生成方便访问属性的信息

    //生成从root访问属性的方便属性方法信息
	private void addConventionMappings() {
		if (this.distance == 0) {
			return;
		}
		AttributeMethods rootAttributes = this.root.getAttributes();
        //此时，元素值全为-1.
		int[] mappings = this.conventionMappings;
		for (int i = 0; i < mappings.length; i++) {
			String name = this.attributes.get(i).getName();
			MirrorSet mirrors = getMirrorSets().getAssigned(i);
            //root中是否存在同名的属性
			int mapped = rootAttributes.indexOf(name);
            //root中存在同名的属性，并且属性名不为value
			if (!MergedAnnotation.VALUE.equals(name) && mapped != -1) {
                //存储root中的属性方法index。
				mappings[i] = mapped;
				if (mirrors != null) {
					for (int j = 0; j < mirrors.size(); j++) {
                        //同一属性的所有别名，设置成一样的root 属性index。
						mappings[mirrors.getAttributeIndex(j)] = mapped;
					}
				}
			}
		}
	}

    //是更好的注解值获取属性方法（Value属性优先，distance较小的优先）
	private boolean isBetterConventionAnnotationValue(int index, boolean isValueAttribute,
			AnnotationTypeMapping mapping) {
        //原来没有获取值的属性方法。
		if (this.annotationValueMappings[index] == -1) {
			return true;
		}
		int existingDistance = this.annotationValueSource[index].distance;

		return !isValueAttribute && existingDistance > mapping.distance;
	}

    //更新各级AnnotationTypeMapping的annotationValueMappings和annotationValueSource
	private void addConventionAnnotationValues() {
		for (int i = 0; i < this.attributes.size(); i++) {
			Method attribute = this.attributes.get(i);
			boolean isValueAttribute = MergedAnnotation.VALUE.equals(attribute.getName());
			AnnotationTypeMapping mapping = this;
            //在向root端（mapping.distance 比自己下的）遍历。
			while (mapping != null && mapping.distance > 0) {
				int mapped = mapping.getAttributes().indexOf(attribute.getName());
                //有同名属性
				if (mapped != -1  && isBetterConventionAnnotationValue(i, isValueAttribute, mapping)) {
					this.annotationValueMappings[i] = mapped;
					this.annotationValueSource[i] = mapping;
				}
				mapping = mapping.source;
			}
		}
	}



AnnotationTypeMappings





AnnotationTypeMapping帮助理解示例

注解定义

@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.TYPE})
@interface  A_C
{
    @AliasFor(value = "c2")
    String c1() default "A_C_1";

    @AliasFor(value = "c1")
    String c2() default "A_C_1";

    String c3() default "A_C_3";

    @AliasFor(value = "c5")
    String c4() default "A_C_4";
    @AliasFor(value = "c4")
    String c5() default "A_C_4";

    String c6() default "A_C_6";


}

@A_C
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.TYPE})
@interface  A_B
{
    @AliasFor(value = "c2",annotation =  A_C.class)
    String b1() default "A_B_1_2";
    @AliasFor(value = "c2",annotation =  A_C.class)
    String b2() default "A_B_1_2";
    @AliasFor(value = "c2",annotation =  A_C.class)
    String b3() default "A_B_1_2";

    String b4() default "A_B_4";


}



@A_B
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.TYPE})
@interface  A_A
{
    @AliasFor(value = "c1",annotation =  A_C.class)
    String a1() default "A_A_1";

    String a2() default "A_A_2";





}



@A_A
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.TYPE})
@interface  A_ROOT
{

}


@A_ROOT
public class AnnotationUtilTest {
    public static void main(String[] args) {
        AnnotationAttributes a =AnnotatedElementUtils.findMergedAnnotationAttributes(AnnotationUtilTest.class,A_A.class,false,true);
        AnnotationAttributes b =AnnotatedElementUtils.findMergedAnnotationAttributes(AnnotationUtilTest.class,A_B.class,false,true);
        AnnotationAttributes c =AnnotatedElementUtils.findMergedAnnotationAttributes(AnnotationUtilTest.class,A_C.class,false,true);
        AnnotationAttributes root =AnnotatedElementUtils.findMergedAnnotationAttributes(AnnotationUtilTest.class,A_ROOT.class,false,true);
        System.out.println("x");
    }
}

注解使用

@A_ROOT
public class AnnotationUtilTest {
    public static void main(String[] args) {
        AnnotationAttributes a =AnnotatedElementUtils.findMergedAnnotationAttributes(AnnotationUtilTest.class,A_A.class,false,true);
        AnnotationAttributes b =AnnotatedElementUtils.findMergedAnnotationAttributes(AnnotationUtilTest.class,A_B.class,false,true);
        AnnotationAttributes c =AnnotatedElementUtils.findMergedAnnotationAttributes(AnnotationUtilTest.class,A_C.class,false,true);
        AnnotationAttributes root =AnnotatedElementUtils.findMergedAnnotationAttributes(AnnotationUtilTest.class,A_ROOT.class,false,true);
        System.out.println("x");
    }
}

返回的AnnotationTypeMappings实例属性

 获取到AnnotationTypeMappings后，循环处理与requiredType相关的AnnotationTypeMapping ，获取到MergedAnnotation，选择一个最合适的MergedAnnotation

			AnnotationTypeMappings mappings = AnnotationTypeMappings.forAnnotationType(
					annotation.annotationType(), annotationFilter);
			for (int i = 0; i < mappings.size(); i++) {
				AnnotationTypeMapping mapping = mappings.get(i);
				if (isMappingForType(mapping, annotationFilter, this.requiredType)) {
					MergedAnnotation candidate = TypeMappedAnnotation.createIfPossible(
							mapping, source, annotation, aggregateIndex, IntrospectionFailureLogger.INFO);
					if (candidate != null && (this.predicate == null || this.predicate.test(candidate))) {
						if (this.selector.isBestCandidate(candidate)) {
							return candidate;
						}
						updateLastResult(candidate);
					}
				}
			}

	private static boolean isMappingForType(AnnotationTypeMapping mapping,
			AnnotationFilter annotationFilter, @Nullable Object requiredType) {

		Class actualType = mapping.getAnnotationType();
//未过滤掉并且（requiredType 为空 或者是同一个类型，或者名称相同）
		return (!annotationFilter.matches(actualType) &&
				(requiredType == null || actualType == requiredType || actualType.getName().equals(requiredType)));
	}
