SSM整合

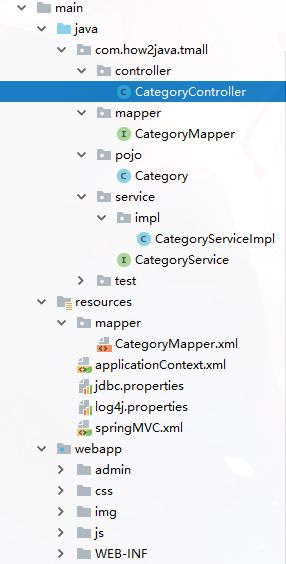

1. 目录结构
   目录结构
   2.代码
   controller

package com.how2java.tmall.controller;
import com.how2java.tmall.pojo.Category;
import com.how2java.tmall.service.CategoryService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import java.util.List;
@Controller
@RequestMapping("")
public class CategoryController {
    @Autowired
    CategoryService categoryService;
    @RequestMapping("admin_category_list")
    public String list(Model model){
        List cs= categoryService.list();
        model.addAttribute("cs", cs);
        return "admin/listCategory";
    }
}

mapper

package com.how2java.tmall.mapper;
import com.how2java.tmall.pojo.Category;
import java.util.List;
public interface CategoryMapper {
    List list();
}

service

package com.how2java.tmall.service;
import com.how2java.tmall.pojo.Category;
import java.util.List;
public interface CategoryService{
    List list();
}

serviceImpl

package com.how2java.tmall.service.impl;
import com.how2java.tmall.mapper.CategoryMapper;
import com.how2java.tmall.pojo.Category;
import com.how2java.tmall.service.CategoryService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.List;
@Service
public class CategoryServiceImpl  implements CategoryService {
    @Autowired
    CategoryMapper categoryMapper;
    public List list(){
        return categoryMapper.list();
    };
}

pojo

package
com.how2java.tmall.pojo;
public class
Category {
    private Integer id;
    private String name;
    public Integer getId() {
        return id;
    }
    public void setId(Integer id) {
        this.id = id;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name == null ? null : name.trim();
    }
}

resources
mapper
categoryMapper.xml

        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.how2java.tmall.mapper.CategoryMapper">
  <select id="list" resultType="Category">
    select * from   category order by id desc
  select>
mapper>

applicationContext.xml

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd
     http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">
    <context:annotation-config />
    <context:component-scan base-package="com.how2java.tmall.service" />

    <context:property-placeholder location="classpath:jdbc.properties"/>

    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">

        <property name="url" value="${jdbc.url}" />
        <property name="username" value="${jdbc.username}" />
        <property name="password" value="${jdbc.password}" />

        <property name="initialSize" value="1" />
        <property name="minIdle" value="1" />
        <property name="maxActive" value="20" />

        <property name="maxWait" value="60000" />

        <property name="timeBetweenEvictionRunsMillis" value="60000" />

        <property name="minEvictableIdleTimeMillis" value="300000" />
        <property name="validationQuery" value="SELECT 1" />
        <property name="testWhileIdle" value="true" />
        <property name="testOnBorrow" value="false" />
        <property name="testOnReturn" value="false" />

        <property name="poolPreparedStatements" value="true" />
        <property name="maxPoolPreparedStatementPerConnectionSize"
                  value="20" />
    bean>

    <bean id="sqlSession" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="typeAliasesPackage" value="com.how2java.tmall.pojo" />
        <property name="dataSource" ref="dataSource"/>
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>

    bean>

    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.how2java.tmall.mapper"/>
    bean>
beans>

springMVC.xml

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd">

    <context:annotation-config/>
    <context:component-scan base-package="com.how2java.tmall.controller">
        <context:include-filter type="annotation"
                                expression="org.springframework.stereotype.Controller"/>
    context:component-scan>
    <mvc:annotation-driven />

    <mvc:default-servlet-handler />

    <bean
            class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass"
                  value="org.springframework.web.servlet.view.JstlView" />
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp" />
    bean>

    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver"/>
beans>

jdbc.properties

# 数据库配置文件
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/tmall_ssm?useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=admin
log4j.properties
# Global logging configuration
log4j.rootLogger=ERROR, stdout
# MyBatis logging configuration...
log4j.logger.com.how2java.tmall=TRACE
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

webapp
WEB-INF
静态资源文件
web.xml

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
         version="2.5">

  <context-param>
    <param-name>contextConfigLocationparam-name>
    <param-value>classpath:applicationContext.xmlparam-value>
  context-param>
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListenerlistener-class>
  listener>

  <filter>
    <filter-name>CharacterEncodingFilterfilter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilterfilter-class>
    <init-param>
      <param-name>encodingparam-name>
      <param-value>utf-8param-value>
    init-param>
  filter>
  <filter-mapping>
    <filter-name>CharacterEncodingFilterfilter-name>
    <url-pattern>/*url-pattern>
  filter-mapping>

  <servlet>
    <servlet-name>mvc-dispatcherservlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServletservlet-class>

    <init-param>
      <param-name>contextConfigLocationparam-name>
      <param-value>classpath:springMVC.xmlparam-value>
    init-param>
    <load-on-startup>1load-on-startup>
  servlet>
  <servlet-mapping>
    <servlet-name>mvc-dispatcherservlet-name>
    <url-pattern>/url-pattern>
  servlet-mapping>
web-app>

jsp

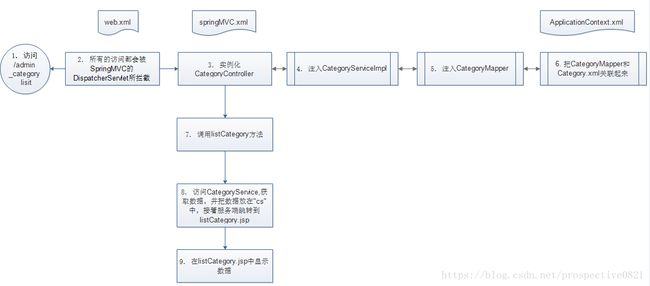

3.流程

流程
