BottomNavigationView+Fragment实现底部导航栏

AndroidStudio3.5   Android X   Android Q

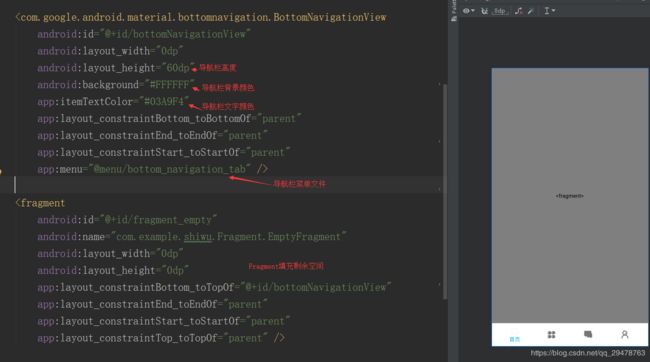

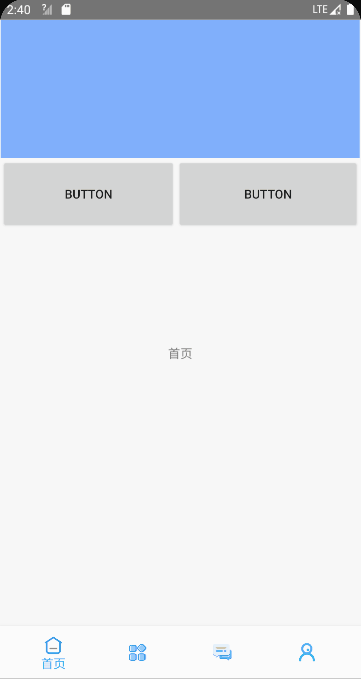

               首先上效果图                                1.可视化界面添加 BottomNavigationView控件





2.1MainActivity的xml文件具体代码

2.2 导航栏菜单Menu文件

Menu

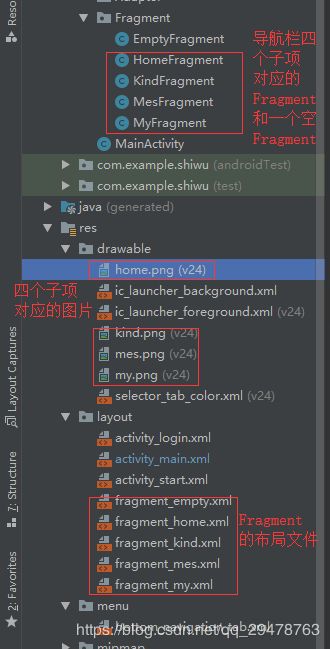

3.创建四个待添加的Fragment和一个布局为空的Fragment做为初始Fragment,并且为BottomNavigationView的四个子菜单添加点击切换Fragment的方法

package com.example.shiwu;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.fragment.app.Fragment;
import androidx.fragment.app.FragmentManager;
import androidx.fragment.app.FragmentTransaction;

import android.os.Bundle;
import android.util.Log;
import android.view.MenuItem;
import android.widget.Toast;

import com.example.shiwu.Fragment.EmptyFragment;
import com.example.shiwu.Fragment.HomeFragment;
import com.example.shiwu.Fragment.KindFragment;
import com.example.shiwu.Fragment.MesFragment;
import com.example.shiwu.Fragment.MyFragment;
import com.google.android.material.bottomnavigation.BottomNavigationMenu;
import com.google.android.material.bottomnavigation.BottomNavigationView;

import java.util.Random;

public class MainActivity extends AppCompatActivity implements BottomNavigationView.OnNavigationItemSelectedListener {
    private BottomNavigationView bottomNavigationView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initView();
        replaceFragment(new HomeFragment()); //启动时用HomeFragment替换掉空Fragment
    }

    public void initView() {
        bottomNavigationView = findViewById(R.id.bottomNavigationView);
        bottomNavigationView.setOnNavigationItemSelectedListener(this);//设置导航栏监听器
        bottomNavigationView.setSelectedItemId(R.id.tab_one);//设置默认选择的导航栏子项tab_one即首页
        bottomNavigationView.setItemIconTintList(null);//取消导航栏子项图片的颜色覆盖
    }

    @Override
    //处理导航栏子项的点击事件
    public boolean onNavigationItemSelected(@NonNull MenuItem menuItem) {
        int itemId = menuItem.getItemId();//获取点击的位置以及对应的id
        switch (itemId) {
            case R.id.tab_one:
                replaceFragment(new HomeFragment());//id为tab_one则第一项被点击，遂用HomeFragment替换空Fragment
                menuItem.setChecked(true);
                break;
            case R.id.tab_two:
                replaceFragment(new KindFragment());
                menuItem.setChecked(true);
                break;
            case R.id.tab_three:
                replaceFragment(new MesFragment());
                menuItem.setChecked(true);
                break;
            case R.id.tab_four:
                replaceFragment(new MyFragment());
                menuItem.setChecked(true);
                break;
        }
        return false;
    }

//替换Fragment的方法
    public void replaceFragment(Fragment fragment) {
        FragmentManager fragmentManager = getSupportFragmentManager();
        FragmentTransaction transaction = fragmentManager.beginTransaction();
        transaction.replace(R.id.fragment_empty, fragment);
        transaction.commit();
    }
}

github地址：https://github.com/yukaida/shiwu/tree/BottomNavigationView
