SpringCloud 2.x学习笔记：22、使用Sentinel实现接口限流
参考
http://blog.didispace.com/spring-cloud-alibaba-sentinel-1/
部署Sentinel Dashboard
https://github.com/alibaba/Sentinel/releases
下载jar包，并上传至服务器
[root@elastic1 app]# ll
total 20548
drwxr-xr-x 9 root root 4096 Jun 28 16:34 nacos
-rw-rw-r-- 1 elastic elastic 21035126 Jun 28 19:17 sentinel-dashboard-1.6.2.jar
[root@elastic1 app]#
启动Sentinel Dashboard，默认是8080端口，这里指定8084端口
[root@elastic1 ~]# java -jar /app/sentinel-dashboard-1.6.2.jar --server.port=8084
或者
[root@elastic1 app]# java -jar sentinel-dashboard-1.6.2.jar --server.port=8084
INFO: log base dir is: /root/logs/csp/
INFO: log name use pid is: false
. ____ _ __ _ _
/\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
\\/ ___)| |_)| | | | | || (_| | ) ) ) )
' |____| .__|_| |_|_| |_\__, | / / / /
=========|_|==============|___/=/_/_/_/
:: Spring Boot :: (v2.0.5.RELEASE)
2019-06-28 19:28:18.372 INFO 26515 --- [ main] c.a.c.s.dashboard.DashboardApplication : Starting DashboardApplication on elastic1 with PID 26515 (/app/sentinel-dashboard-1.6.2.jar started by root in /app)
2019-06-28 19:28:18.378 INFO 26515 --- [ main] c.a.c.s.dashboard.DashboardApplication : No active profile set, falling back to default profiles: default
2019-06-28 19:28:18.468 INFO 26515 --- [ main] ConfigServletWebServerApplicationContext : Refreshing org.springframework.boot.web.servlet.context.AnnotationConfigServletWebServerApplicationContext@1761e840: startup date [Fri Jun 28 19:28:18 CST 2019]; root of context hierarchy
2019-06-28 19:28:20.639 INFO 26515 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat initialized with port(s): 8084 (http)
2019-06-28 19:28:20.683 INFO 26515 --- [ main] o.apache.catalina.core.StandardService : Starting service [Tomcat]
2019-06-28 19:28:20.683 INFO 26515 --- [ main] org.apache.catalina.core.StandardEngine : Starting Servlet Engine: Apache Tomcat/8.5.34
2019-06-28 19:28:20.700 INFO 26515 --- [ost-startStop-1] o.a.catalina.core.AprLifecycleListener : The APR based Apache Tomcat Native library which allows optimal performance in production environments was not found on the java.library.path: [/usr/java/packages/lib/amd64:/usr/lib64:/lib64:/lib:/usr/lib]
2019-06-28 19:28:20.813 INFO 26515 --- [ost-startStop-1] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext
2019-06-28 19:28:20.814 INFO 26515 --- [ost-startStop-1] o.s.web.context.ContextLoader : Root WebApplicationContext: initialization completed in 2346 ms
2019-06-28 19:28:20.925 INFO 26515 --- [ost-startStop-1] c.a.c.s.dashboard.config.WebConfig : Sentinel servlet CommonFilter registered
2019-06-28 19:28:21.047 INFO 26515 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean : Mapping filter: 'characterEncodingFilter' to: [/*]
2019-06-28 19:28:21.048 INFO 26515 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean : Mapping filter: 'hiddenHttpMethodFilter' to: [/*]
2019-06-28 19:28:21.048 INFO 26515 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean : Mapping filter: 'httpPutFormContentFilter' to: [/*]
2019-06-28 19:28:21.049 INFO 26515 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean : Mapping filter: 'requestContextFilter' to: [/*]
2019-06-28 19:28:21.049 INFO 26515 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean : Mapping filter: 'authenticationFilter' to urls: [/*]
2019-06-28 19:28:21.049 INFO 26515 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean : Mapping filter: 'sentinelFilter' to urls: [/*]
2019-06-28 19:28:21.049 INFO 26515 --- [ost-startStop-1] o.s.b.w.servlet.ServletRegistrationBean : Servlet dispatcherServlet mapped to [/]
2019-06-28 19:28:22.107 INFO 26515 --- [ main] o.s.w.s.handler.SimpleUrlHandlerMapping : Mapped URL path [/**/favicon.ico] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
2019-06-28 19:28:22.380 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerAdapter : Looking for @ControllerAdvice: org.springframework.boot.web.servlet.context.AnnotationConfigServletWebServerApplicationContext@1761e840: startup date [Fri Jun 28 19:28:18 CST 2019]; root of context hierarchy
2019-06-28 19:28:22.505 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/app/briefinfos.json],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.AppController.queryAppInfos(javax.servlet.http.HttpServletRequest)
2019-06-28 19:28:22.507 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/app/{app}/machines.json],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.AppController.getMachinesByApp(java.lang.String)
2019-06-28 19:28:22.507 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/app/{app}/machine/remove.json]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.AppController.removeMachineById(java.lang.String,java.lang.String,int)
2019-06-28 19:28:22.508 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/app/names.json],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.AppController.queryApps(javax.servlet.http.HttpServletRequest)
2019-06-28 19:28:22.511 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/demo/loop],produces=[application/json]}" onto public java.lang.String com.alibaba.csp.sentinel.dashboard.controller.DemoController.loop(java.lang.String,int) throws com.alibaba.csp.sentinel.slots.block.BlockException
2019-06-28 19:28:22.511 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/demo/link],produces=[application/json]}" onto public java.lang.String com.alibaba.csp.sentinel.dashboard.controller.DemoController.link() throws com.alibaba.csp.sentinel.slots.block.BlockException
2019-06-28 19:28:22.512 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/demo/greeting],produces=[application/json]}" onto public java.lang.String com.alibaba.csp.sentinel.dashboard.controller.DemoController.greeting()
2019-06-28 19:28:22.512 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/demo/slow],produces=[application/json]}" onto public java.lang.String com.alibaba.csp.sentinel.dashboard.controller.DemoController.slow(java.lang.String,int) throws com.alibaba.csp.sentinel.slots.block.BlockException
2019-06-28 19:28:22.517 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/degrade/rules.json],produces=[application/json]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.DegradeController.queryMachineRules(javax.servlet.http.HttpServletRequest,java.lang.String,java.lang.String,java.lang.Integer)
2019-06-28 19:28:22.517 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/degrade/save.json],produces=[application/json]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.DegradeController.updateIfNotNull(javax.servlet.http.HttpServletRequest,java.lang.Long,java.lang.String,java.lang.String,java.lang.String,java.lang.Double,java.lang.Integer,java.lang.Integer)
2019-06-28 19:28:22.518 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/degrade/new.json],produces=[application/json]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.DegradeController.add(javax.servlet.http.HttpServletRequest,java.lang.String,java.lang.String,java.lang.Integer,java.lang.String,java.lang.String,java.lang.Double,java.lang.Integer,java.lang.Integer)
2019-06-28 19:28:22.518 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/degrade/delete.json],produces=[application/json]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.DegradeController.delete(javax.servlet.http.HttpServletRequest,java.lang.Long)
2019-06-28 19:28:22.527 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/v2/flow/rules],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.v2.FlowControllerV2.apiQueryMachineRules(javax.servlet.http.HttpServletRequest,java.lang.String)
2019-06-28 19:28:22.528 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/v2/flow/rule],methods=[POST]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.v2.FlowControllerV2.apiAddFlowRule(javax.servlet.http.HttpServletRequest,com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity)
2019-06-28 19:28:22.528 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/v2/flow/rule/{id}],methods=[PUT]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.v2.FlowControllerV2.apiUpdateFlowRule(javax.servlet.http.HttpServletRequest,java.lang.Long,com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity)
2019-06-28 19:28:22.529 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/v2/flow/rule/{id}],methods=[DELETE]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.v2.FlowControllerV2.apiDeleteRule(javax.servlet.http.HttpServletRequest,java.lang.Long)
2019-06-28 19:28:22.532 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/authority/rule/{id}],methods=[DELETE]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.AuthorityRuleController.apiDeleteRule(javax.servlet.http.HttpServletRequest,java.lang.Long)
2019-06-28 19:28:22.532 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/authority/rule],methods=[POST]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.AuthorityRuleController.apiAddAuthorityRule(javax.servlet.http.HttpServletRequest,com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.AuthorityRuleEntity)
2019-06-28 19:28:22.533 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/authority/rule/{id}],methods=[PUT]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.AuthorityRuleController.apiUpdateParamFlowRule(javax.servlet.http.HttpServletRequest,java.lang.Long,com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.AuthorityRuleEntity)
2019-06-28 19:28:22.533 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/authority/rules],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.AuthorityRuleController.apiQueryAllRulesForMachine(javax.servlet.http.HttpServletRequest,java.lang.String,java.lang.String,java.lang.Integer)
2019-06-28 19:28:22.534 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/registry/machine],produces=[application/json]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.MachineRegistryController.receiveHeartBeat(java.lang.String,java.lang.Long,java.lang.String,java.lang.String,java.lang.String,java.lang.Integer)
2019-06-28 19:28:22.536 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/auth/login],methods=[POST]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.AuthController.login(javax.servlet.http.HttpServletRequest,java.lang.String,java.lang.String)
2019-06-28 19:28:22.536 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/auth/logout],methods=[POST]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.AuthController.logout(javax.servlet.http.HttpServletRequest)
2019-06-28 19:28:22.539 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/v1/flow/save.json],methods=[PUT]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.FlowControllerV1.updateIfNotNull(javax.servlet.http.HttpServletRequest,java.lang.Long,java.lang.String,java.lang.String,java.lang.String,java.lang.Integer,java.lang.Double,java.lang.Integer,java.lang.String,java.lang.Integer,java.lang.Integer,java.lang.Integer)
2019-06-28 19:28:22.540 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/v1/flow/rules],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.FlowControllerV1.apiQueryMachineRules(javax.servlet.http.HttpServletRequest,java.lang.String,java.lang.String,java.lang.Integer)
2019-06-28 19:28:22.541 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/v1/flow/rule],methods=[POST]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.FlowControllerV1.apiAddFlowRule(javax.servlet.http.HttpServletRequest,com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity)
2019-06-28 19:28:22.541 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/v1/flow/delete.json],methods=[DELETE]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.FlowControllerV1.delete(javax.servlet.http.HttpServletRequest,java.lang.Long)
2019-06-28 19:28:22.545 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/cluster/state_single],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.cluster.ClusterConfigController.apiGetClusterState(java.lang.String,java.lang.String,java.lang.Integer)
2019-06-28 19:28:22.545 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/cluster/server_state/{app}],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.cluster.ClusterConfigController.apiGetClusterServerStateOfApp(java.lang.String)
2019-06-28 19:28:22.546 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/cluster/client_state/{app}],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.cluster.ClusterConfigController.apiGetClusterClientStateOfApp(java.lang.String)
2019-06-28 19:28:22.546 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/cluster/state/{app}],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.cluster.ClusterConfigController.apiGetClusterStateOfApp(java.lang.String)
2019-06-28 19:28:22.547 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/cluster/config/modify_single],methods=[POST]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.cluster.ClusterConfigController.apiModifyClusterConfig(java.lang.String)
2019-06-28 19:28:22.548 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/system/rules.json],produces=[application/json]}" onto com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.SystemController.queryMachineRules(javax.servlet.http.HttpServletRequest,java.lang.String,java.lang.String,java.lang.Integer)
2019-06-28 19:28:22.549 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/system/save.json],produces=[application/json]}" onto com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.SystemController.updateIfNotNull(javax.servlet.http.HttpServletRequest,java.lang.Long,java.lang.String,java.lang.Double,java.lang.Long,java.lang.Long,java.lang.Double)
2019-06-28 19:28:22.549 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/system/new.json],produces=[application/json]}" onto com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.SystemController.add(javax.servlet.http.HttpServletRequest,java.lang.String,java.lang.String,java.lang.Integer,java.lang.Double,java.lang.Long,java.lang.Long,java.lang.Double)
2019-06-28 19:28:22.550 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/system/delete.json],produces=[application/json]}" onto com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.SystemController.delete(javax.servlet.http.HttpServletRequest,java.lang.Long)
2019-06-28 19:28:22.553 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/paramFlow/rule/{id}],methods=[DELETE]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.ParamFlowRuleController.apiDeleteRule(javax.servlet.http.HttpServletRequest,java.lang.Long)
2019-06-28 19:28:22.553 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/paramFlow/rule/{id}],methods=[PUT]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.ParamFlowRuleController.apiUpdateParamFlowRule(javax.servlet.http.HttpServletRequest,java.lang.Long,com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.ParamFlowRuleEntity)
2019-06-28 19:28:22.554 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/paramFlow/rules],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.ParamFlowRuleController.apiQueryAllRulesForMachine(javax.servlet.http.HttpServletRequest,java.lang.String,java.lang.String,java.lang.Integer)
2019-06-28 19:28:22.555 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/paramFlow/rule],methods=[POST]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.ParamFlowRuleController.apiAddParamFlowRule(javax.servlet.http.HttpServletRequest,com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.ParamFlowRuleEntity)
2019-06-28 19:28:22.557 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/cluster/assign/all_server/{app}],methods=[POST]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.cluster.ClusterAssignController.apiAssignAllClusterServersOfApp(java.lang.String,com.alibaba.csp.sentinel.dashboard.domain.cluster.ClusterAppFullAssignRequest)
2019-06-28 19:28:22.557 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/cluster/assign/single_server/{app}],methods=[POST]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.cluster.ClusterAssignController.apiAssignSingleClusterServersOfApp(java.lang.String,com.alibaba.csp.sentinel.dashboard.domain.cluster.ClusterAppSingleServerAssignRequest)
2019-06-28 19:28:22.558 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/cluster/assign/unbind_server/{app}],methods=[POST]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.cluster.ClusterAssignController.apiUnbindClusterServersOfApp(java.lang.String,java.util.Set)
2019-06-28 19:28:22.559 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/metric/queryTopResourceMetric.json],produces=[application/json]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.MetricController.queryTopResourceMetric(java.lang.String,java.lang.Integer,java.lang.Integer,java.lang.Boolean,java.lang.Long,java.lang.Long,java.lang.String)
2019-06-28 19:28:22.559 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/metric/queryByAppAndResource.json],produces=[application/json]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result com.alibaba.csp.sentinel.dashboard.controller.MetricController.queryByAppAndResource(java.lang.String,java.lang.String,java.lang.Long,java.lang.Long)
2019-06-28 19:28:22.561 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/resource/machineResource.json],methods=[GET]}" onto public com.alibaba.csp.sentinel.dashboard.domain.Result> com.alibaba.csp.sentinel.dashboard.controller.ResourceController.fetchResourceChainListOfMachine(java.lang.String,java.lang.Integer,java.lang.String,java.lang.String)
2019-06-28 19:28:22.564 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/error],produces=[text/html]}" onto public org.springframework.web.servlet.ModelAndView org.springframework.boot.autoconfigure.web.servlet.error.BasicErrorController.errorHtml(javax.servlet.http.HttpServletRequest,javax.servlet.http.HttpServletResponse)
2019-06-28 19:28:22.565 INFO 26515 --- [ main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/error]}" onto public org.springframework.http.ResponseEntity> org.springframework.boot.autoconfigure.web.servlet.error.BasicErrorController.error(javax.servlet.http.HttpServletRequest)
2019-06-28 19:28:22.578 INFO 26515 --- [ main] o.s.w.s.handler.SimpleUrlHandlerMapping : Root mapping to handler of type [class org.springframework.web.servlet.mvc.ParameterizableViewController]
2019-06-28 19:28:22.600 INFO 26515 --- [ main] o.s.w.s.handler.SimpleUrlHandlerMapping : Mapped URL path [/webjars/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
2019-06-28 19:28:22.600 INFO 26515 --- [ main] o.s.w.s.handler.SimpleUrlHandlerMapping : Mapped URL path [/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
2019-06-28 19:28:22.881 INFO 26515 --- [ main] o.s.j.e.a.AnnotationMBeanExporter : Registering beans for JMX exposure on startup
2019-06-28 19:28:22.934 INFO 26515 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 8084 (http) with context path ''
2019-06-28 19:28:22.942 INFO 2651

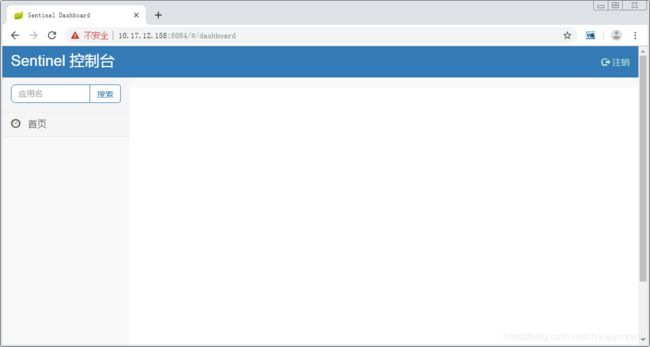

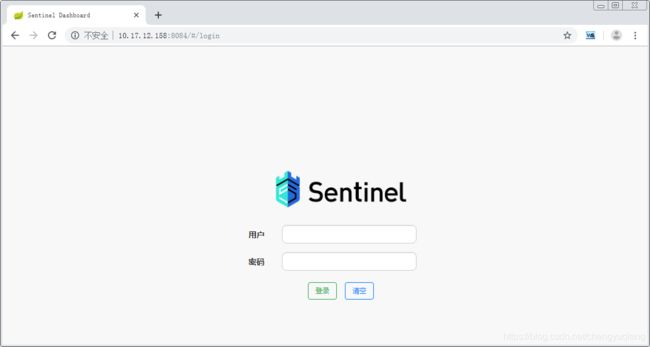

http://10.17.12.158:8084
默认用户名和密码都是sentinel
整合Sentinel
4.0.0
com.cntaiping.tpa
sentinel-rate
0.0.1-SNAPSHOT
jar
sentinel-rate
Demo project for Spring Boot
org.springframework.boot
spring-boot-starter-parent
2.1.6.RELEASE
org.springframework.boot
spring-boot-starter-web
org.springframework.boot
spring-boot-starter-test
test
org.springframework.cloud
spring-cloud-starter-alibaba-sentinel
org.springframework.cloud
spring-cloud-dependencies
Greenwich.SR1
pom
import
org.springframework.cloud
spring-cloud-alibaba-dependencies
0.2.2.RELEASE
pom
import
org.springframework.boot
spring-boot-maven-plugin
repackage
spring.application.name=alibaba-sentinel-rate-limiting
server.port=8085
# sentinel dashboard
spring.cloud.sentinel.transport.dashboard=http://10.17.12.158:8084
package com.cntaiping.tpa.sentinelrate.controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
@RestController
public class HelloController {
@GetMapping("/hello")
public String hello() {
return "Hello,World!";
}
}

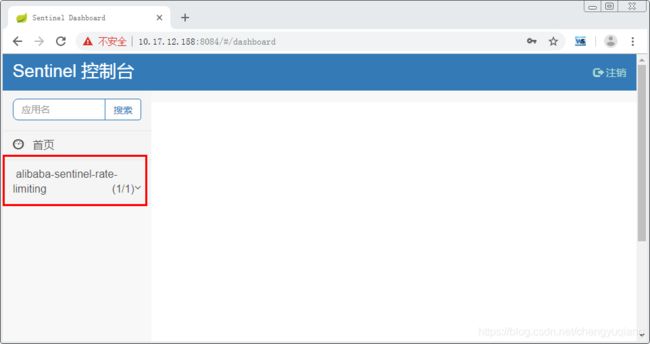

curl localhost:8085/hello

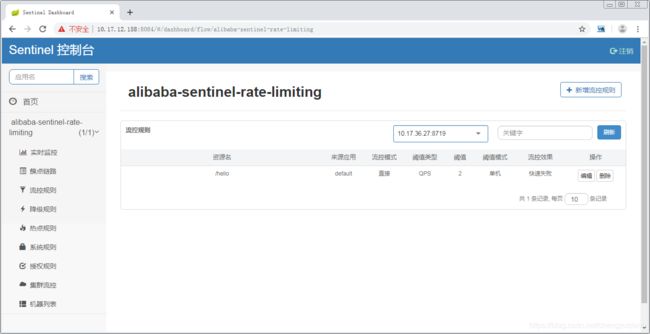

配置限流规则

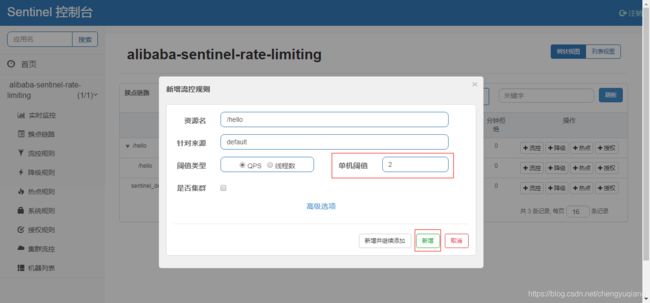

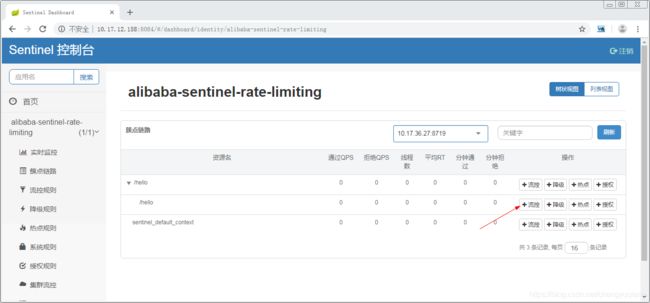

簇点链路–>流控
阈值类型：默认寻找QPS即可
单机阈值：输入2，表示/hello接口的限流策略是每秒最多允许2个请求进入
验证限流

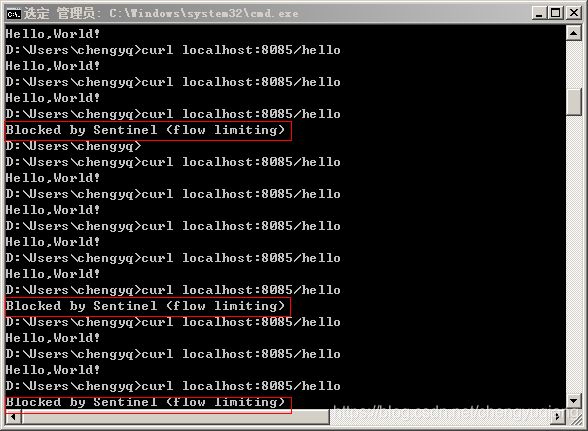

这里尝试快速访问curl localhost:8085/hello，多次尝试后，出现如下效果。
