【图像分割】基于matlab GUI多种阈值图像分割【含Matlab源码 733期】

一、简介

基于matlab GUI多种阈值图像分割

二、源代码

function varargout = yuzhifenge(varargin)
% YUZHIFENGE MATLAB code for yuzhifenge.fig
%      YUZHIFENGE, by itself, creates a new YUZHIFENGE or raises the existing
%      singleton*.
%
%      H = YUZHIFENGE returns the handle to a new YUZHIFENGE or the handle to
%      the existing singleton*.
%
%      YUZHIFENGE('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in YUZHIFENGE.M with the given input arguments.
%
%      YUZHIFENGE('Property','Value',...) creates a new YUZHIFENGE or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before yuzhifenge_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to yuzhifenge_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help yuzhifenge

% Last Modified by GUIDE v2.5 05-Nov-2017 11:53:20

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @yuzhifenge_OpeningFcn, ...
                   'gui_OutputFcn',  @yuzhifenge_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{
     1})
    gui_State.gui_Callback = str2func(varargin{
     1});
end

if nargout
    [varargout{
     1:nargout}] = gui_mainfcn(gui_State, varargin{
     :});
else
    gui_mainfcn(gui_State, varargin{
     :});
end
% End initialization code - DO NOT EDIT


% --- Executes just before yuzhifenge is made visible.
function yuzhifenge_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to yuzhifenge (see VARARGIN)

% Choose default command line output for yuzhifenge
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes yuzhifenge wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = yuzhifenge_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{
     1} = handles.output;


% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
global im;
[filename,pathname]=...
	uigetfile({
     '*.jpg';'*.bnp';'*.png'},'选择图片');
str=[pathname filename];
im=imread(str);
axes(handles.axes1);
imshow(im);
title('原始图像')
axes(handles.axes3);
if isrgb( im )
    im=rgb2gray(im);
end
hist_im=imhist(im); %计算直方图
bar(hist_im);%画直方图
title('原始图像灰度直方图')

% --- Executes on button press in pushbutton2.
function pushbutton2_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
close(gcf)

% --- Executes on button press in radiobutton1.
function radiobutton1_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton1
set(handles.radiobutton1,'value',1);
set(handles.radiobutton2,'value',0);
set(handles.radiobutton3,'value',0);
set(handles.popupmenu1,'value',1);
set(handles.popupmenu2,'value',1);
global im;
        B=im;
        T=0.5*(double(min(B(:)))+double(max(B(:))));
        d=false;
        %通过迭代求最佳阈值
        while~d
         g=B>=T;%g=0或1
         Tn=0.5*(mean(B(g))+mean(B(~g)));%mean(A,2)是矩阵求各行的均值,
         %mean(A)表示求矩阵A的均值，默认的是求各列的均值
         if(abs(T-Tn)<0.1)
         d=1;
         end
        T=Tn;
        end
        axes(handles.axes2);
        % 根据最佳阈值进行图像分割
        level=T/255;
        J=im2bw(B,level);
        imshow(J);
        title('使用基本全局阈值法');


% --- Executes on button press in radiobutton2.
function radiobutton2_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton2
set(handles.radiobutton1,'value',0);
set(handles.radiobutton2,'value',1);
set(handles.radiobutton3,'value',0);
set(handles.popupmenu1,'value',1);
set(handles.popupmenu2,'value',1);
global im;
        I=im;
        I=im2double(I);
        %[width,height]=size(I);
        %otsu
        Th = graythresh(I);
        BW = im2bw(I,Th);
        axes(handles.axes2);
        imshow(BW);
        title('Otsu最佳阈值法');


% --- Executes on button press in radiobutton3.
function radiobutton3_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton3 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton3
set(handles.radiobutton1,'value',0);
set(handles.radiobutton2,'value',0);
set(handles.radiobutton3,'value',1);
set(handles.popupmenu1,'value',1);
set(handles.popupmenu2,'value',1);
global im;
        zi=im;
        bw=adaptivethreshold(zi,11,0.03,0);%	ws=11-平均滤波时的窗口大小，可参考fspecial的用法
                                            %	C-0.03常量，需要根据经验选取合适的参数
                                            %	tm-开关变量，tm=1进行中值滤波，tm=0则进行均值滤波
                                            %	bw-图像分割后输出的二值图像
        axes(handles.axes2);
        imshow(bw);
        title('自适应阈值');

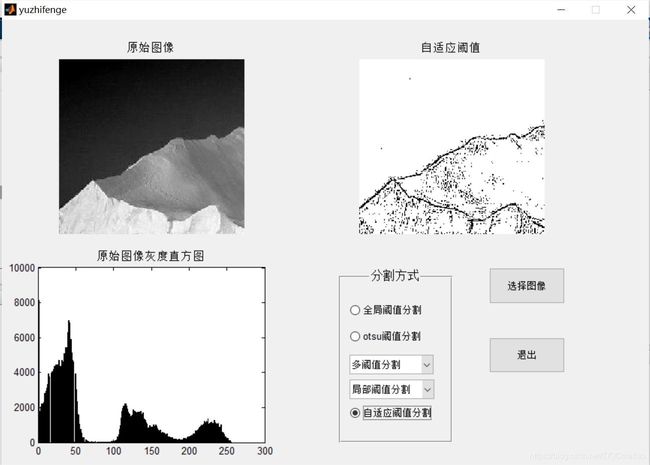

三、运行结果

四、备注
