springboot整合spring-retry的实现示例

1、背景

本系统调用外围系统接口(http+json),但是发现有时外围系统服务不太稳定,有时候会出现返回一串xml或者gateway bad的信息,导致调用失败,基于这一原因,采用基于springboot,整合spring-retry的重试机制到系统工程中,demo已经放到github上。

2、解决方案

简要说明:demo工程基于springboot,为了方便验证,采用swagger进行测试验证。

2.1 pom文件



    4.0.0

        org.springframework.boot
        spring-boot-starter-parent
        2.5.0


    com.laowang
    springretry
    0.0.1-SNAPSHOT
    springretry
    Demo project for Spring Boot

        1.8



            org.springframework.boot
            spring-boot-starter-web




            org.springframework.retry
            spring-retry


            org.aspectj
            aspectjweaver



            io.springfox
            springfox-swagger2
            2.7.0


            io.springfox
            springfox-swagger-ui
            2.7.0






                org.springframework.boot
                spring-boot-maven-plugin



                            org.projectlombok
                            lombok








重点说明:aop的gav必须有,否则会跑不起来。



            org.springframework.retry
            spring-retry


            org.aspectj
            aspectjweaver


2.2 applicat启动类

package com.laowang.springretry;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.retry.annotation.EnableRetry;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
@EnableRetry
@EnableSwagger2
@SpringBootApplication
public class SpringretryApplication {
    public static void main(String[] args) {
        SpringApplication.run(SpringretryApplication.class, args);
    }
}

说明:两个标签而已

@EnableRetry
@EnableSwagger2

2.3 controller类

/**
 * @description: TODO
 * @author Administrator
 * @date 2021/6/2 14:55
 * @version 1.0
 */
package com.laowang.springretry.controller;
import com.laowang.springretry.service.RetryService;
import io.swagger.annotations.Api;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@Api("重试测试类")
@RestController
public class RetryController {
    @Autowired
    RetryService retryService;
    @GetMapping("/testRetry")
    public String testRetry(int code) throws Exception {
        int result = retryService.retryTest(code);
        return "result:" + result;
    }
}

2.4 service测试类(重点)

/**
 * @description: TODO
 * @author Administrator
 * @date 2021/6/2 12:23
 * @version 1.0
 */
package com.laowang.springretry.service;

import org.springframework.retry.annotation.Backoff;
import org.springframework.retry.annotation.Recover;
import org.springframework.retry.annotation.Retryable;
import org.springframework.stereotype.Service;
import java.time.LocalTime;

@Service
public class RetryServiceImpl implements RetryService {

    @Override
    @Retryable(value = Exception.class, maxAttempts = 3, backoff = @Backoff(delay = 2000, multiplier = 1.5))
    public int retryTest(int code) throws Exception {
        System.out.println("retryTest被调用,时间:" + LocalTime.now());
        if (code == 0) {
            throw new Exception("异常抛出!");
        }
        System.out.println("retryTest被调用,情况对头了!");

        return 200;
    }
    @Recover
    public int recover(Exception e) {
        System.out.println("回调方法执行,可以记录日志到数据库!!!!");
        //记日志到数据库 或者调用其余的方法
        return 400;
    }
}

**说明:**三个标签

@Retryable注解
被注解的方法发生异常时会重试
value:指定发生的异常进行重试
include:和value一样,默认空,当exclude也为空时,所有异常都重试
exclude:指定异常不重试,默认空,当include也为空时,所有异常都重试
maxAttemps:重试次数,默认3
backoff:重试补偿机制,默认没有

@Backoff注解说明
delay:指定延迟后重试
multiplier:指定延迟的倍数,比如delay=2000,multiplier=1.5时,第二次重试与第一次执行间隔:2秒;第三次重试与第二次重试间隔:3秒;第四次重试与第三次重试间隔:4.5秒。。。

@Recover
当重试到达指定次数时,被注解的方法将被回调,可以在该方法中进行日志处理。需要注意的是发生的异常和入参类型一致时才会回调

2.5 项目启动

springboot整合spring-retry的实现示例_第1张图片

执行运行application,启动成功,默认端口号:8080

springboot整合spring-retry的实现示例_第2张图片

2.6 使用swagger进行验证

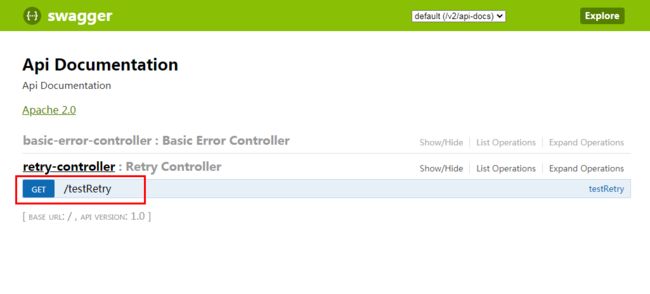

(1)swagger访问地址:

http://localhost:8080/swagger-ui.html

(2)先验证成功返回

springboot整合spring-retry的实现示例_第3张图片

先测试正常调用试试,code=1

springboot整合spring-retry的实现示例_第4张图片

调用返回:

springboot整合spring-retry的实现示例_第5张图片

(3)重试机制:code=0(重点)

为了更好的说明问题,参数配置增大一些:

@Retryable(value = Exception.class, maxAttempts = 5, backoff = @Backoff(delay = 2000, multiplier = 2))

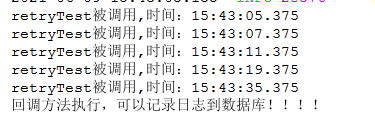

执行效果

springboot整合spring-retry的实现示例_第6张图片

说明:

从执行效果看,总共执行5次,第二次跟第一次之间是2秒;第三次跟第二次之间是2*2=4秒;第四次与第三次之间是:2 乘以2乘以2=8秒,第五次与第四次之间是:2 乘以2乘以2乘以2=16秒,符合预期。

执行完成后,进入 @Recover标签内容,可以进行日志记录,以便后续定位问题。

github项目地址:https://github.com/ruanjianlaowang/springretry
