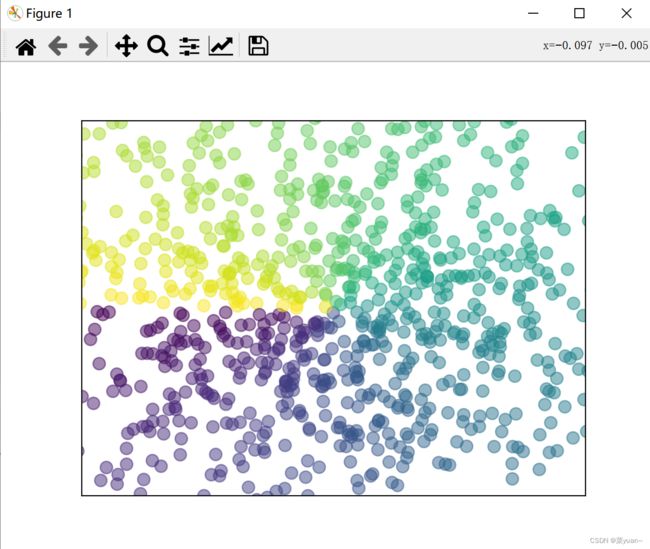

1. 散点图
import matplotlib.pyplot as plt
import numpy as np
n = 1024
X = np.random.normal(0, 1, n)
Y = np.random.normal(0, 1, n)
T = np.arctan2(Y, X)
plt.scatter(X, Y, s=75, c=T, alpha=0.5)
plt.xlim((-1.5, 1.5))
plt.ylim((-1.5, 1.5))
plt.xticks(())
plt.yticks(())
plt.show()

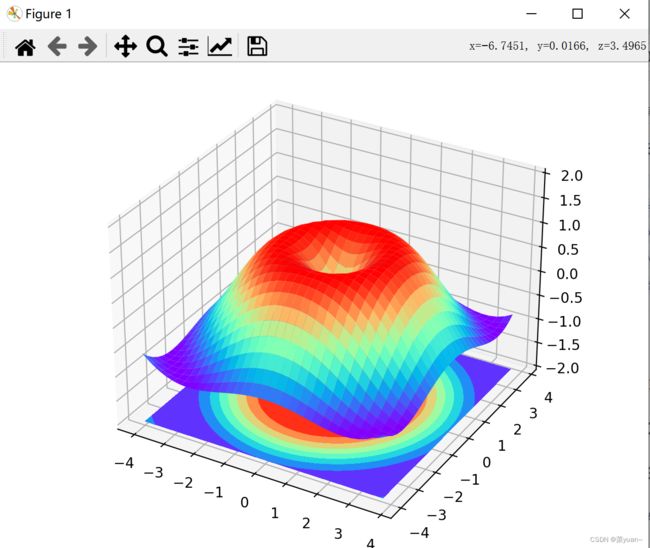

2. 三维图
import matplotlib.pyplot as plt
import numpy as np
from mpl_toolkits.mplot3d import Axes3D
fig = plt.figure()
ax = Axes3D(fig)
X = np.arange(-4, 4, 0.25)
Y = np.arange(-4, 4, 0.25)
X, Y = np.meshgrid(X, Y)
R = np.sqrt(X ** 2 + Y ** 2)
Z = np.sin(R)
ax.plot_surface(X, Y, Z, rstride=1, cstride=1, cmap=plt.get_cmap('rainbow'))
ax.contourf(X, Y, Z, zdir='z', offset=-2, cmap='rainbow')
ax.set_zlim3d(-2, 2)
plt.show()

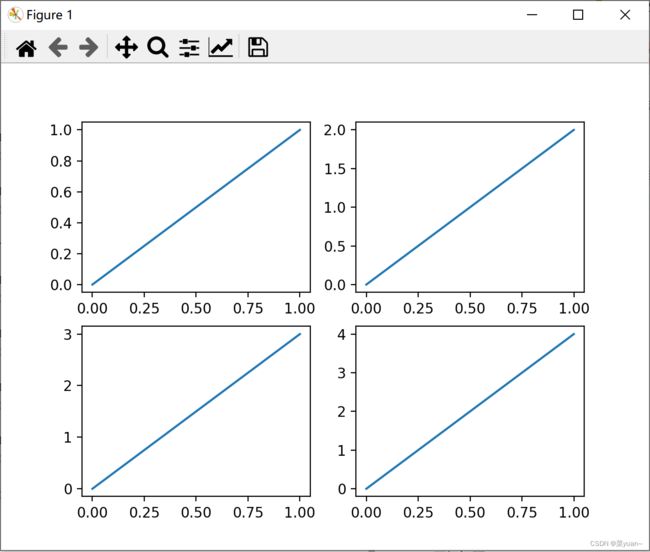

3. 子图
import matplotlib.pyplot as plt
plt.figure(1)
plt.subplot(2, 2, 1)
plt.plot([0, 1], [0, 1])
plt.subplot(2, 2, 2)
plt.plot([0, 1], [0, 2])
plt.subplot(2, 2, 3)
plt.plot([0, 1], [0, 3])
plt.subplot(2, 2, 4)
plt.plot([0, 1], [0, 4])
plt.figure(2)
plt.subplot(2, 1, 1)
plt.plot([0, 1], [0, 1])
plt.subplot(2, 3, 4)
plt.plot([0, 1], [0, 2])
plt.subplot(2, 3, 5)
plt.plot([0, 1], [0, 3])
plt.subplot(2, 3, 6)
plt.plot([0, 1], [0, 4])
plt.show()
